SPECIFICATIONS

Battery Cell Composition: LiFePO4 Battery

Battery Specific: Built-in BMS

Battery Terminal Configuration: Others

Brand Name: KEPWORTH

CCA: 1300A/1600A/1900A/2300A

Certificate: CE,ROHS,MSDS,UN38.3

Cycle Life: More than 6000 Times

End Voltage: 8V

High-concerned chemical: none

Item Type: Car Batteries

Max Protection Voltage: 14.6V

Model Number: KP072-20; KP80D26L/R; KP95D31L/R; KP082-20; KP100-20; KP110-20

Nominal Capacity: 70Ah; 80Ah; 100Ah; 120Ah

Origin: Mainland China

Start-stop battery: Yes

Voltage: 12 V

Voltage protection board: Yes

Please Note!!!

1、Size: this data is particularly critica. All models of the car battery compartment is a fixed size, as long as the new battery dimensions match the original battery, it is will certainly be able to replace the original battery use!

2、Positive and Negative Poles Directions: all car battery compartment position is fixed, if the positive and negative position reversed, the battery can not be installed properly, will not work!

3、The battery itself is a consumable, after receiving the battery should be fully charged before use, charging is strictly prohibited to reverse the positive and negative poles and short, if the battery is not used for a long time (more than 6 months) to charge the battery to about 80% of the stored SOC voltage of 13.1V or more. And after 6 months, charge and discharge the battery once again.VB5

4、Do not use lead-acid battery chargers for charging!

Product Specifications:

Model: KP072-20; KP80D26L/R; KP95D31L/95D31R; KP082-20; KP100-20; KP110-20

Type : LiFePO4

Rated Voltage: 12.8V

Capacity: 70Ah/80Ah/100Ah/120Ah

CCA: 1300A/1600A/1900A/2300A

Operating voltage range: 14.6V-10V

Overcharge protection voltage : 14.6V + 0.05V

Over discharge protection voltage : 10V + 0.05V

Battery temperature protection: 60℃±5℃

BMS Board：200A

Service life: more than 6000 cycles

Charging temperature : 0~45 ℃

Discharge temperature : -20 ~ 60 ℃

Storage temperature : -20 ~ 45 ℃

Dimension(L x W x H) and Weight:

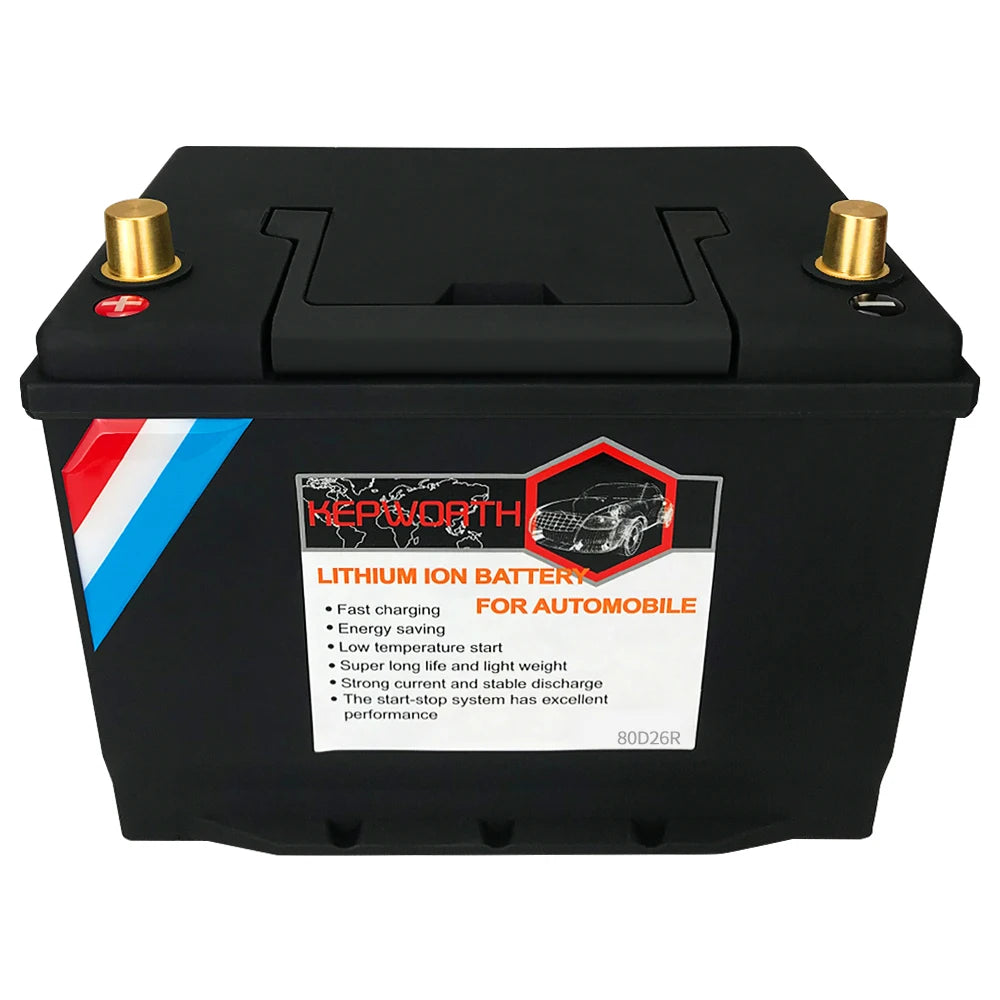

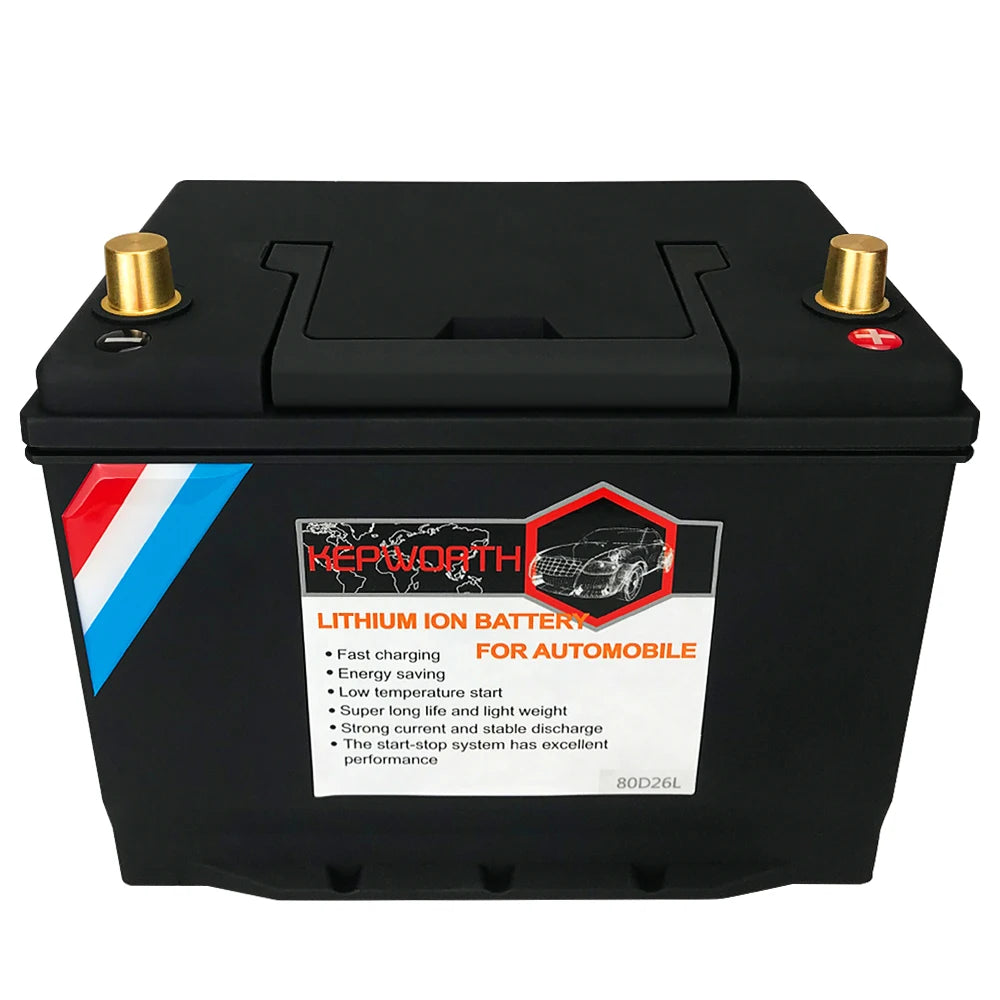

80D26L/R: 260*172*203mm/10.2*6.8*8.0in; 9kg

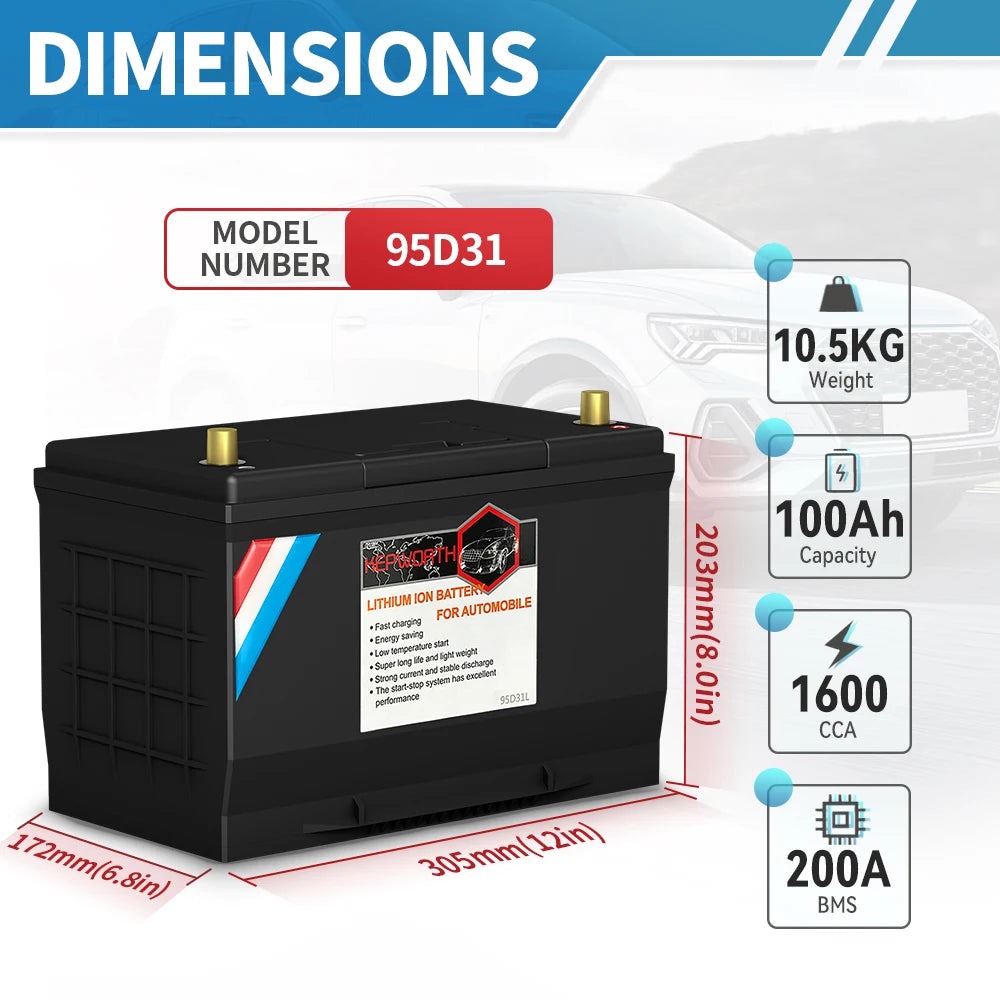

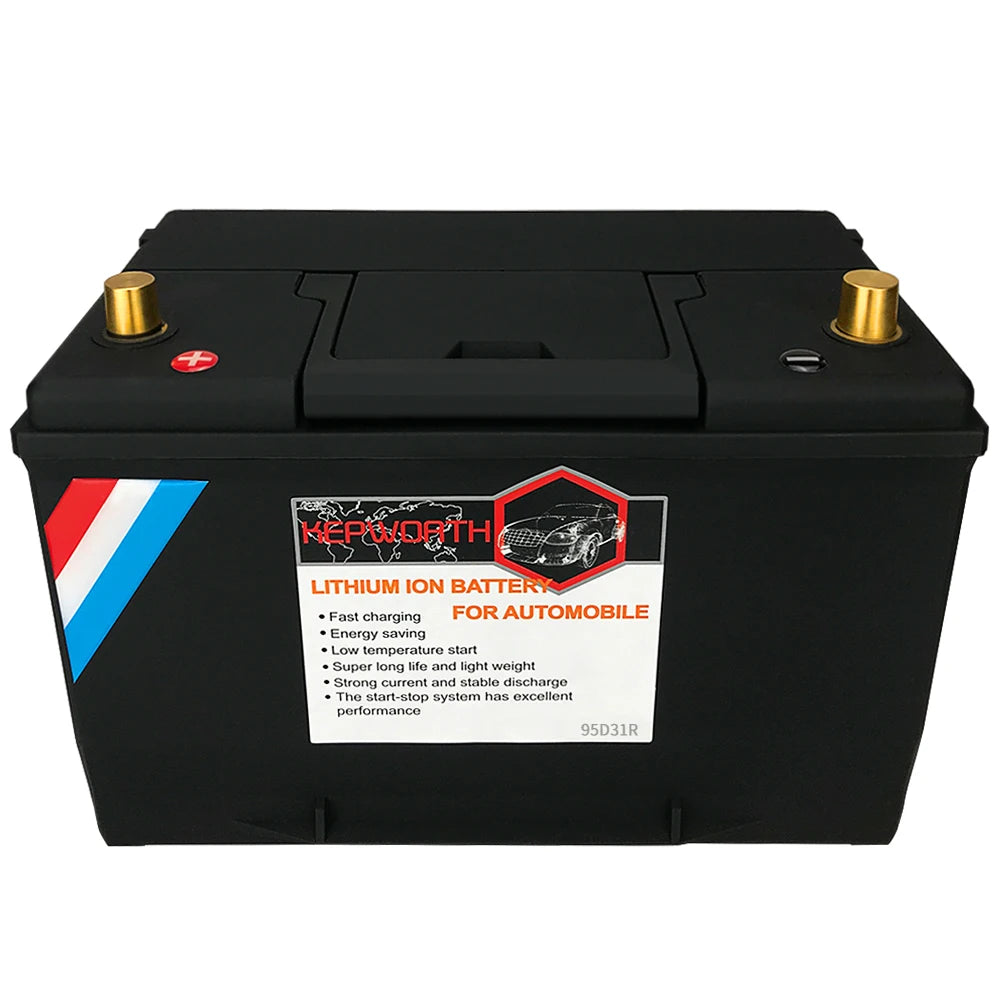

95D31L/R: 305*172*203mm/12*6.8*8.0in; 10.5kg

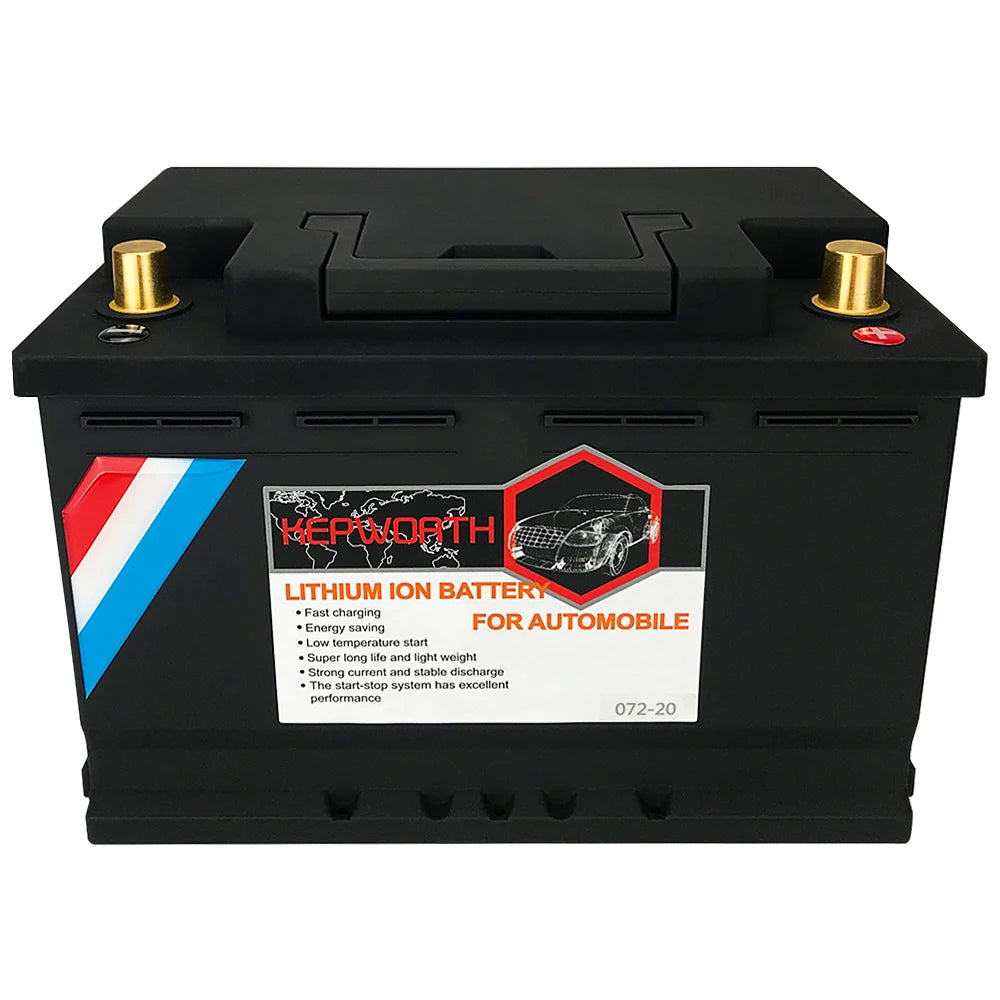

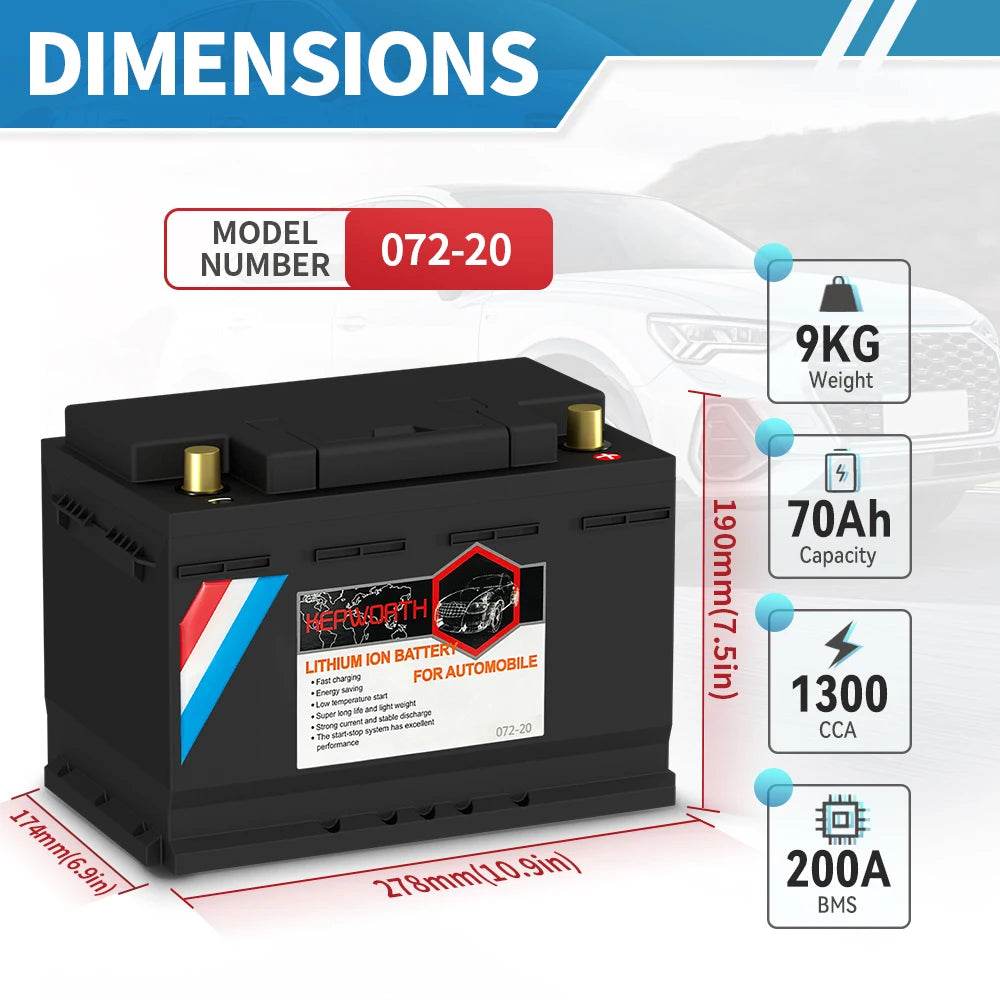

072-20: 278*174*190mm/10.9*6.9*7.5in; 9kg

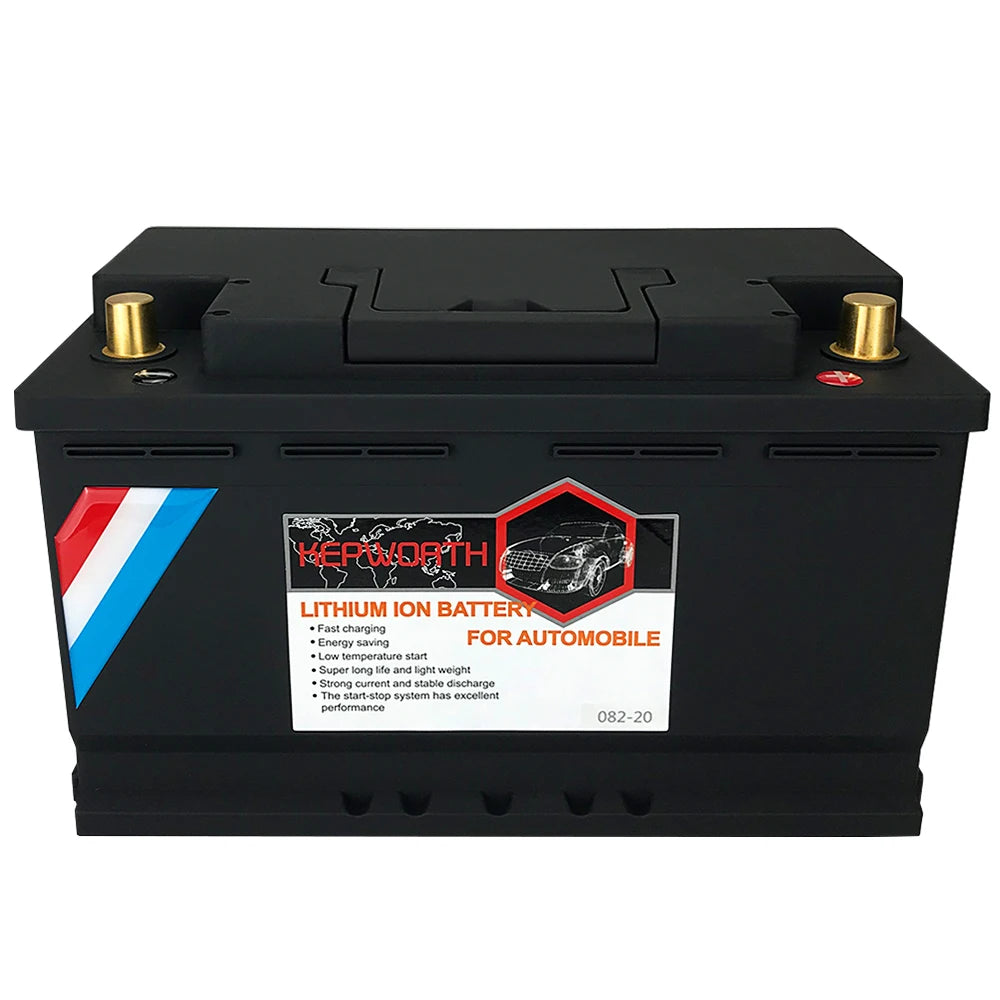

082-20: 305*174*190mm/12*6.9*7.5in; 9kg

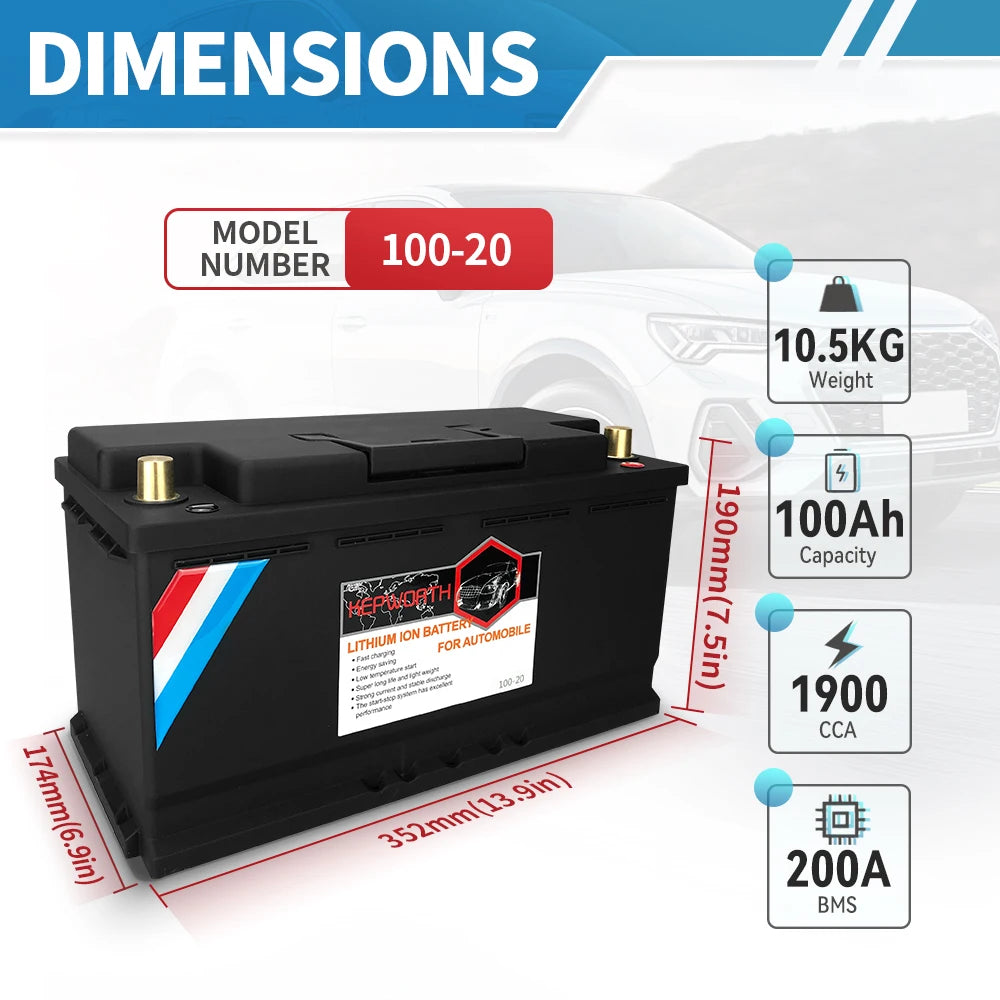

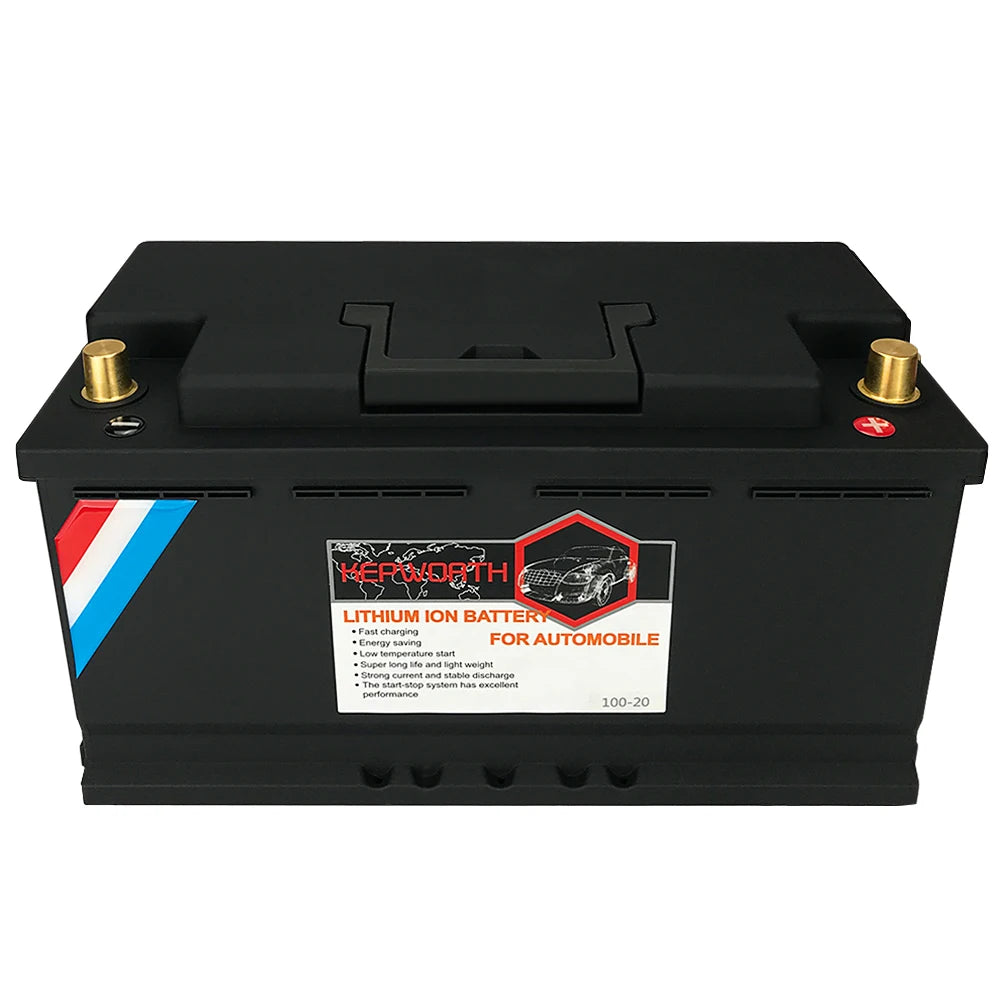

100-20: 352*174*190mm/13..9*6.9*7.5in; 10.5kg

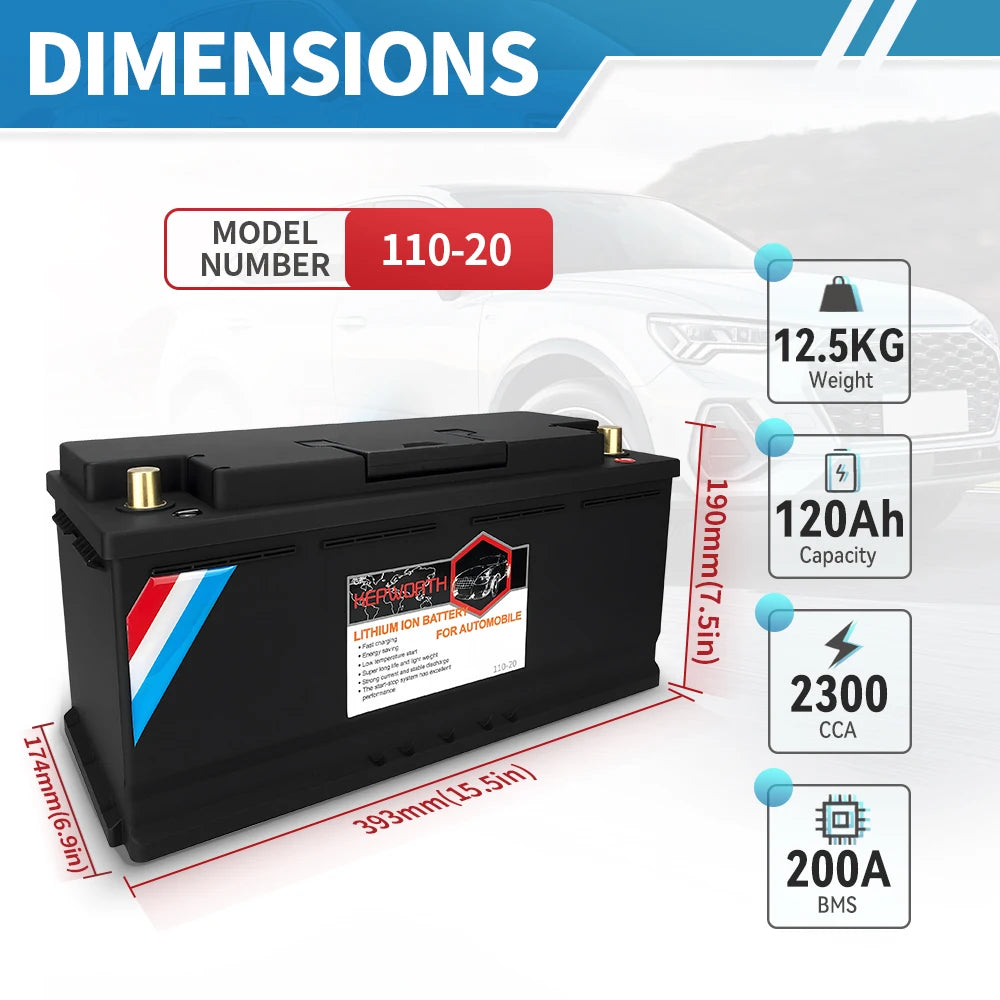

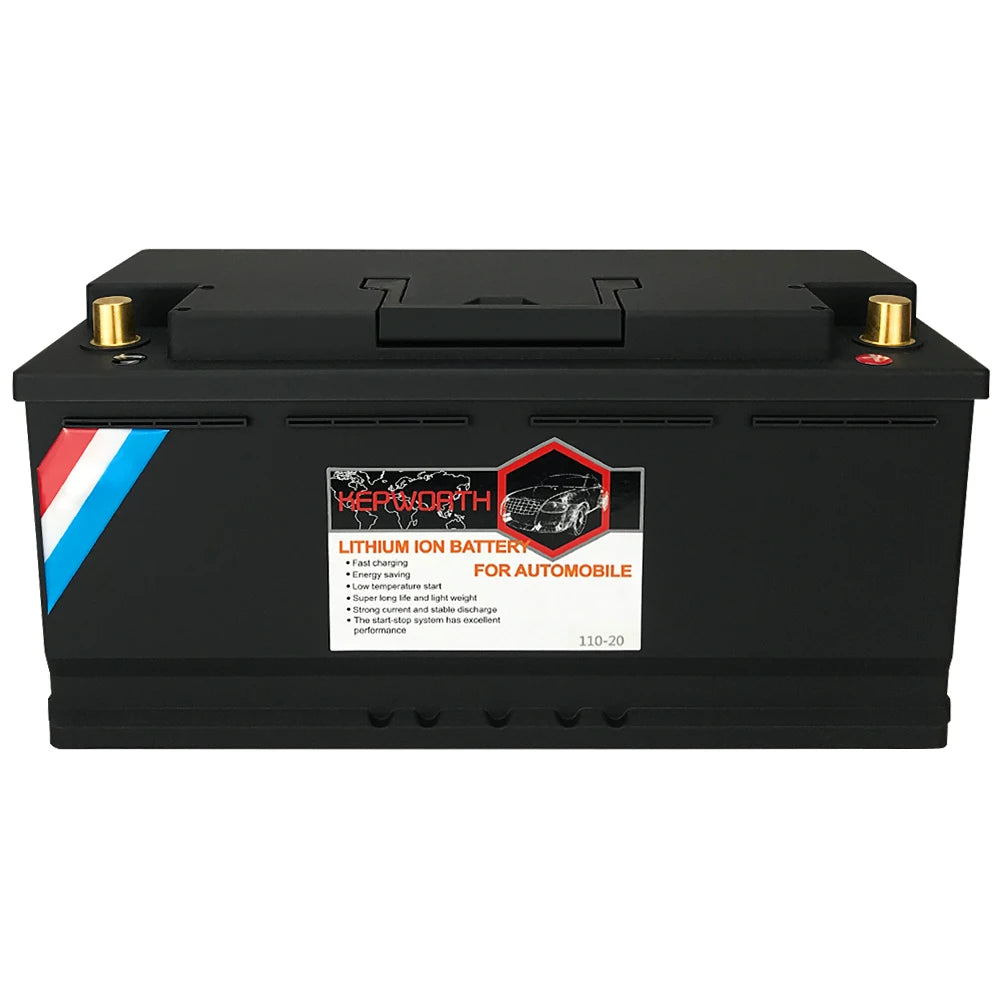

110-20: 393*174*190mm/15.5*6.9*7.5in; 12.5kg

Features:

[Light weight]This LiFePO4 Battery Weighting only 1/3* the weight of lead acid batteries. It is 50% lighter than lead acid battery with the same capacity.

[Low self discharge rate]It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).

[No pollution]It does not contain any hazardous materials such as heavy metal ,acid or any leads etc. Excellent large current charging performance: It can accept 10C charge current and 90% will be charged with 6 minutes.

[Fuels saving]Increased the ignition voltage , improved spark plug's efficiency ,so it can save fuels for your vehicles.

[Long cycle life]Normally the cycle life our our battery can reach more than 2000 time with 80% capacity ( noral lead acid battery has only 300 times cycle life ).

[Resistant to high and low temperatures]The traditional factory standard batteries and common batteries on the market are basically lead-acid batteries, which are greatly affected by the temperature, and have a small discharge capacity in winter, and our lithium iron phosphate material can withstand low temperatures -20 ° high temperatures of 80 ° normal operation of such environments!

[100% Protection]Built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.

Safety Precaution

1.Do not throw battery into water or make it wet

2.Keep the battery away from heat source

3.Do not throw the battery into fire or heat the battery

4.Forbid to hammer to trample the battery

5.Forbid disassembling the battery in anyway
