SPECIFICATIONS

Application: Others

Battery Core manufacturer: -

Battery Number: 1

Brand Name: ZMNBKLS

Bundle: Bundle 1

Capacity: 3000Mah

Certification: CE

High-concerned chemical: none

Interface: PH-2.OP

Model Number: PL103665

Nominal Capacity: 3000mAh

Operating Temperature: -20°C-60°C

Origin: Mainland China

Product Name: heltec V3 battery

Protection Function: vercharge, overdischarge, overcurrent, short circuit

Replacement Battery: No

Reusability: Reusable

Set Type: Batteries Only

Size: 10/36/68mm (H*W*L)

Specifications: PL103665/3000mAh/3.7V

Type: Li-Ion

Usage: Digital medical aesthetic products, handheld fans Smart Furniture





Summary

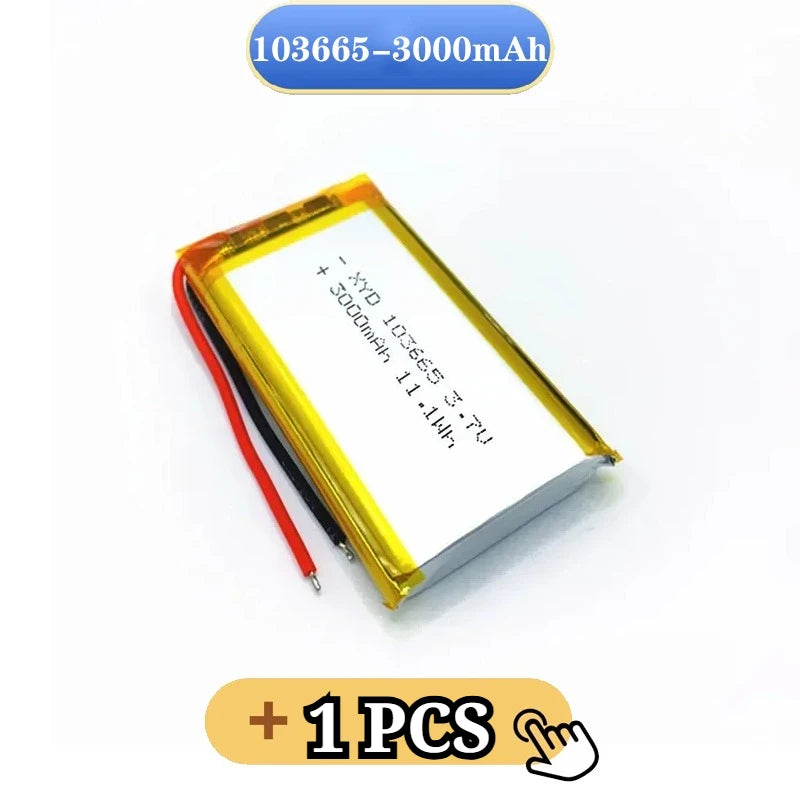

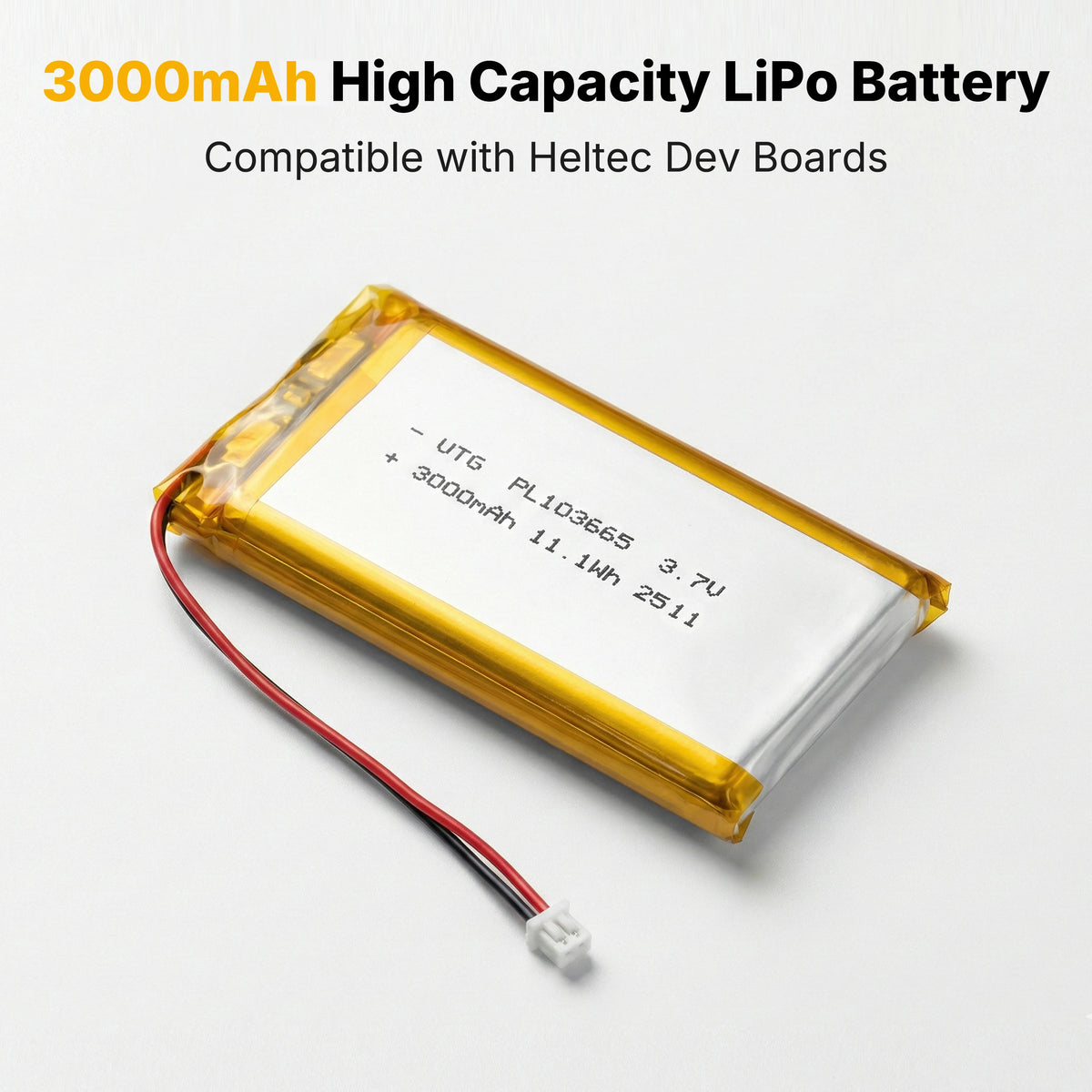

This is a lithium battery, model: PL103665/3000mAh/3.7V.It has the characteristics of long service life,



high temperature resistance, stable internal resistance, safe explosion-proof, etc. It can be widely used



in daily life, such as dash cam, navigator and remote control. At the same time, this lithium battery can

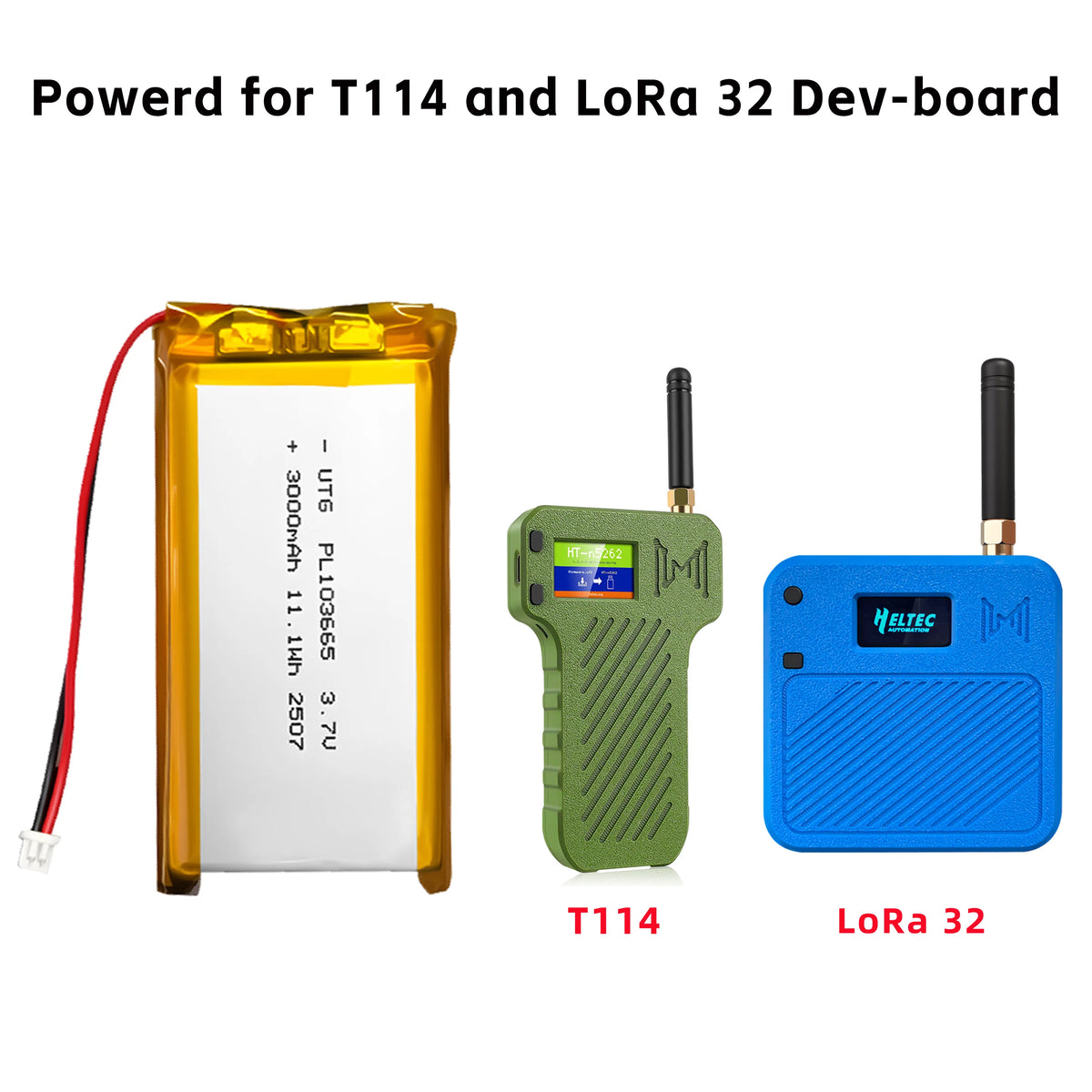

also be used in combination with T114 and Lora 32 V3 dev-boards.



• Used in combination with T114 Dev-board



• Used in combination with LoRa 32 Dev-board



NEW 3 in 1 ESP32 LoRa V3 Development Board + 3000mAh



Battery + Protect Case Set













800mAh Battery Specifications





Parameters	Description
Model	PL802540/800mAh/3.7V
Battery size	8/25/43mm (H*W*L)
Battery specification	with battery plate + cable + terminals + battery cells
Connector	PH-2.0P
Operating Temperature	-20°C to 60°C
Charging Temperature	0°C-50°C
Rated voltage	3.7 V
Capacity	800mAh
Chemistry type	lithium polymer battery
Protection function	overcharge, overdischarge, overcurrent, short circuit
Battery	3.7V lithium battery power supply and charge.
Application areas	Car Recorders, DVDs, Smart Home Appliances, Consumer Electronics, Misters





















Specifications





Parameters	Description

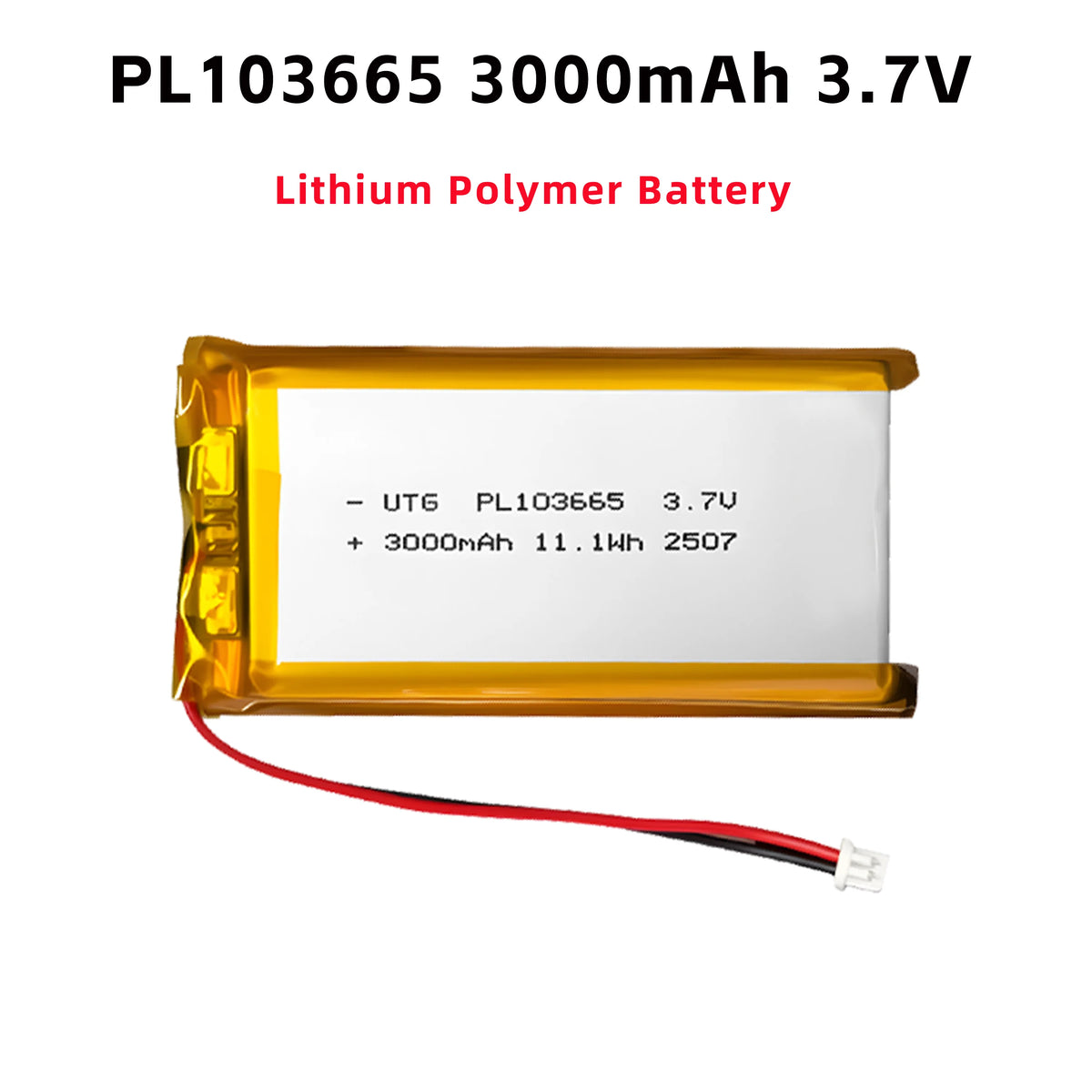

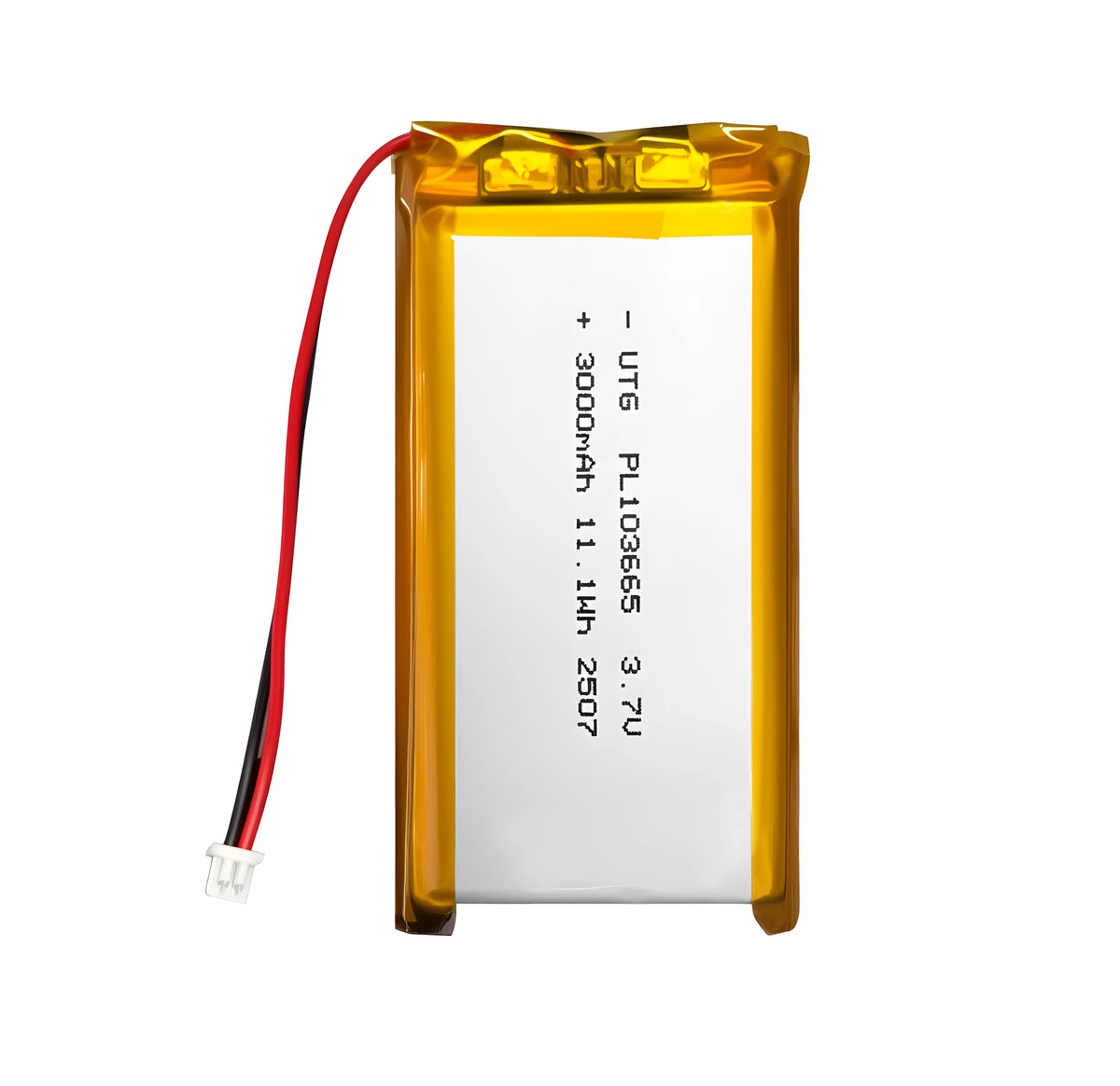

Model	PL103665/3000mAh/3.7V

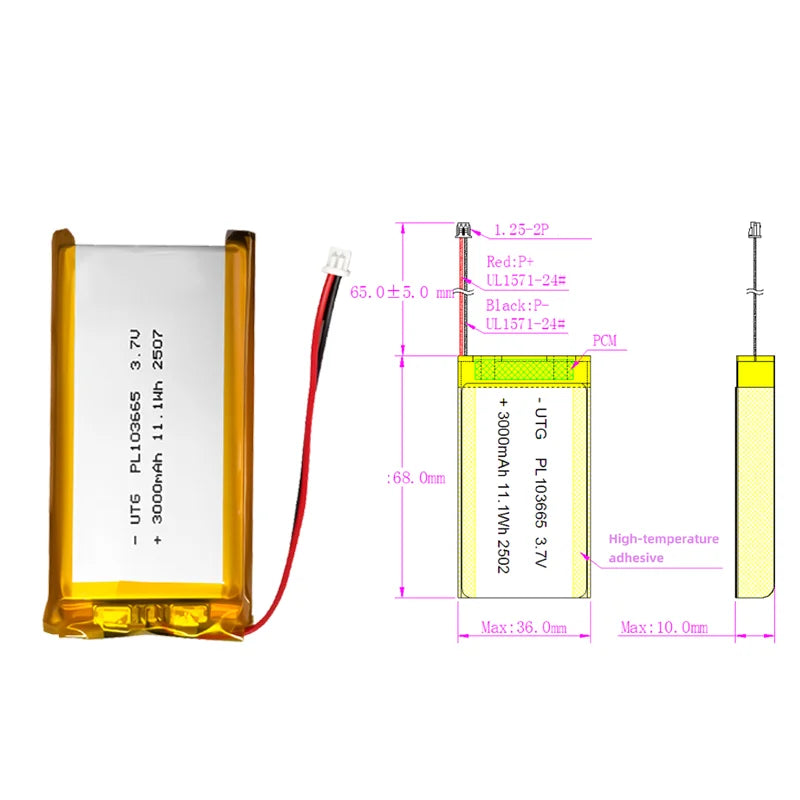

Battery size	10/36/68mm (H*W*L)
Battery specification	with battery plate + cable + terminals + battery cells
Connector	PH-2.0P
Operating Temperature	-20°C to 60°C
Charging Temperature	0°C-50°C
Rated voltage	3.7 V
Capacity	3000mAh
Chemistry type	lithium polymer battery
Protection function	overcharge, overdischarge, overcurrent, short circuit
Battery	3.7V lithium battery power supply and charge.
Application areas	Car Recorders, DVDs, Smart Home Appliances, Consumer Electronics, Misters
