33.6V 5A 3A Lithium Battery Charger 28.8V 5A 29.6V 8S Li Ion 20AH 30AH Batterie Fast Charger DC Connector With Fan

Rs.19,408.74

~~Rs.32,347.89~~ Rs.19,408.74

Sale Sold out

Shipping calculated at checkout.

Color 33.6V 5A 33.6V 3A

Socket Standard Korea AU US UK EU

Ships From China Mainland

SPECIFICATIONS

Brand Name: BAYADOU

Certification: CE

Charge Mode: CC to CV

Charging plug: US/EU/UK/AU Plug we can offer

Choice: yes

Compatible Devices: Battery

Data Transmission: no

Display screen: No

GaN: no

High-concerned chemical: none

Intelligent Charge: Yes

Max. Output Power: 168W

Model Number: 33.6V 5A

Origin: Mainland China

Output Power: 150-500（include500）

Package: Yes

Power Source: Ac

Product name: 33.6V 5A

Protections: Short circuit / Overload / Over voltage

Quick charge: Yes

Type: Electric

Use: Standard Battery

Use For: 28.8V 8S Lithium Battery Pack

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

Warranty: 1 Years

semi_Choice: yes

33.6V 5A 3A Lithium Battery Charger 28.8V 5A 29.6V 8S Li ion 20AH 30AH

Batterie Fast Charger DC Connector With Fan

Charger description
Input Voltage:100-240V AC 50/60HZ
Output Voltage:33.6V
Output Current:3A / 5A

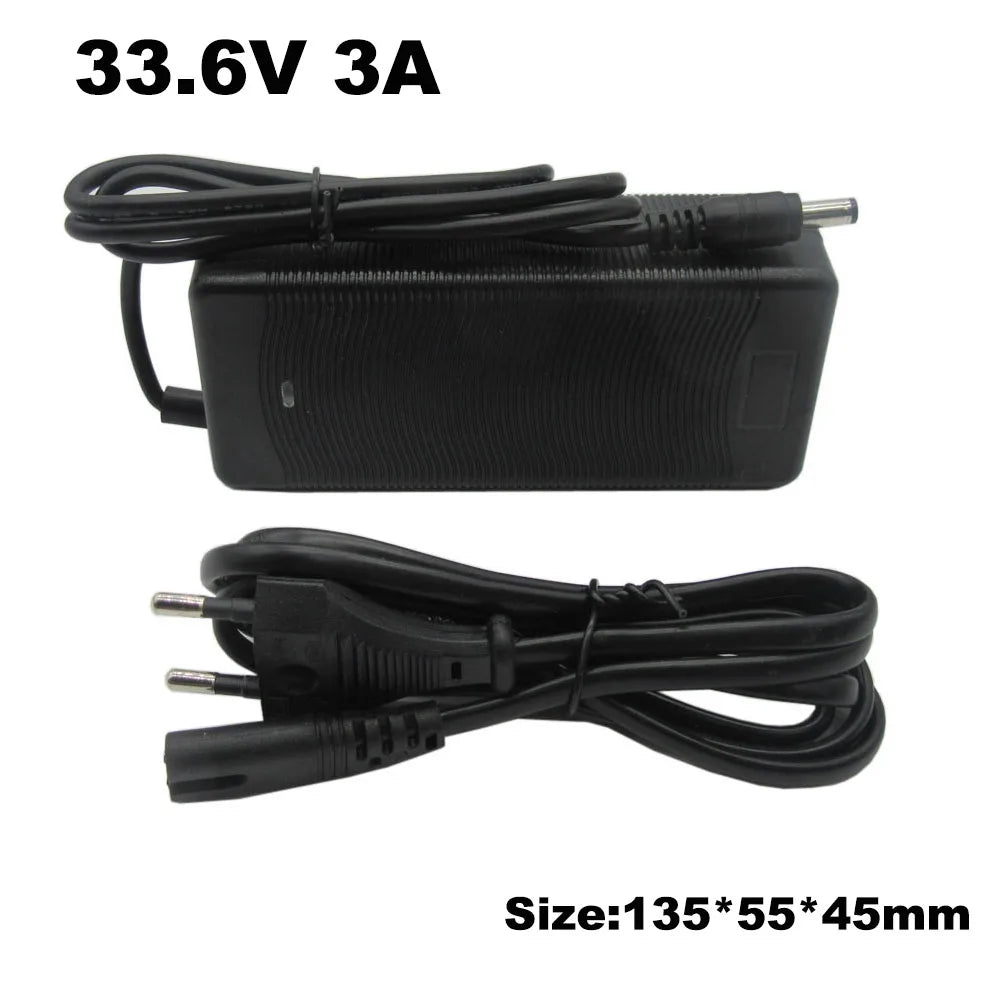

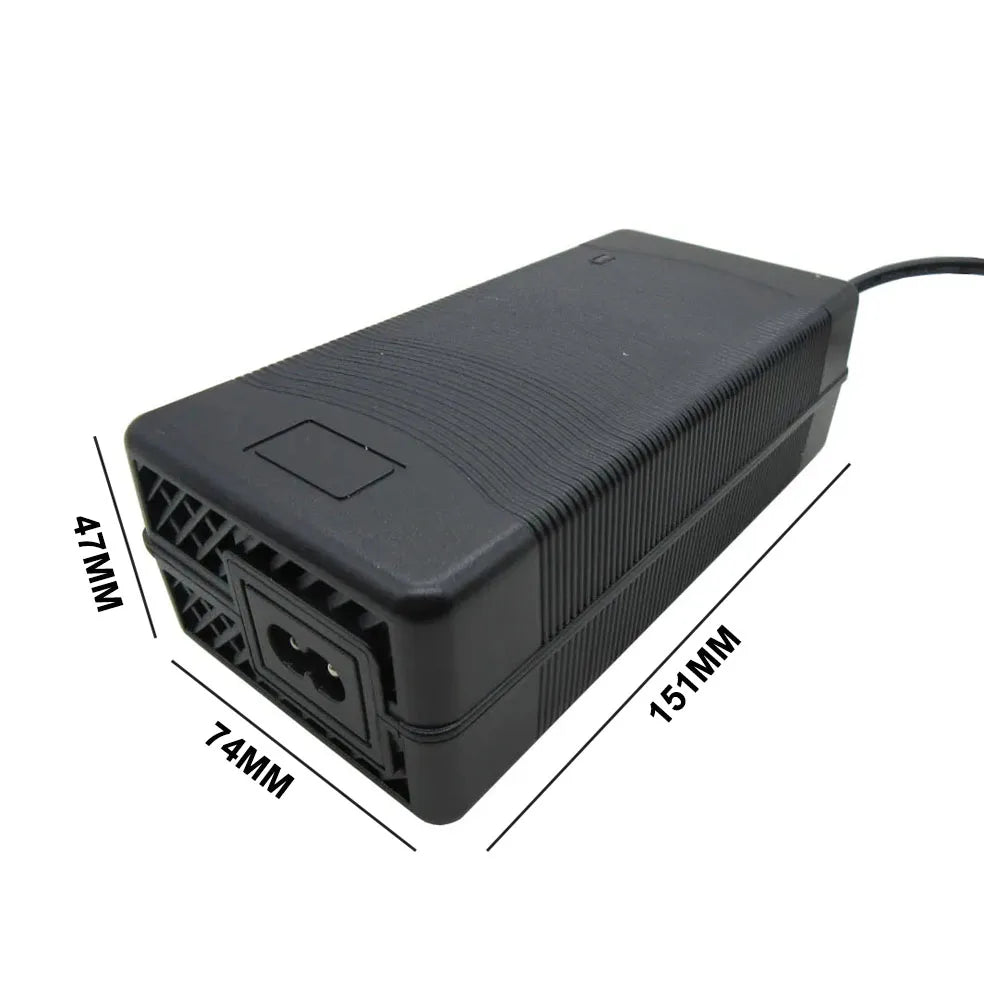

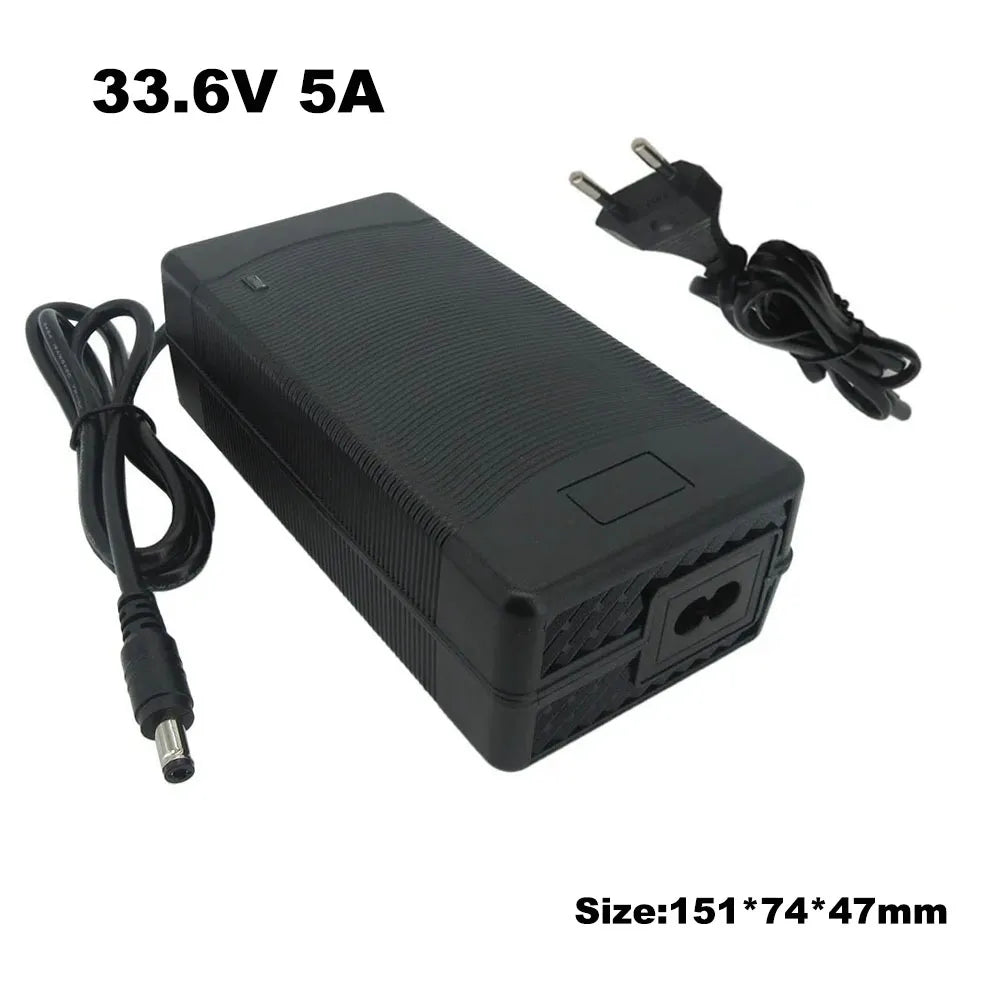

Size:135*55*45mm / 151*74*47mm

Weight:0.22KG / 0.3KG

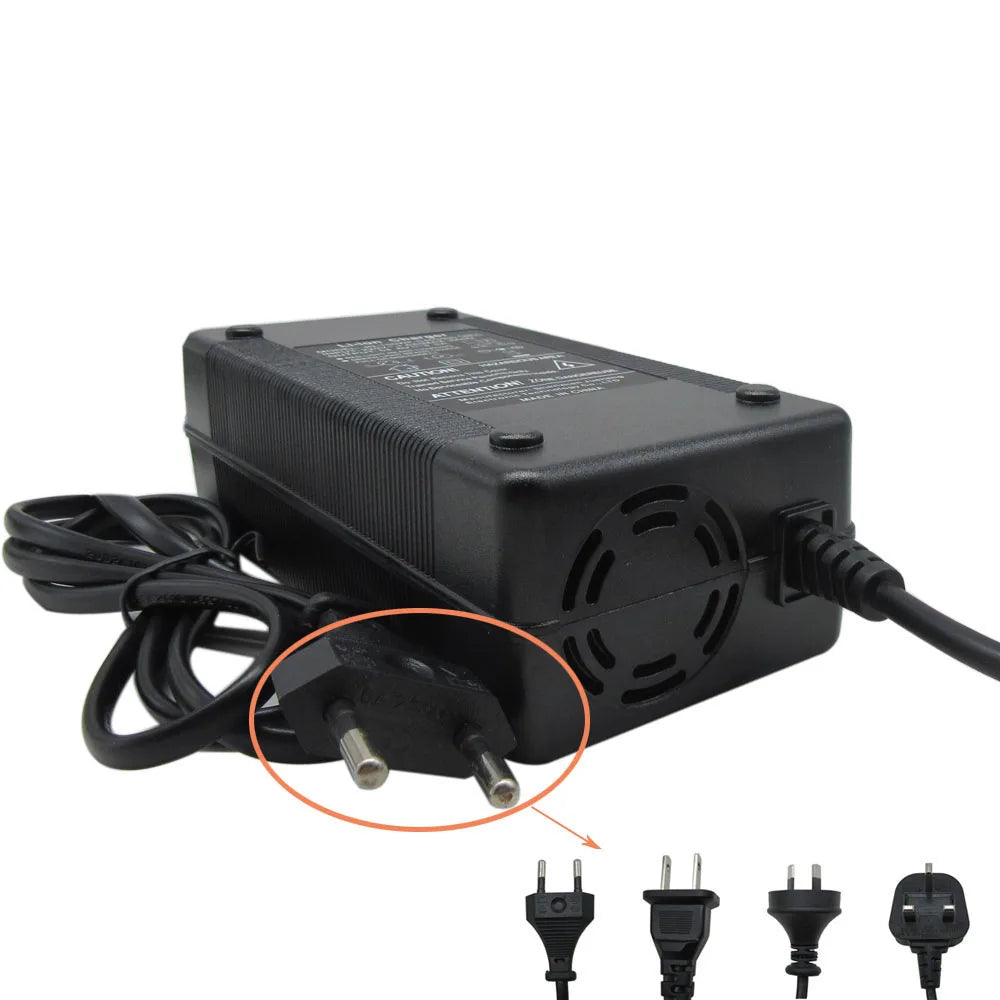

Charging Plug:US/EU/UK/AU plug we can offer
Safety standard:CE/RoHS

DC 5.5*2.5MM Connector also suit for 5.5*2.1MM Size.

Apply to:28.8V 29.6V 8S Lithium Li-ion battery pack

Charge Mode:CC-CV

Notice:

When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug. If you pull the battery plug first while charging, especially when the charging current is large (red light), it is very easy to damage the charger.

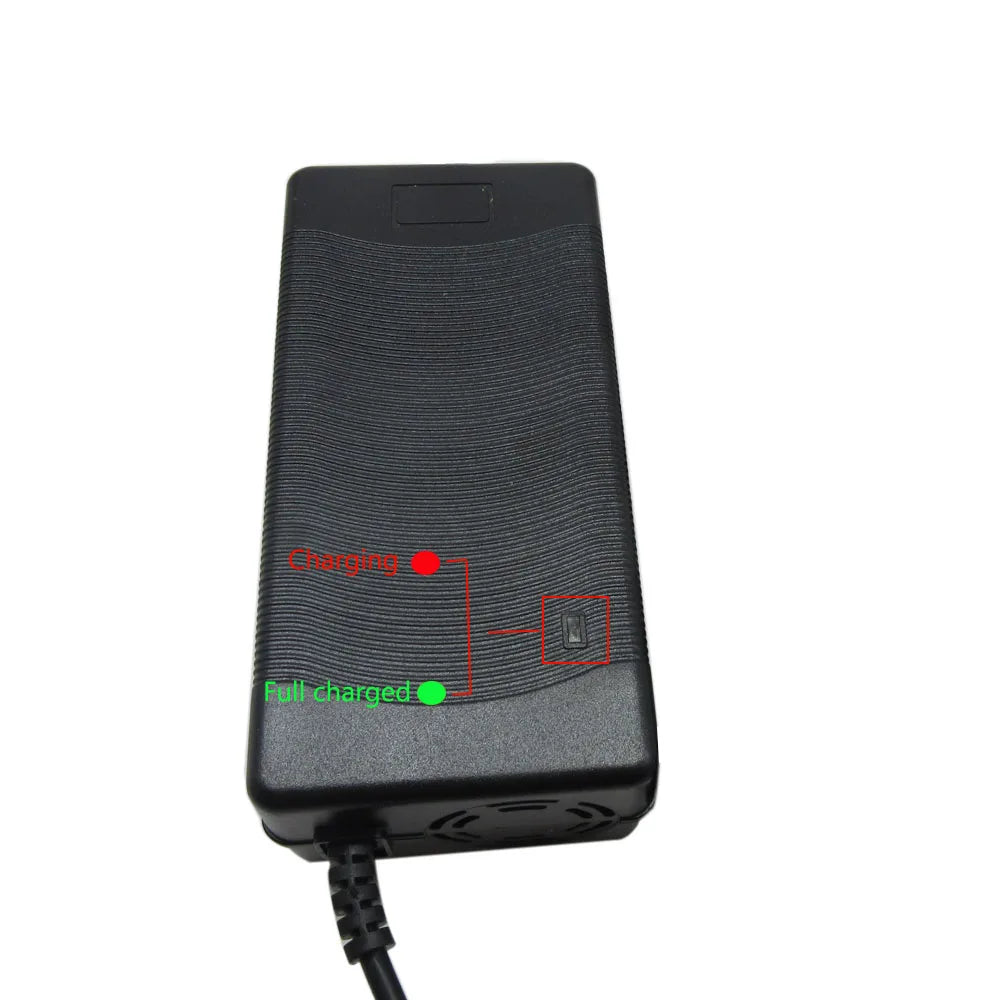

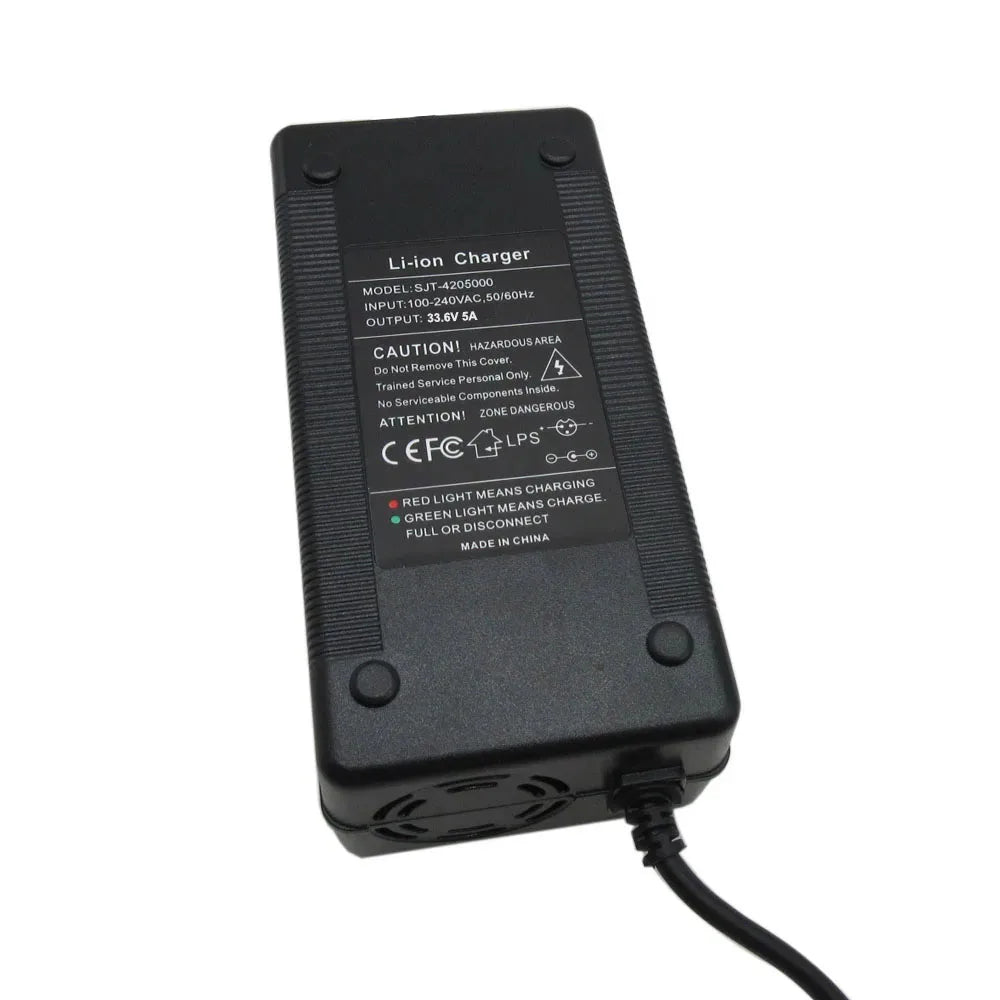

LED Light:

RED ---Charging

Green---Full charged, Stop automatically and turn green when the battery is full charged.

Charge mode:CC-CV

First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.

Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.
