SPECIFICATIONS

BMS function: adverse-polarity connection, balancing functions

BMS functions: over-current, over-discharge, over-charge, short-circuit,

Battery Management System: Battery Management System

Battery Number: 1

Battery type: li ion rechargeable battery pack

Brand Name: DIXSG

Bundle: Bundle 1

Certification: CE

Charging method: CC/CV

Cycle Life: 6000 times

High-concerned chemical: none

Model Number: 60V 100Ah 120Ah 150Ah 200Ah

Nominal Capacity: *

Origin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Size: depend on capacity

Type: LiFePO4

Warm noted: If you are in Europe,EU, United States, Canada etc. the delivery time is about 60-75days.

If you need it urgently, please feel free to contact us !

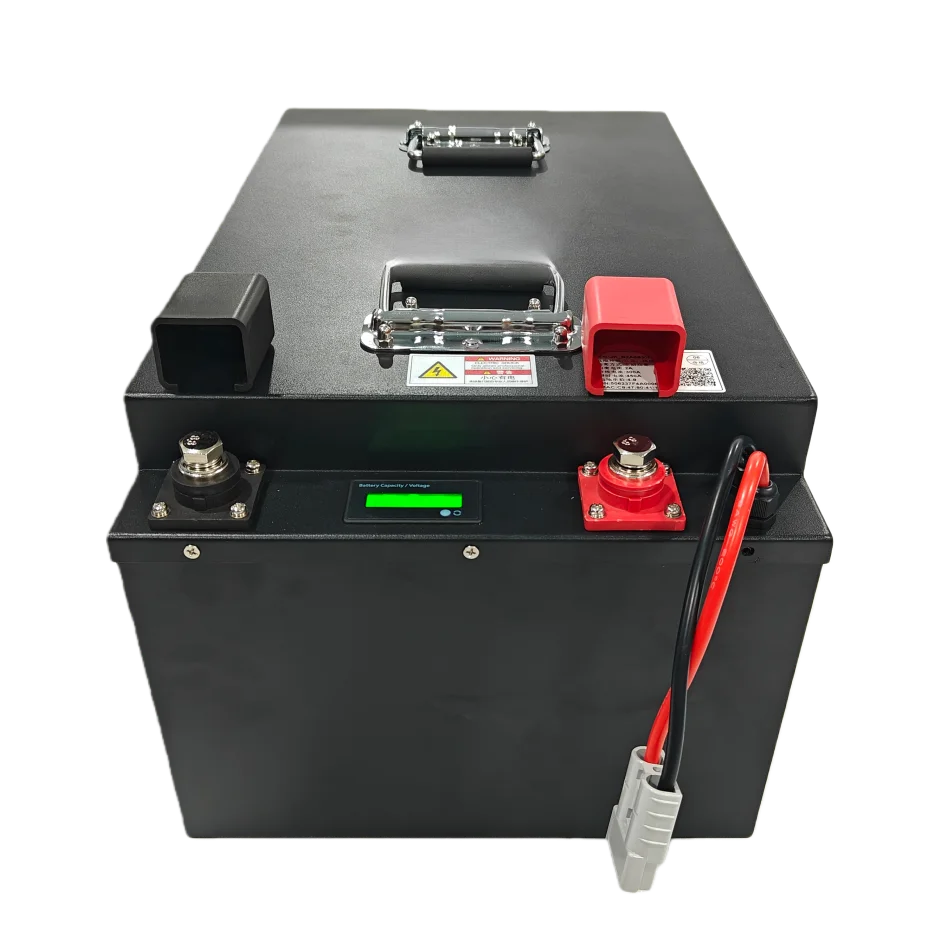

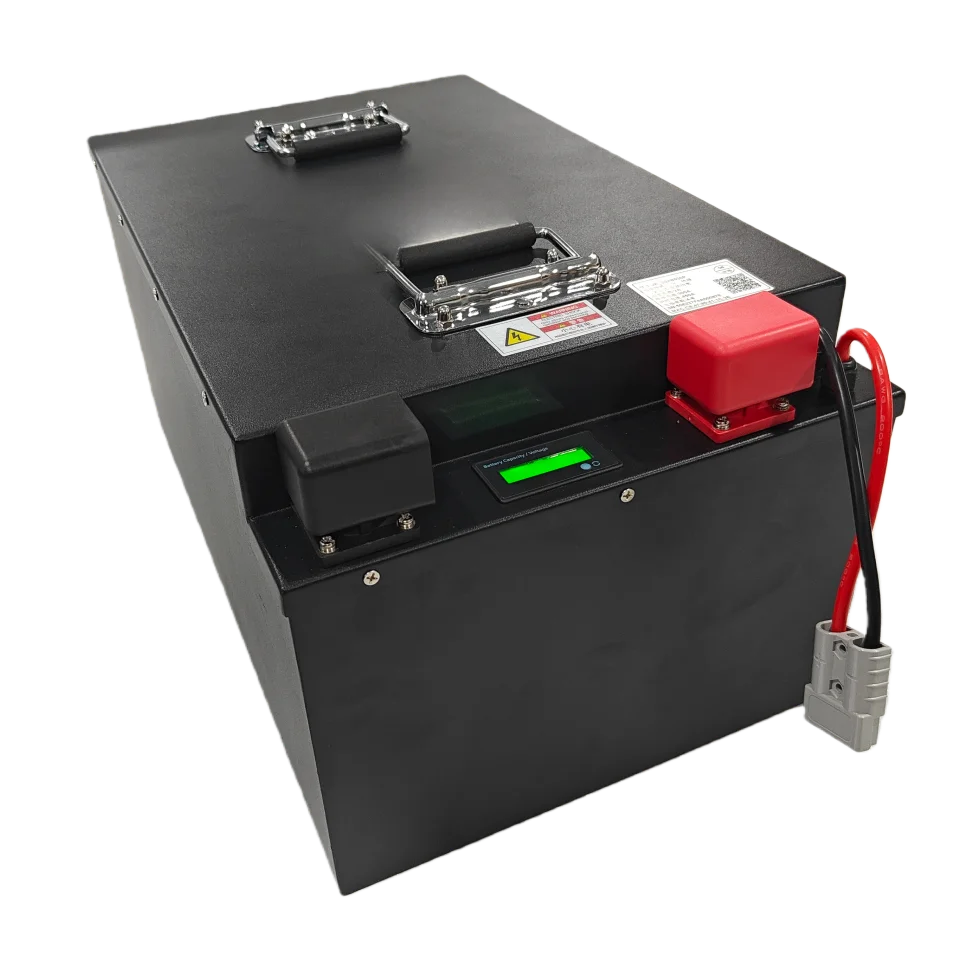

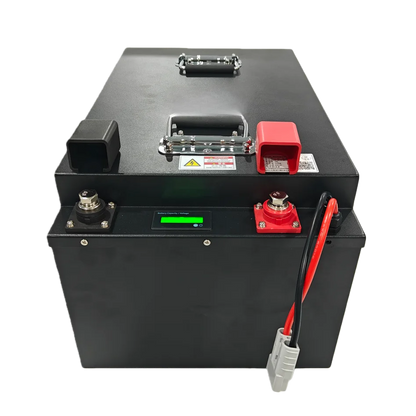

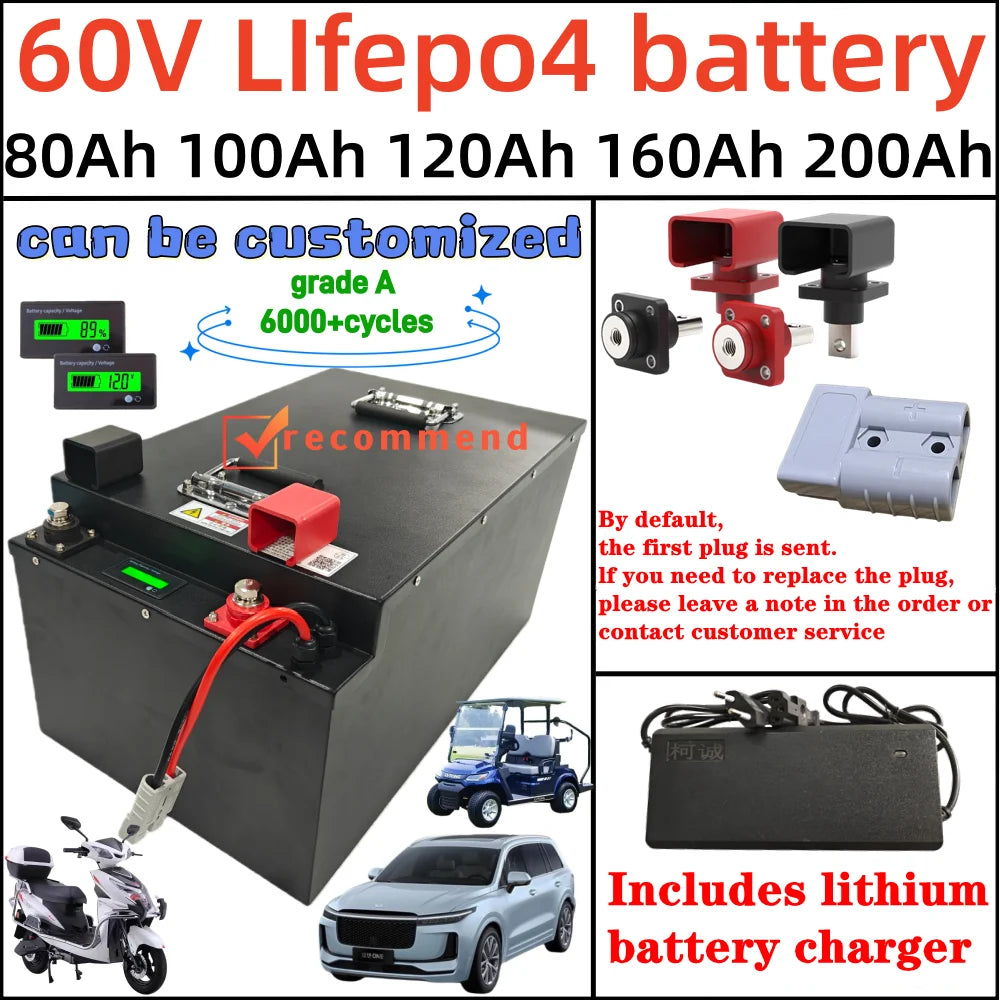

60V 100Ah 120Ah 150Ah 200Ah lithium Lifepo4 EV battery pack with BMS and charger for for electric trike moped golf cart vehicle

Nominal Voltage : 60V capacity：80A

Battery Size: 300*350*230H ( can customize the size as you need)

Weight: 32-35KG

Standard Charge Current: 10A

Max Charge Current: 40A

Max Charge Voltage: 73V

Max continual Discharge Current: 100A

Maximum Instant BMS Limited Current (A) 200A

Specifications:

Voltage: 60V Capacity: 100 Ah

Battery Size : 380*350*230H ( can customize the size as you need)

Weight: 42-46KG

Standard Charge Current: 10A

Max Charge Current: 50A

Max Charge Voltage 73V

Maximum Instant BMS Limited Current (A) : 200A

Specifications:

Voltage: 60V Capacity: 120 Ah

Battery Size: 350*280*400mm| can customize the size as you need)

Weight: 53-56KG

Standard Charge Current: 10A

Max Charge Current: 60A

Max Charge Voltage: 73V

Max continual Discharge Current: 100/150A

Maximum Instant BMS Limited Current (A) :200/300A

Specifications:

Voltage: 60V Capacity: 160 Ah

Battery Size: 550*350*230H [ can customize the size as you need)

Weight: 63-57KG

Standard Charge Current: 10A

Max Charge Current:80A

Max Charge Voltage: 73V

Max continual Discharge Current :200A

Maximum Instant BMS Limited Current (A) :400A

Specifications:

Voltage: 60V Capacity: 200 Ah

Battery Size: 720*350*230H ( can Lustomize the size as you need)

Weight:79-87KG

71k09

Standard Charge Current: 10A

Max Charge Current: 100A

Max Charge Voltage: 73V

Max continual Discharge Current :200/300A

Maximum Instant BMS Limited Current (A) :400/600A

More to love

Other same Specifications for all items:

Discharge Cut-off Voltage: 55V

Charging method: CC/CV(Constant Current Constant Voltage)

Life cycle of the whole pack: >85% capacity after 6000 cycles.

Working temperature=

Charge Temperature 0~45°C

Discharge Temperature -20*65°C

Retention of charge (store in one month) 295%

Suitable Wattage of Motor: 60V 15000w, 10000w,7500W ,5000W,3000w.

Features: BMS manufactured by high quality Mos and IC imported from Japan.

Keep your battery long cycle serivce life time.

-Provide, 73V 10/20A high quality

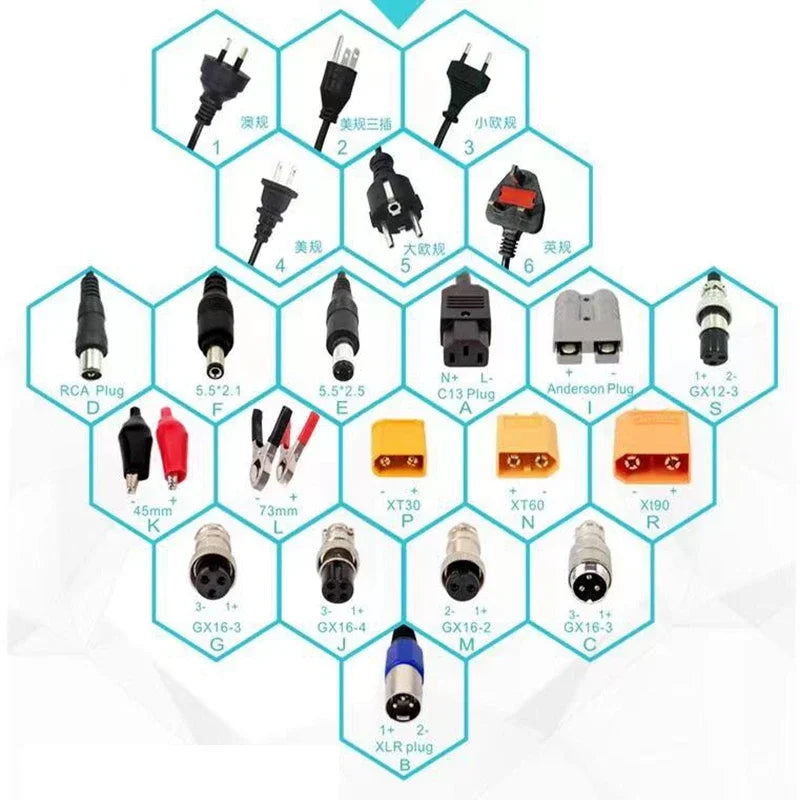

brand intelligent charger with EU ,US, AU or GB plugs 100-240V 50/60HZ charger ,which can be used well in your country.

Package includes:

1. 60V 60ah Lifepo4 Battery (with Built-in BMS board)

2. High quality Charger output 73V 10A for 80-120Ah, EU AU US or GB plug. High quality output Charger 73V 15A for 160-200Ah, EU AU US or GB plug.
