SPECIFICATIONS

Application: Home Energy,Solar Energy Storage Systems

Battery Type: Solid state

Brand Name: BMAD,Apexium

Cathode Materials: LiFePO4

Cycle Life: 6000 cycles

Dimension (L*W*H): 56*31*89cm(22.05*12.20*35.04in)

High-concerned chemical: none

Max Load Quantity(cells): 16

Model Number: None ,32kWh-51.2V-PD

Nominal Capacity: 1440mAh

Operating Temperature(℃): 0 -45 degrees (charge) - 1 0 - 6 0 degrees (discha

Origin: Mainland China

Place of Origin: Guangdong, China

Set Type: Charger Sets

Type: Li-Ion

Weight: 116kg(255.74lb)

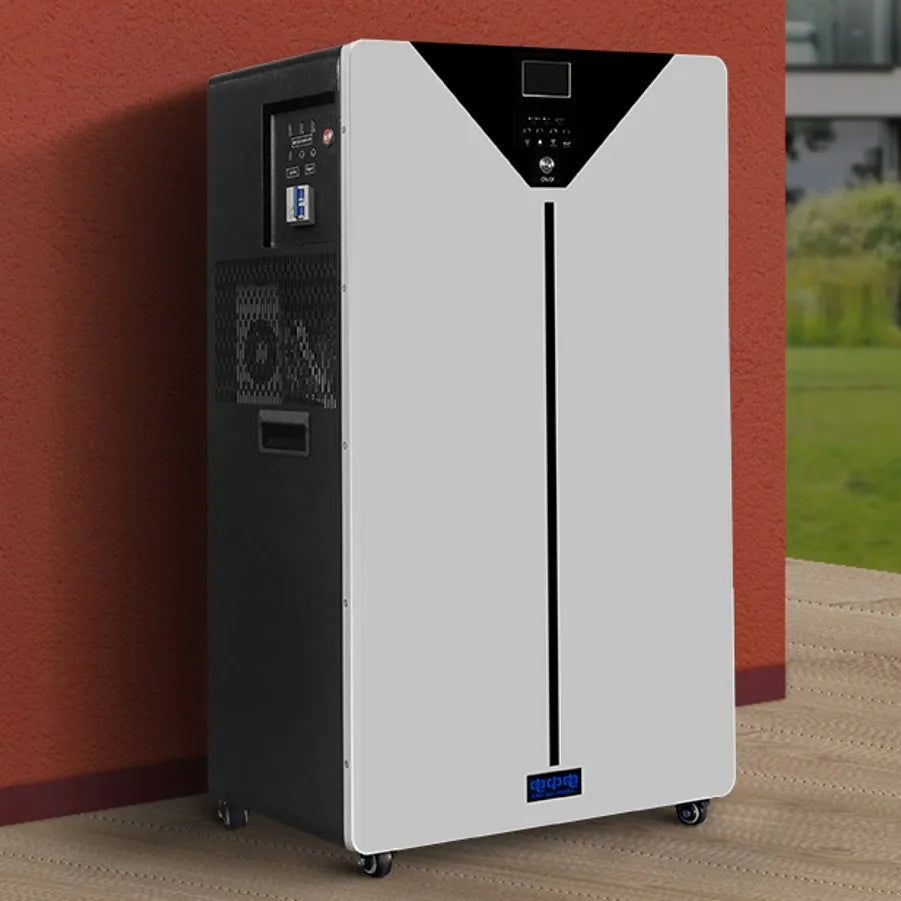

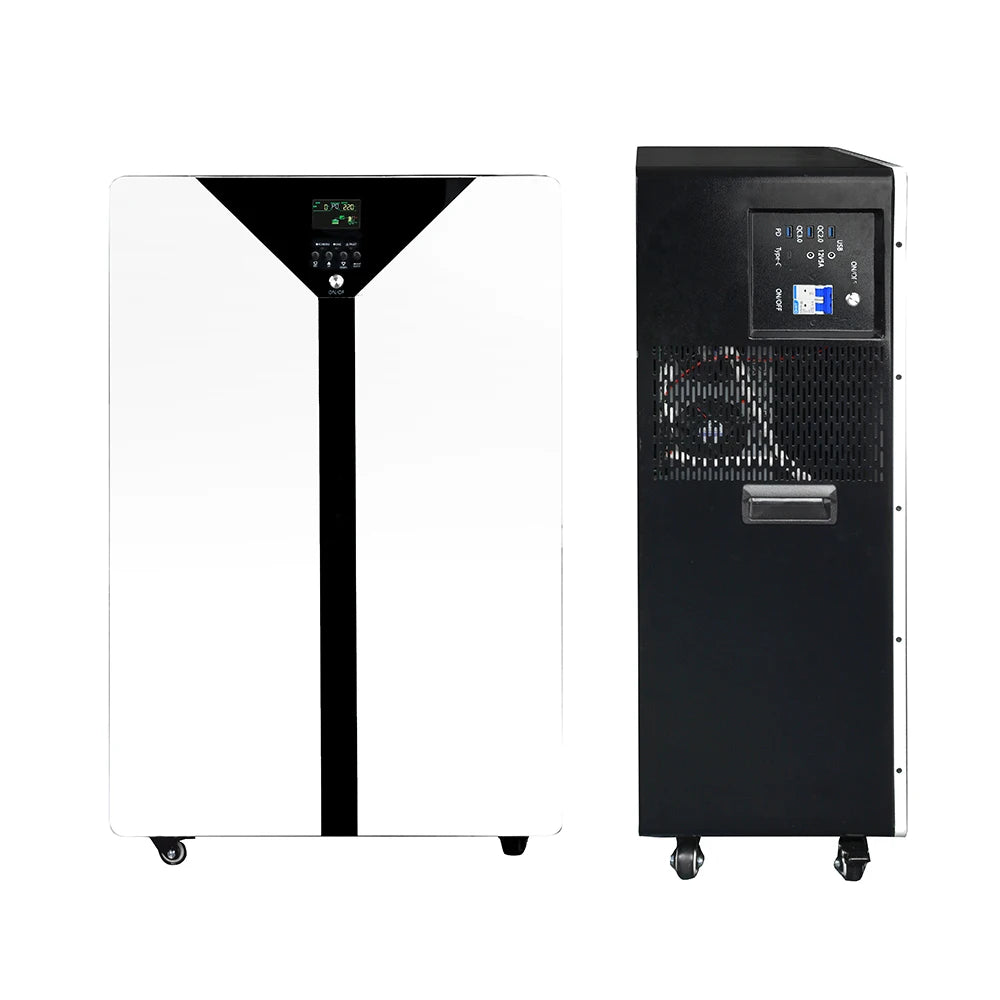

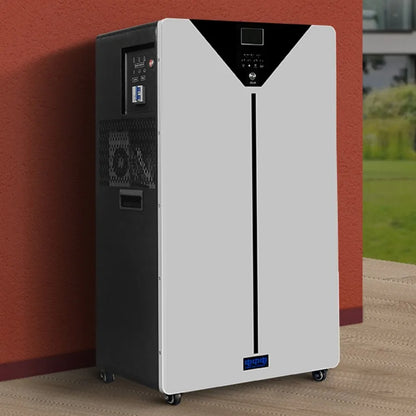

Products Description

Technical parameter	DZDY3.0-120	DZDY5.0-106	DZDY10.0-208	DZDY25 -230
Inverter module(kW)* 1	2KW	3kw	5kw	5kw
Battery module, kWh	3.1kwh	5.1kwh	10kwh	23.5kwh
System performance support	BMS / WI FI / cell dynamic balance / local service network
size (MM)	500*300*660mm	500*300*660mm	560*310* 888*mm	560*400* 110*mm
weight(KG)	42	65.5	116	195
wayto install	Floor-type / removable
levels of protection	IP31
Attestation	UN38.3
Product life	In 10years
Quality Assurance	2 years
Battery input parameters
Battery type	lithium iron phosphate
Rated battery voltage, V	25.6	48	48	51.2
Maximum charging current: A	100	120	150	200
Maximum discharge current, A	100	120	150	200
Maximum charging power: W	1000	1500	2500	2500
Maximum discharge power, W	3000	9000	15000	15000
Cycle index	≧ 6000
depth of discharge	90%
Balanced start voltage	2.80 ± 0.025
equalizing curren	50mA-5A± 10mA
Mppt A	40A	40A	100A	100A
MPPT Operating Voltage Range (V)	36V-150VDC	60V-170VDC	120V-500VDC	120V-500VDC
power rating (w)	2000	3000	5000	5000
Rated output voltage (v)	220-230
Rated Output frequency (HZ)	50/60
Peak power load ratio	MAX3: 1
Us-battery maximum efficiency	0.98
Battery-AC for maximum efficiency	85-88%
MPPT productiveness	0.92
Overcharge protection	integration
Over-release protection	integration
Overcurrent protection	integration
Short-circuit protection	integration
Call the police to remind	The buzzer / integration
Overtemperature protection	integration
Cell dynamic balance protection system	integration
Monitored control system	Need to add
Operating temperature range	0 -45 degrees (charge) - 1 0 - 6 0 degrees (discharge)
Relative humidity	And 0 - 9 5 % without condensation
Maximum work altitude	1000
Man-machine interactive system	LED/ APP
Noise	＜45dB
*1：The new battery has 100% discharge depth, 25 ± 2℃ temperature range, measured under 0.2C charge-discharge conditions; the electricity consumption may vary according to the inverter.
*2 ：Rated charge and discharge current and power are affected by the temperature and SOC status.
• When the battery system is used alone: the rated charge and discharge current is 35A.

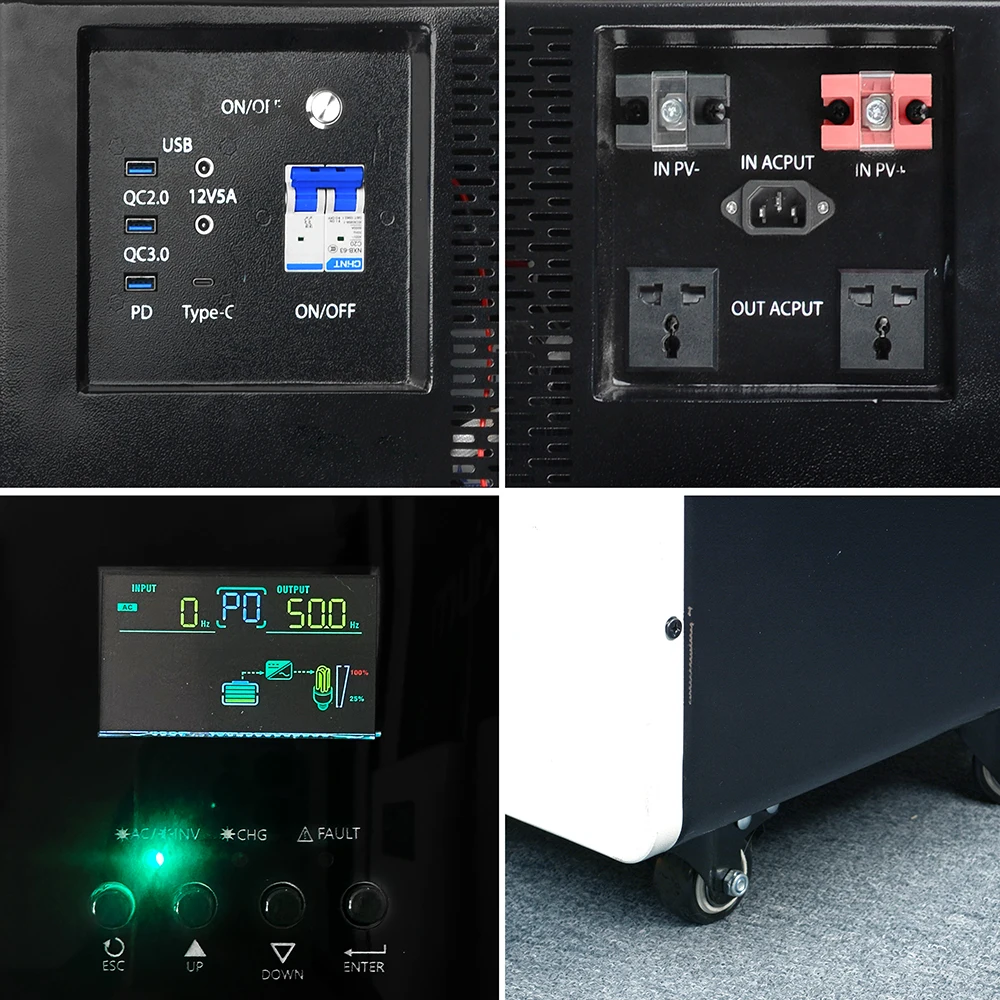

Details Images

Apexium oversea stock

Shipping and delivery time
Ship from	Logistics type	Delivery time
China warehouse	DDP by sea	30-40 working days
EU warehouse	DPD express	2-5 working days
USA warehouse	UPS/Fedex	2-5 working days
South Africa warehouse	JNB(ZA)	2-5 workng days
DDP: The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything.

Recommend Products

LF100LA 3.2V

Test capacity: 108-110Ah

Grade: HSEV(A+)

Cycles: 5000 times

LF105 3.2V

Test capacity: 108-110Ah

Grade: HSEV(A+)

Cycles: 5000 times

LF230 3.2V

Test capacity: 108-110Ah

Grade: HSEV(A+)

Cycles: 5000 times

LF280K-V3 3.2V

Test capacity: 310-315Ah

Grade: HSEV(A+)

Cycles: 8000 times

LF304 3.2V

Test capacity: 315-320Ah

Grade: HSEV(A+)

Cycles: 4000 times

MB31 3.2V

Test capacity: 330-335Ah

Grade: HSEV(A+)

Cycles: 8000 times

51.2V 105Ah DIY kits

BMS: 100A APEX V2 bms(10E V16)

Balance: 150mA passive equalization

Size: 460*350*223(mm)

Weight: 13Kg

Use for: 16pcs 105Ah cells

Quick connect terminals, 2.5-inch LCD screen.

51.2V 230Ah DIY kits

BMS: 100A APEX V2 bms(10E V16)

Balance: 150mA passive equalization
Size:600*440*251(mm)
Weight:20.5Kg
Use for: 16pcs 230Ah cells

Quick connect terminals, 2.5-inch LCD screen.

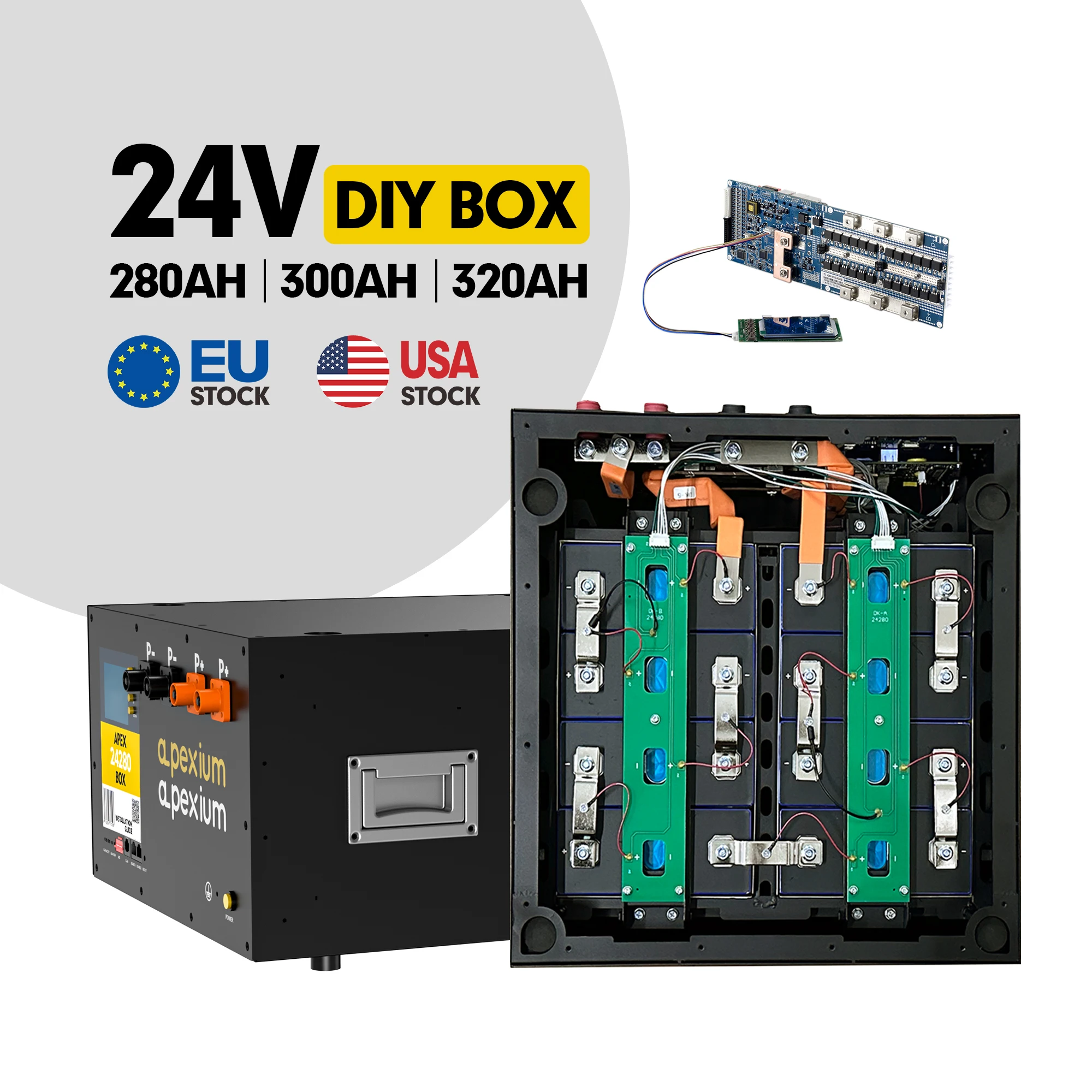

25.6V 280/304/314 DIY kits

BMS: 100A APEX V2 bms(10E V16)

Balance: 150mA passive equalization
Size:440×440×251(mm)
Weight:18Kg
Use for: 8pcs 280/304/314Ah cells

Quick connect terminals, 2.5-inch LCD screen.

DIY 51.2V 280/304/314 kits(Pro version)

BMS: 100A APEX V2 bms(10E V16)

Balance: 150mA passive equalization
Size:460*350*223(mm)
Weight:13Kg
Use for: 16pcs 280/304/314Ah cells

Quick connect terminals, 2.5-inch LCD screen.

DIY 51.2V 280/304/314 kits(JK version)

BMS: JK-PB2A16S20P

Balance: 2A Active equalization
Size:750*440*251(mm)
Weight: 23.6Kg
Use for: 16pcs 280/304/314Ah cells

M8 terminals, 4.3-inch touch screen.

Stand V2 51.2V 280/304/314 DIY kits

BMS: JK-PB2A16S20P

Balance: 2A Active equalization
Size:750*440*251(mm)
Weight: 38Kg
Use for: 16pcs 280/304/314Ah cells

M8 terminals, swivel caster, 4.3-inch touch screen.

Stand V3 51.2V 280/304/314 DIY kits

BMS: JK-PB2A16S20P

Balance: 2A Active equalization
Size:750*440*251(mm)
Weight: 28.5Kg
Use for: 16pcs 280/304/314Ah cells

M8 terminals, swivel caster, 4.3-inch touch screen.

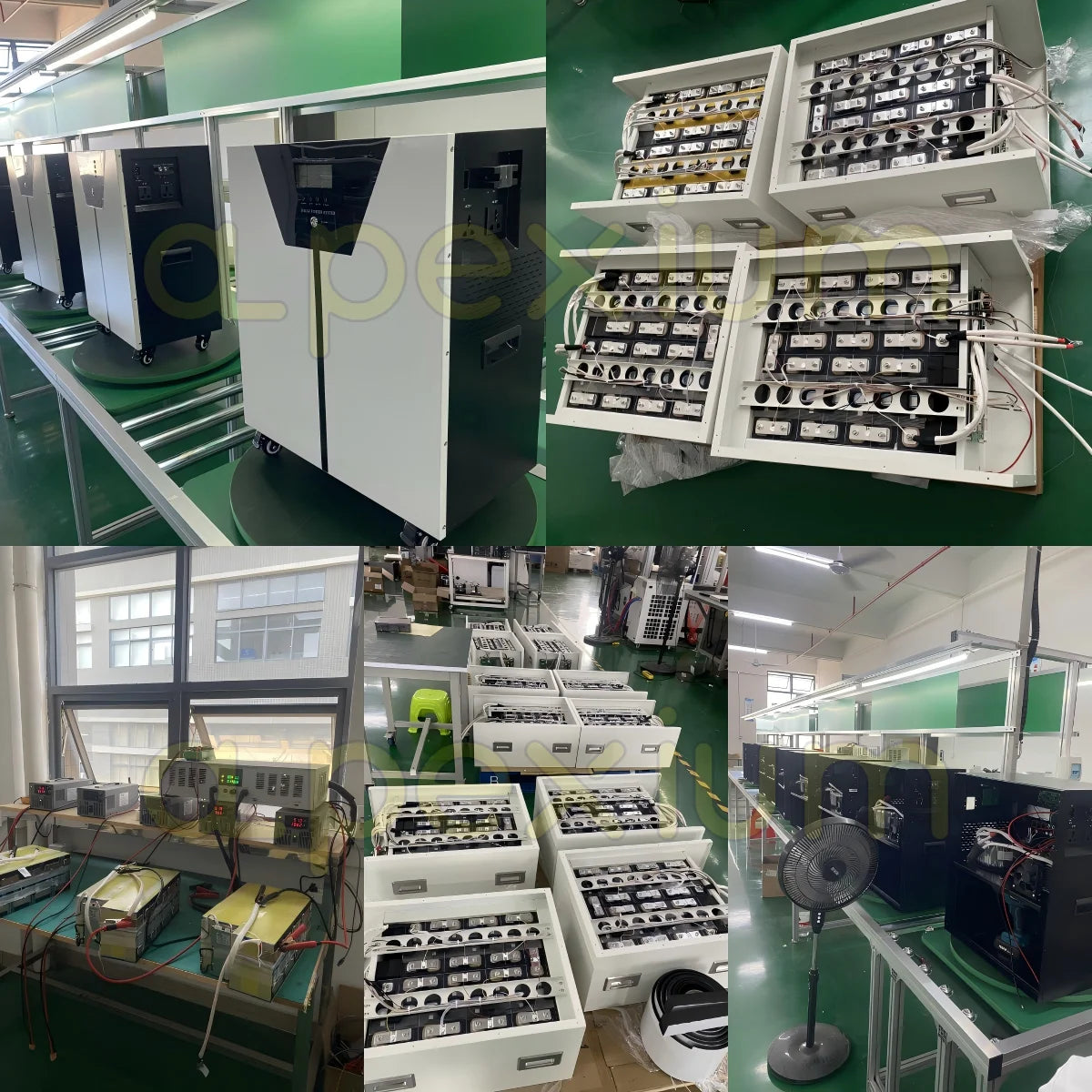

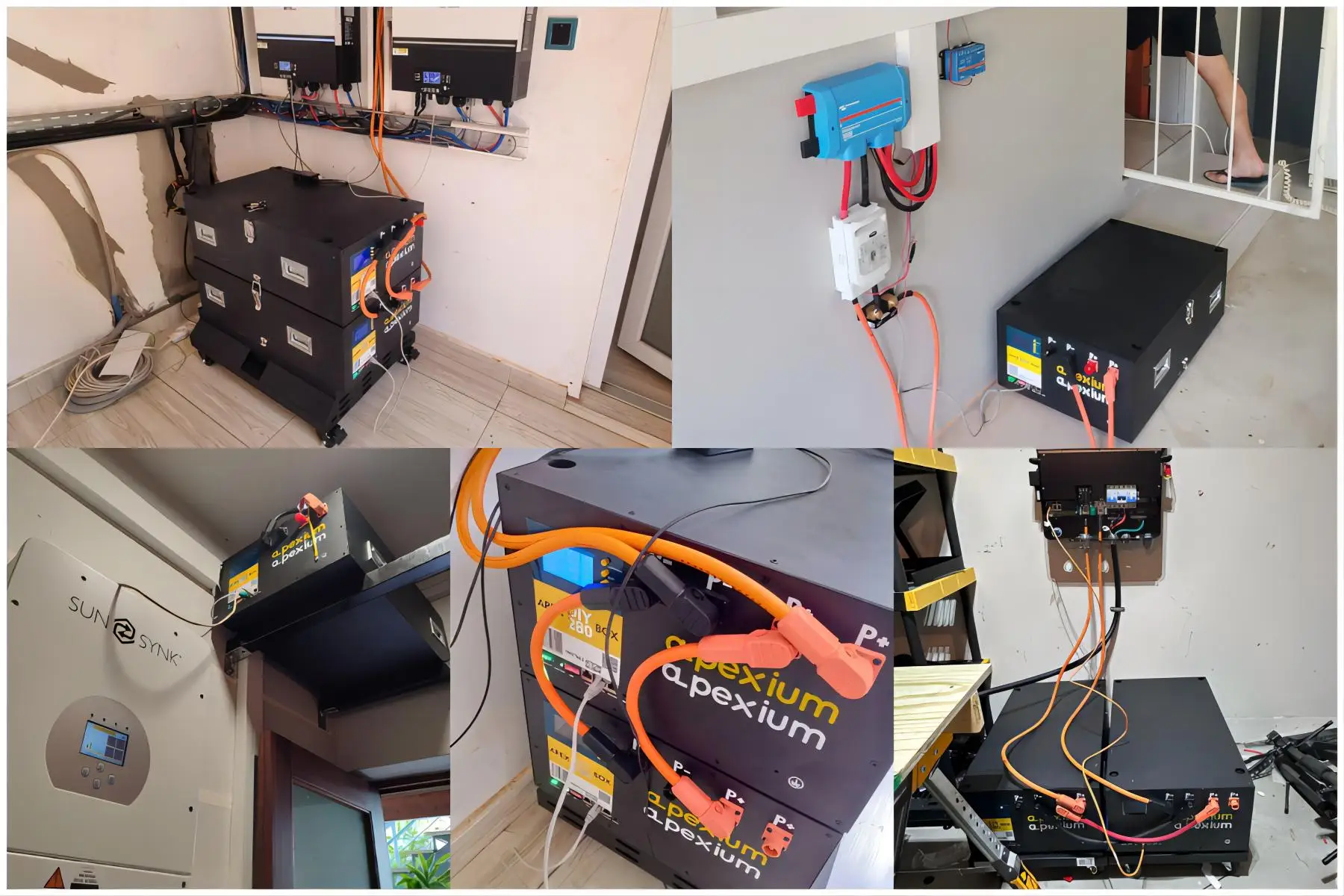

Customer Photos

APEXIUM Exhibition

FAQ

1.Does Apexium DIY box case support parallel connection?

A:yes,This Apexium DIY box support 15pcs parallel connection.

2.What brand bms built in this Apexium DIY BOX?

A:Build in Apexium 48v 200a bms with BT&LCD screen.

3. How about the lead time?

A:Usually, we have stable stock in warehouse. The goods can be sent within 2-7 days.

4. What is the difference between Apexium DIY box and other boxes?

A:We have optimized and upgraded all the boxes.

1) The connect busbar Upgraded from flat to bridge-like shape.

2) Add the switchfor the box under right,this switch can control the battery pack power,be more safe. 3)Apexium BMS uses chips imported from Japan,Apexium’s chip readings are faster and more accurate. 5. How can I properly assemble the battery pack on my own? Instructions are included with the package when it is shipped,and our salesman will provide you with installation PDF documents and videos.

6. Can apexiun DIY boxes be used with BMS from other brands? A:1)First check with us to determine whether the size of the BMS fits the size of the Apexium box;

2)Secondly, the BMS needs to be fixed by yourself, and the original BMS fixing solution carnot be used; 3)Finally, if you can accept the risk of falling off during use and the location of the indicator light and the position of the socket may not be used perfectly with the box, then you can use your own BMS. Highly recommend you use our BMS and box together, which will be more perfect and convenient 7. Will Apexium's DIY box work with my inverter? A:Apexium box can connect and communicate with most brands of inverters on the market, such as Goodwe, PylonTECH, Victron, Growatt, Sol-Ark, Must, etc. Please confirm with us whether your inverter can match Apexium box. 8.Does the Apexium DIY box have a warranty?

A:As it is assembled by the customer, we guarantee the battery pack for three years after the successful assembly.please see our DlY kit warranty for details. EU,US,And Oversea stock the shipping time only need 3-5 days. 9. Can you produce the order with the customer's brand? A:Yes, of course. OEM & ODM service is warmly provided.

10.Where is the overseas warehouse?

A:EU,US,And Oversea stock the shipping time only need 3-5 days.
