1. Working ambient temperature: - 30 ℃ ~ + 50 ℃

Material application

1. Shell material: thermoplastic, flame retardant grade UL94V-0
2. Pin: copper alloy, silver plating on the surface + thermoplastic on the top

Mechanical properties

1. Mechanical life: no load pulling and inserting ＞ 10000 times
2. Impact resistance: it can withstand 1m height drop and 2T vehicle rolling pressure

Electrical performance

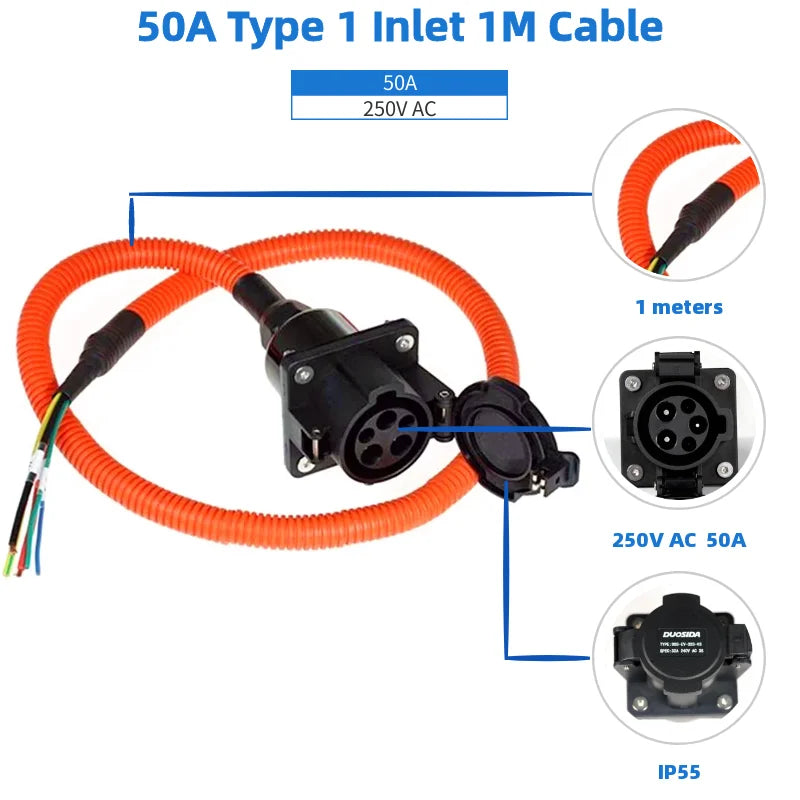

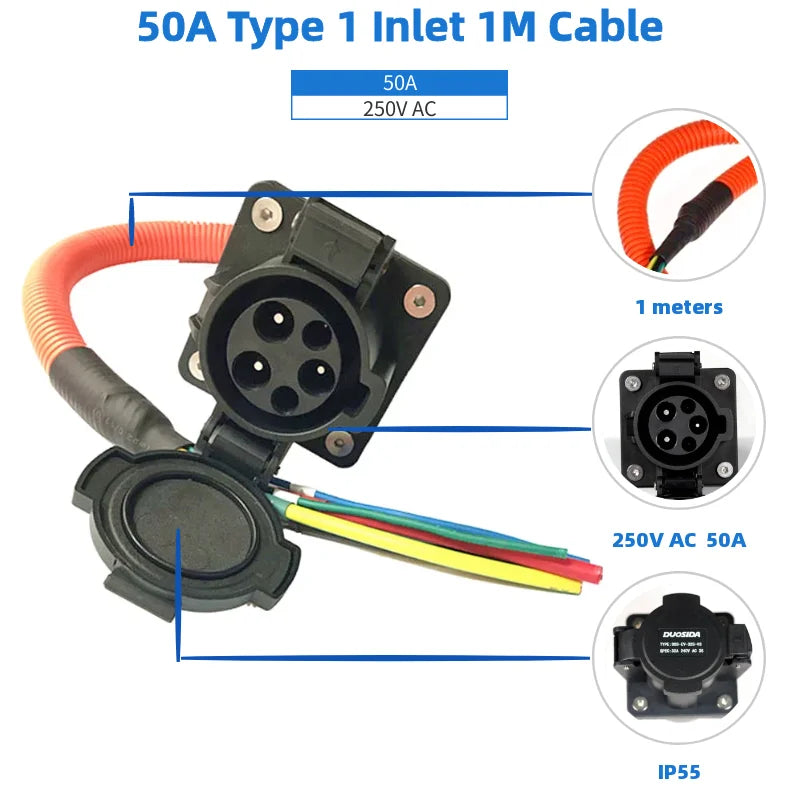

1. Rated working current: 16A / 32A
2. Working voltage: 250V AC
3. Insulation resistance: ＞ 1000m Ω (DC500v)
4. Terminal temperature rise: ＜ 50K
5. Withstand voltage: 2000V
6. Contact impedance: 0.5m Ω Max

Product features

1. Comply with the provisions and requirements of SAE j1772-2010
2. The appearance is beautiful, the handheld design conforms to the principle of ergonomics, and the plugging is convenient
3. The pin head adopts safe insulation design to prevent accidental direct contact with hands
4. Superior protection performance, and the protection grade reaches IP55 (working state)
5. Reliable materials, flame retardant, environmental protection, wear resistance, weather resistance, impact resistance, high oil resistance and UV resistance
