SPECIFICATIONS

Application: Boat

BMS: Bluetooth 4S 120A

Brand Name: Blmpow

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee,NONE

Charging Temperature: 0~55℃

Cycle Life: ≥6000 Cycles

Discharging Temperature: -30~60℃

High-concerned chemical: none

Maximum Charging Current: 1C (200A)

Maximum Charging Voltage: 58.4V

Maximum Continuous Discharge Current: 1C (200A)

Model Number: 48V 100AH/150AH/300AH

Nominal Capacity: 7680Wh

Nominal Voltage: 51.2V

Origin: Mainland China

Rated Voltage: 48V

Rated voltage: 48V

Size: 480*530*178mm

Type: LiFePO4

Voltage: 48v

Weight: 60kg

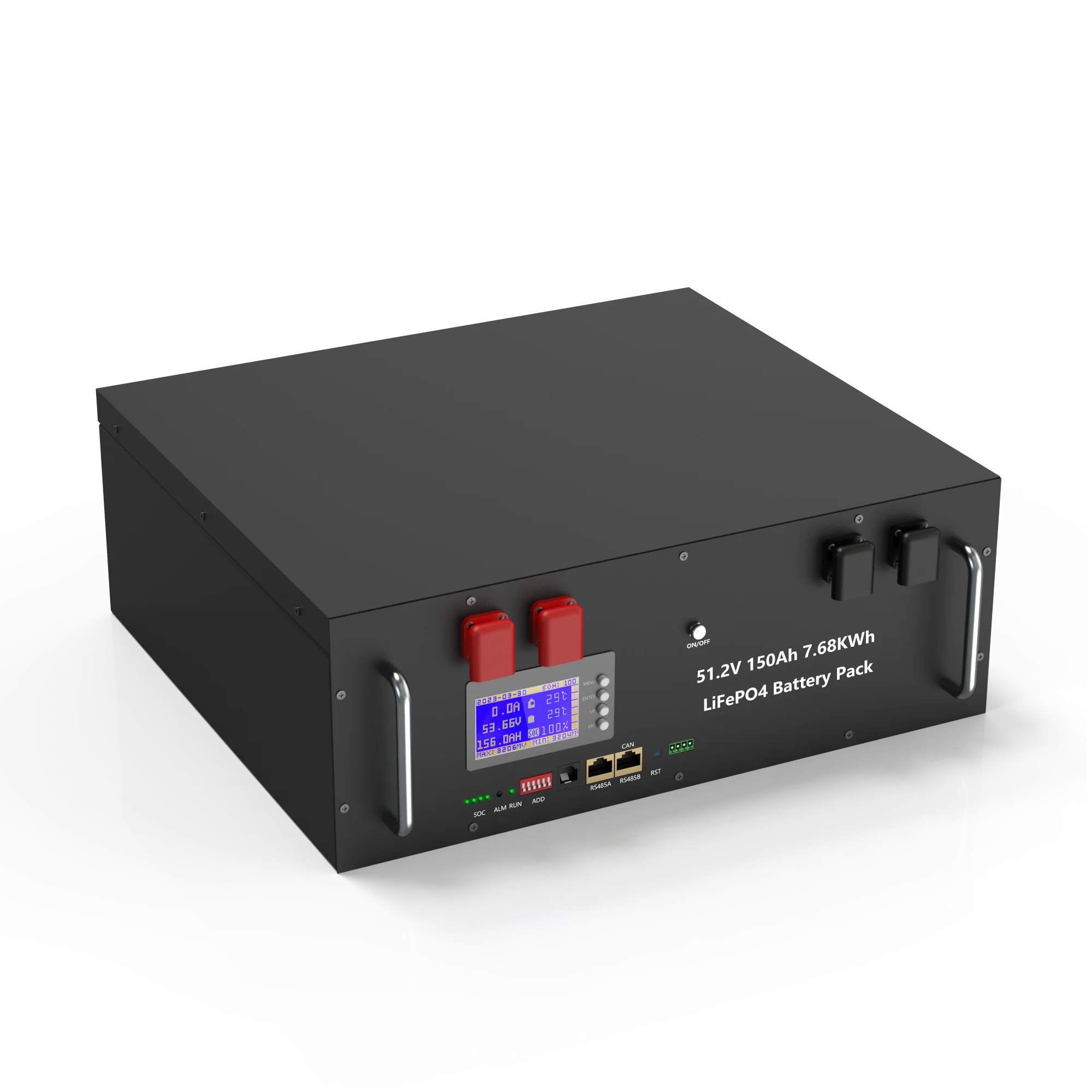

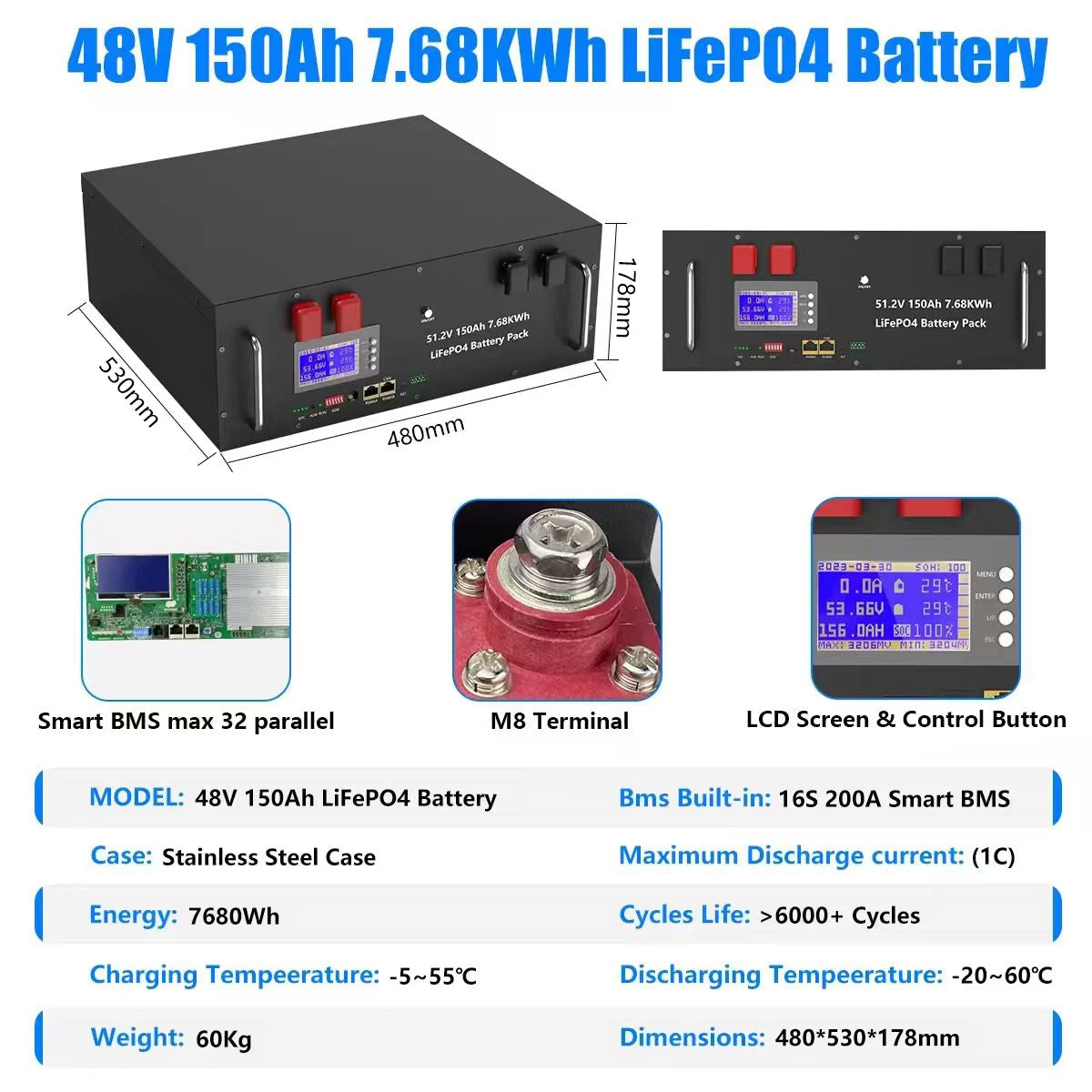

48V 150AH 7.5KWH Lifepo4 Battery with RS485 and CAN BUS

Battery specification:

BMS: Samrt 16S 200A (Support up to 32 pcs in parallel)

Cycle Life: ＞10000+ True cycles

Communication Protocol: CAN RS485*2

Nominal Voltage : 48v/51.2V

Charge Voltage: 58.4±0.4V

Rate Capacity : 150Ah

Energy Power : 7680WH

Max Charging Current: 200A

Max Discharging Current: 200A

Charging Temperature : -5~55°C

Discharging Temperature : -20~60°C

Dimensions(L*W*H) : 480*530*178mm

Terminal Type: Dual M8

Weight : 60KG

Battery warranty: 10 years

Replace any accessories and technical support free of charge during the warranty period.

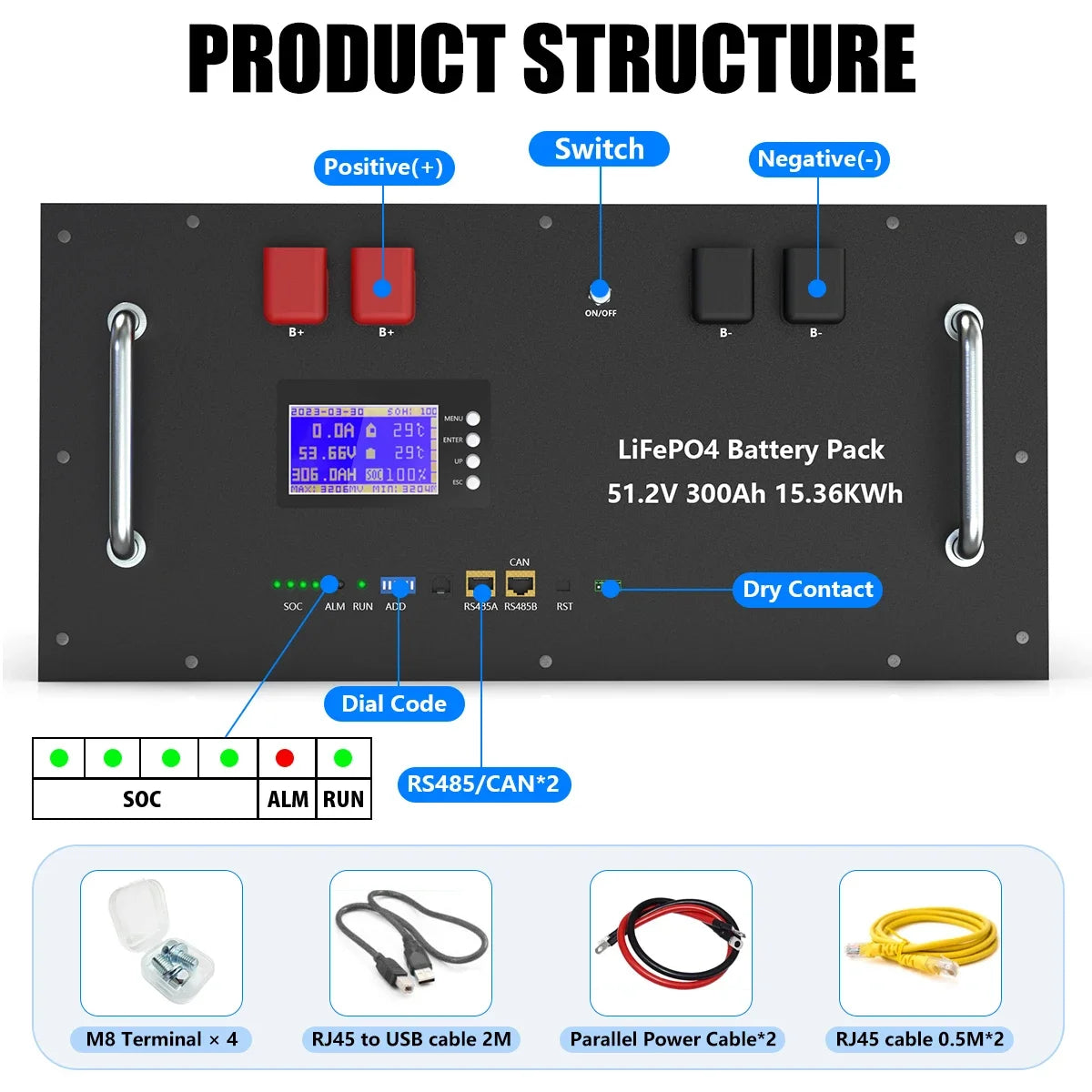

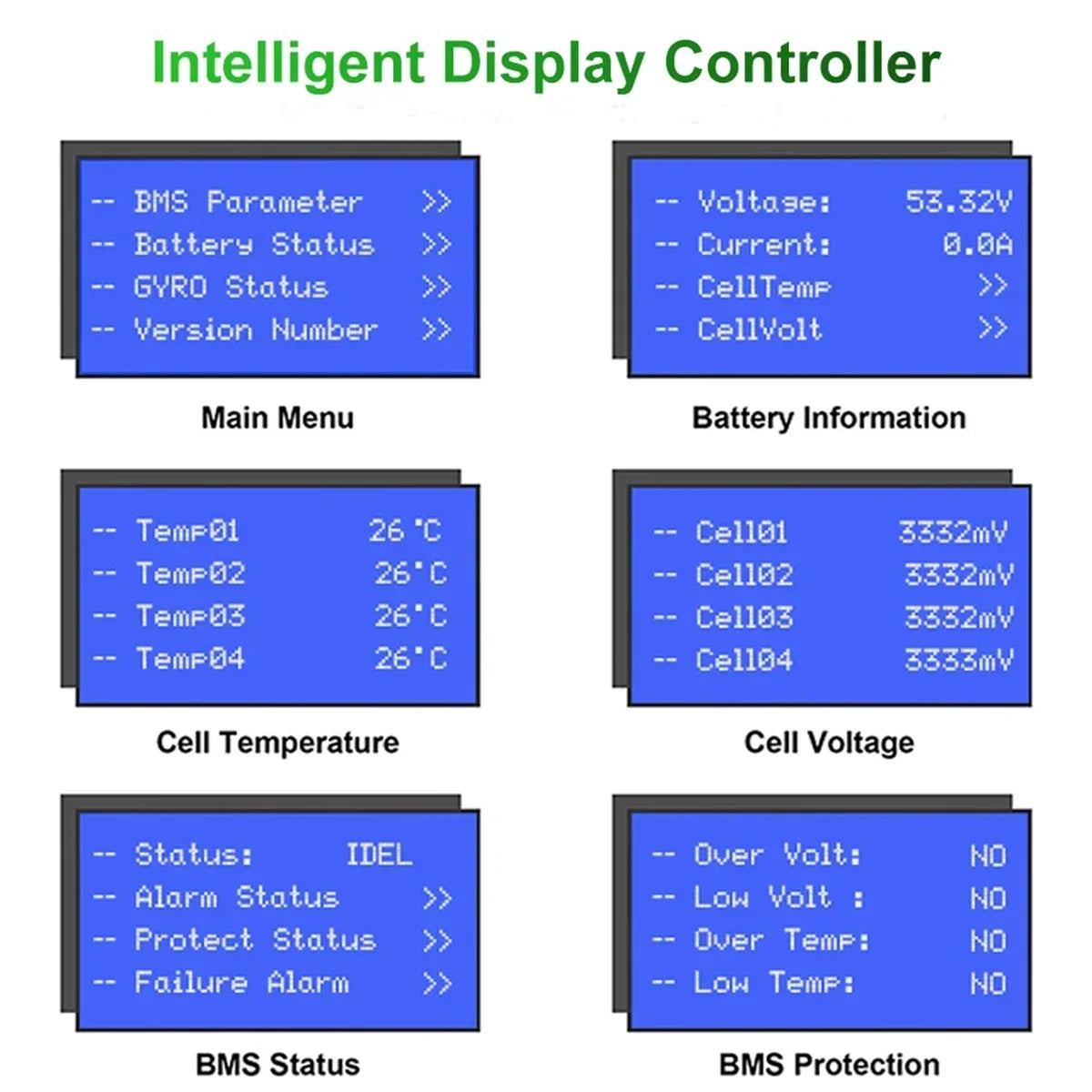

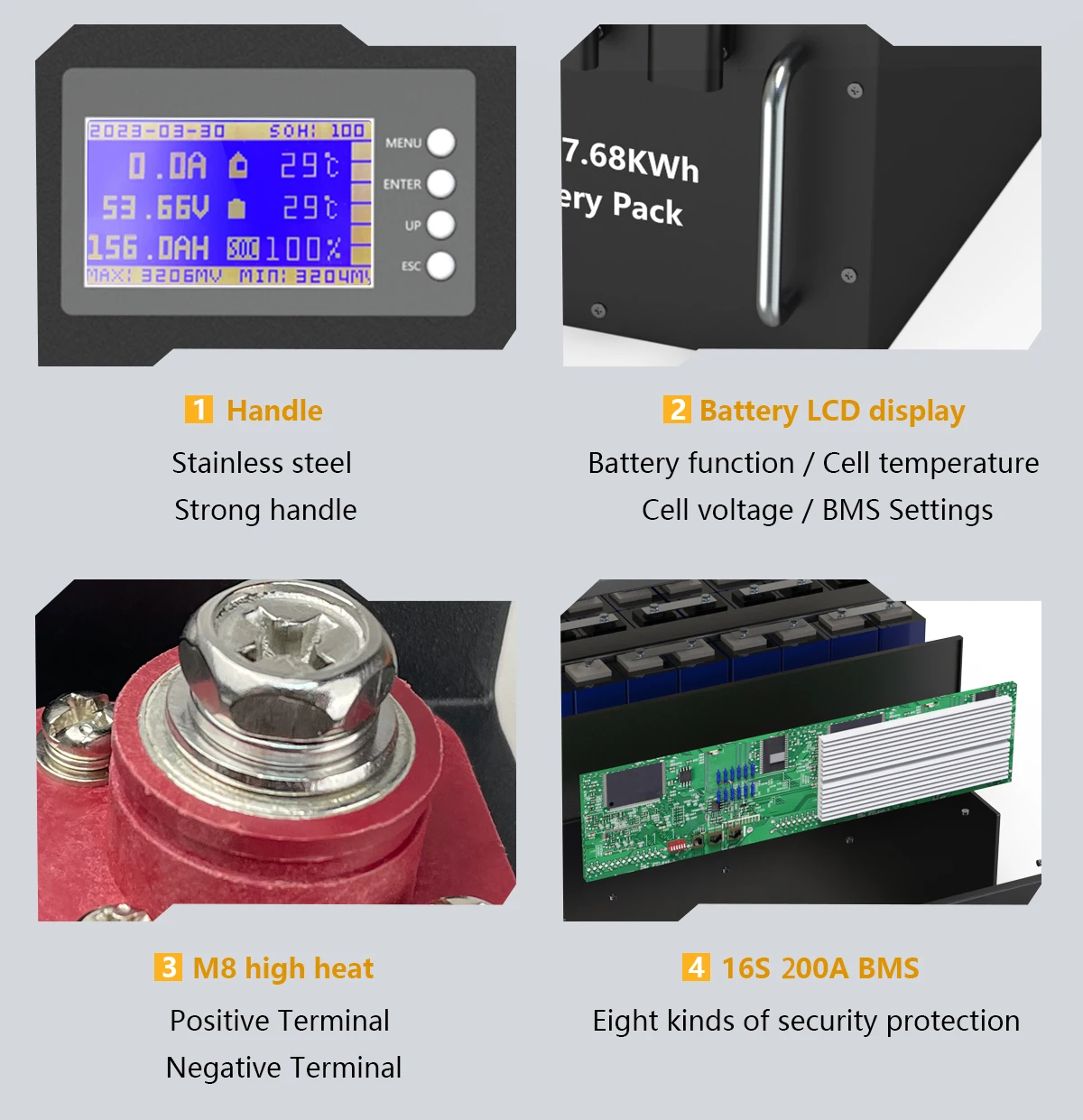

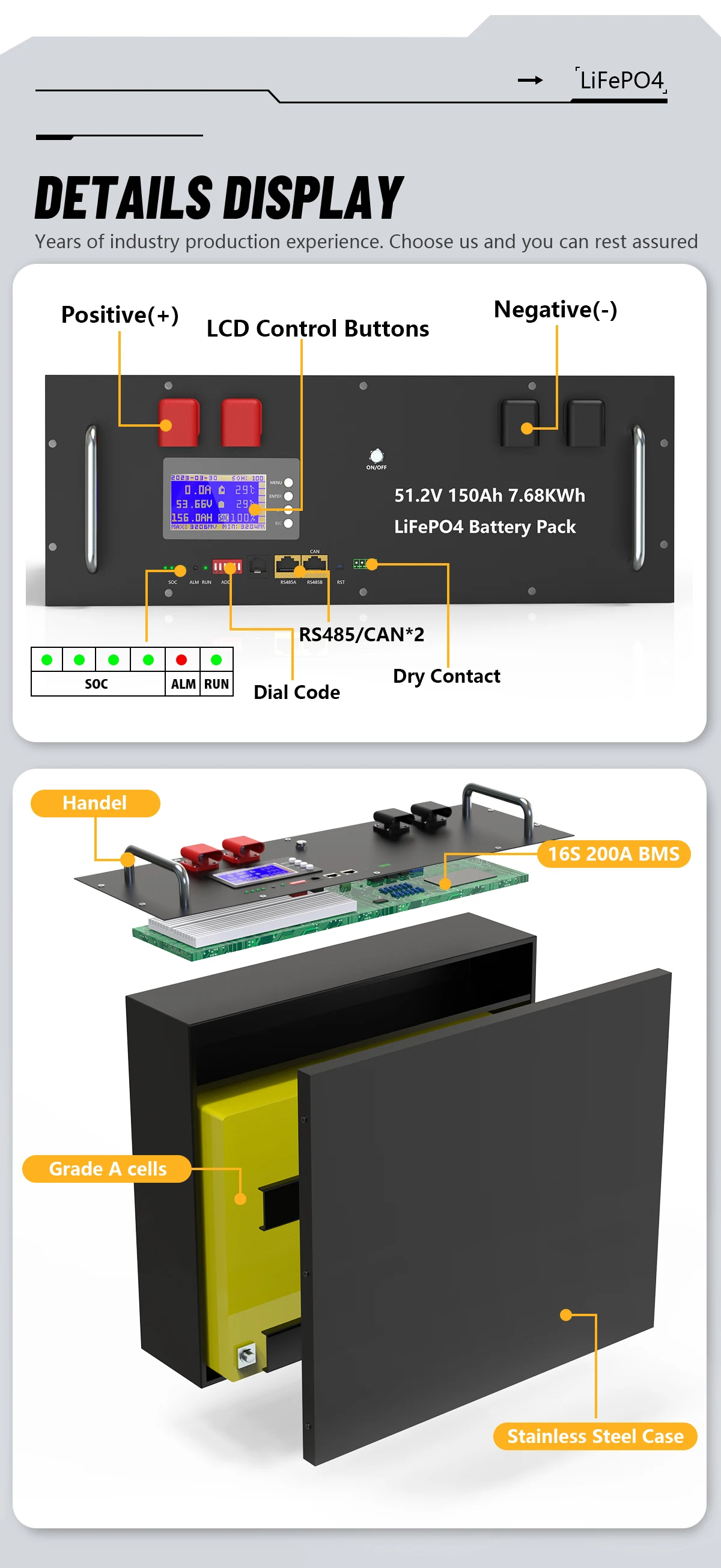

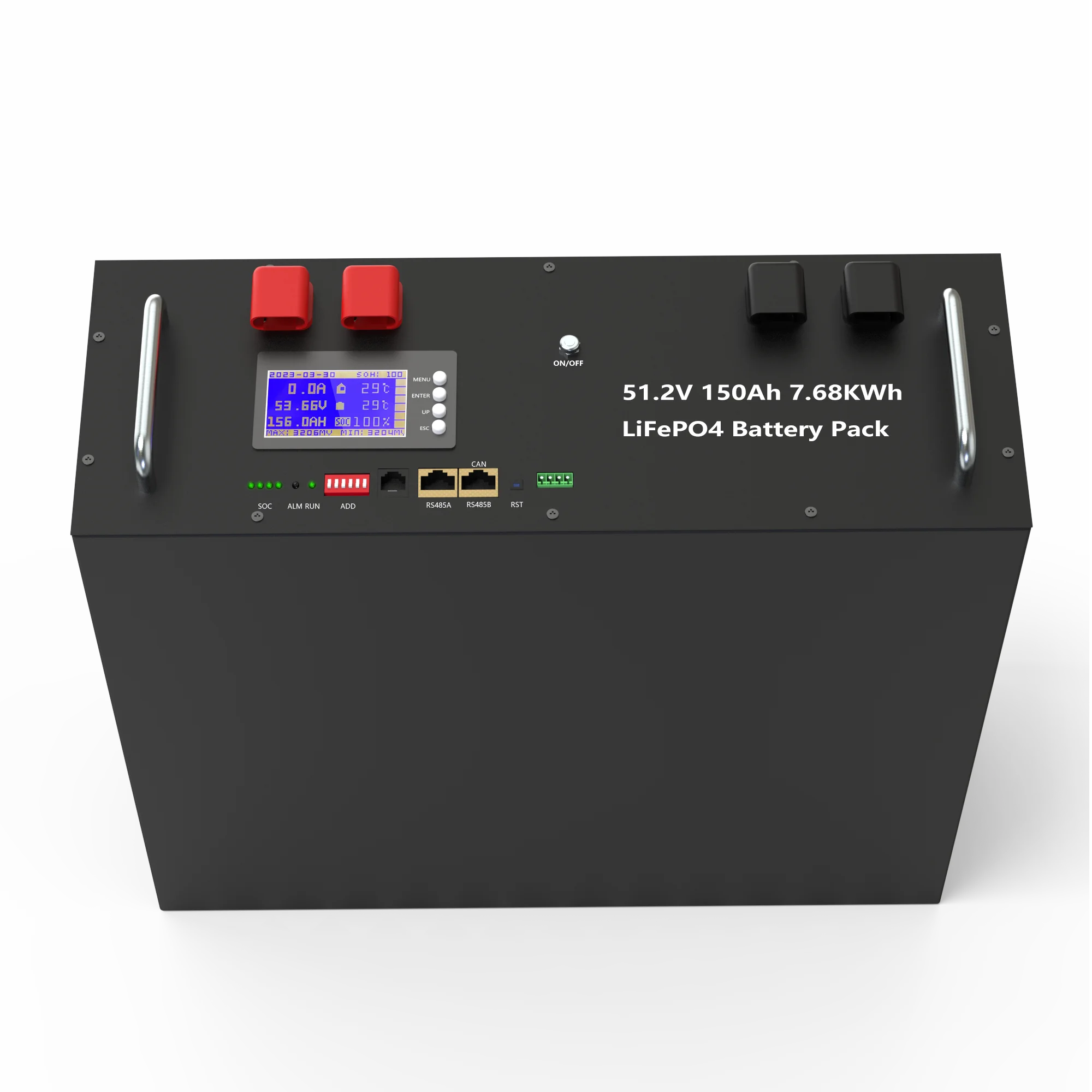

The battery has a display screen, which can display the overall voltage, capacity and current of the battery, as well as the voltage of the internal cells. The battery also has an RS-485 CAN communication port, which can also be connected to an external alarm device.

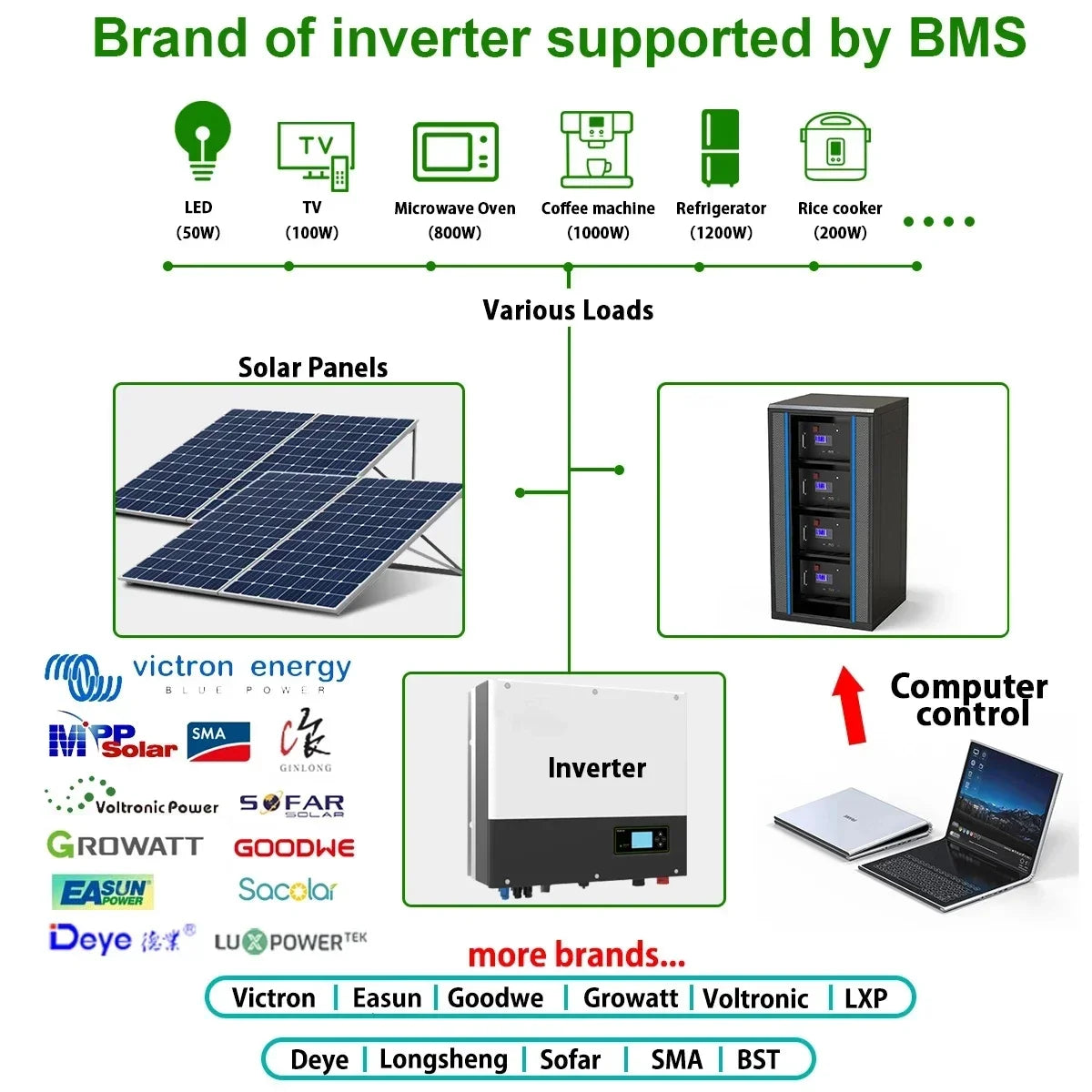

Compatible inverter brands list:
Victron, EASUN, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA and more.

if you have any questions,you can contact me any time,I will answer you!



Advantages of Our Batteries

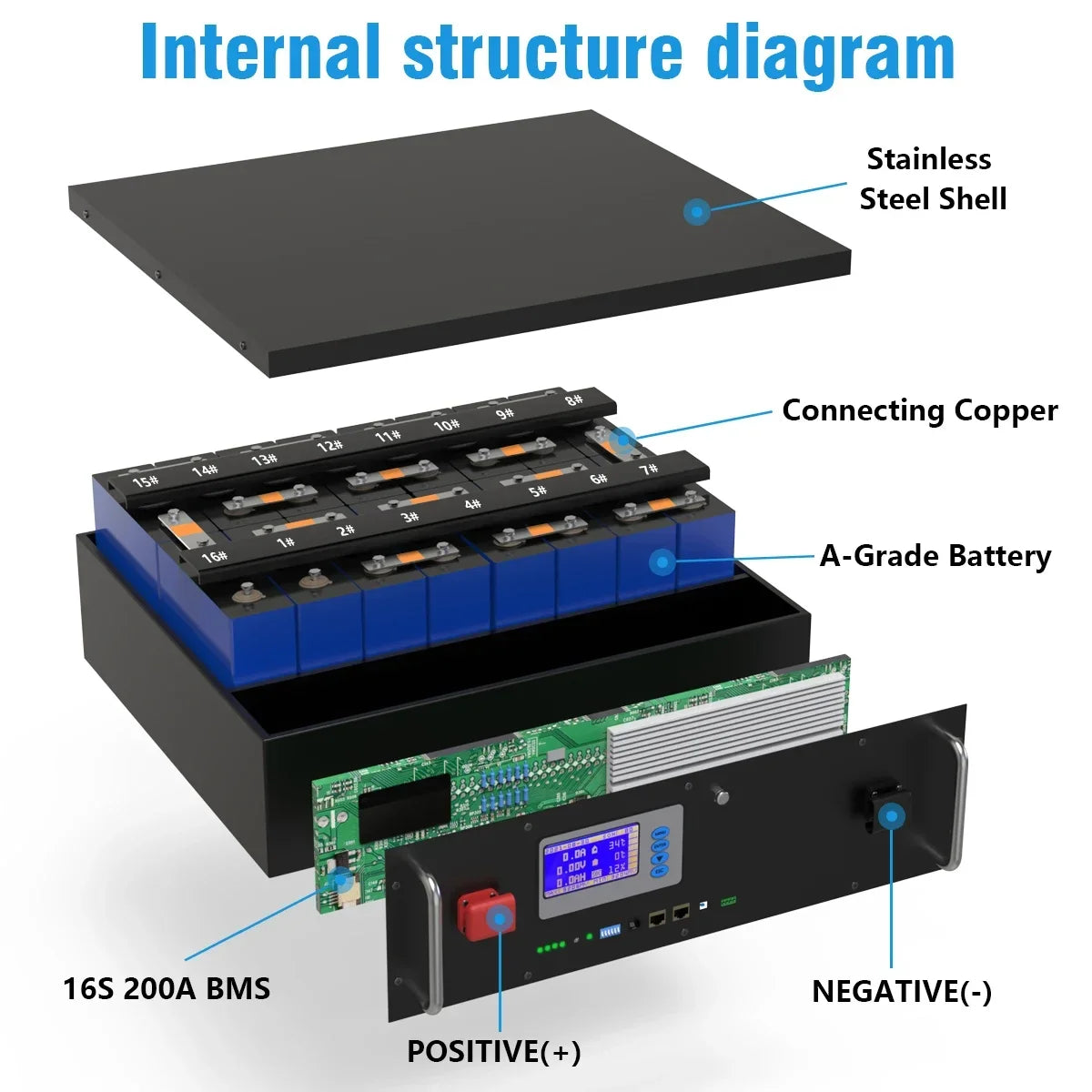

Built-in 16S 200A smart BMS.CERRNSS battery can support max of 32pcs in parallel connection. The voltage difference is less than 1mv for each cell.

The battery can also check the internal cell voltage and capacity of the battery on the computerCan monitor and adjust battery data

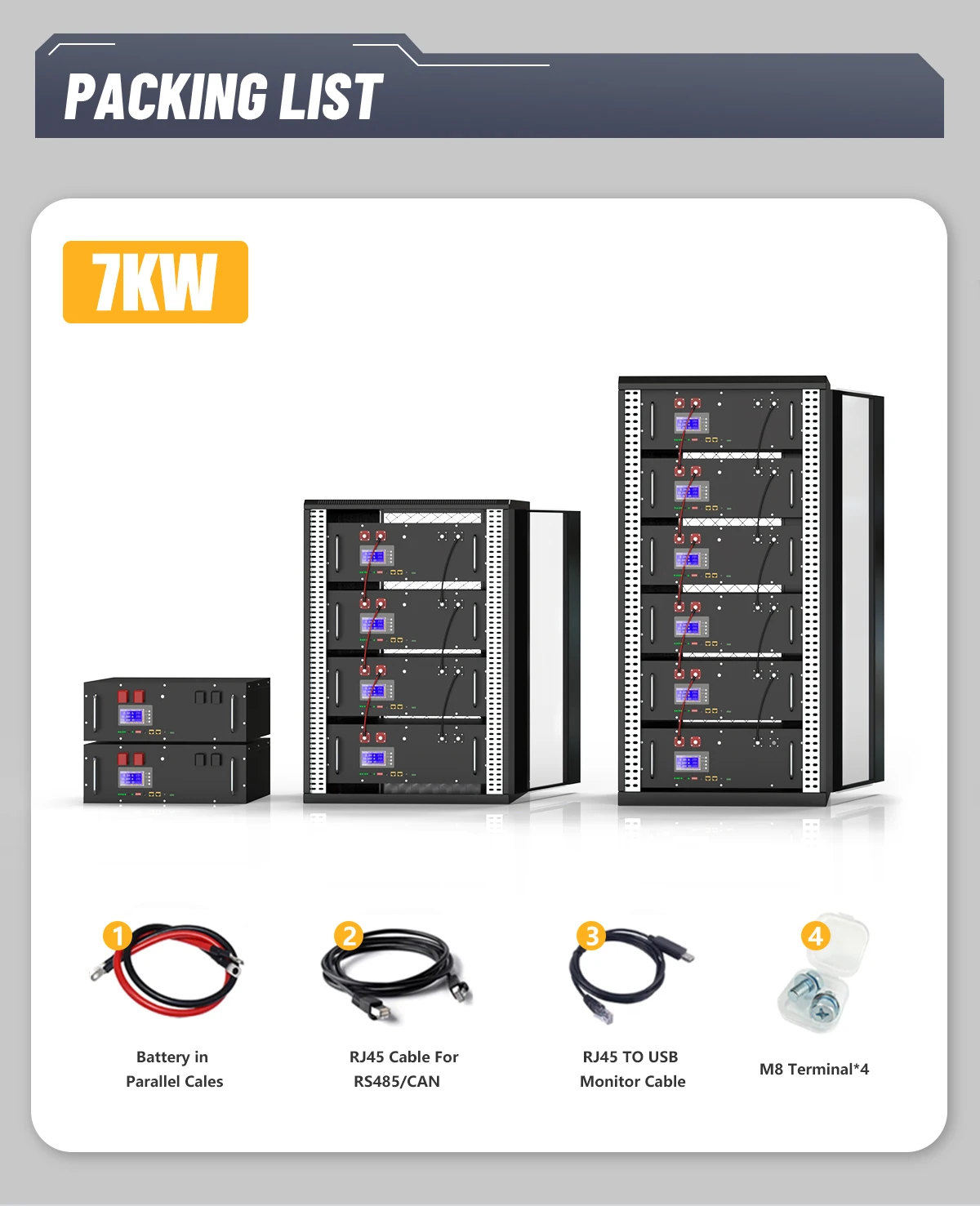

The battery package comes with positive and negative cables, bolts, RS485 connection cable and RJ45-USB connection cable, which are packed firmly and reinforced with wooden boxes for safe and reliable transportation.
