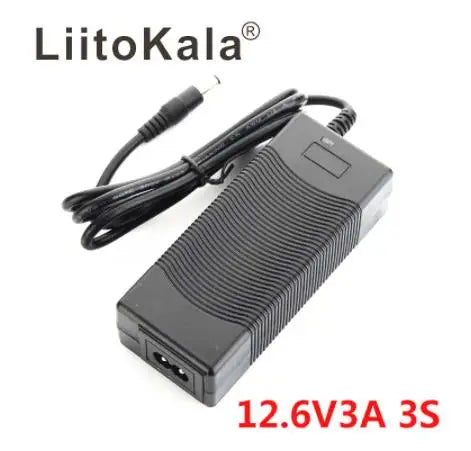

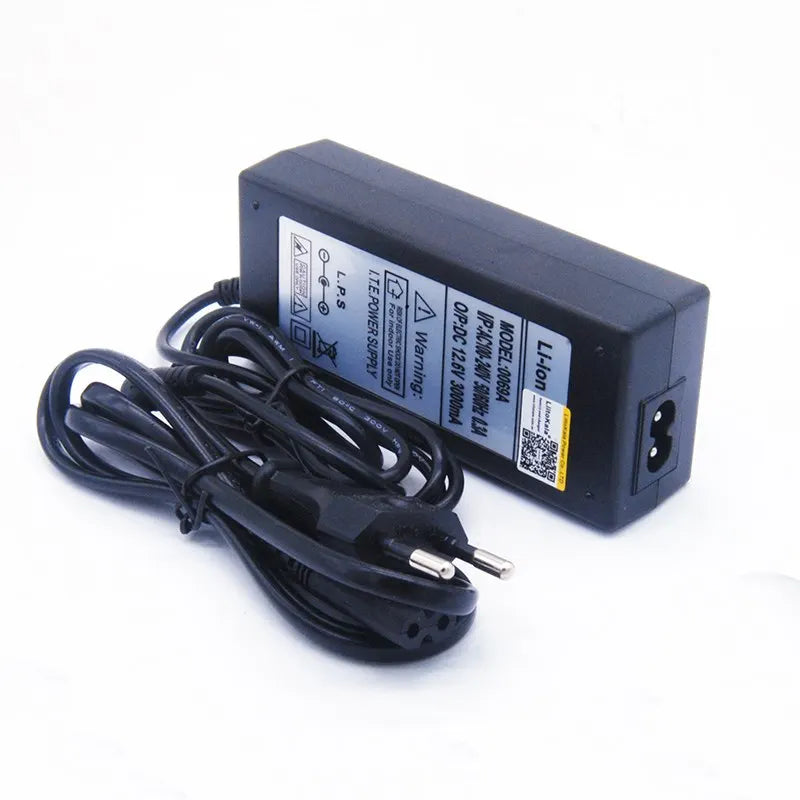

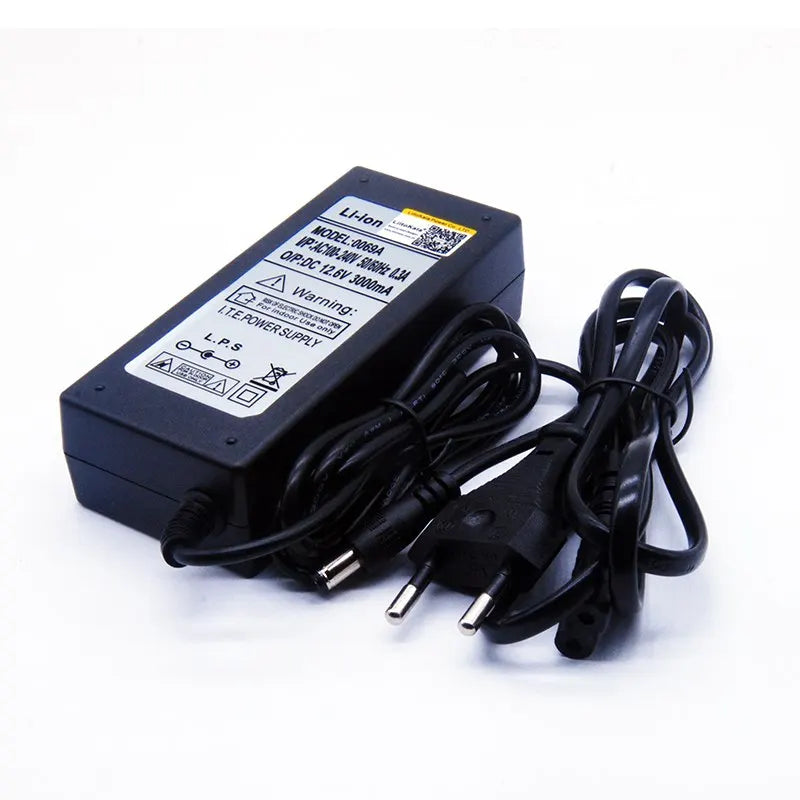

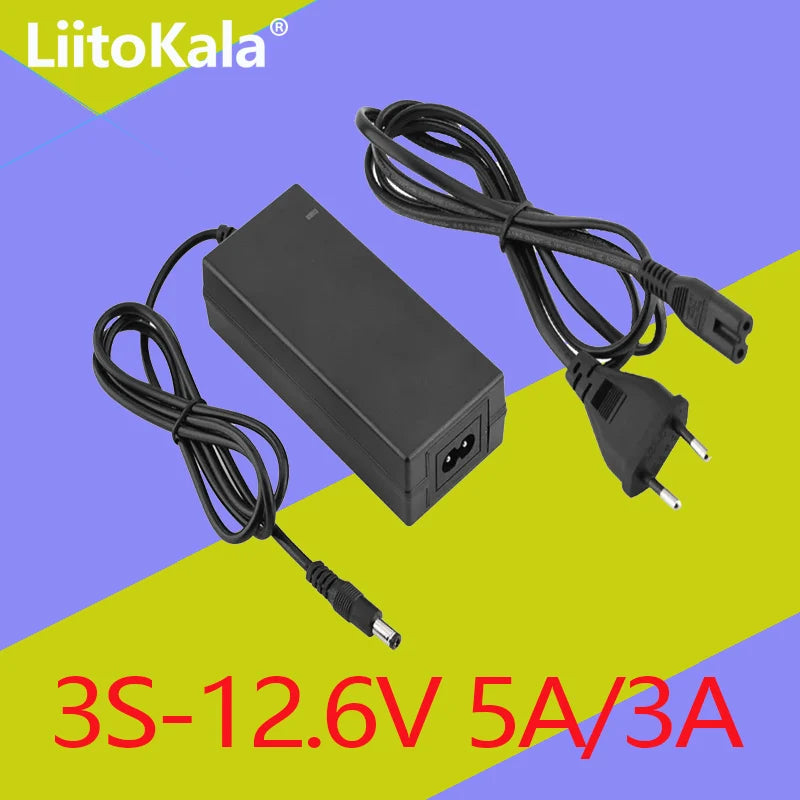

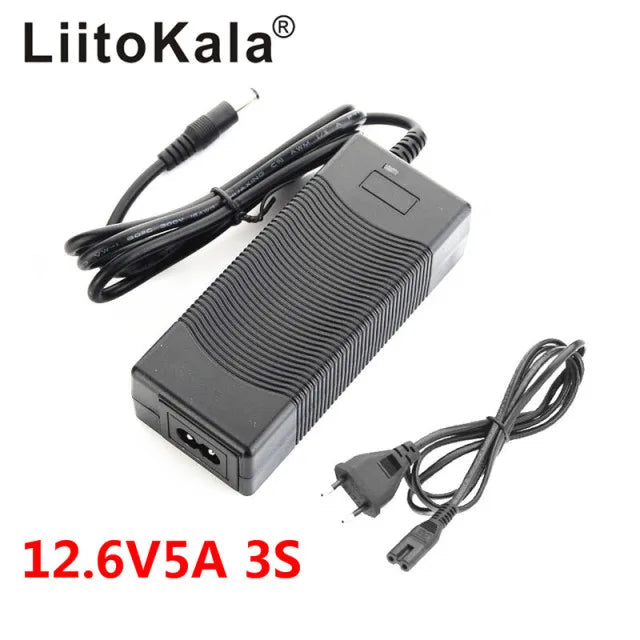

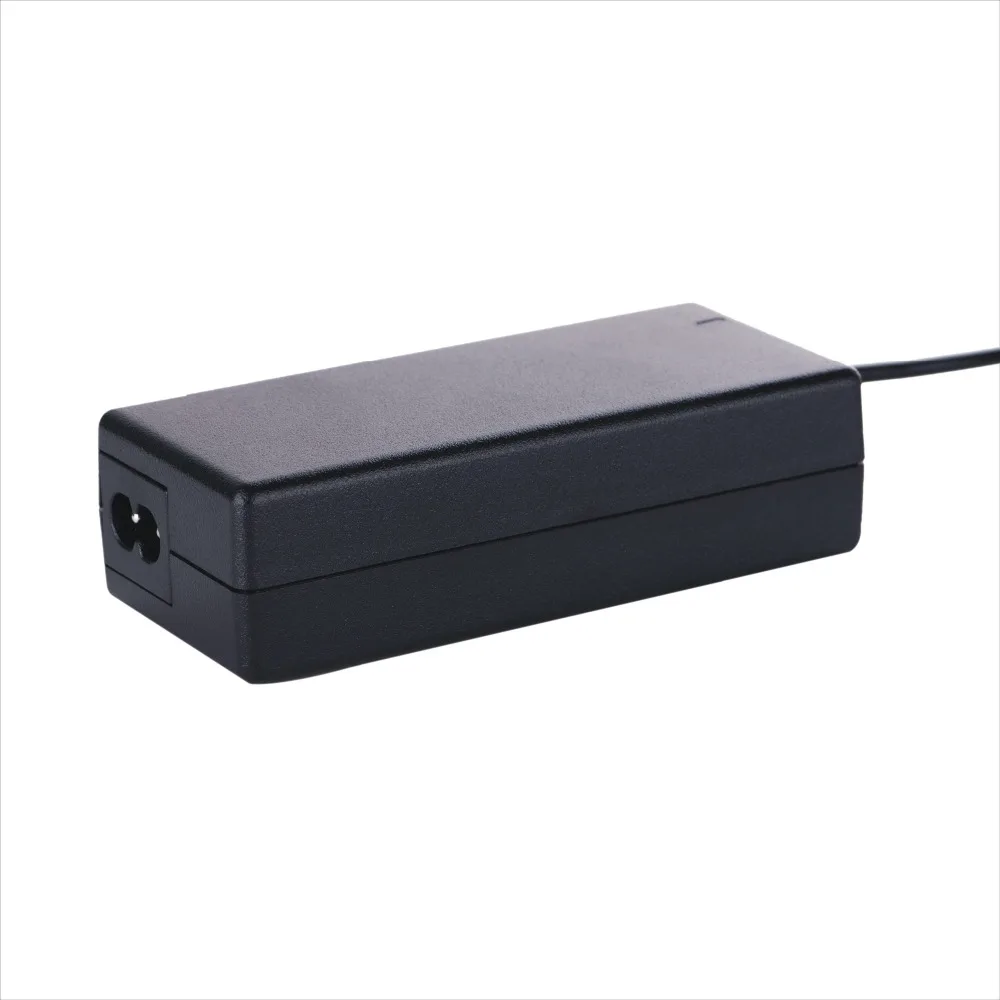

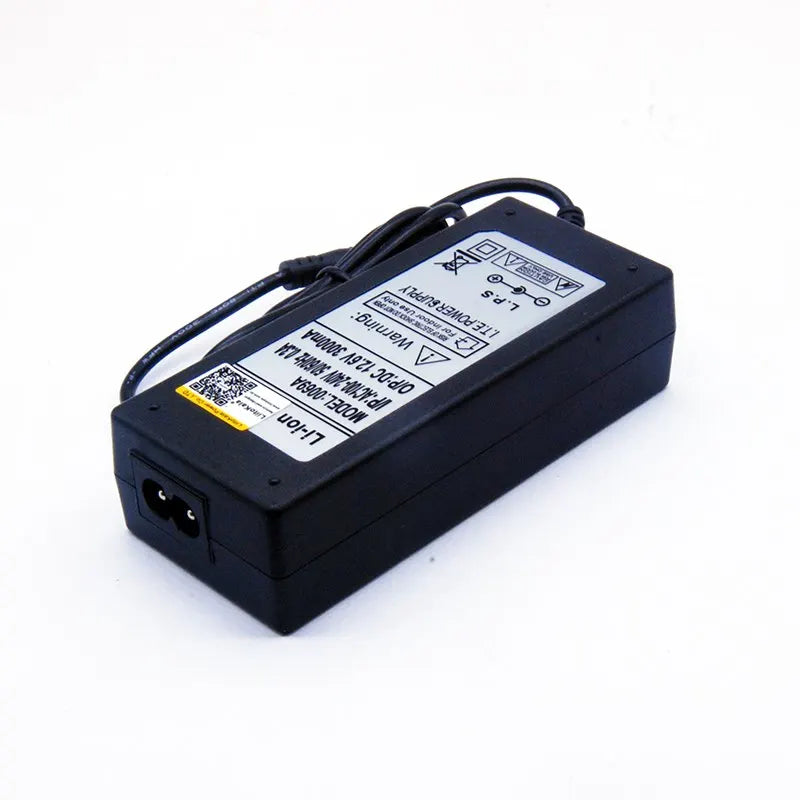

LiitoKala 3S 12.6V 3A 5A 12V Power Supply Lithium Battery Pack Li-ion Batterites Charger AC 100-240V Converter Adapter
LiitoKala 3S 12.6V 3A 5A 12V Power Supply Lithium Battery Pack Li-ion Batterites Charger AC 100-240V Converter Adapter
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: liitokala
Certification: CE
Data Transmission: Other
Display screen: No
High-concerned chemical: none
Intelligent Charge: Yes
Model Number: 12.6V 3A/5A
Origin: Mainland China
Output Power: ≤37.5
Package: No
Power Source: Other
Quick charge: No
Type: Electric
Use: Standard Battery
Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)
About DC size : we will send you 5.5*2.1mm
lithium battery charger 12.6V3A/5A |
|||||
1. Nominal voltage : 12.6V |
|||||
2. Nominal current: 3A/5A |
|||||
For 10 series lithium /Li-poly batterey |
|||||
Application:electric bicycle,E-bike,electrical equipment,ect. |
|||||
We also have several series for your reference: |
|||||
12.6V14.6V16.8V29.4V33.6V37.8V 42V 54.6V etc. |
|||||
We can customize different voltage and current as customer's requirement |
|||||
Technical data
Max. Output power:50W
Input voltage: 100-240V AC
Max. output voltage: 12.6V
Max. output current: 3A
Line frequency: 50-60Hz
Efficiency(at 100% load): >=85%
Ripple: <=1%*Vo
Temperature range: 0-45'C
Relative humidity: <65%
Protection
Over voltage protection
Over current protection
General specification
3-step charging control (pre-charge-CC-CV)
Option: a) NTC inside
b) 100% cut off when battery fully charged
Dual color LED indicator: (Charging:Red; Fully charged or no load:Green)
Light weight and compact
High efficiency and low power consumption
Environmental specification
Operating temperature: 0C ~ 45C
Storage temperature:-20C ~ 70C
Humidity < 65%
