SPECIFICATIONS

Application: Home

Battery Type: N/A

Brand Name: BMAD,Sunway

Controller Type: N/A

Flexible Solar Panel: Yes

Foldable Solar Panel: No

Free installation service: No

Function: Power Support

High-concerned chemical: none

Inverter: Grid Tied Inverter

Keyword: Photovoltaic Solar Energy System

Load Power (W): 10 kW(13.41hp)

Model Number: SWS10KW-ON-EU

Mounting Structure: Roof Customzied

Mounting Type: Ground Mounting

Number of Panels: >20

Origin: Mainland China

Output Frequency: 50/60HZ

Output Voltage (V): 230/400V, 230V/400V

Place of Origin: China

Pre-sales project design: Y

Product name: Grid Solar System

Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon, Monocrystalline Silicon

Specification: Grid 10-25KW

System Type: On-grid Solar Power Generation

Type: Solar Cells

Usage: Home Application Outdoor

Work Time (h): 24 Hours

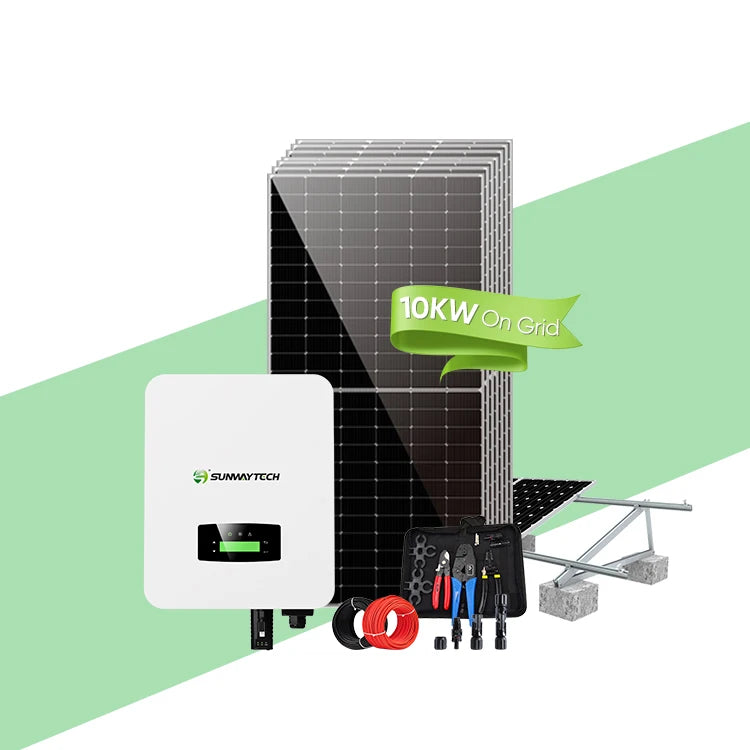

（EU three phase）Grid-Tie Solar System
Item	Model	Description	Quantity
1	SW550M-144	Half Cell	22/30/42/48PCS
2	Grid-Tie Solar Inverter	Power:10/15/20/25KW	1 Set
				Output Voltage:Three Phase
3	Mounting System	Whole set for roof and ground	1 Set
4	PV Cables	4mm2 PV Cable	200/200/300/400mm
5	2p 32A DC Circuit Breaker	Rated Voltage:1000V	2/2/3/3PCS
6	3p 32A AC Circuit Breaker	/	1/1/1/1PCS

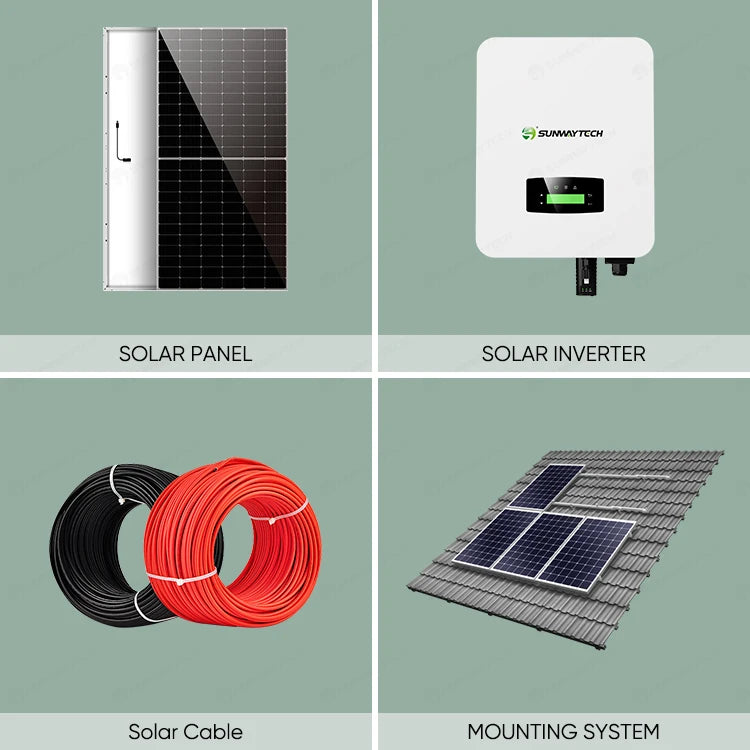

Product Details

MONO/POLY SOLAR PANEL

1.Positive power tolerance:0~+5w
2.Potential induced Degradation(PID) resistant
3.100%EL Double-inspection ensures modules are defects free
4.Modules Binned by Current to improve system performance

ON GRID SOLAR INVERTER

1.WiFl standard
2.Max.Efficiency 98.75%
3.Multiple intelligent protections
4.Campatible with bifaclat modules
5.Quick Arc Fault circuit interruption (Optional)

MOUNTING STRUCTURE

1.Ground Solar Mounting system

2.Residential Roof(Pitched Roof)
3.Car parking solar mounting system
4.Vertical wall solar mounting system
5.Commercial Roof(Flat roof&workshop roof)
6.All aluminum structure solar mounting system

ACCESSORIES

1.AC Cable

2.DC Switches
3.AC Breaker
4.AC/DC Combine box
5.PV Cable 4mm2 6mm2

PV TOOLS

1.Disassembly Tool

2.MC3 PV Crimper
3.Wire Cable Cutter&Stripper
4.PV Connectors Assembly

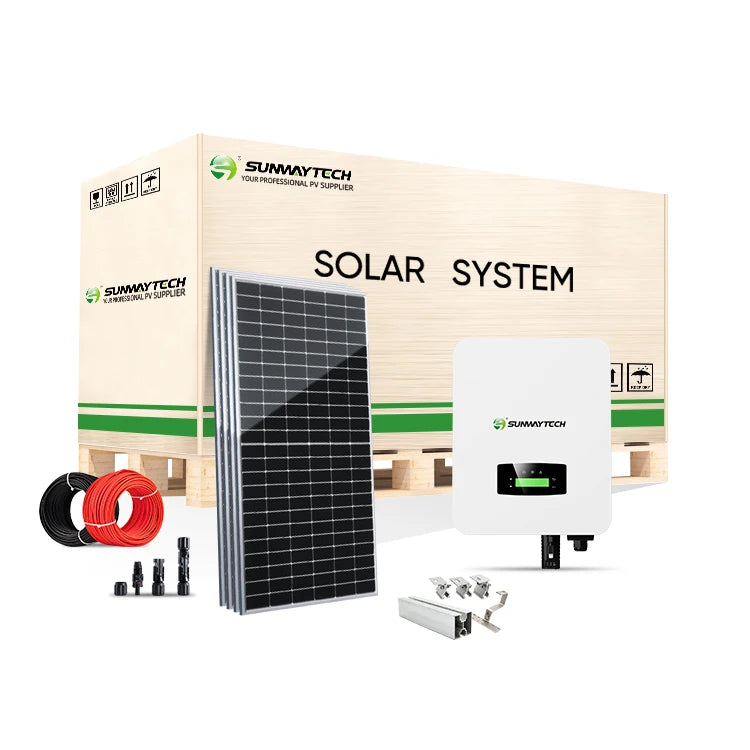

Product Packaging

The firm packaging ensures the safety of the product during transportation, so that the product reaches the customer completely.
Support customer customized packaging.

If there is any damage during transportation, please contact us in time for a solution.

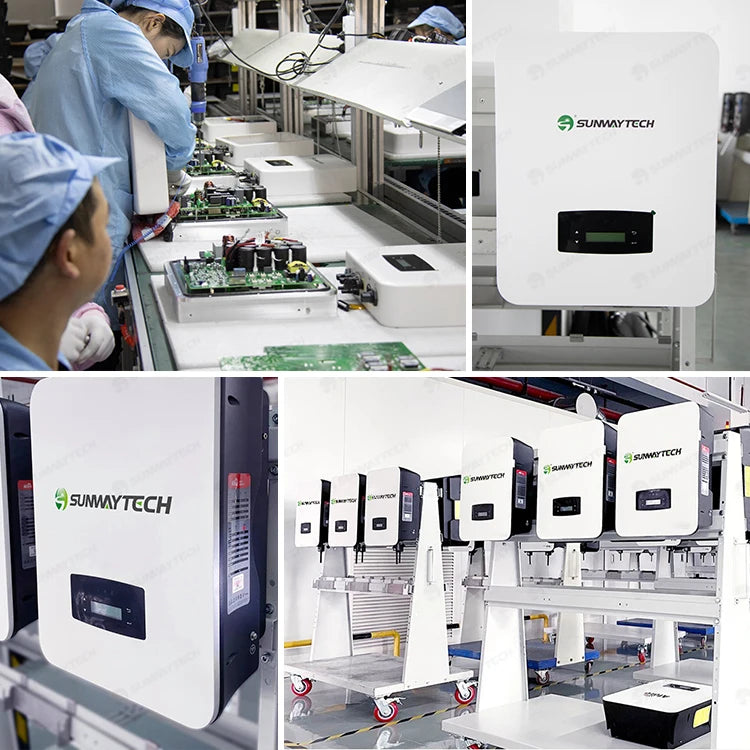

Company Profile

Certifications
