SPECIFICATIONS

220V Peak power: 1500w

Brand Name: NONE

Circuit board size: 196*126*55mm

High-concerned chemical: none

Model: K0029

Model Number: 1500

Name: 1500W pure sine wave inverter circuit board

No-load current: about 400MA

Origin: Mainland China

Output Frequency: 50Hz/60Hz

Rated power: 1000W

Type: DC/AC Inverters

Weight: 0.85kg

Name: 1500W pure sine wave inverter circuit board

12v/24v to 220v

Rated power: 1000W

220V Peak power: 1500w

110V Peak power: 750w

Circuit board size: 196*126*55mm

Veneer weight: 850 grams

No-load current: about 400MA

3 adjustable resistors on board

w1 undervoltage protection

w2 HVDC feedback Adjustable bus voltage No-load current

w3 output voltage adjustment output 110v-240v adjustable

The fan is controlled by the chip's intelligent temperature control. When starting, the fan will rotate for 1 second. When the temperature of the radiator reaches about 50°, the fan will start. About 70°, over temperature protection, stop output, when the temperature drops to 60°, resume output.

Protection function/short circuit protection/overload protection/high temperature protection/low voltage protection/overvoltage protection

Note:

1.Please do not reverse the positive and negative of the 12v input, and do not connect the output to the mains. Please use it in a ventilated and dry area.

2. The Peak power of 110V is 750W.

3.Product styles will be randomly sent

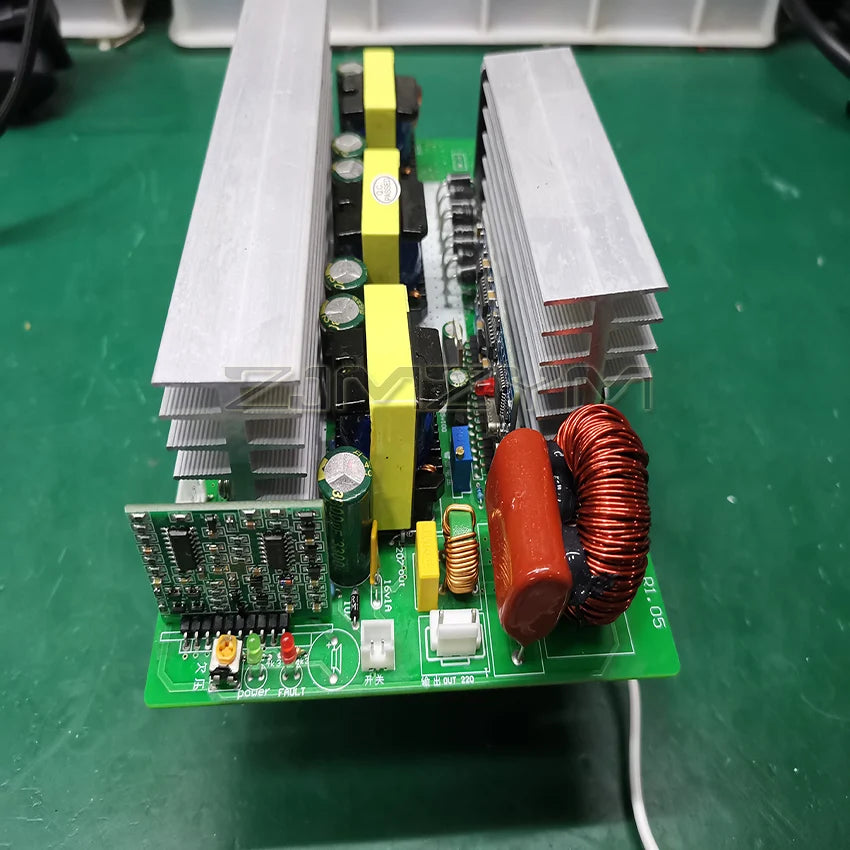

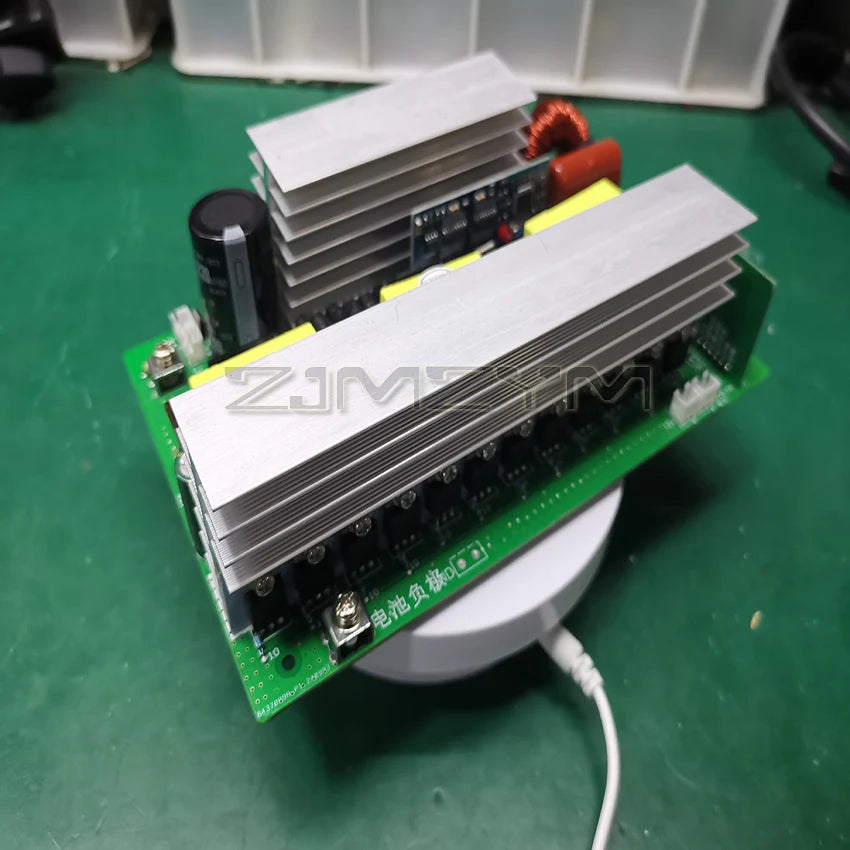

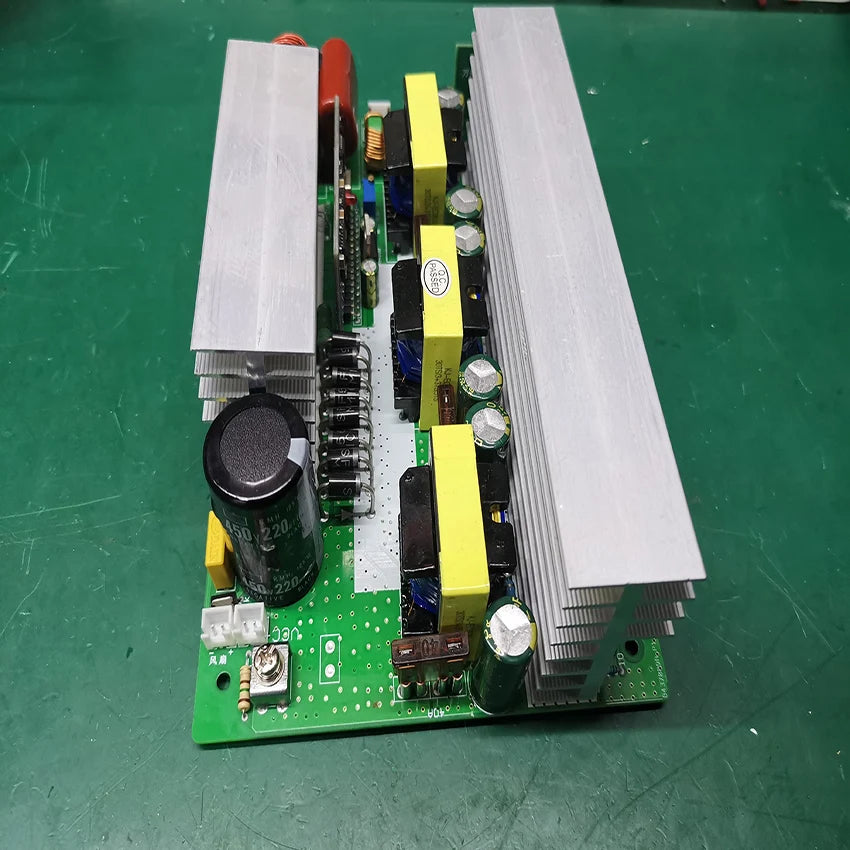

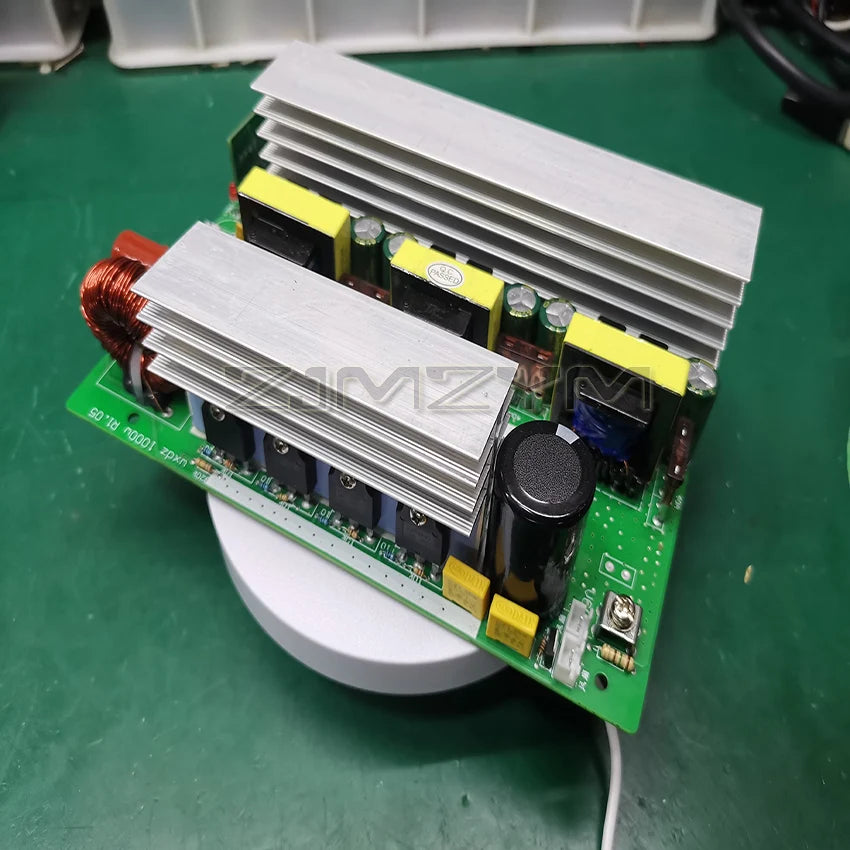

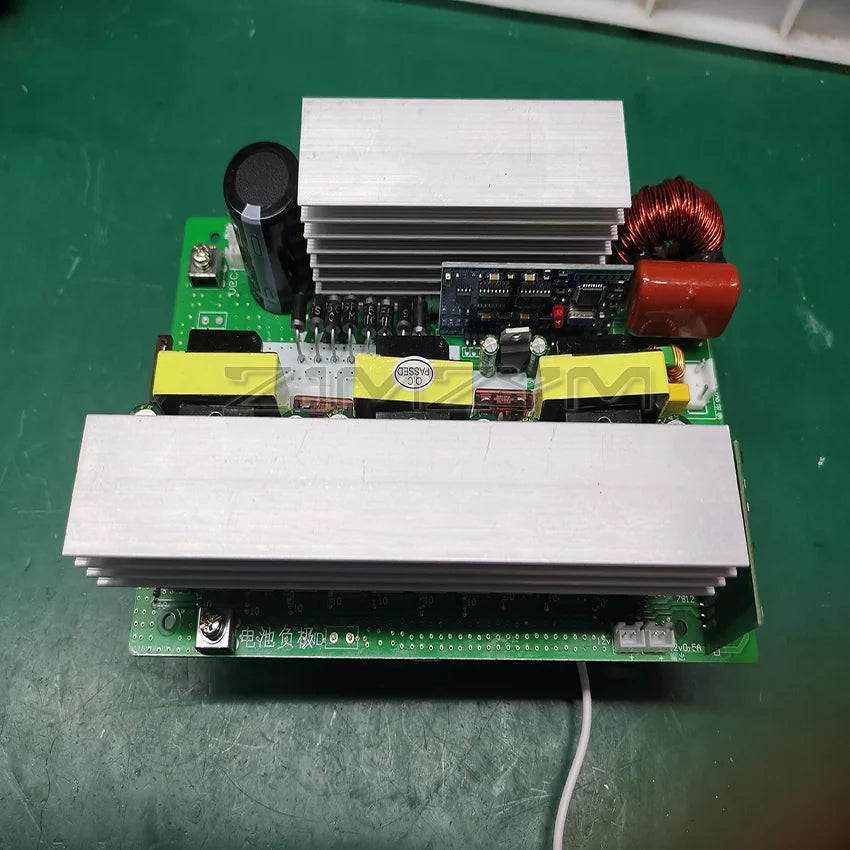

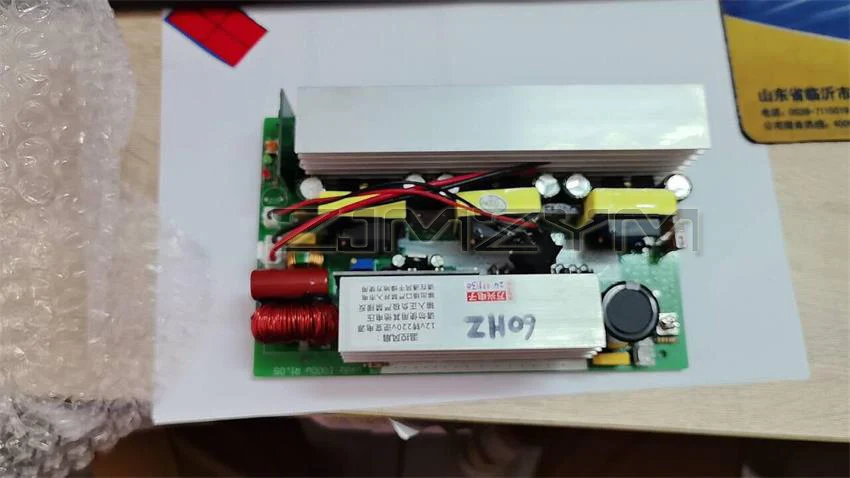

☆PICTURES SHOW:
