SPECIFICATIONS

Brand Name: NONE

Choice: yes

Compatible Brand/Model: None

Condition: New

High-concerned chemical: none

Is Customized: Yes

Model Number: 150 W Boost Board Module

Origin: Mainland China,Mainland China

Type: DC/AC Inverters

semi_Choice: yes

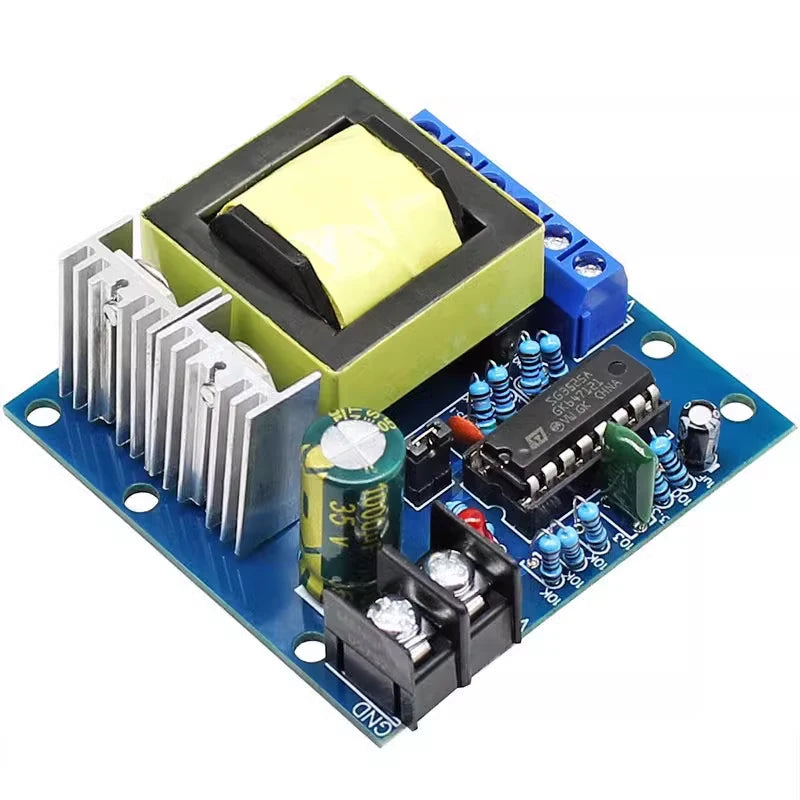

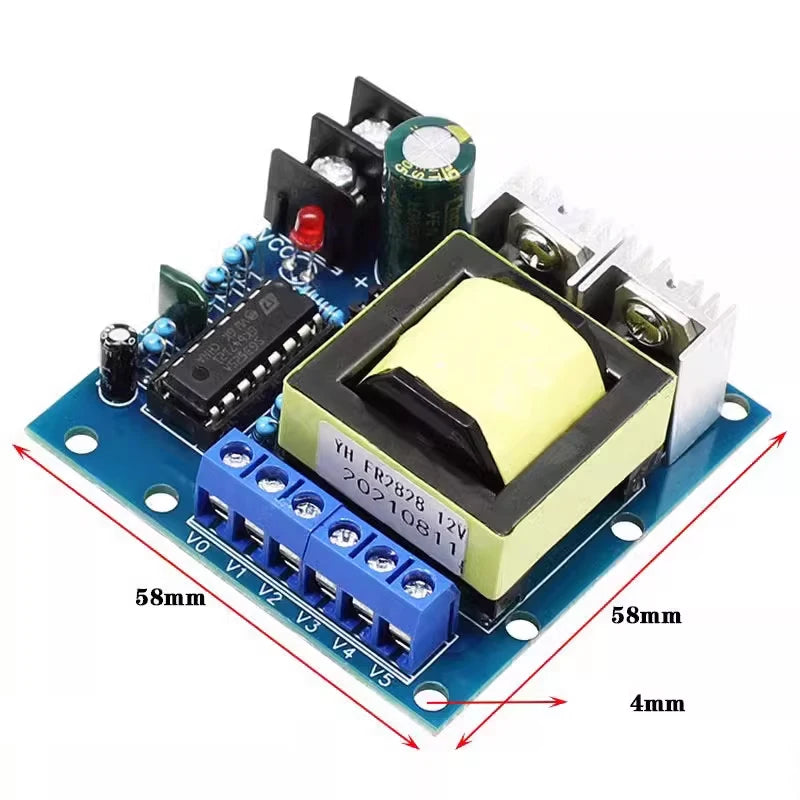

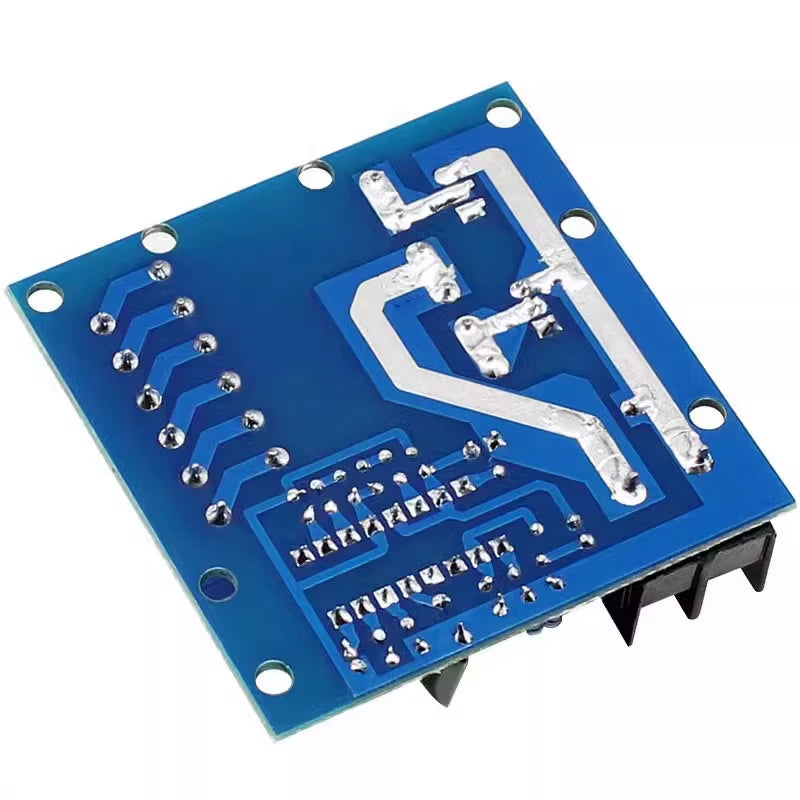

Product parameters:

Power: 150W

Input: DC12V/DC24V two models optional Output: AC 0-110V-172V-200V-220V Multiple voltage outputs

(Note: The output is a high-frequency square wave AC voltage)

Large quantities can be customized according to customer voltage requirements

Static current: around 0.08A

Output waveform: high-frequency square wave

Output frequency: around 20KHz

Protection: Unprotected

This product is widely used as a good helper for night camps, night market vendors, and emergency power outages in driving households. Can be used as an electronics enthusiast for DIY production, repair and replacement, manufacturer control cabinet matching products, and more..

Special attention:

This board is a high-frequency square wave AC output, so most inductive appliances cannot be equipped with it!! For example, electric motors, fans, coils, transformers, etc. cannot be equipped. Additionally, simple resistive capacitive voltage reducing small appliances, cheap resistive capacitive voltage reducing LED lamps, etc. may not be usable

When connecting electronic products (such as LED lights, mobile phone chargers, DVD set-top boxes, WiFi, etc.) to a load, a fast recovery diode or a low voltage range such as 110V 172V should be connected in series at the output end

3. It is recommended to increase the number of heat sinks or add a fan to enhance heat dissipation when working under heavy loads for long periods of time!

4. The positive and negative poles of the input power supply cannot be reversed The power supply and power cord should have sufficient current

5. Without any protection, do not overload or short-circuit the output.

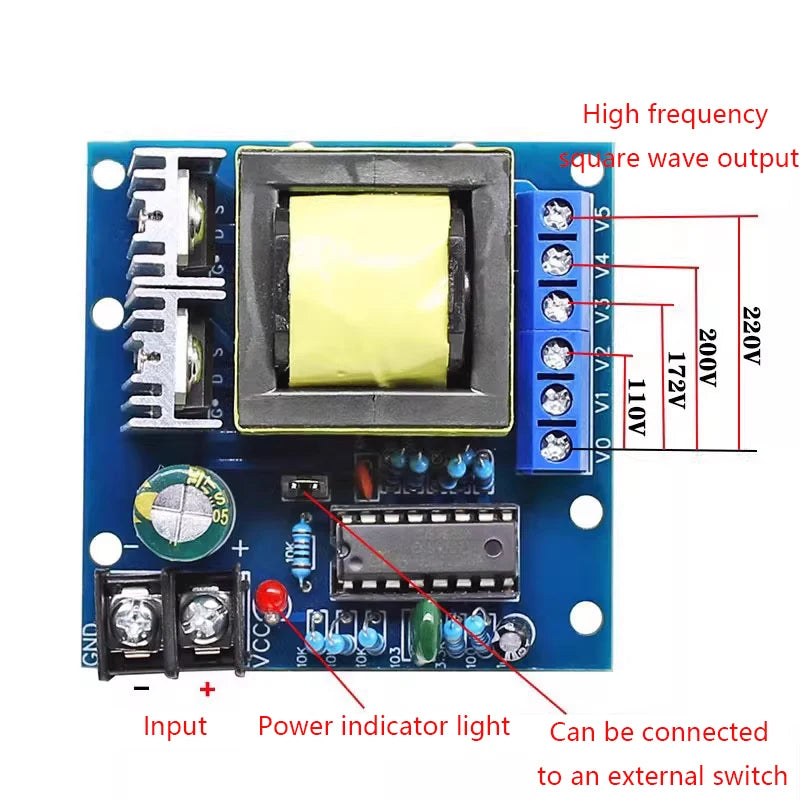

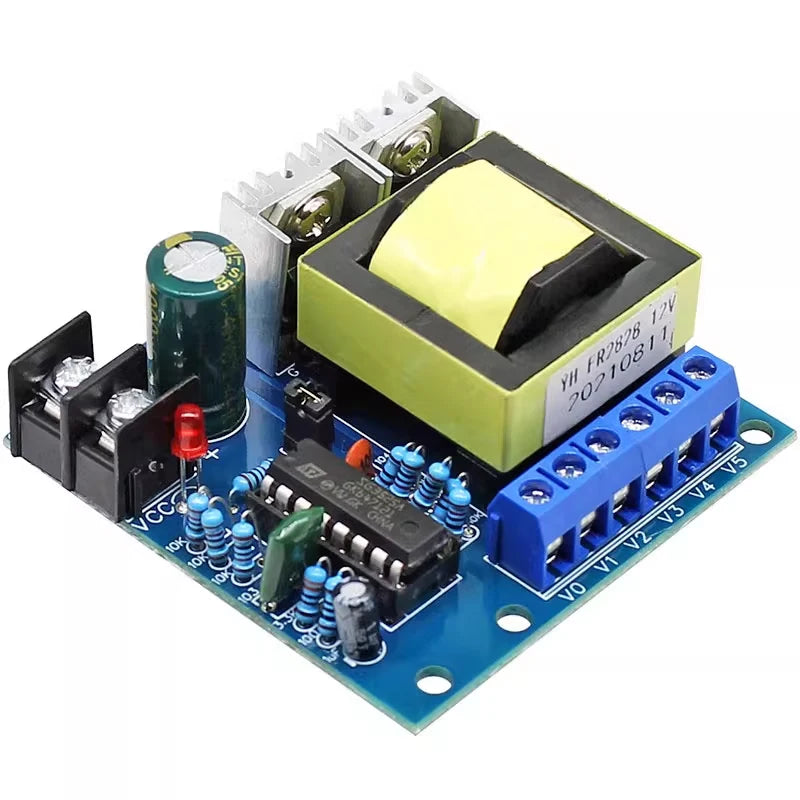

6. As the output is high-frequency square wave AC voltage, many multimeters may not be able to measure it or the displayed value may be too low or too high (which is incorrect and not the actual voltage that can be used with confidence). Special reminder: for electronic products, it is recommended to string a high-frequency diode in our board output to rectify it into DC output, because many electronic products such as switch mode power supplies use ordinary rectifier tubes in the rectification part to save costs. If connected to the "high-frequency AC output", it will cause the rectifier diode in the electrical appliance to rapidly heat up, damage, breakdown and short circuit Ultimately, it caused the inverter board to burn out. The output wiring has the following voltage: "For reference only"

VO--V2=110V

V0--V3=175V

V0--V4=200V

V0--V5=220V

V5--V4=20V

V5--V3=45V

V5--V2=110V

V4--V3=28V
