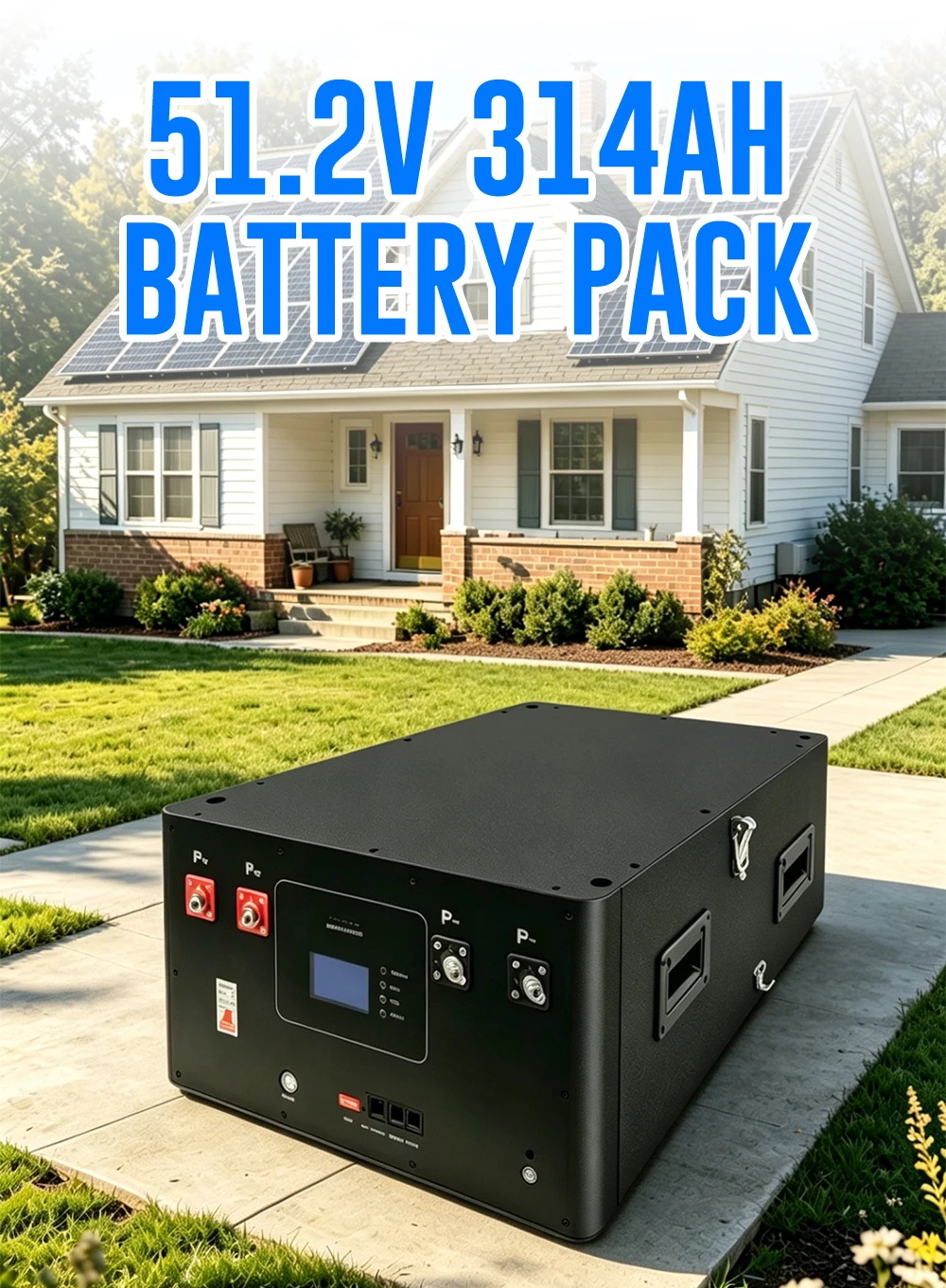

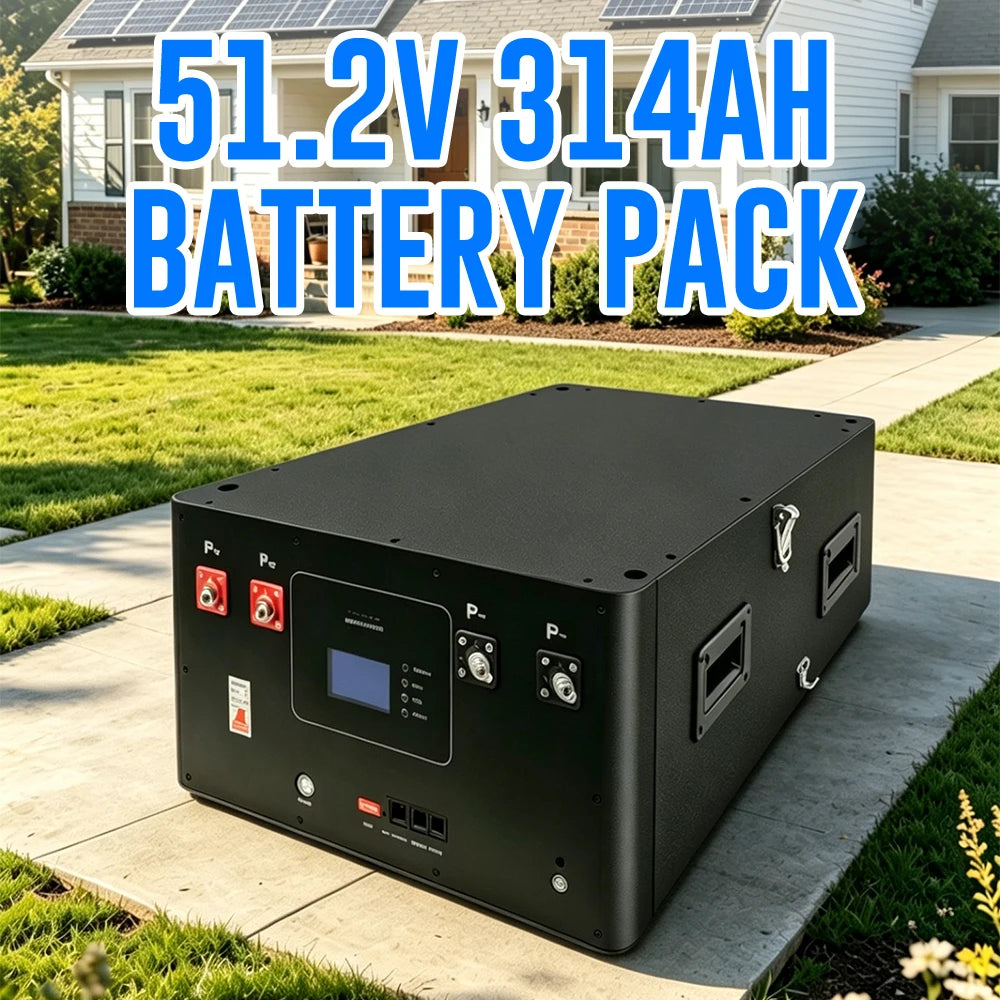

16Kwh Battery Pack 51.2V LiFePO4 48V 330Ah Lithium battery 8000 Cycles Bluetooth 16S200A Smart BMS Solar Energy Storage Akku EU
16Kwh Battery Pack 51.2V LiFePO4 48V 330Ah Lithium battery 8000 Cycles Bluetooth 16S200A Smart BMS Solar Energy Storage Akku EU
Couldn't load pickup availability
SPECIFICATIONS
Active Balancer: 2A

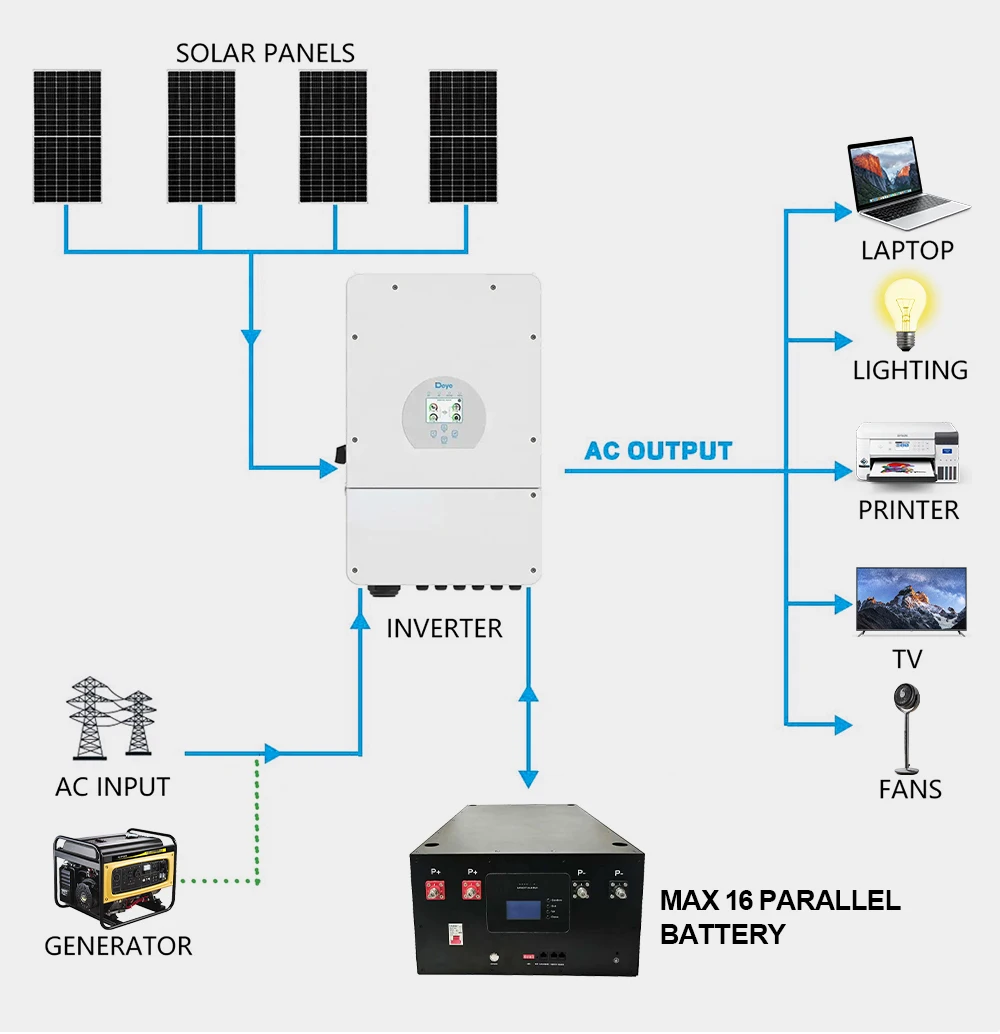

Application: Home Energy,Solar Power Storage,Others
BMS: EJ PB16S20P bms
Brand Name: Deligreencs
Cell Configuration: 16S1P

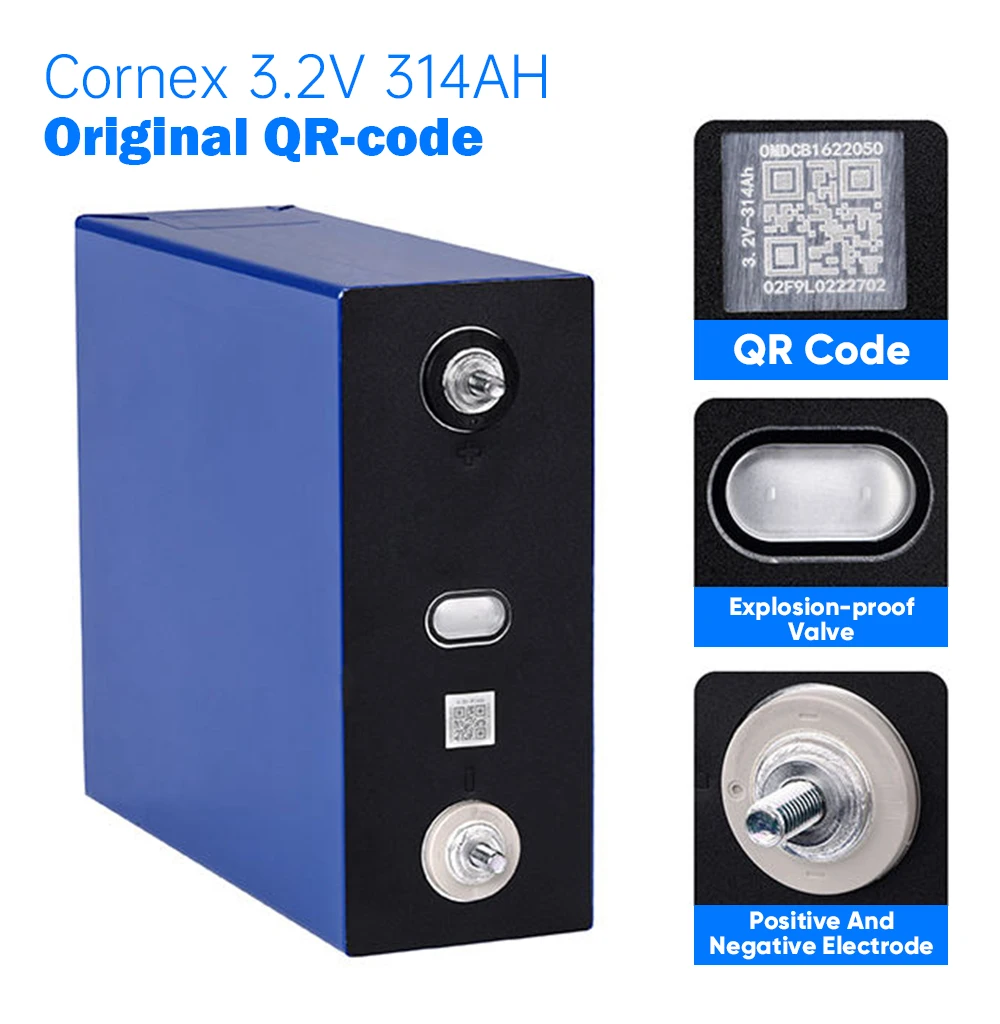

Cell Model: 314Ah x 16pcs
Certification: CE
Communication Ports: CAN, RS485, RS232
Connection: Bluetooth-Compatible
Cycle Life: 8,000 Cycle @ 80% DOD
Design Life: 15 years
Discharge Cut-off Voltage: 43.2V
High-concerned chemical: none
Maximum Charge (V): 57.6V
Maximum Charge Current (A): 200A
Maximum Discharge Current (A): 200A
Minimum Capacity (Ah): 314Ah
Model Number: 16kWh Battery pack
Nominal Capacity: 16kWh
Nominal Capacity (Ah): 314Ah
Operating Temp.: Charge: 0°C ~ 60°C Discharge: -20°C ~ 60°C
Origin: Mainland China
Preloaded Protocols: Compatible with Sunsynk, Solis, Victron, DEYE, etc.
Rated Voltage: 52V

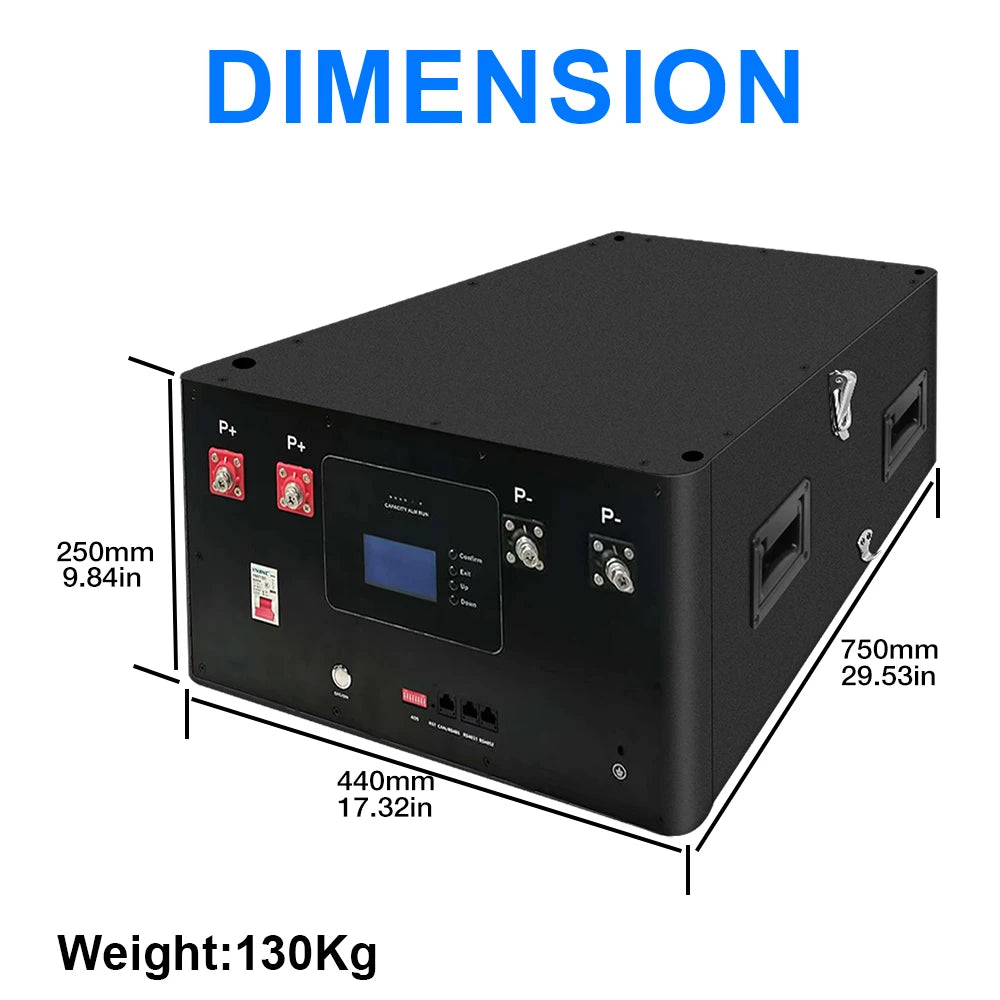

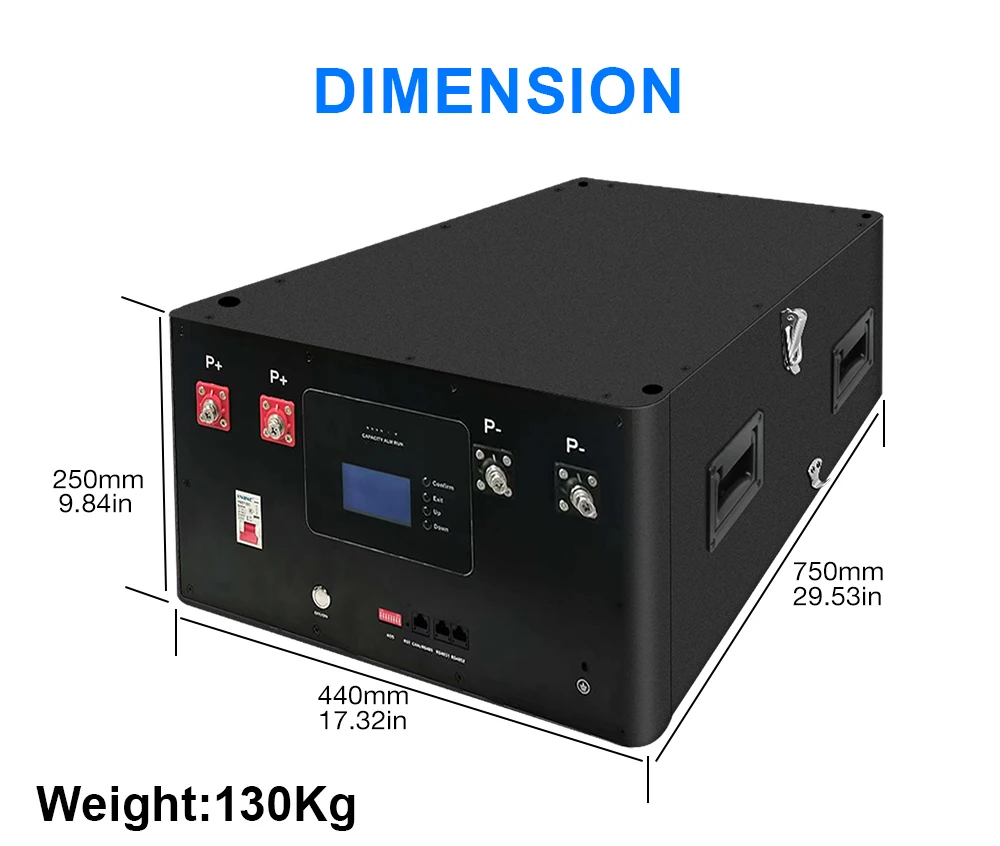

Size: 87*43*27cm
Total Energy (Wh): 16,076.8Wh
Type: LiFePO4
Voltage: 51.2V
Weight: 150kg

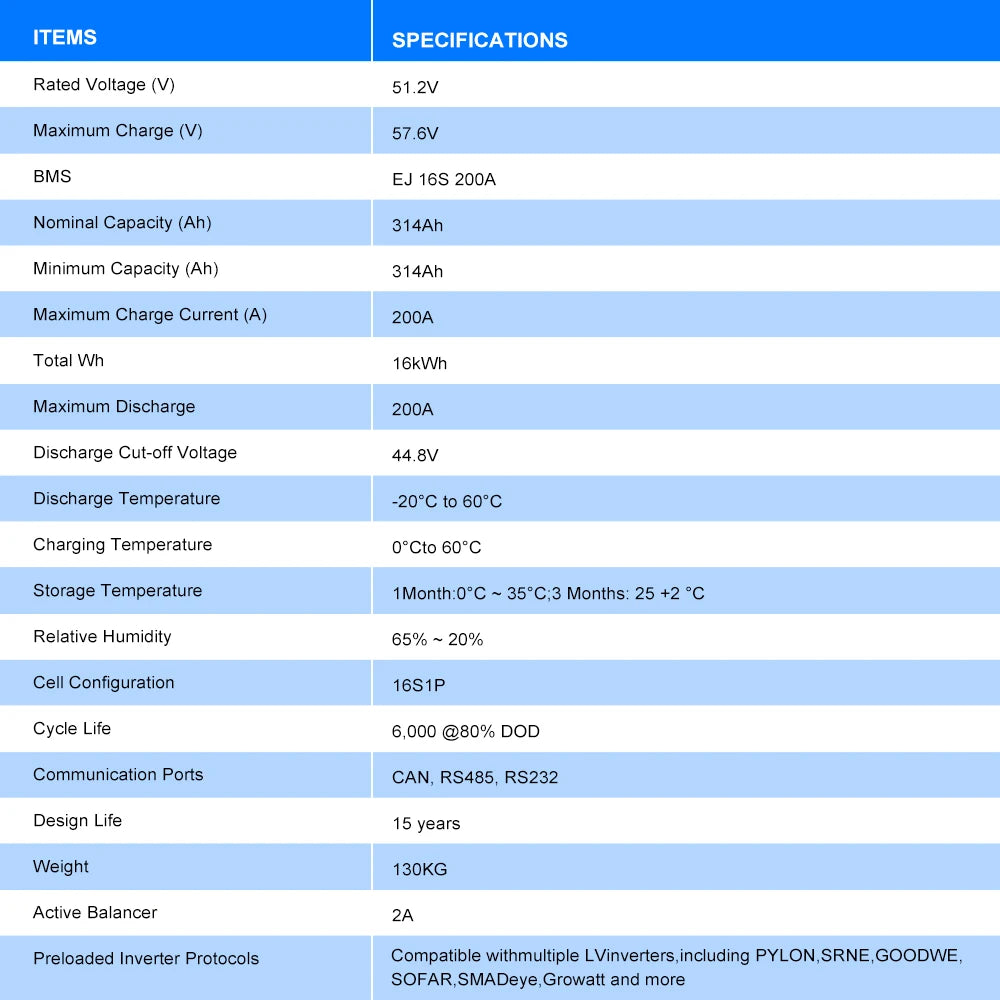

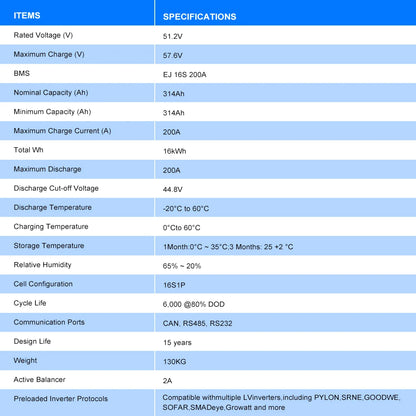

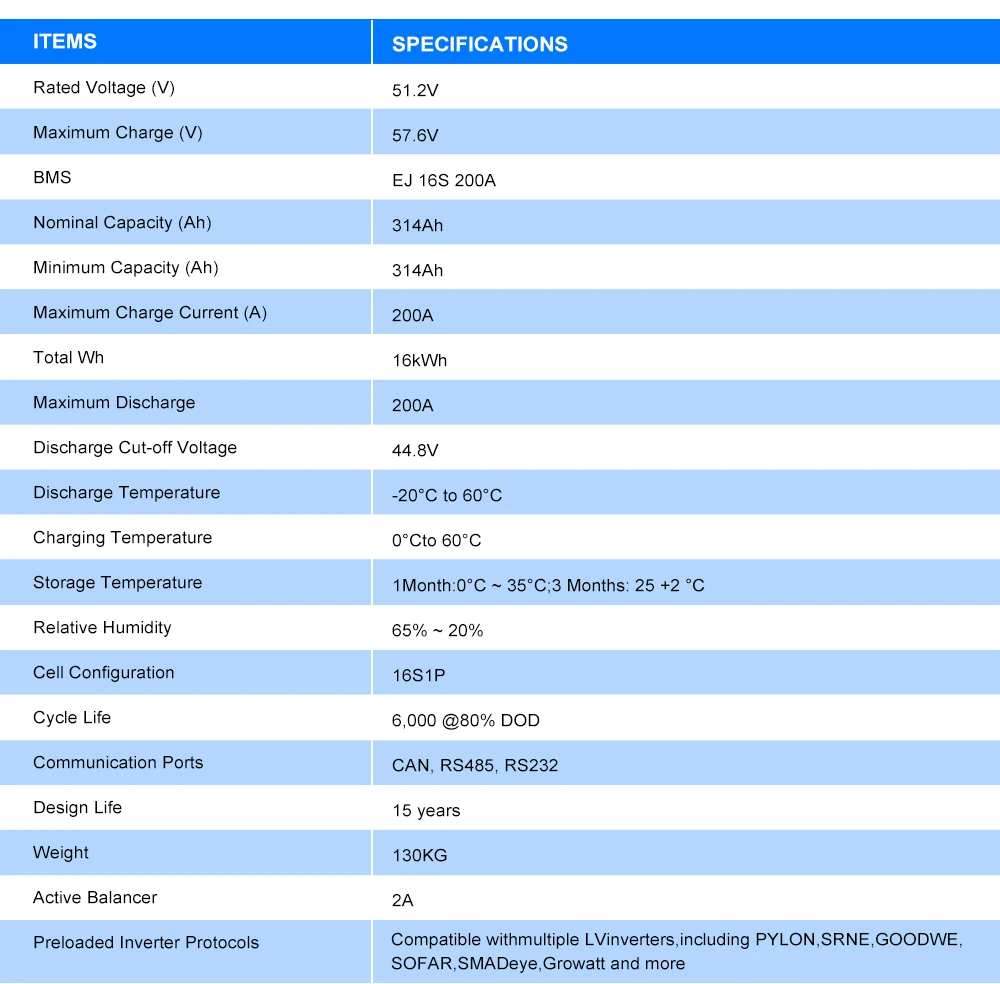

Core Parameters Overview
Rated Voltage (V): 51.2V
Maximum Charge (V): 57.6V
Discharge Cut-off Voltage: 43.2V
Nominal Capacity (Ah): 314Ah
Minimum Capacity (Ah): 314Ah
Total Energy (Wh): 16,076.8Wh
Maximum Charge Current (A): 200A
Maximum Discharge Current (A): 200A
BMS:EJ-PB2A16S20P
Cell Configuration: 16S1P

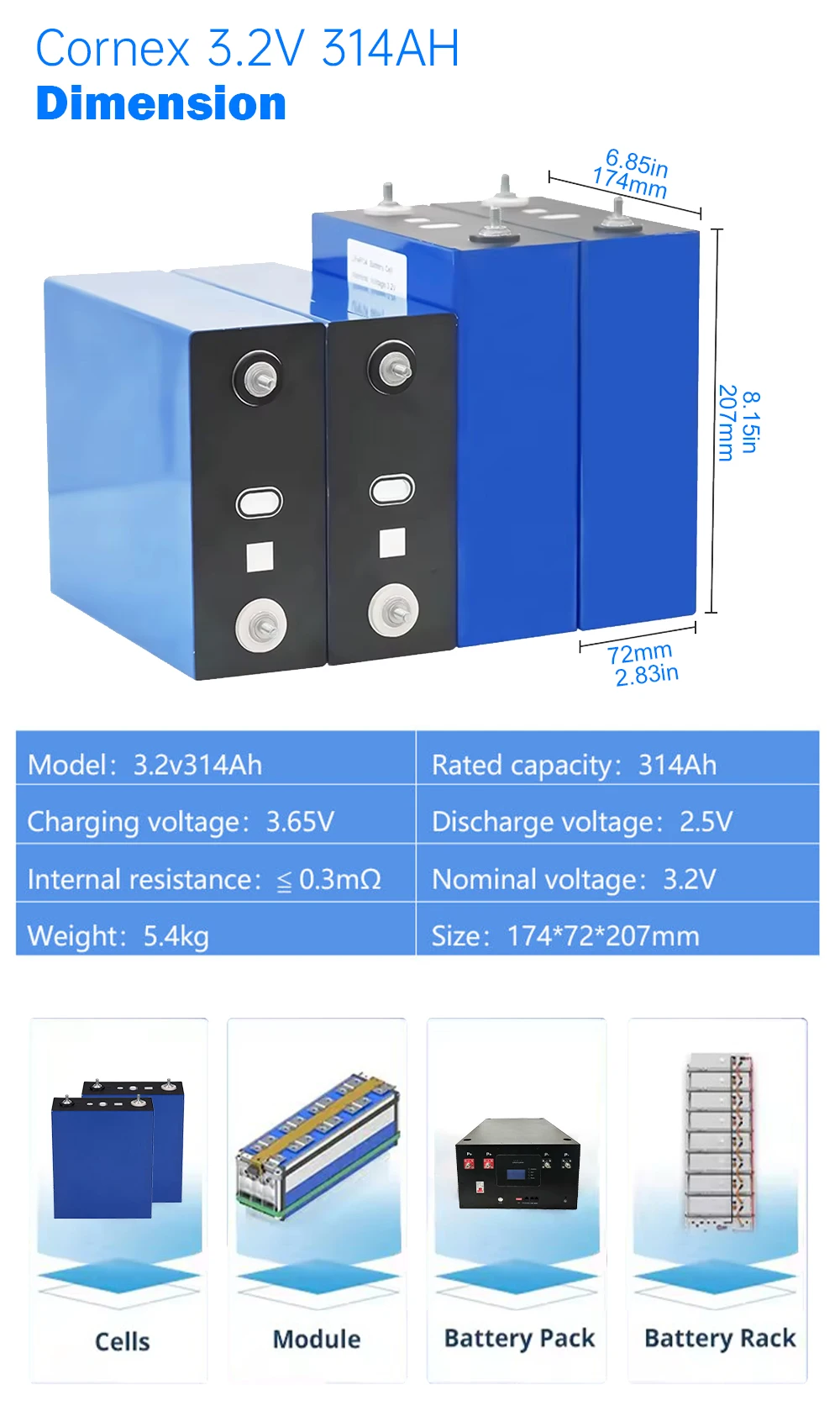

Cell Model: 314Ah x 16pcs
Cycle Life: 8,000 @ 80% DOD
Design Life:15 years
Operating Temp
Charge: 0°C ~ 60°C
Discharge: -20°C ~ 60°C
Relative Humidity: 20% ~ 65%
Active Balancer: 2A

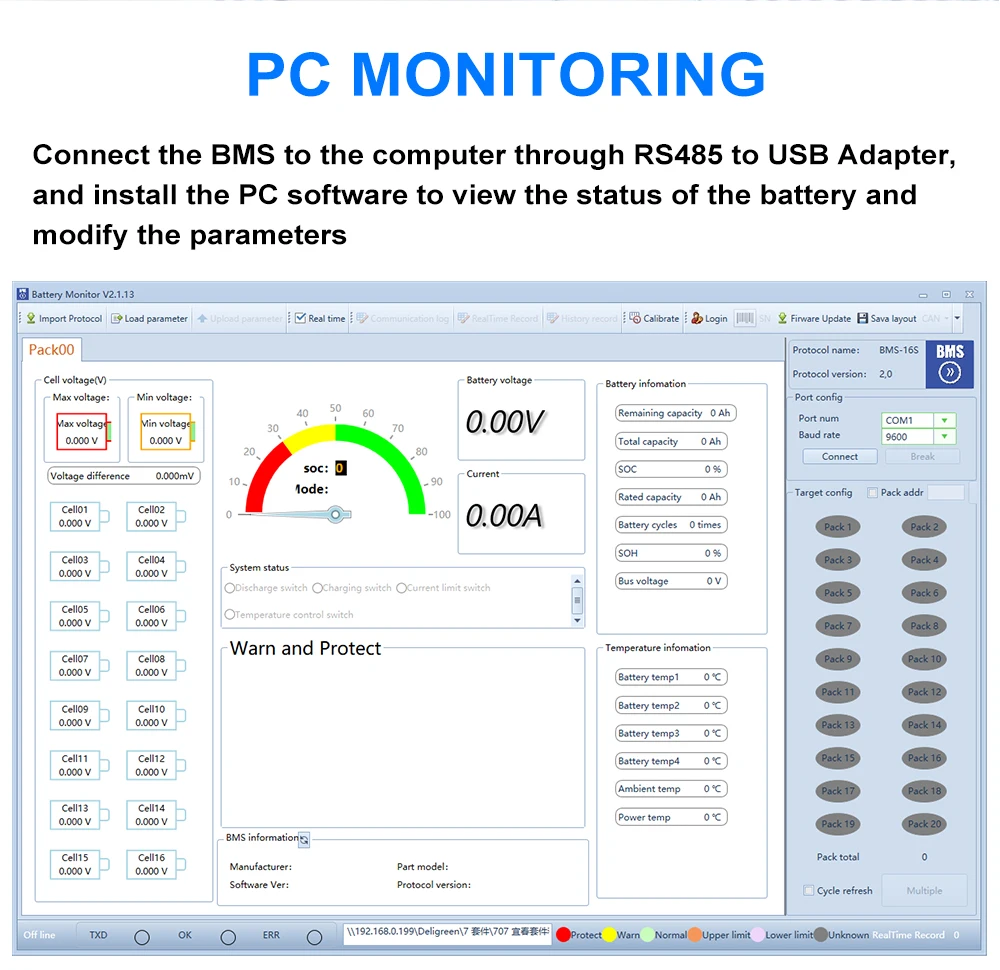

Communication Ports: CAN, RS485, RS232

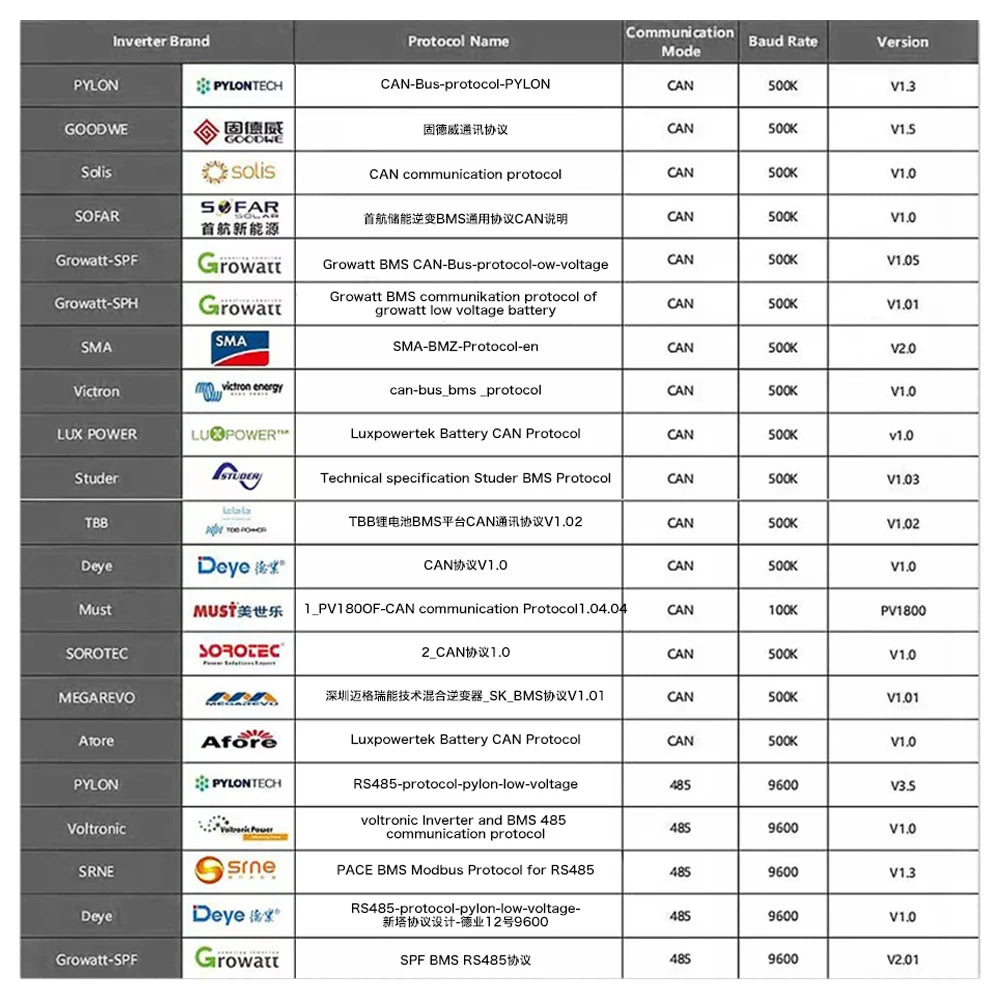

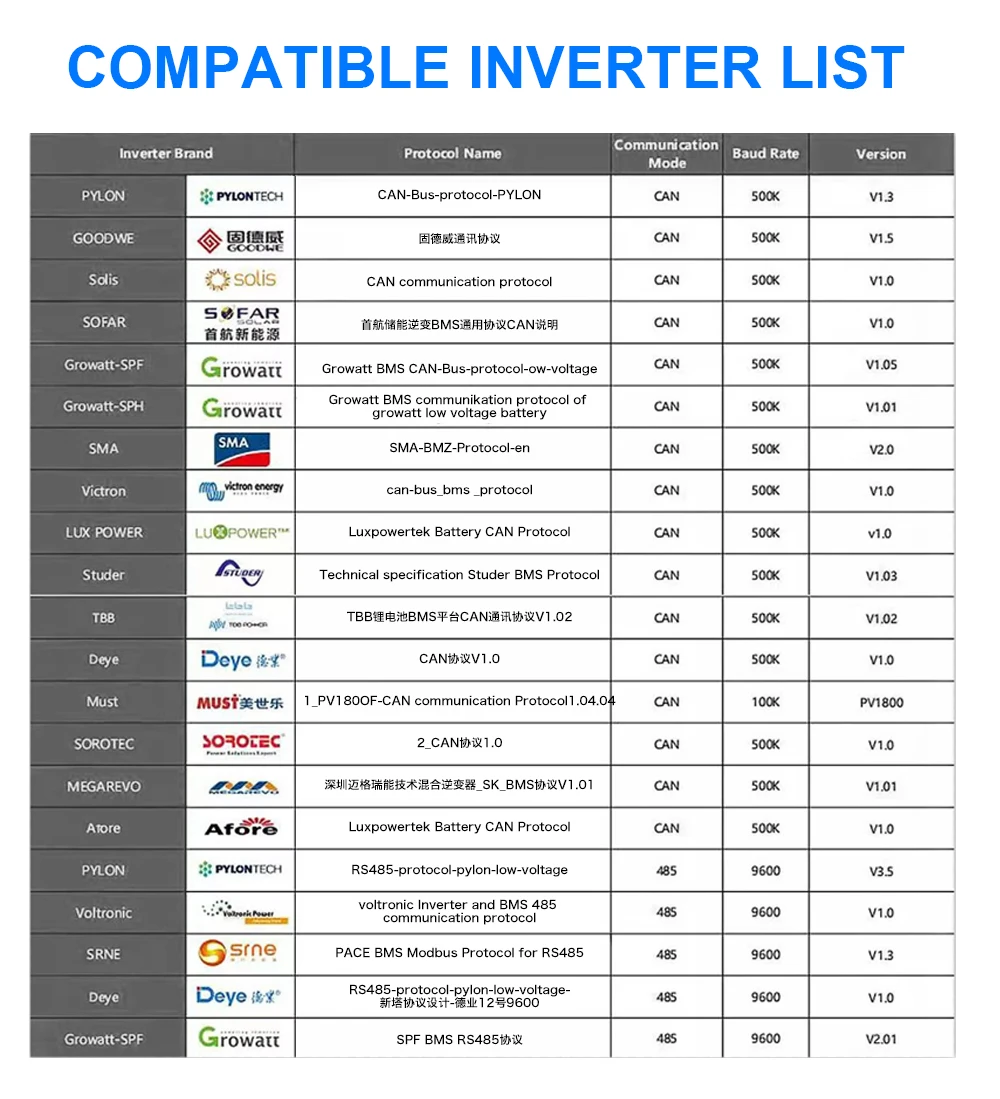

Preloaded Protocols: Compatible with Sunsynk, Solis, Victron, DEYE, etc.
Weight: 130KG

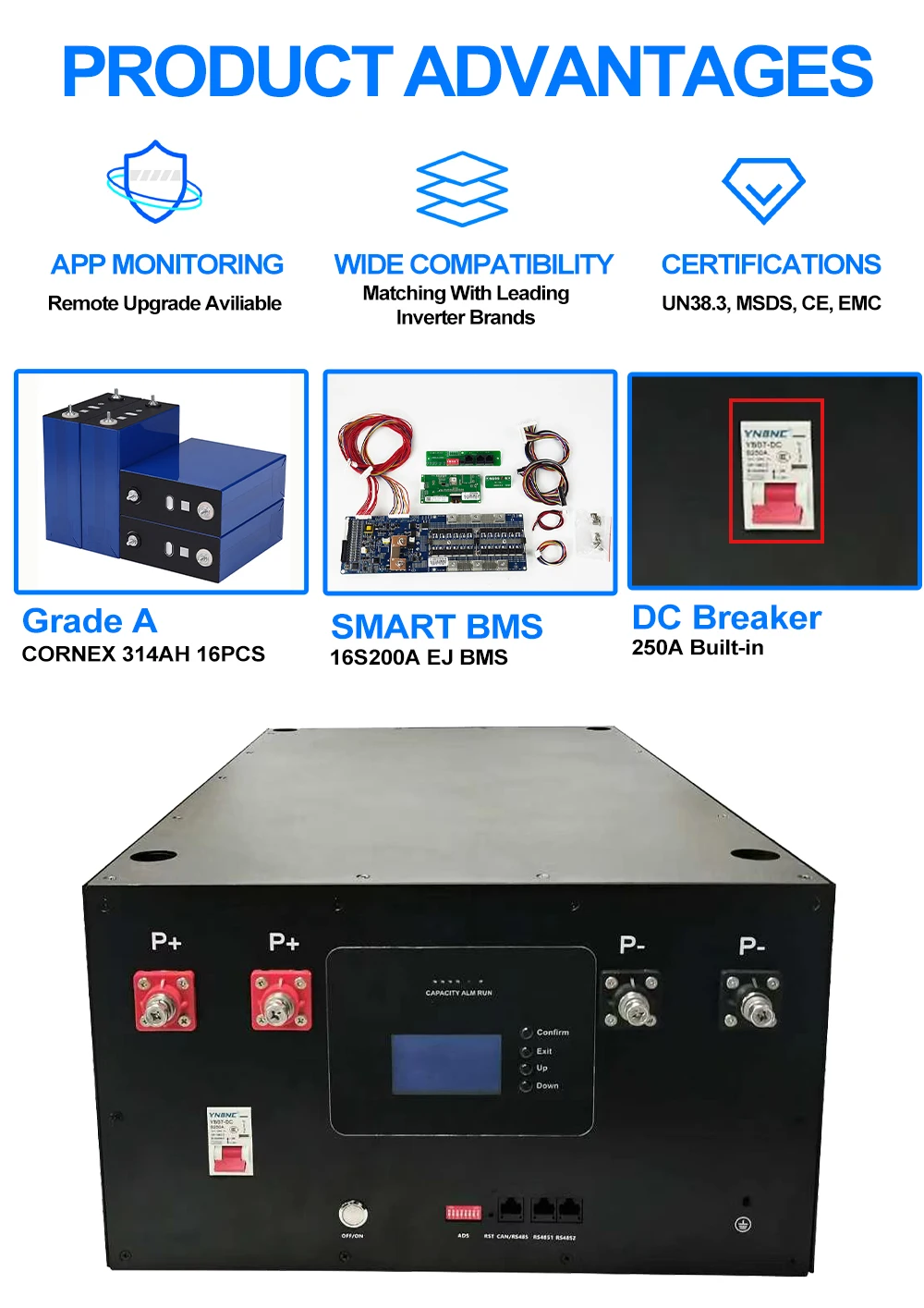

Key Selling Points
High Capacity & Energy Density

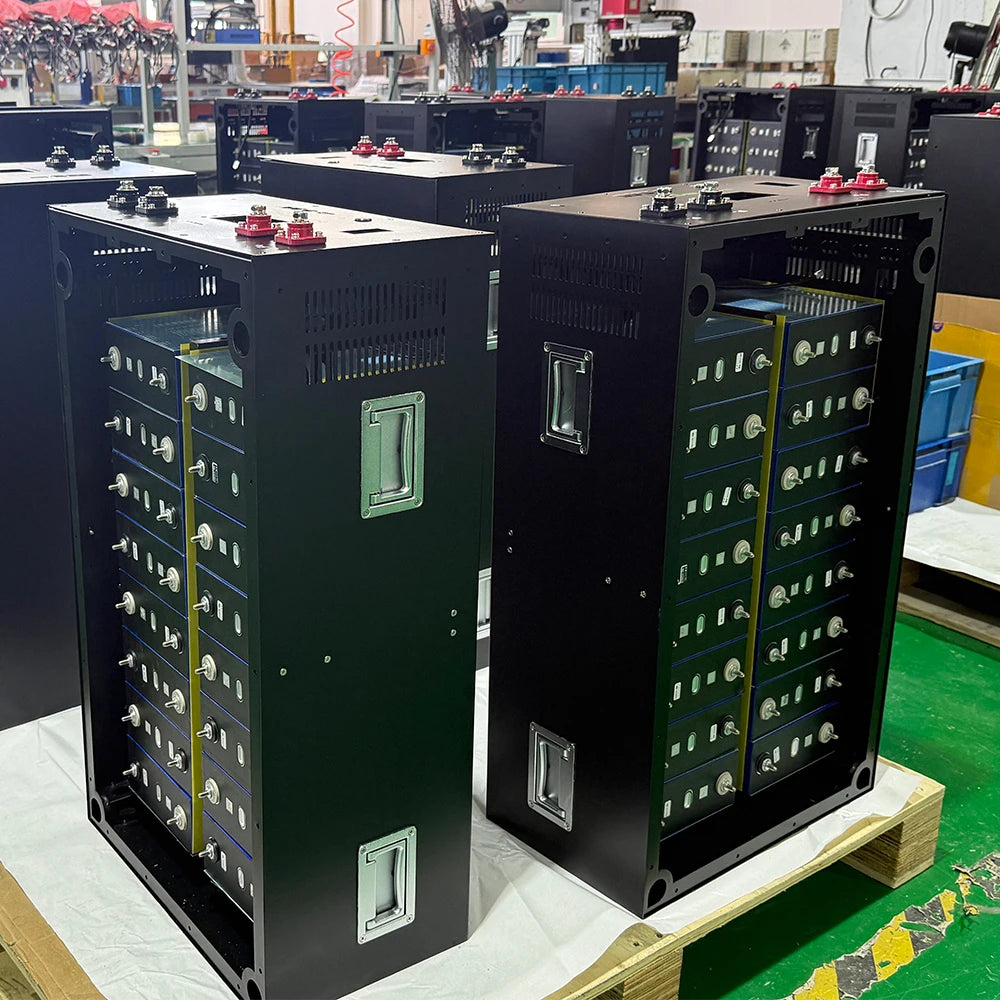

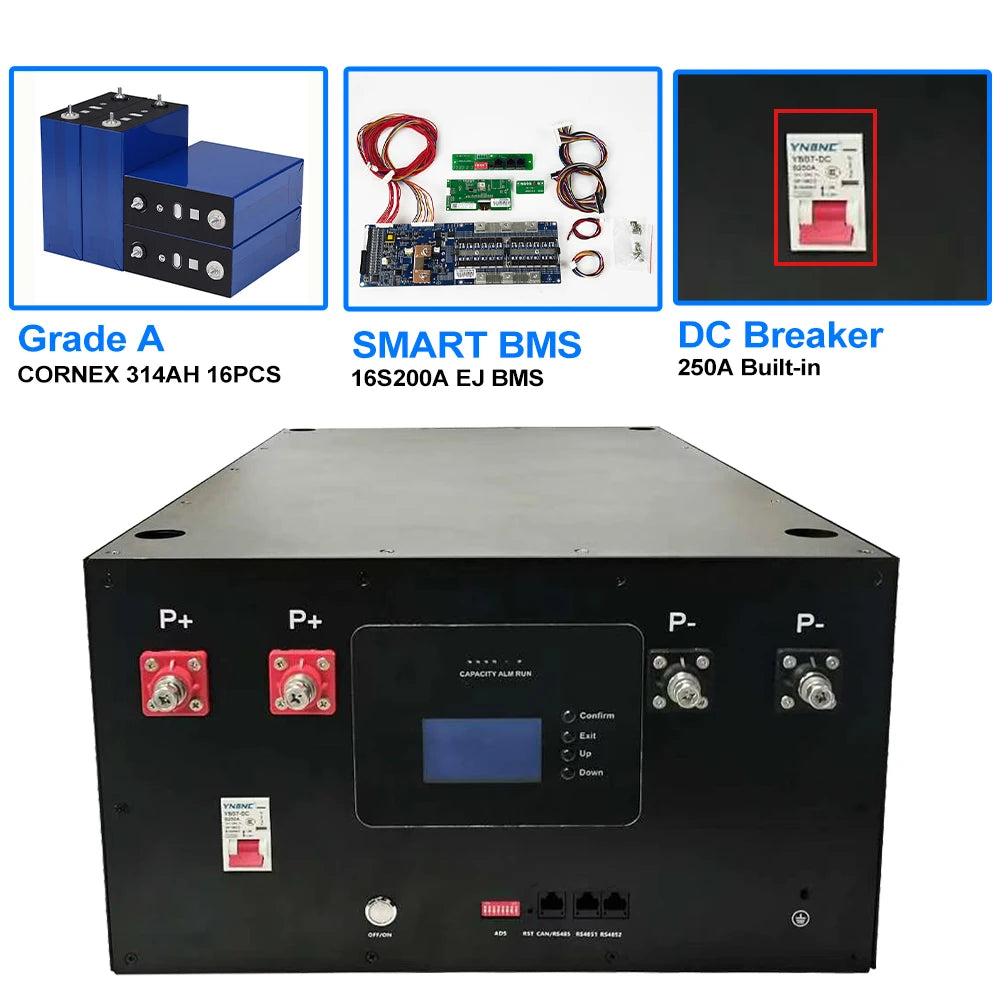

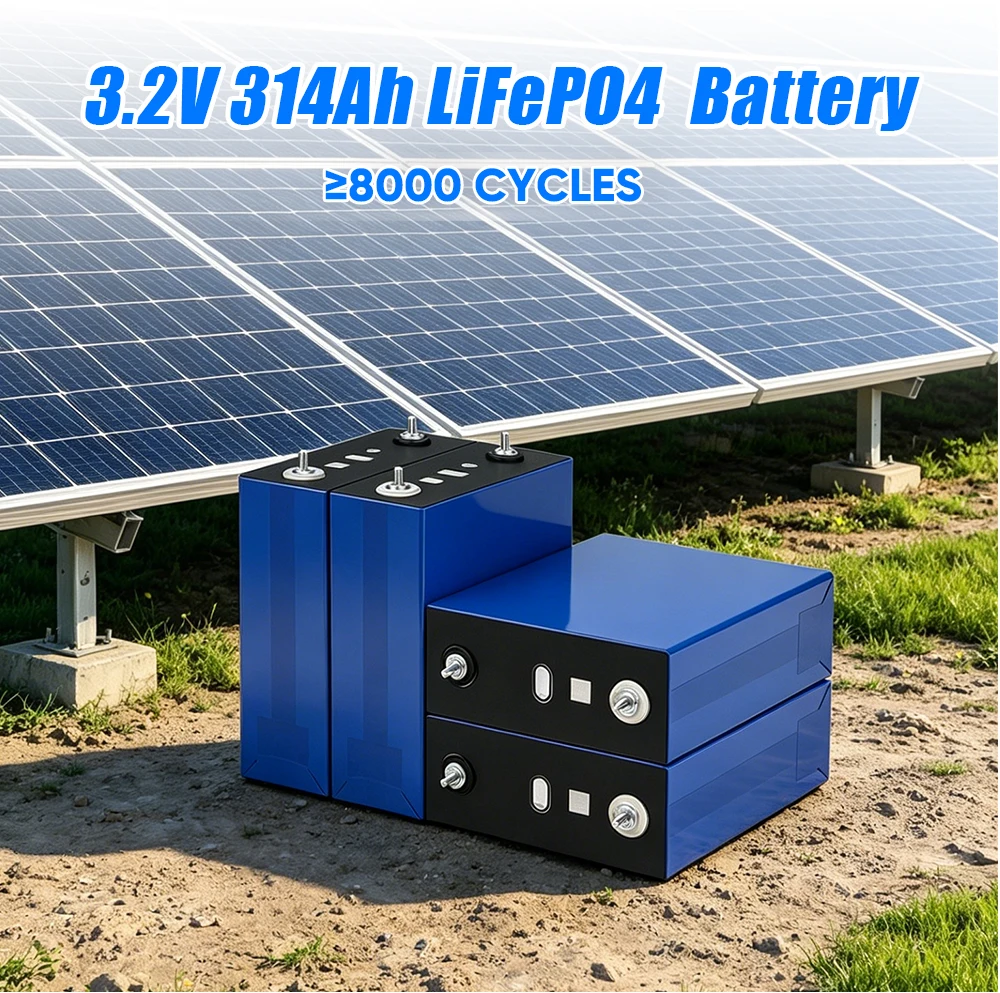

Built with 16 top-grade 314Ah Grade A LiFePO4 cells, delivering 16.1kWh of energy for long-lasting power in home storage and off-grid systems
Ultra-Long Lifecycle, Reliable Investment
8000 cycles @ 80% DOD, 15-year design life, backed by a 10-year warranty for guaranteed long-term value and ROI.
Smart Safety & Stable Performance
Equipped with EJ 16S200A smart BMS. Monitors and optimizes each cell in real-time for safety, stability, and extended pack life.
Wide Compatibility, Plug & Play
Preloaded with protocols for major inverters (Sunsynk, Solis, Victron, DEYE, etc.). Supports CAN/RS485/RS232 for simple and fast integration.
Rugged & Versatile
Wide operating temperature range (Discharge: -20°C ~ 60°C) for harsh conditions. Robust design for various residential and commercial energy storage needs.
