SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

Choice: yes

EAN Code: no

High-concerned chemical: none

Input Voltage: DC 12-14.5V

Model Number: DC-AC Step-Up Transformer Module

Origin: Mainland China

Output Current: AC 220V

Output Frequency: 50Hz

Output Power: Continuous 300W, 500W Max (500W achievable with fan cooling)

Output Type: Details Page

Output Voltage: AC 220V

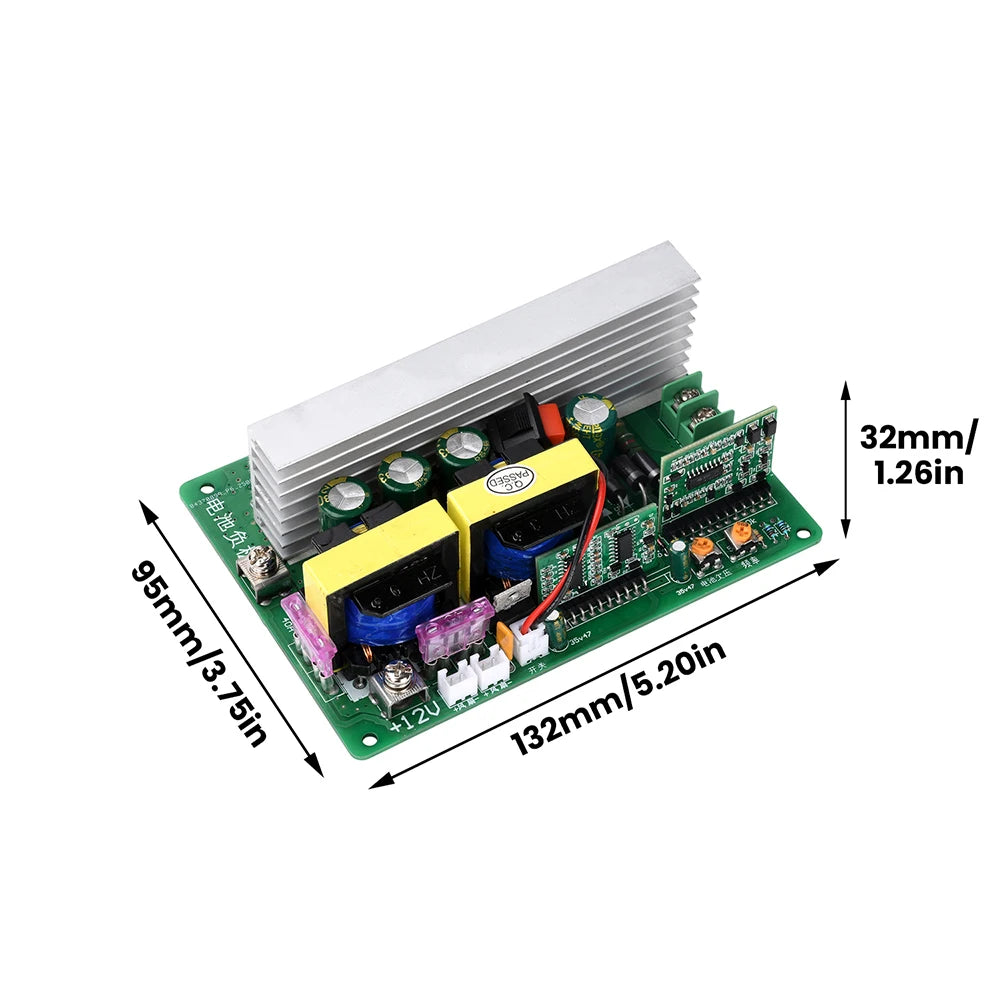

Size: 13.2*9.5*3.2cm

Type: DC/AC Inverters

Weight: 357g

is_customized: Yes

Product Features:

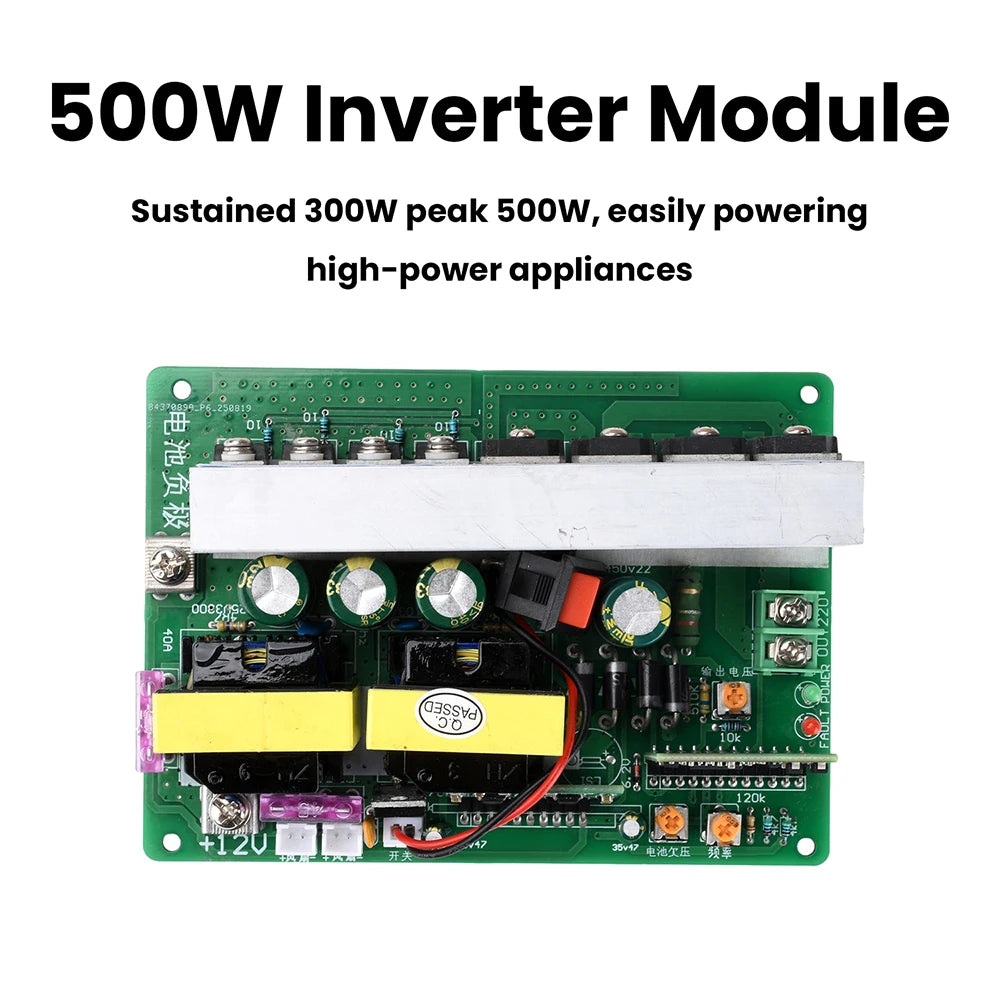

1. Continuous 300W, peak 500W output effortlessly powers high-wattage appliances

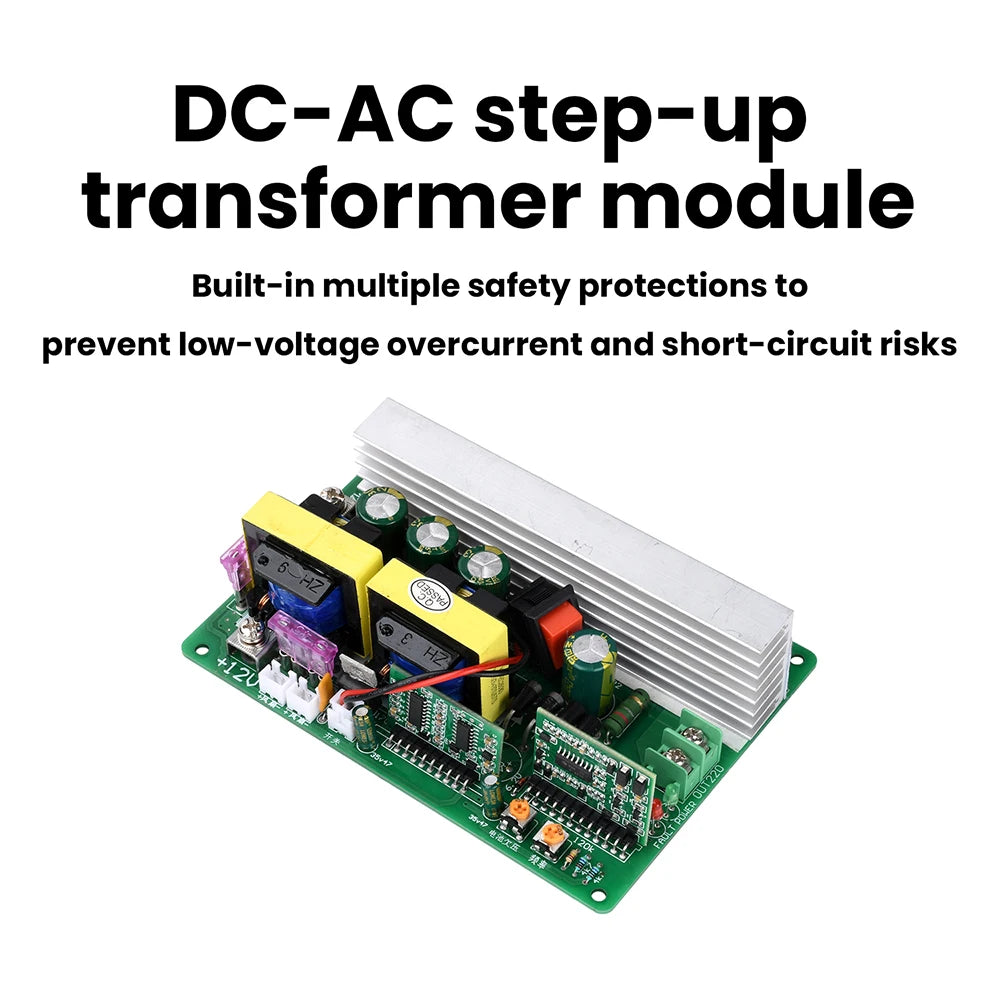

2. Integrated multi-level safety protection safeguards against low voltage, overcurrent and short circuit risks

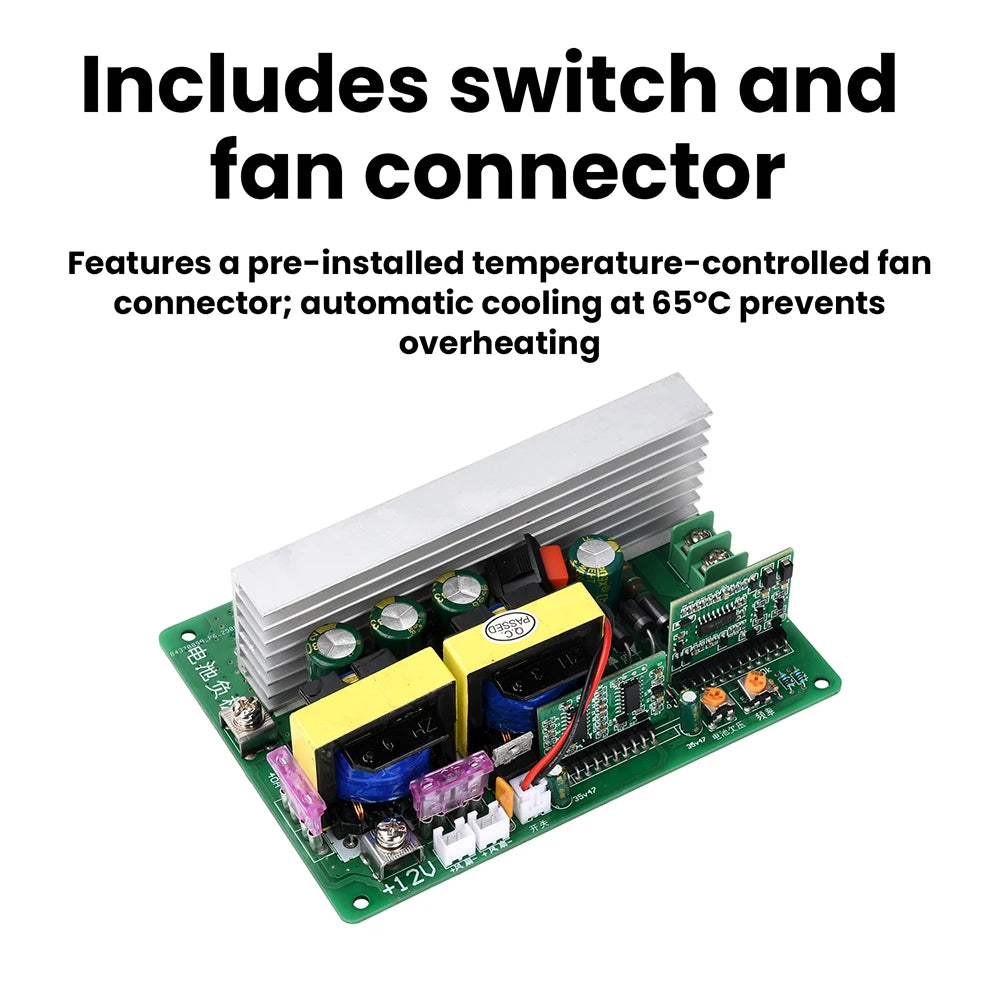

3. Reserved thermal fan interface enables automatic cooling at 65°C to prevent overheating

4. Convenient built-in power switch for one-touch control, eliminating repeated plugging and unplugging

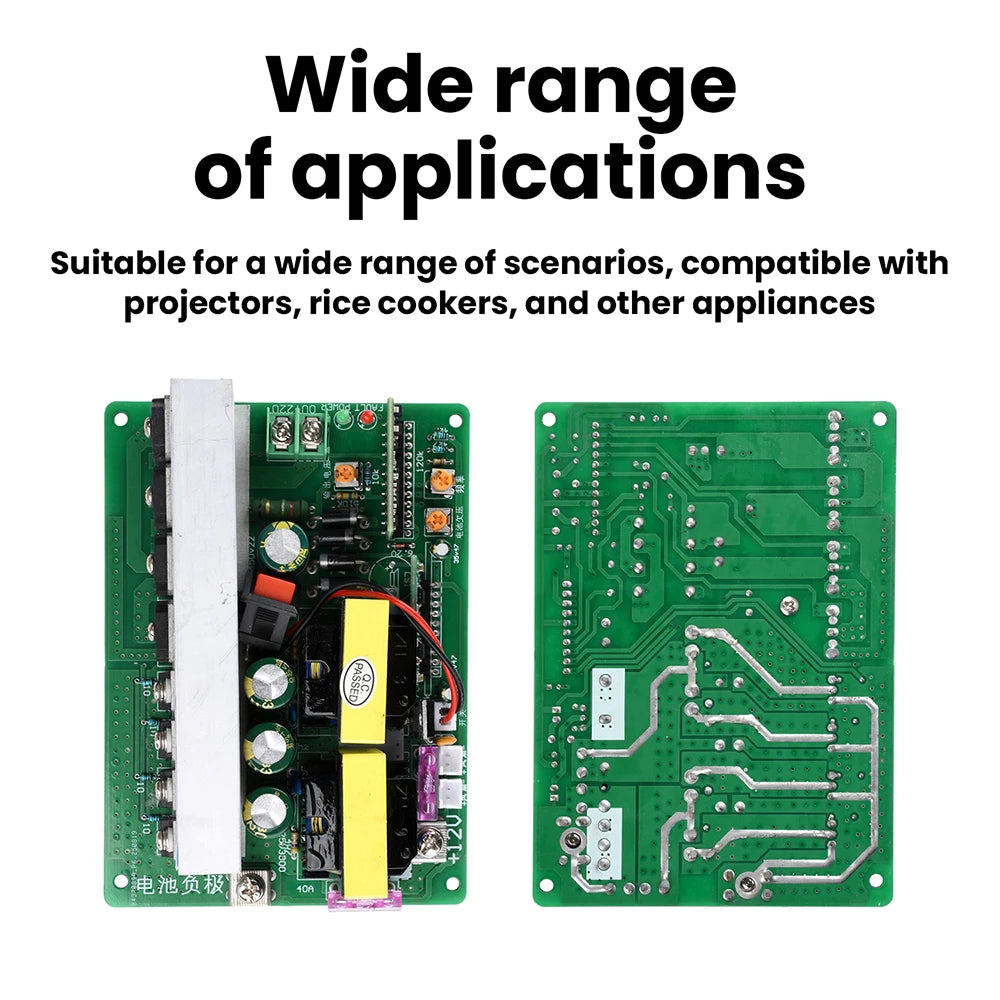

5. Versatile multi-scenario application compatible with projectors, rice cookers and other appliances

Product Specifications:

Product Name: DC-AC Step-Up Transformer Module

Input Voltage: DC 12-14.5V

Output Voltage: AC 220V

Frequency: 50Hz

Input Current: >30A

Output Power: Continuous 300W, 500W Max (500W achievable with fan cooling)

Fan Interface: Reserved ports for thermostatically controlled/non-controlled fans

Thermostat Fan Activation Temperature: Activates around 65°C

Applications: Supports fans, aquarium pumps, desktop computers, electric bicycle charging, televisions, projectors, electric blankets, small hand drills, rice cookers, etc. (Any appliance within specified wattage limits)

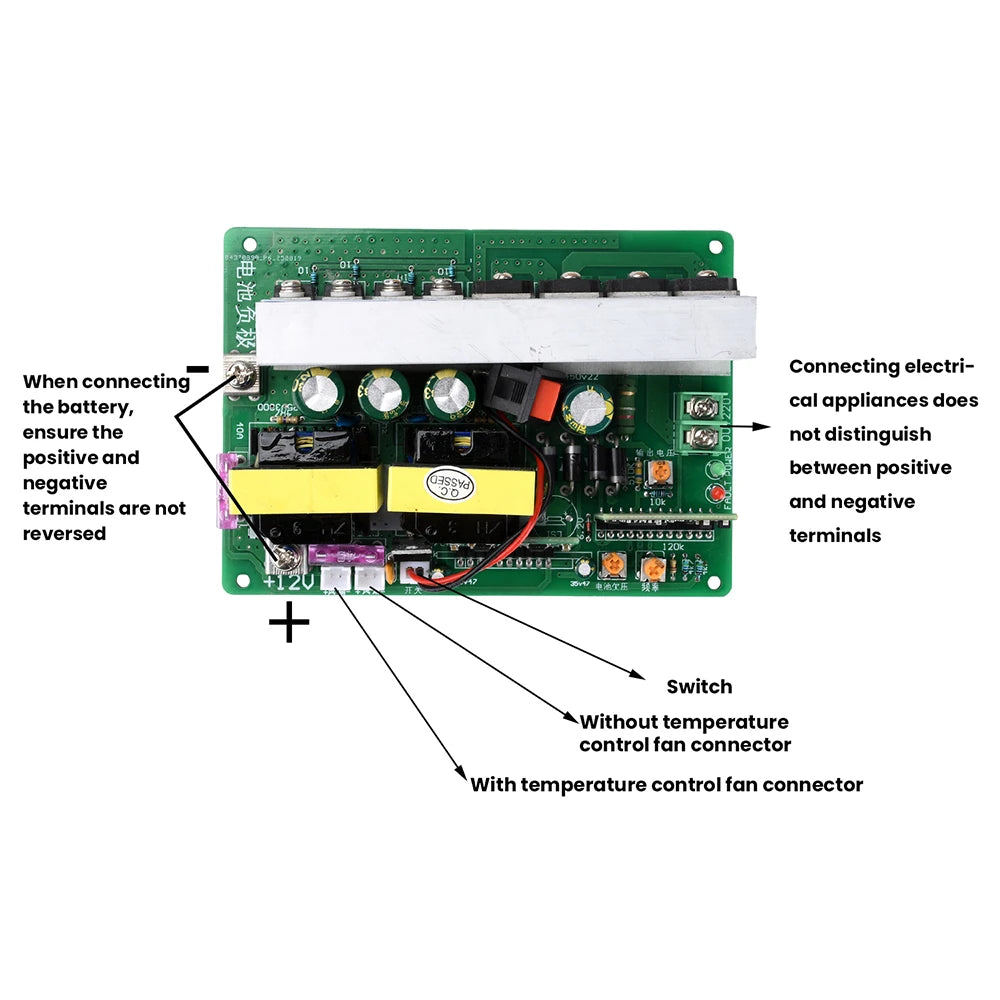

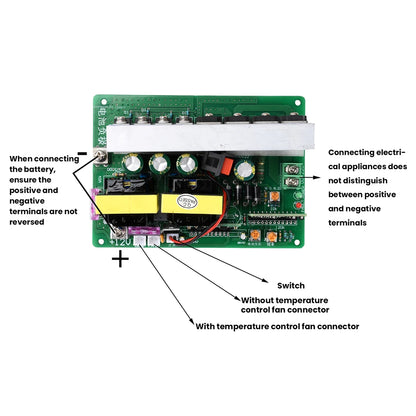

Wiring Instructions:

Input: Connect to DC 12V-14.5V. Do not reverse polarity. Input cable must be no less than 6mm². Battery capacity: 50A or above.

Output: 220V AC

Important Notes:

1. This unit accepts only 12-14.5V lead-acid batteries for input, converting to 220V output. Ensure correct polarity connection. Verify all connections are correct before connecting the battery.

2. Output exceeding 300W requires additional fan cooling.

3. Input cable must be ≥6mm², battery ≥50A, and cooling fan must be fitted to sustain 500W output. Without cooling, limit to 300W.

Delivery contents:

Module x1
