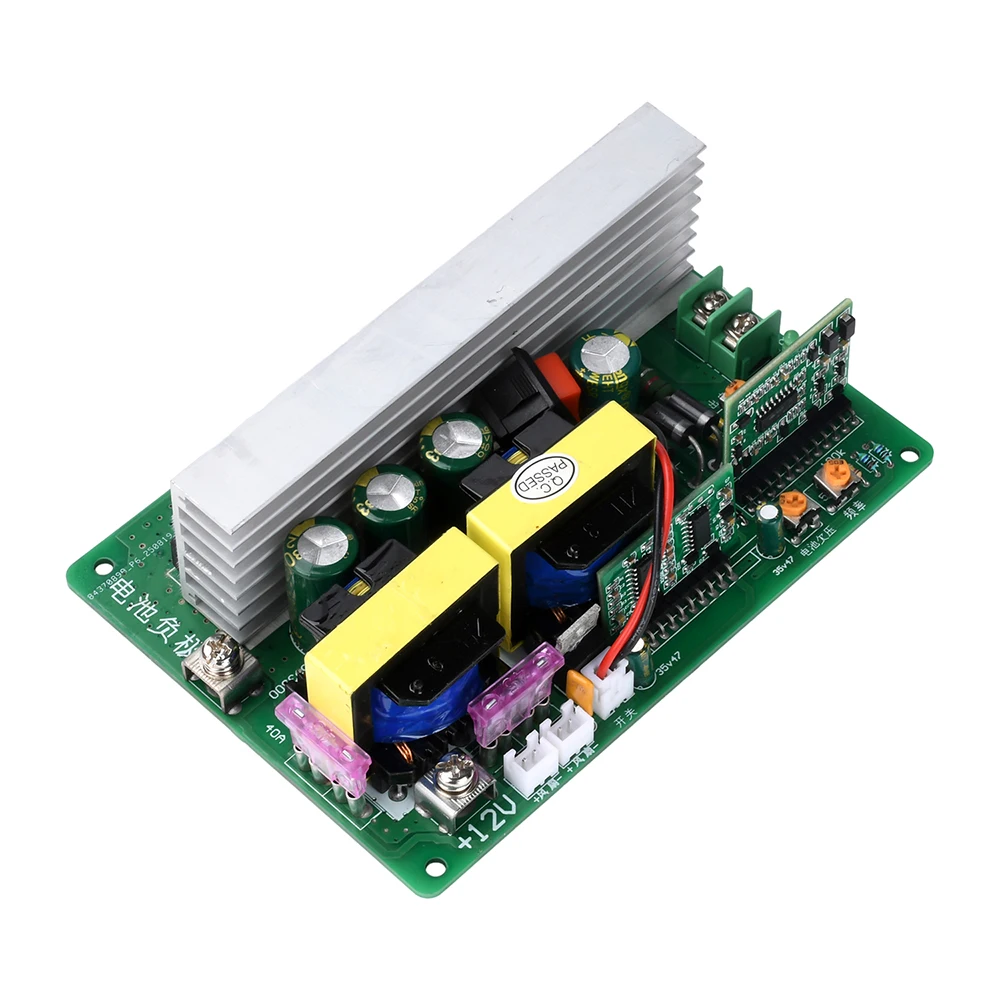

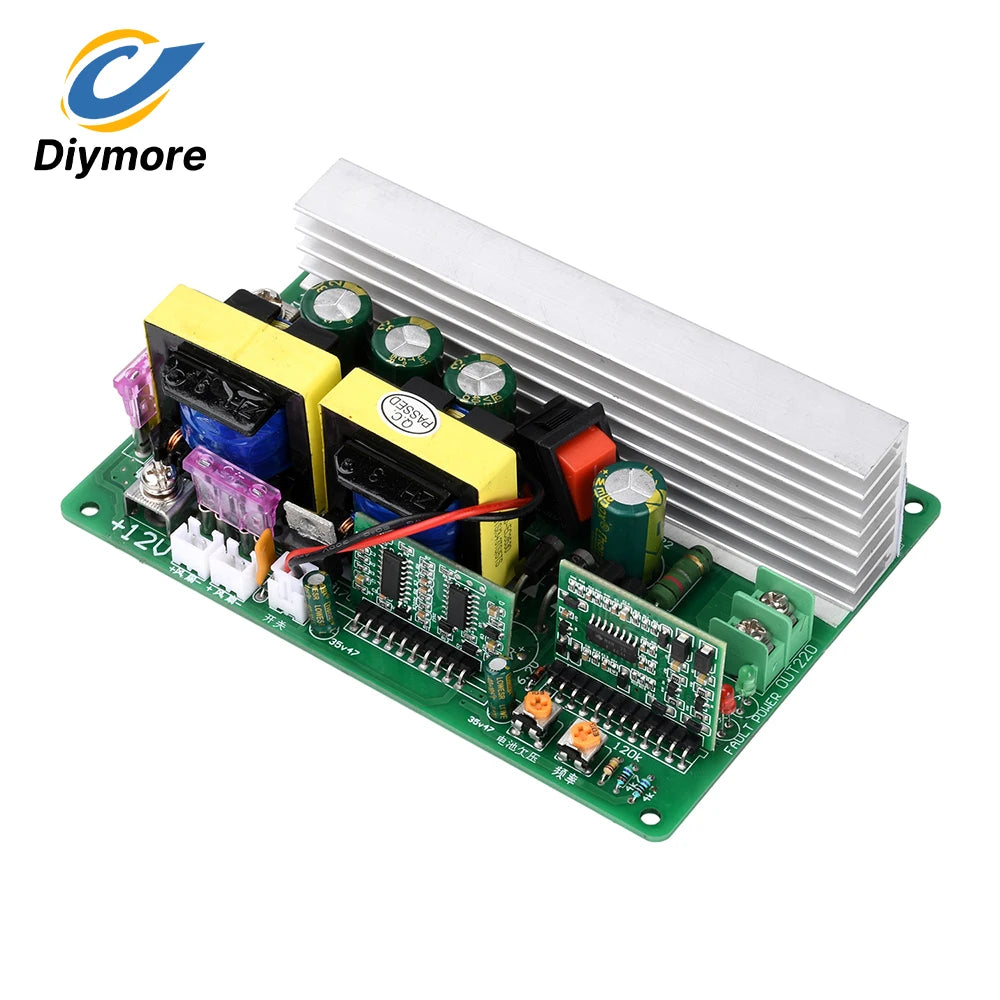

500W Inverter Module DC 12V to AC 220V Step-Up Converter with Switch and Fan Interface Supports Projectors Rice Cookers
500W Inverter Module DC 12V to AC 220V Step-Up Converter with Switch and Fan Interface Supports Projectors Rice Cookers
Couldn't load pickup availability
SPECIFICATIONS
Application: TV
Brand Name: diymore
Condition: New
High-concerned chemical: none
Origin: Mainland China
Package: SOP
Quantity: 1
Supply Voltage: DC 12-14.5V to AC 220V
Type: Module
is_customized: Yes
Features:

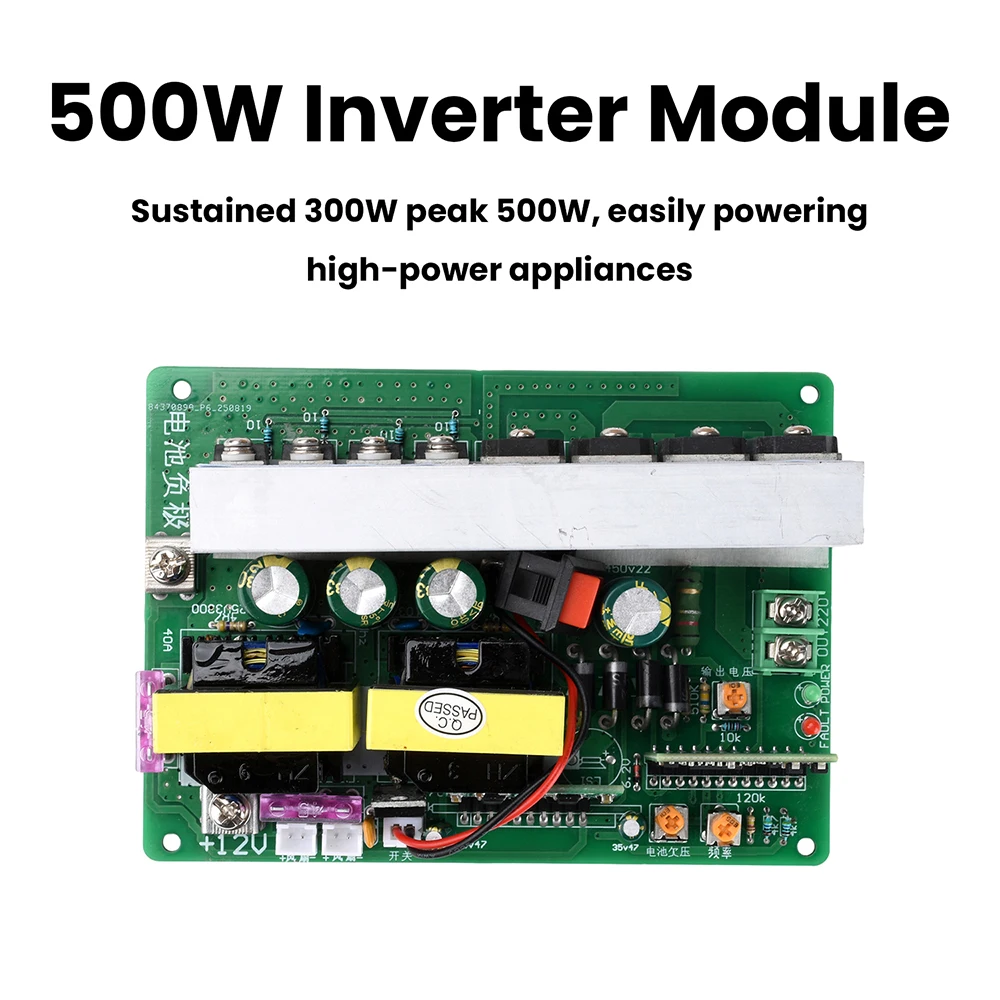

1. Continuous 300W, peak 500W power output effortlessly drives high-wattage appliances

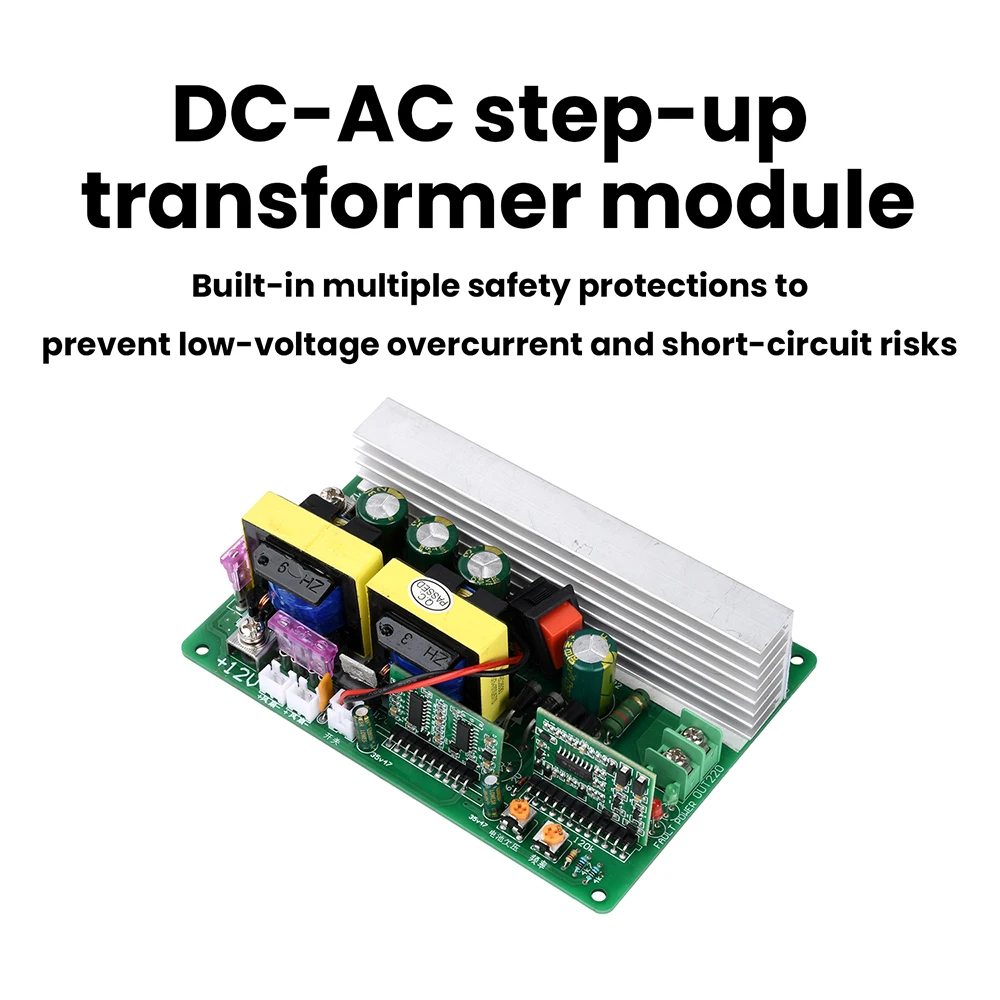

2. Built-in multi-level safety protection guards against low voltage, overcurrent, and short circuit risks

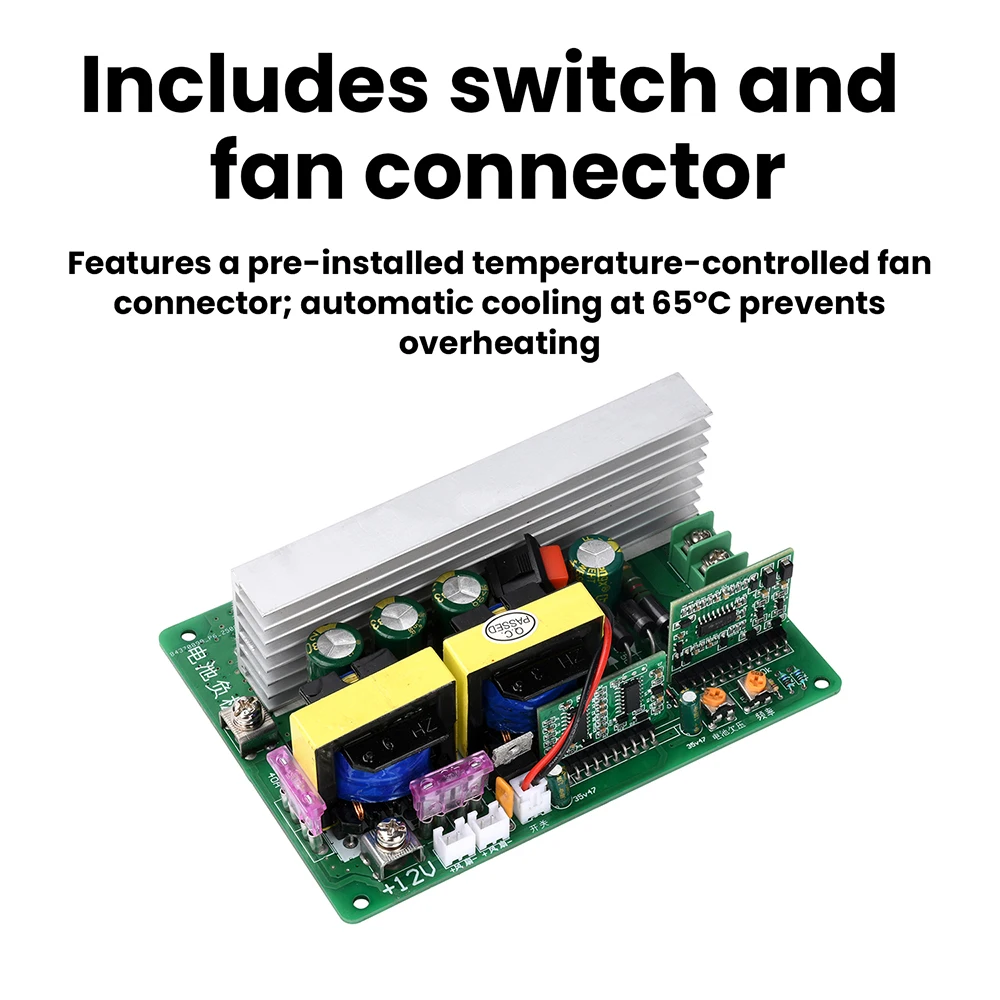

3. Reserved thermal fan interface enables automatic cooling at 65°C to prevent overheating

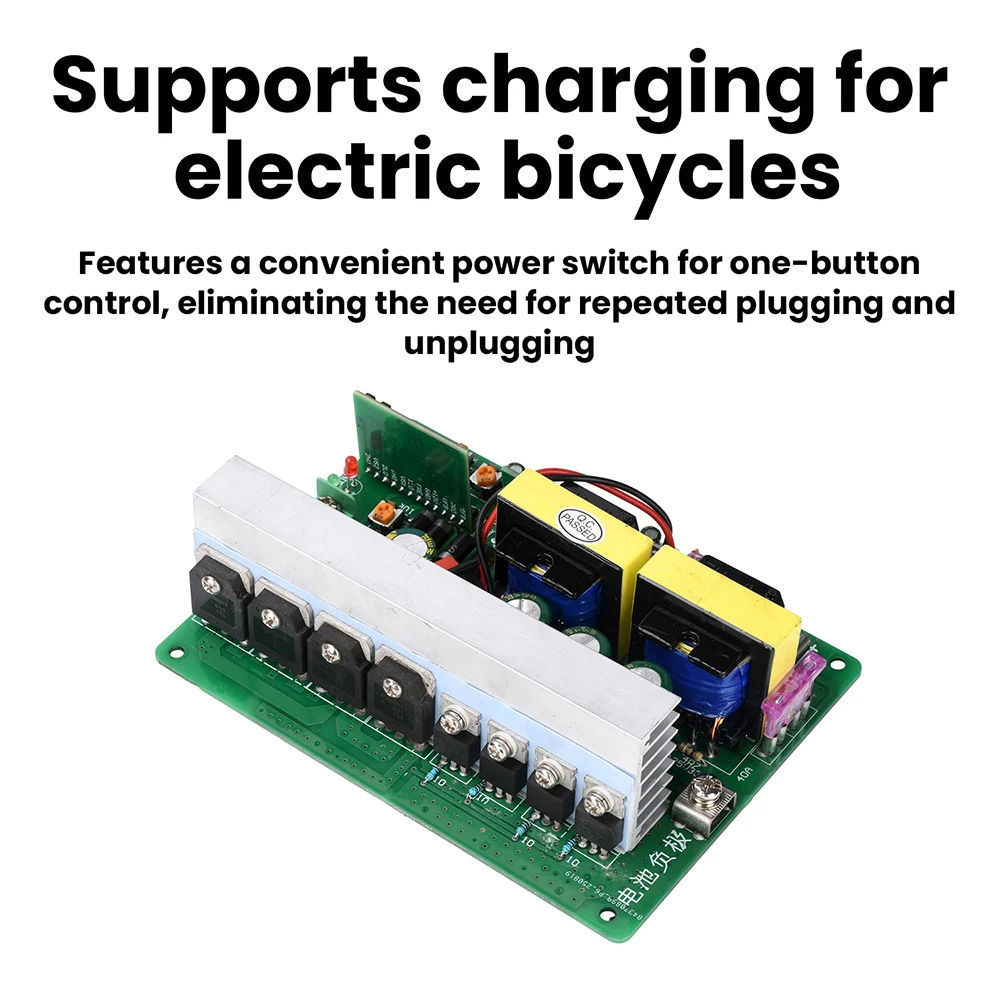

4. Integrated convenient power switch for one-touch control, eliminating repeated plugging/unplugging
5. Versatile multi-scenario application compatible with projectors, rice cookers, and other appliances

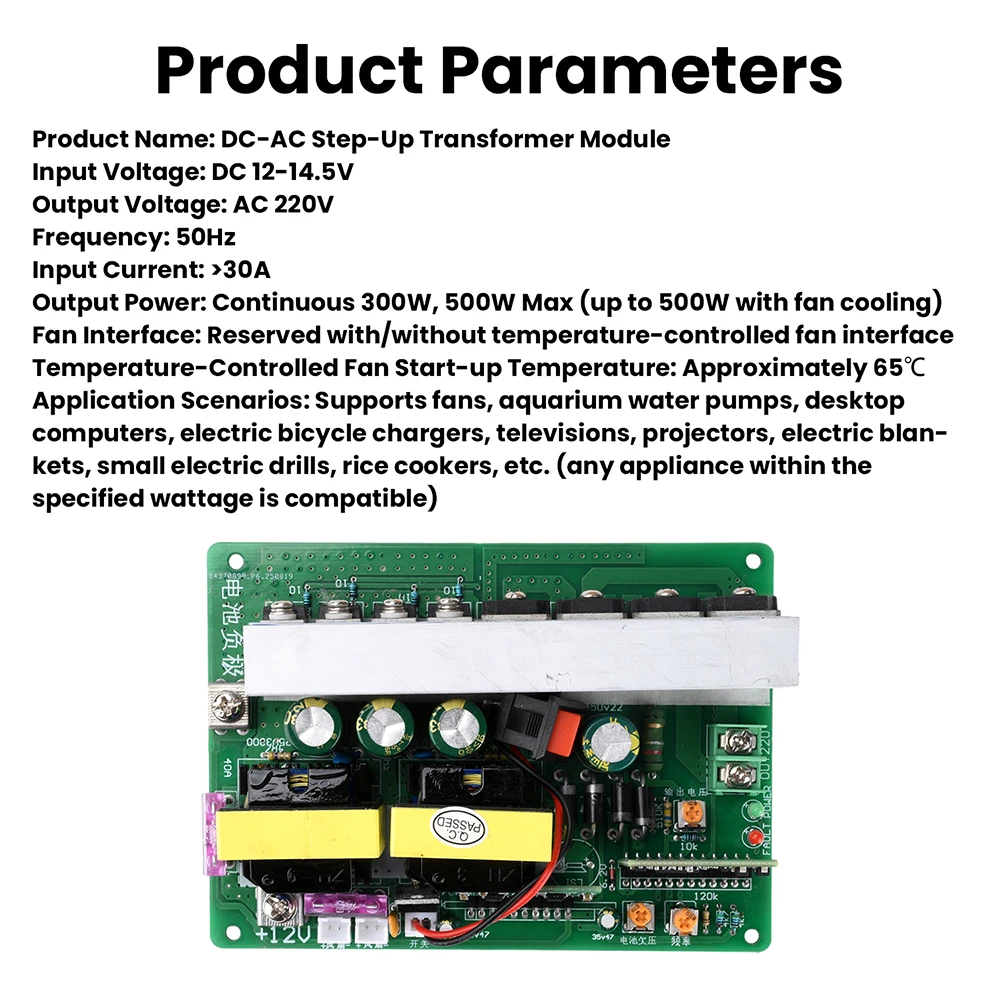

Parameter:
Product Name: DC-AC Step-Up Transformer Module
Input Voltage: DC 12-14.5V
Output Voltage: AC 220V
Frequency: 50Hz
Input Current: >30A
Output Power: Continuous 300W, 500W Max (500W achievable with fan cooling)
Fan Interface: Reserved for temperature-controlled/non-temperature-controlled fans
Temperature-Controlled Fan Activation: Activates around 65°C
Applications: Supports fans, aquarium pumps, desktop computers, e-bike charging, TVs, projectors, electric blankets, small hand drills, rice cookers, etc. (Any appliance within specified wattage limits)

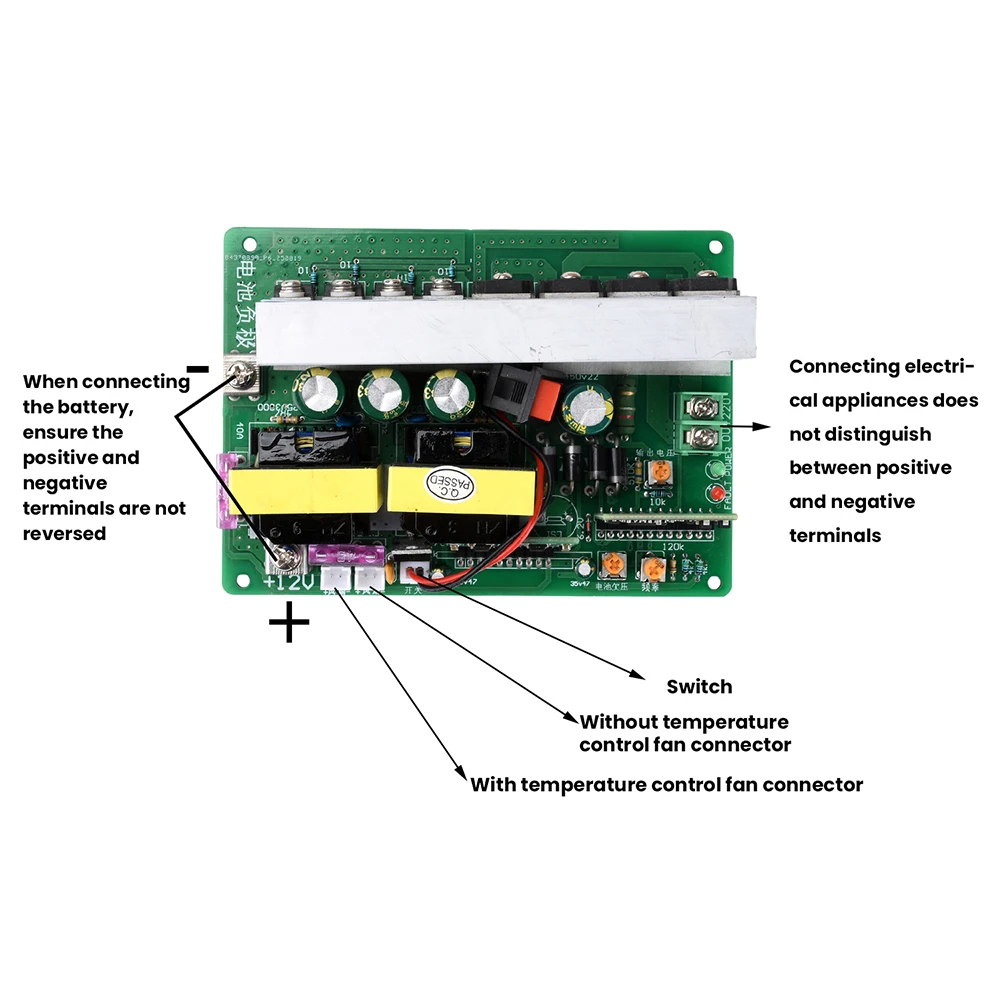

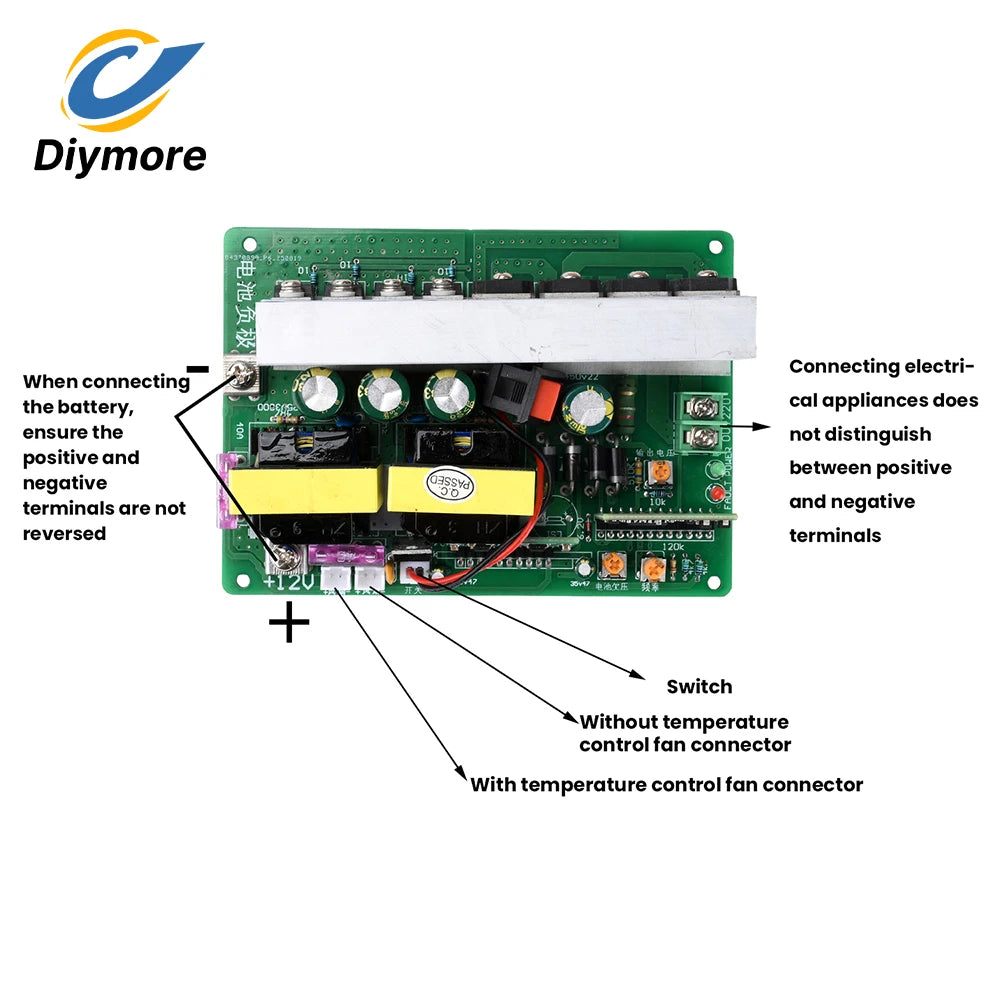

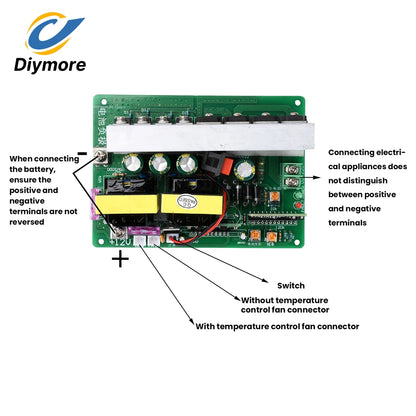

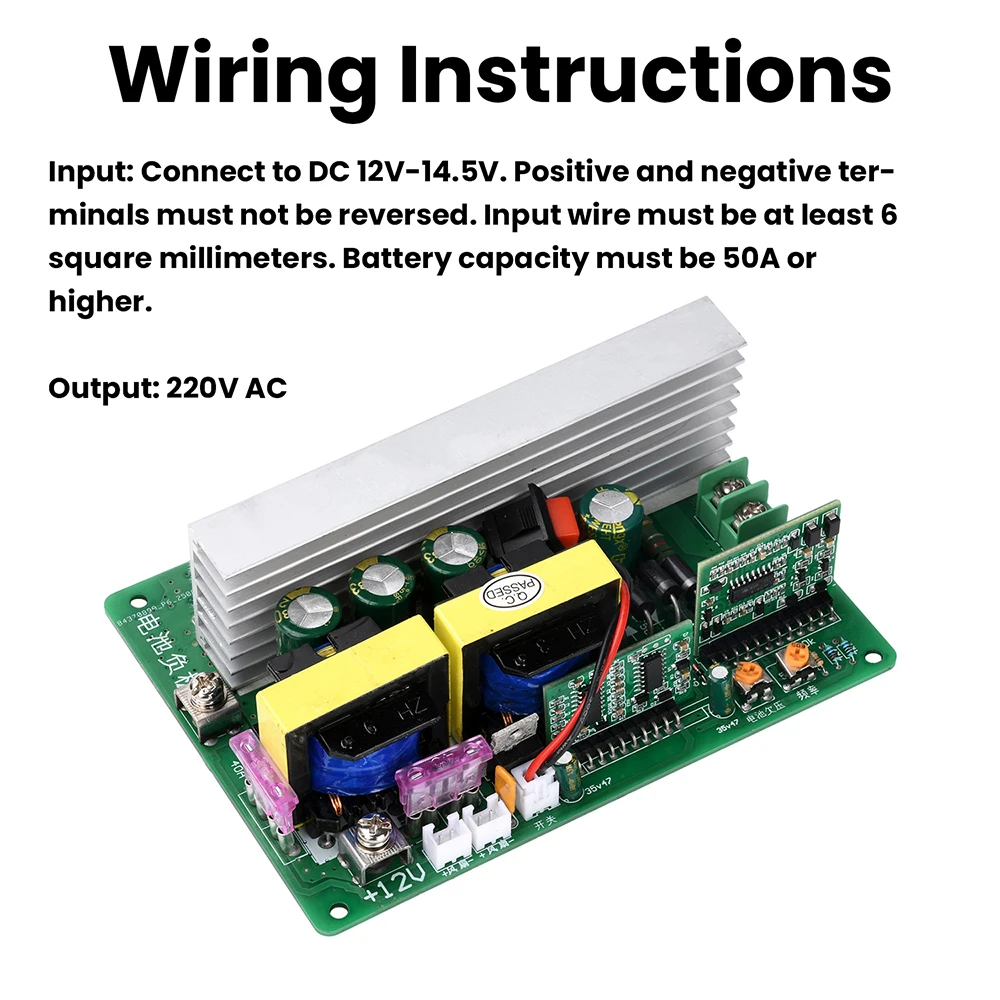

Wiring Instructions:
Input: Connect to DC 12V-14.5V. Do not reverse polarity. Input cable must be no less than 6mm². Battery capacity must be 50A or higher.
Output: 220V AC

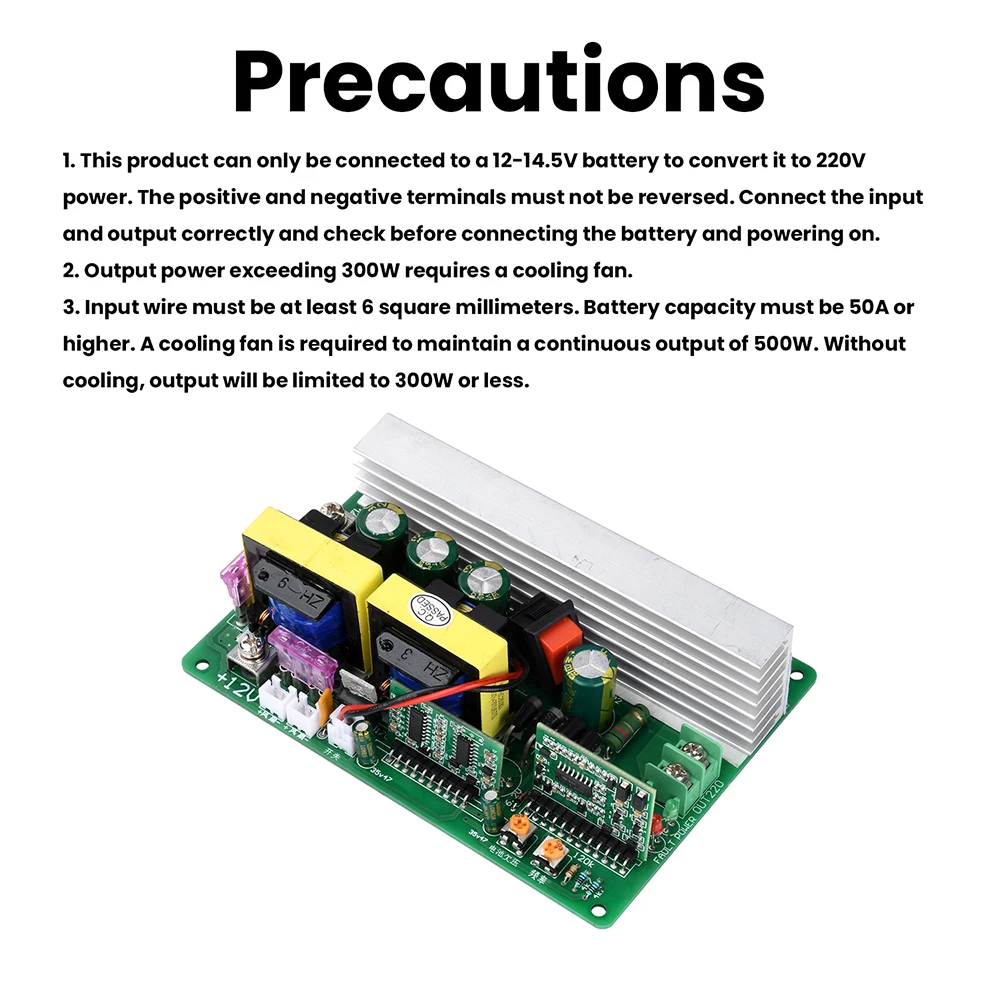

Precautions:
1. This product accepts only 12-14.5V batteries as input, converting to 220V AC output. Do not reverse polarity. Ensure all connections are correct before connecting the battery.
2. Output exceeding 300W requires a cooling fan.
3. Input cable must be ≥6mm² with a battery rated ≥50A. Continuous 500W operation requires fan cooling; without cooling, limit to ≤300W.
Package include:
Module x1
