SPECIFICATIONS

Brand Name: diymore

Certification: CE

Choice: yes

Current Type: DC

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: uck Boost Converter

Number of sockets: 1

Origin: Mainland China

Phase: Single-phase

Power (W): from 5 to 10 kW

Type: Relay

Use: SVC

is_customized: Yes

Features:
1. After strict performance testing and aging test to ensure product reliability and stability
2. Supports a maximum output power of 150W to meet the power needs of high-power devices.
3. Built-in buzzer, key prompts, alarm prompts, safer and more secure use.
4.Precise voltage and current adjustment through key control, with an adjustment accuracy of up to 0.01V/0.001A.

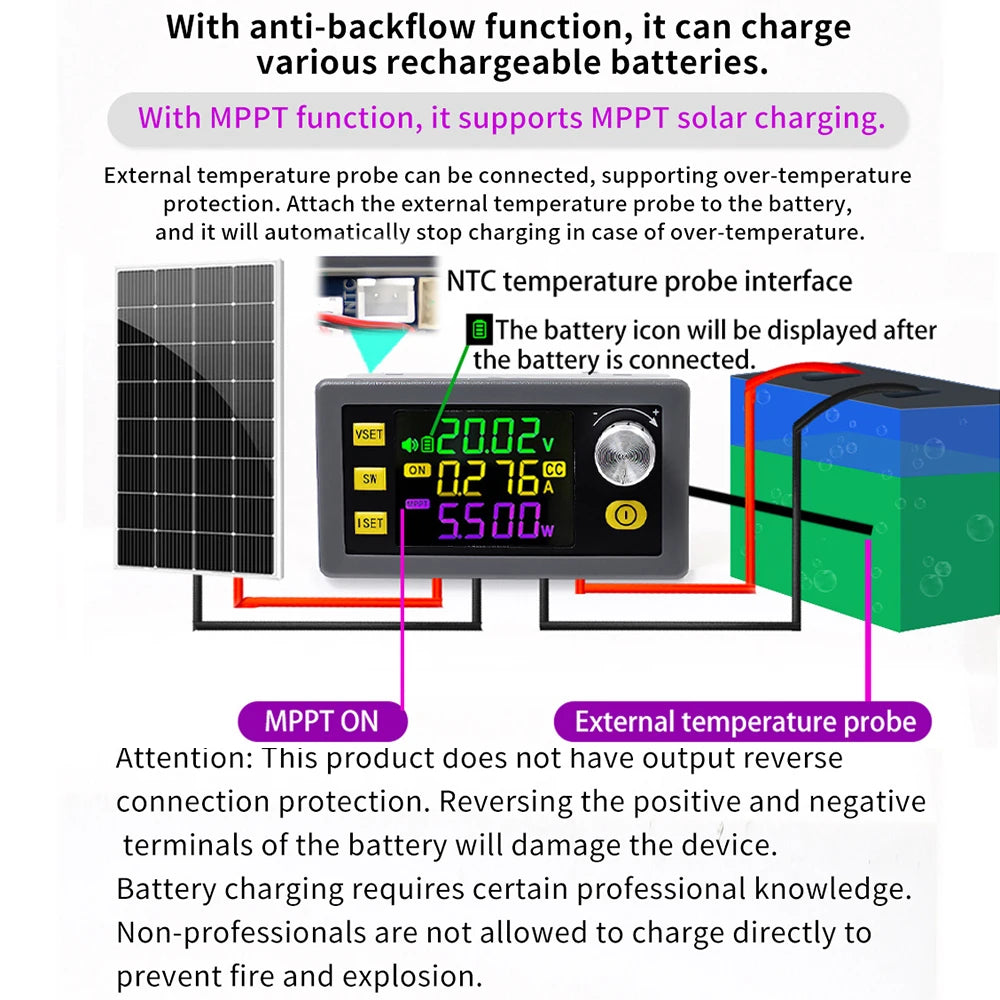

5.Wide range of applications, with MPPT function, support MPPT solar charging, can be connected to external temperature probe to support over-temperature protection.

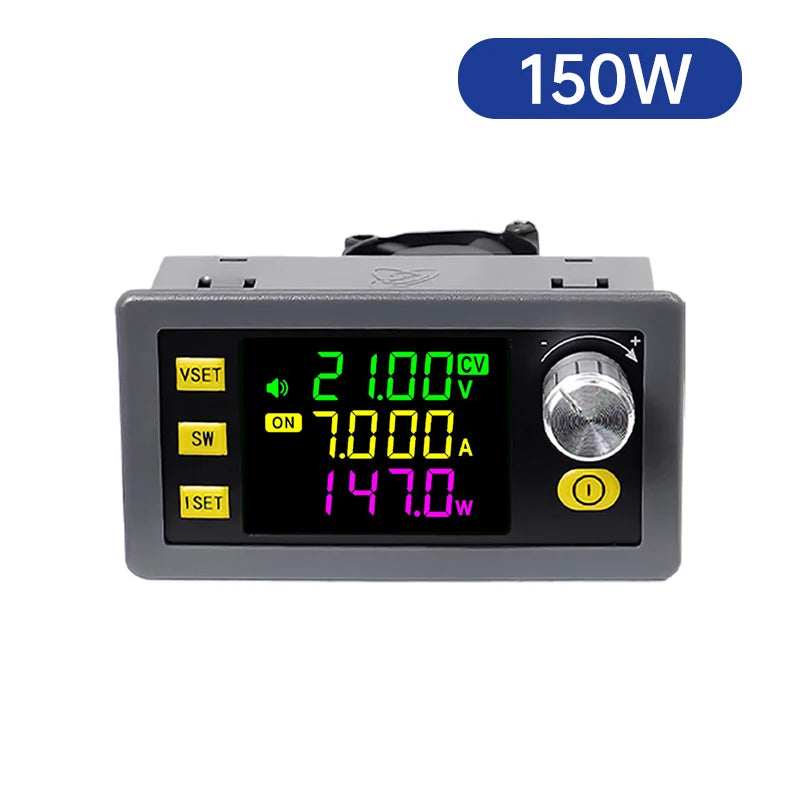

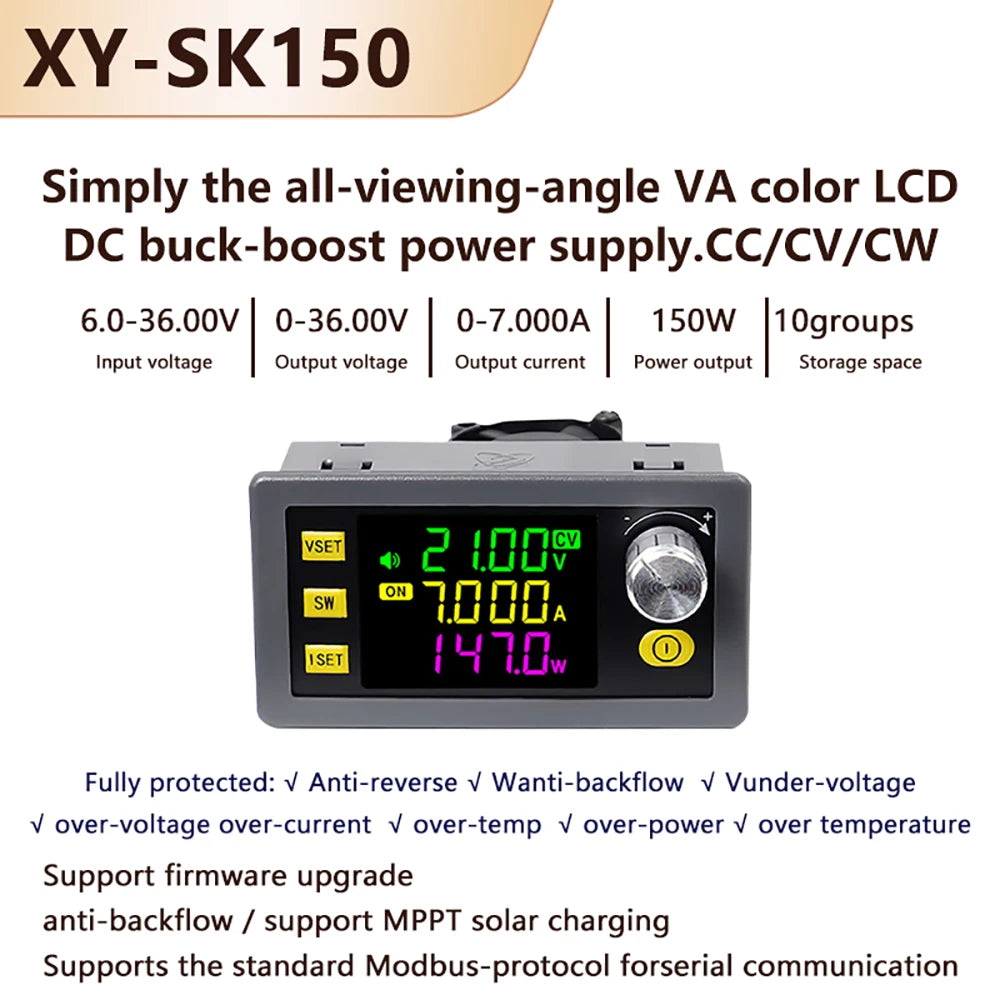

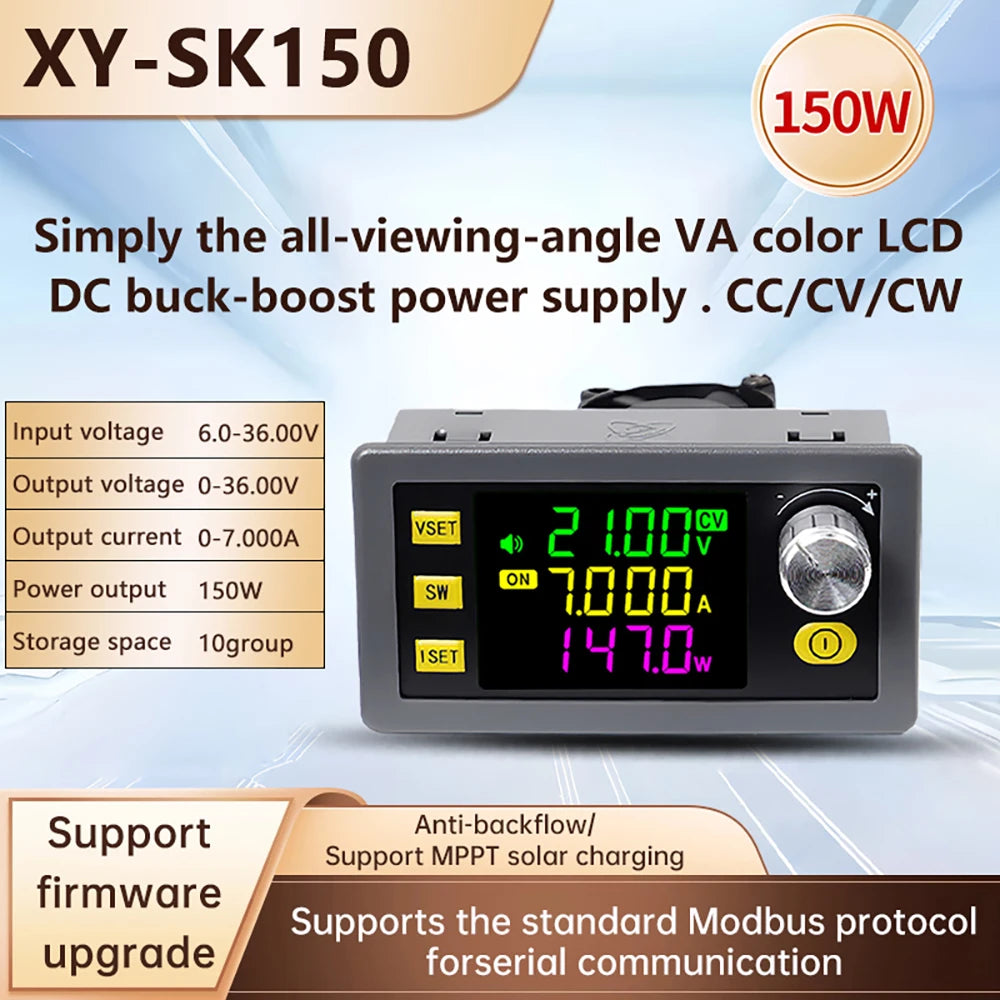

150W:
Input voltage: 6.0~36V
Output current: 0~7.000A
Output power: 150W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes

Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input under-voltage protection: 5.5-36V adjustable, default 5.5V output
Over-voltage protection: 0-38V adjustable, default 38V output
Over-current protection: 0 -7.2A adjustable, default 7.2A output
Over power protection: 0-180W adjustable, default 160W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 1 minute -99 hours 59 minutes, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~9999KWH adjustable, default off

Package include:
Adjustable boost and buck module *1

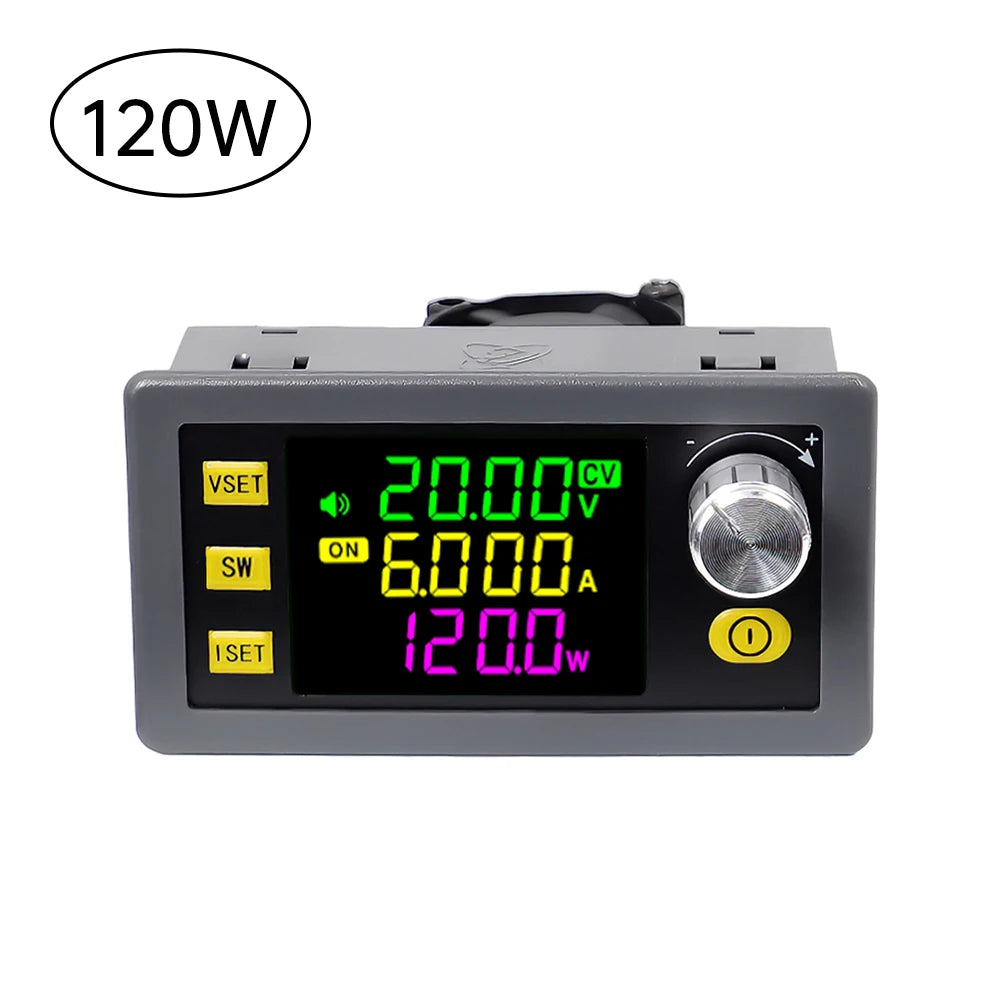

120W:

Input voltage: 6.0~36V
Output current: 0~6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes

Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0 -6.2A adjustable, default 6.2A
Output over power protection: 0-150W adjustable, default 125W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~9999KWH adjustable, default off

Package include:
Adjustable boost and buck module *1

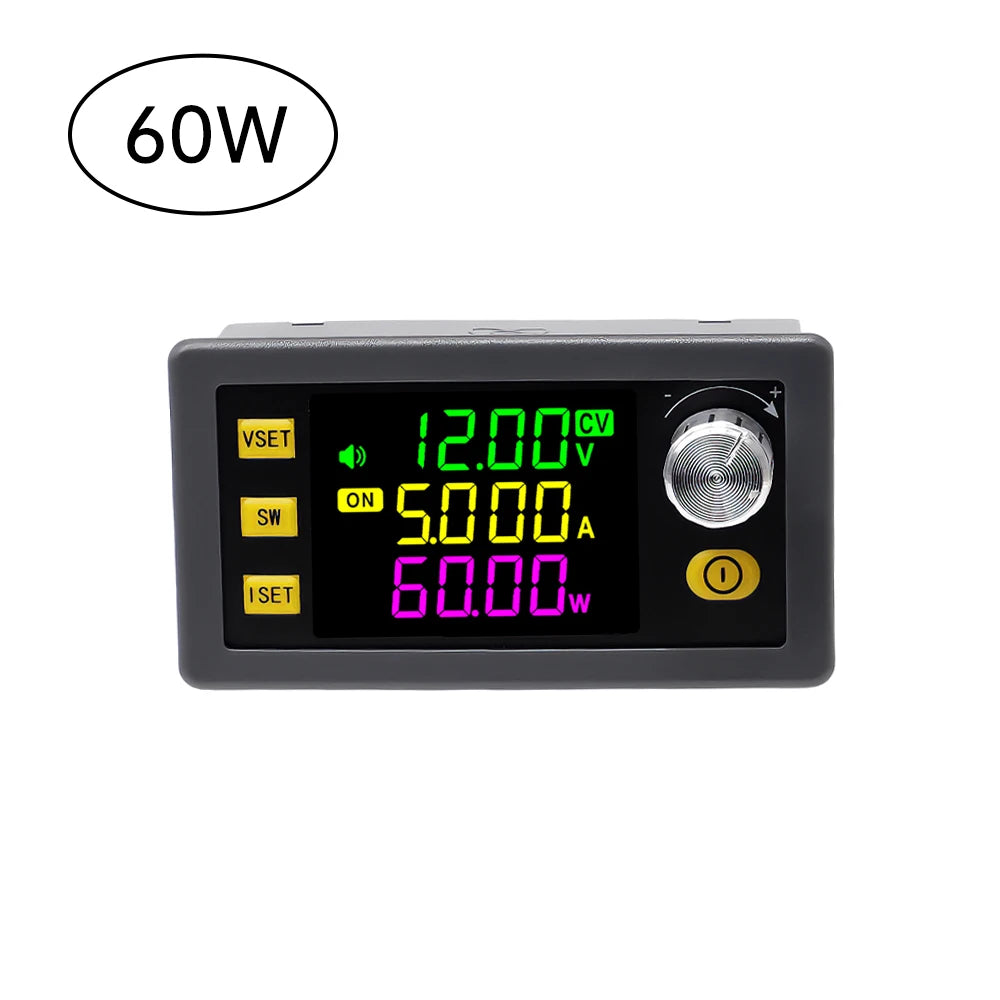

60W:

Input voltage: 6.0~36V
Output current: 0~5.000A
Output power: 60W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.01A
Storage data group: 10 groups
MPPT function: Support MPPT solar energy
Charging buzzer: Yes
Soft start: Yes

Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0 -5.2A adjustable, default 5.2A
Output over power protection: 0 -80W adjustable, default 65W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~4200KWH adjustable, default off

Package include:
Adjustable boost and buck module *1
