6000W 4000W Solar Power Inverter DC 12V To AC 110V 220V Transformer Power Solar Voltage Converter Modified Sine Wave Inverter

6000W 4000W Solar Power Inverter DC 12V To AC 110V 220V Transformer Power Solar Voltage Converter Modified Sine Wave Inverter

Regular price Rs.113,465.82
Regular price Rs.189,109.70 Sale price Rs.113,465.82
Sale Sold out
Shipping calculated at checkout.
Color
Output Voltage
Input Voltage
Quantity

SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: Yes

Origin: Mainland China

Output Type: Multiple

is_customized: Yes

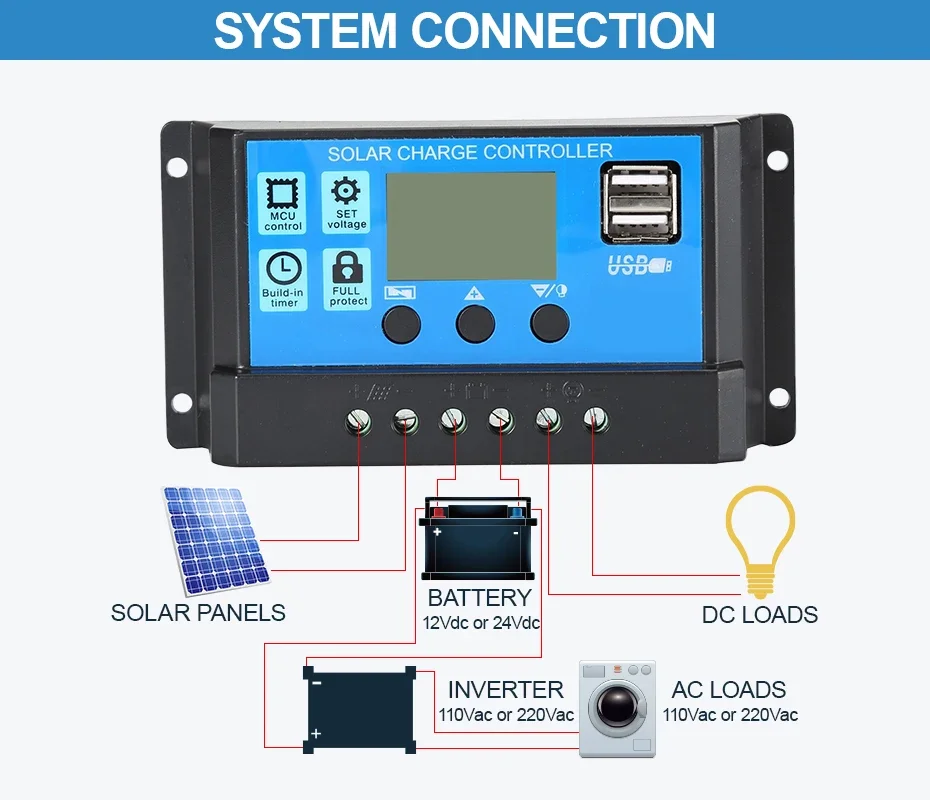

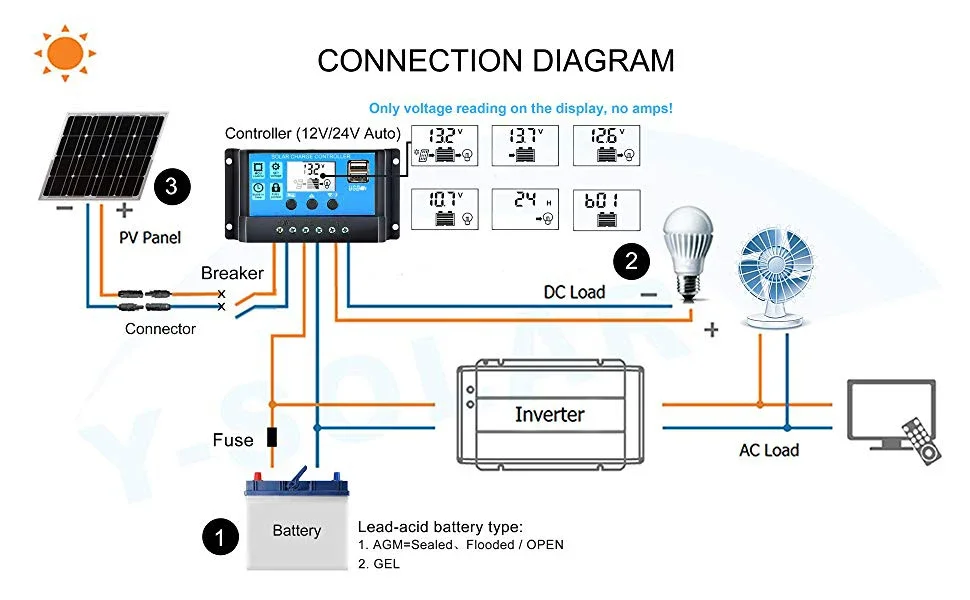

Solar system Set 25W Mono Solar Panel+6000W Power Inverter+50A Solar Charge Controller

Feature:

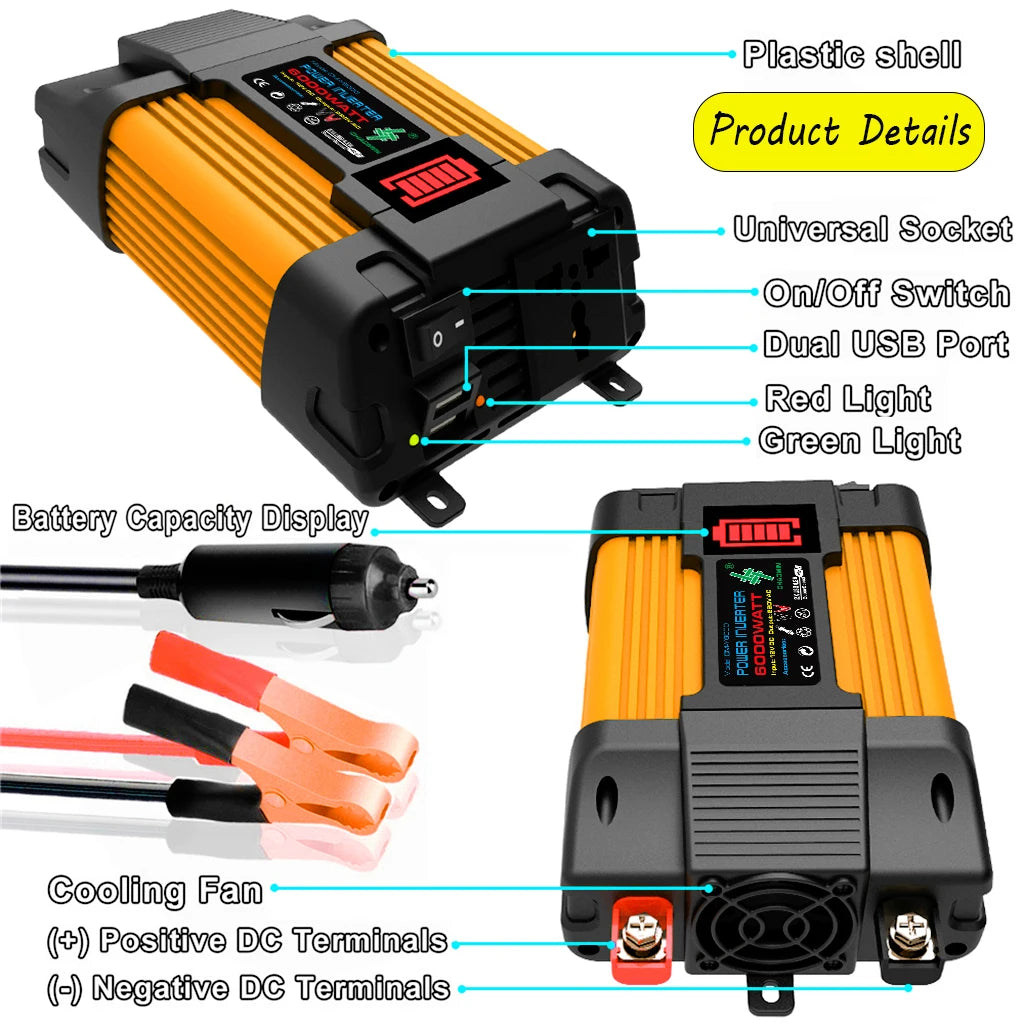

[LED Green&Red Work Lights] When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.
[ LED BATTERY DISPLAY] Battery Level Bar for LED Display shows the battery Capacity, which can remind you that when your battery no power. When connect the battery with inverter, this LED Screen work and show the real-time capacity of battery. It have five level (lattice) of the Battery Level Bar, and each lattice represents 20% of the battery power. When your battery is no power, the display will flash to remind you that you need to charge your battery.
[Fast Charging Dual USB ports ] One AC Outlets and two usb ports can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer,Razors,medical rescue device,emergency equipment etc,can be as a Emergency Power Supply.
[Multi Protection] Built-in fuses, safe charging design  and cooling fan prevents the car power converter from over-heat,saving power and energy.over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.

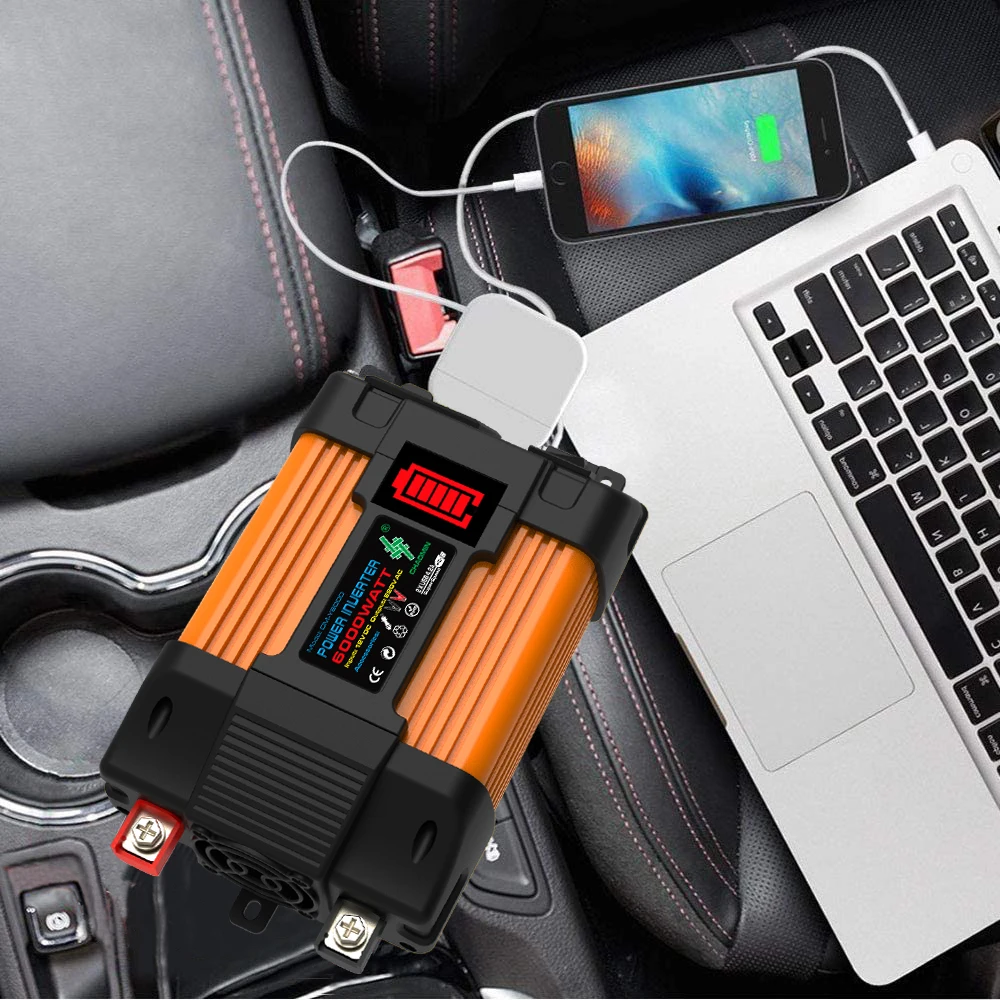

[Lightweight design &Top Quality] Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.

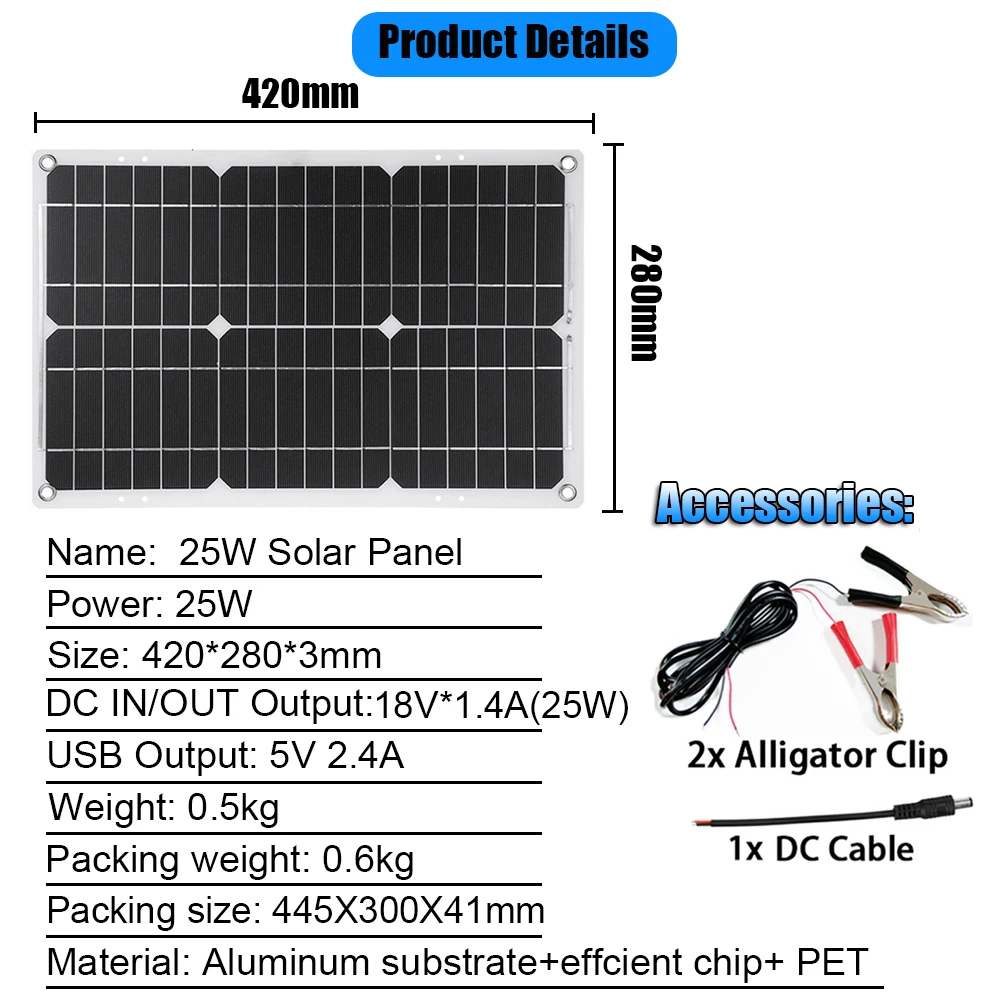

1.Solar Panel 25W:
Power: 25W± 5%
Size: 420x280x3mm
DC outout: 12V/2.4A
USB output: 5V/2.4A
Weight:0.7kg
Type: Mono Solar Panel
Material: Aluminum substrate
Output accessories: DC cable + DC alligator clip

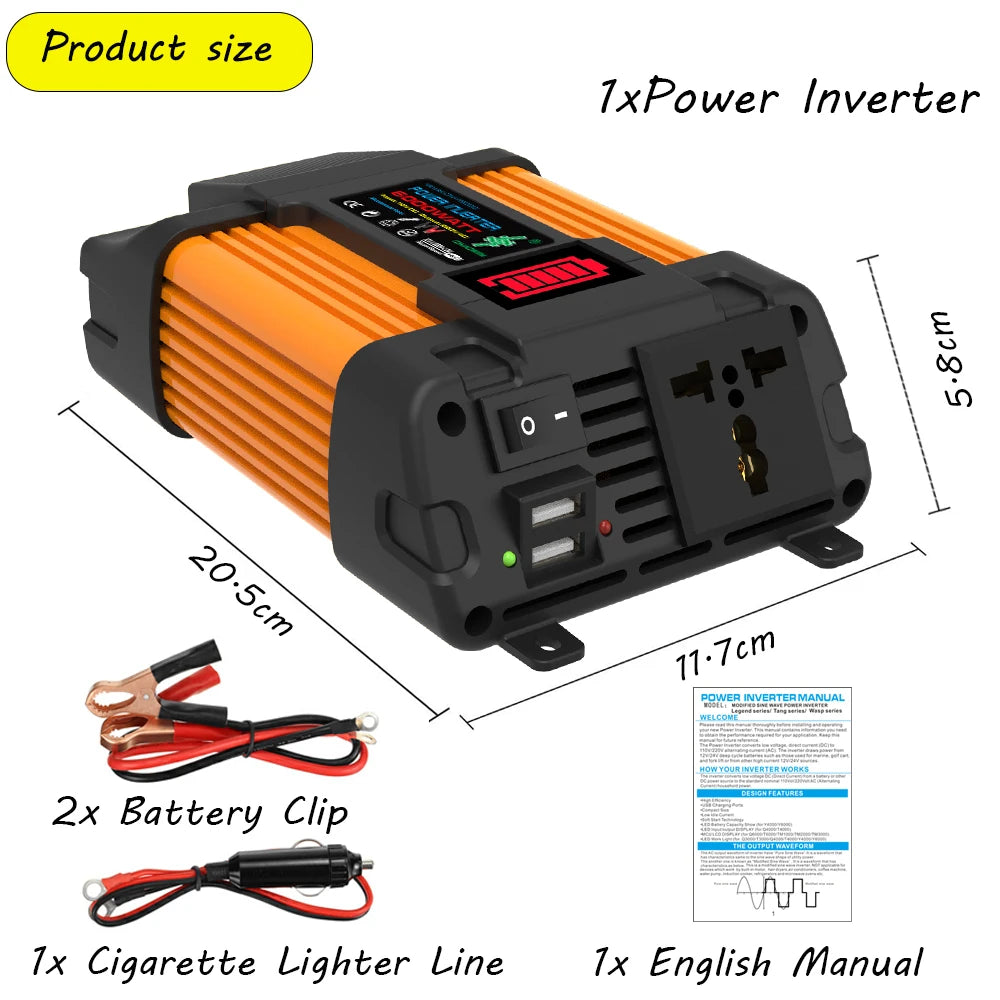

2.Power Inverter 6000W:
Input voltage: DC 10.5V~15V,

(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)
Output voltage : AC 220V/110V
Output frequency: 50Hz/60Hz
Peaks Power : 6000W
Rated power:500W(Please make sure that the total rated power of the connected devices is ≤ 500W).
Output waveform: Modified sine wave
Product Size for inverter: 205x117x58mm

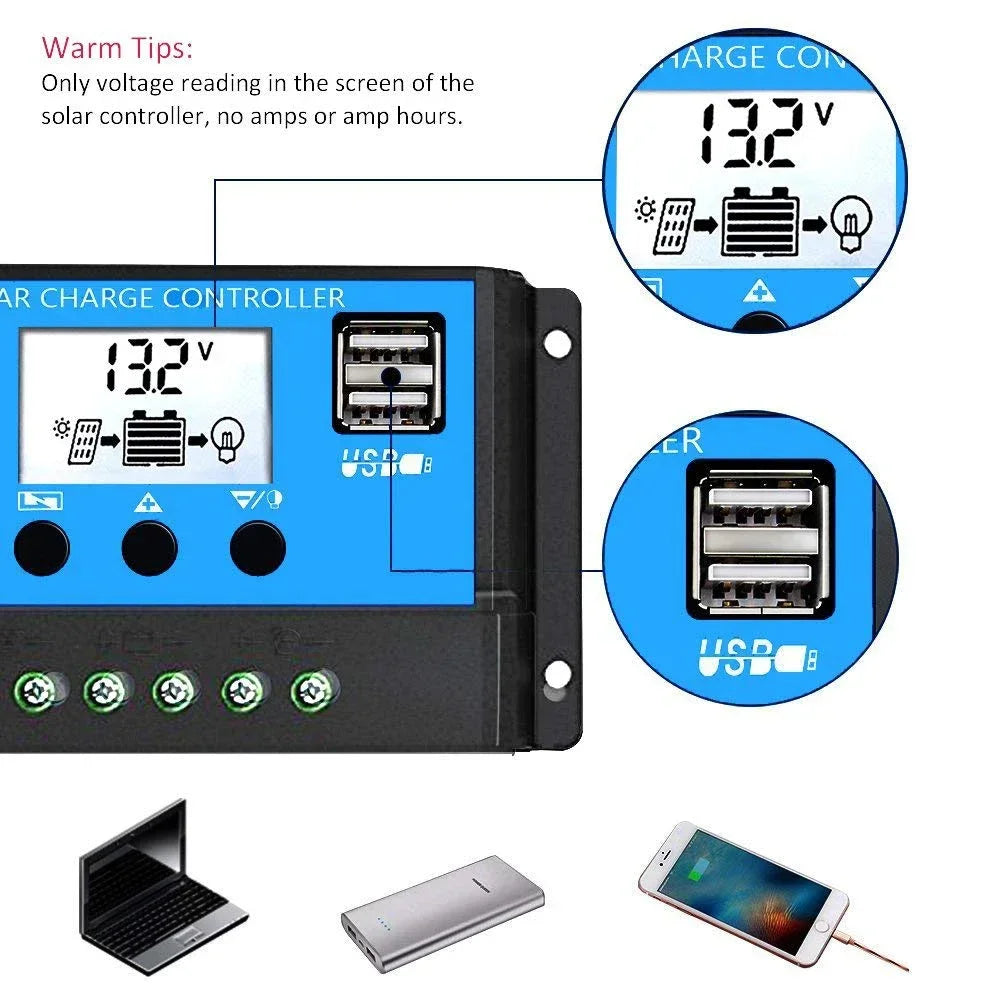

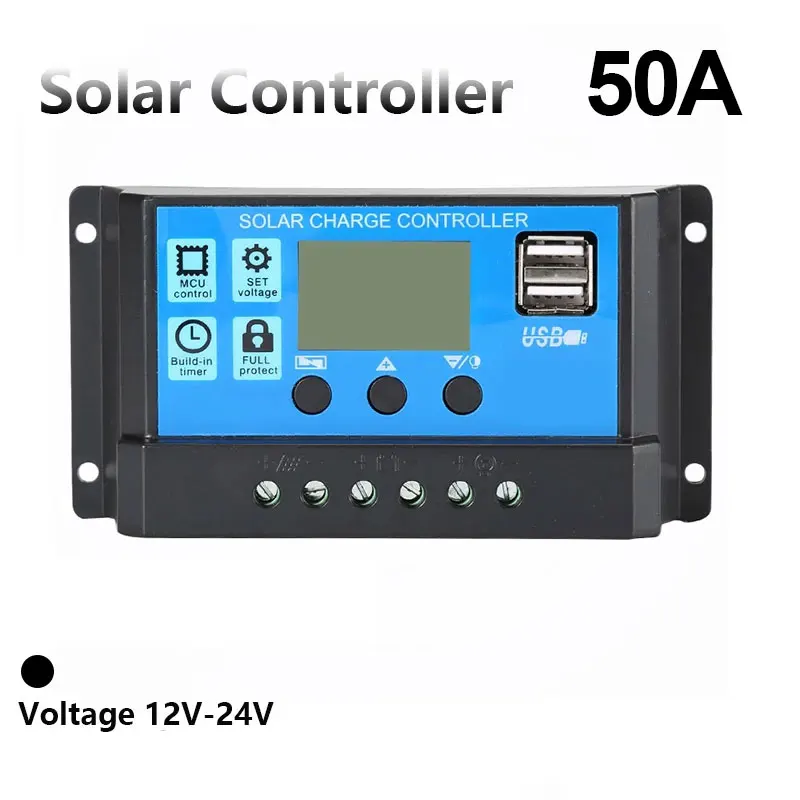

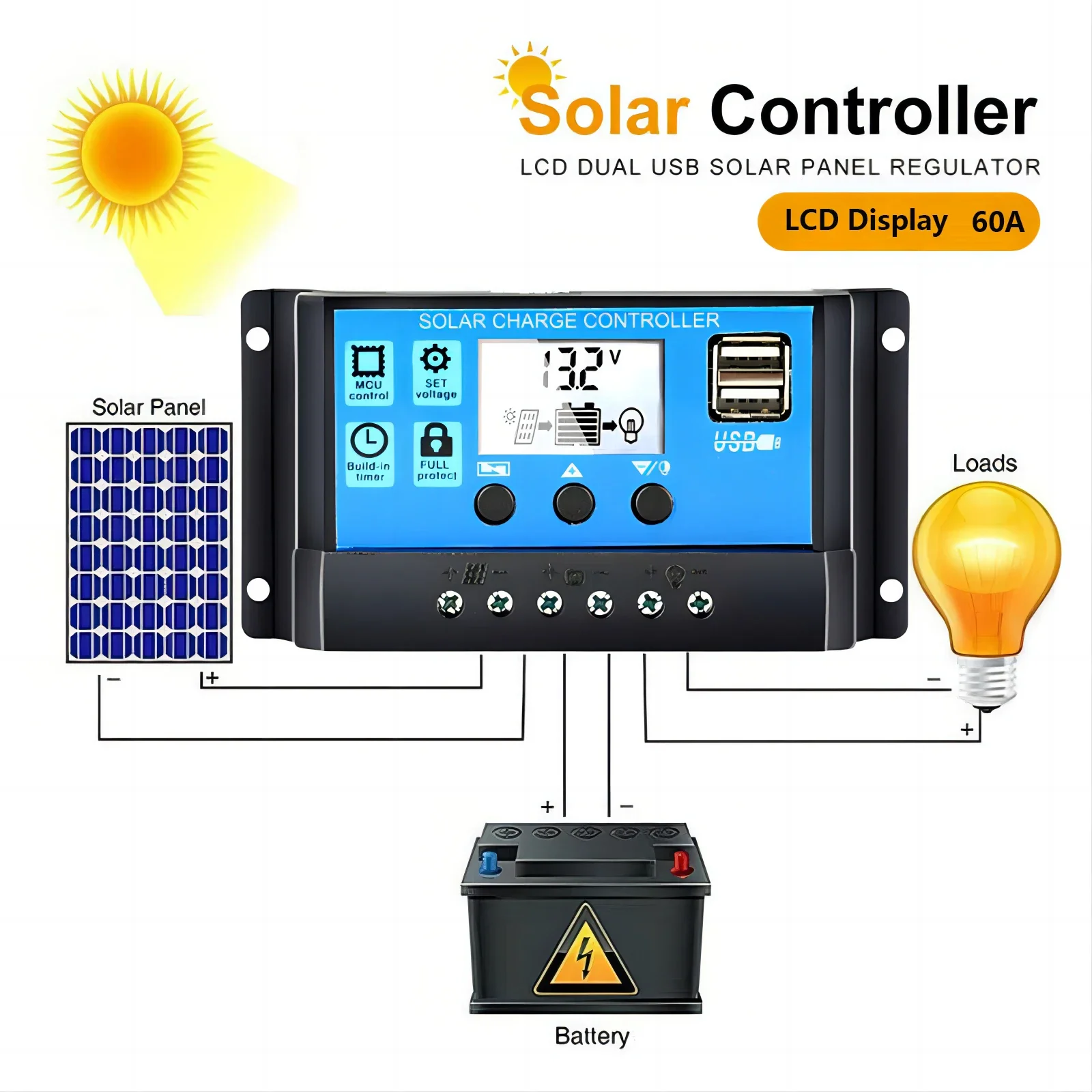

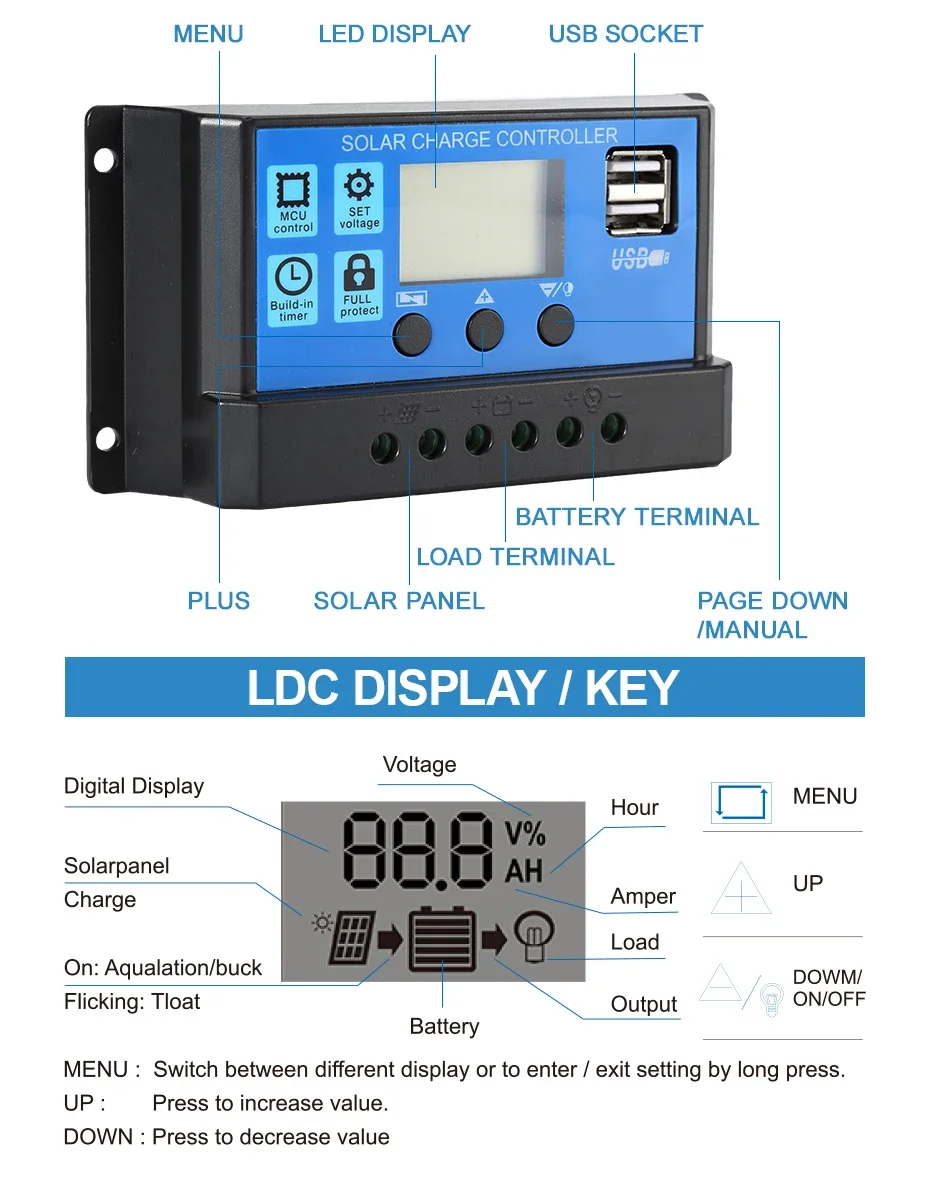

3.50A 12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB

Charge Current: 50A

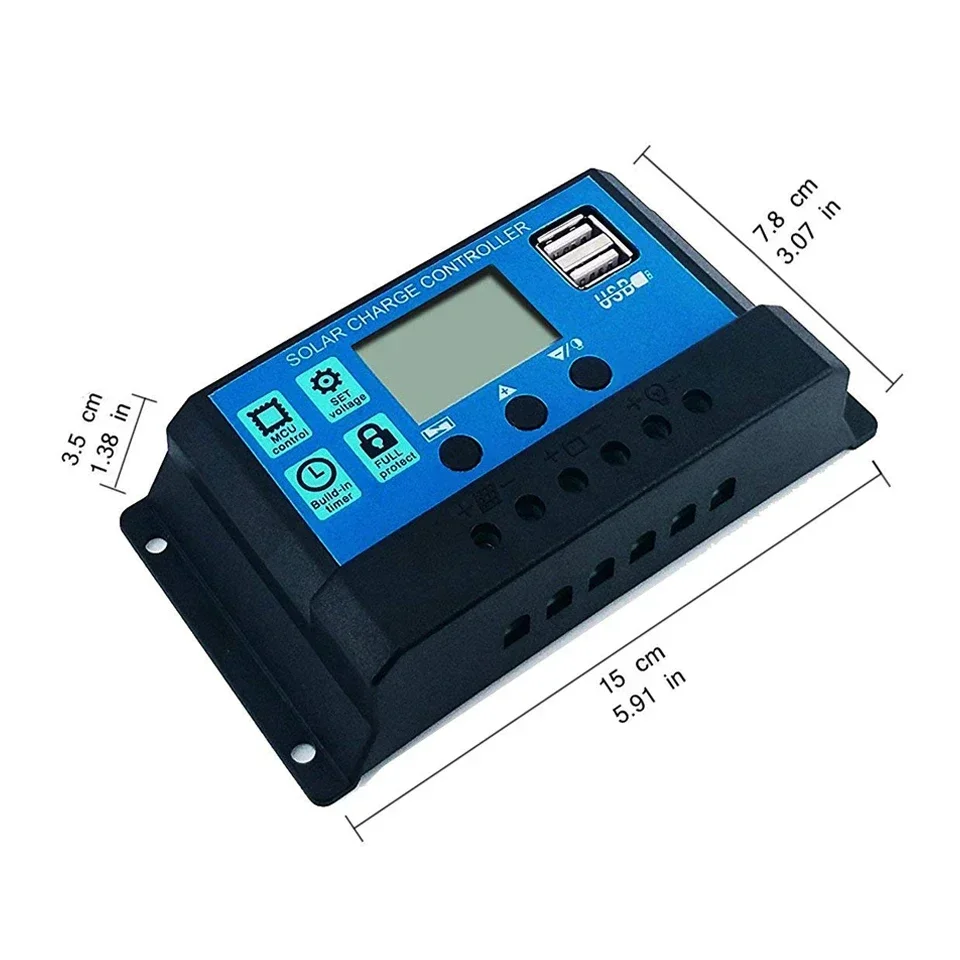

Product Size: 148.5x78x35mm

Voltage: DC 12V / 24V Auto intelligent conversion
Display: LCD digital display
USB Charger Ports: Dual USB 5V 2.1A

Operating Temperature: -35~+60

Max Solar Input: 12V battery, the highest 23V

Float Charge: 13.7V (defaul, adjustable)

Discharge Stop: 10.7V (defaul, adjustable)

Discharge Reconnect: 12.6V (defaul, adjustable)

Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V (Light lights delay)
Voltage of Close Light: Solar Panel 8V (Light off delay)
USB Output: 2 way USB output, 5V/2.5A (MAX)

Application:

-Applicable Loads for Rated Power under 300W:
5W-Cell phone
5W-Breast pump
10W-Digital Electronics(Ipad/Car navigation/Digital camera)
10W-Game console
5W-10W Electric shaver
20W-LED Lamp
25W-Walkie talkie
50-25W Laptop
60W-Compact Fluorescent Lamp
60W-Incandescent lamp
60W-Mechanical Electric9 Fan
60W-150W TV
80W-VCR
180W-Desktop Compute

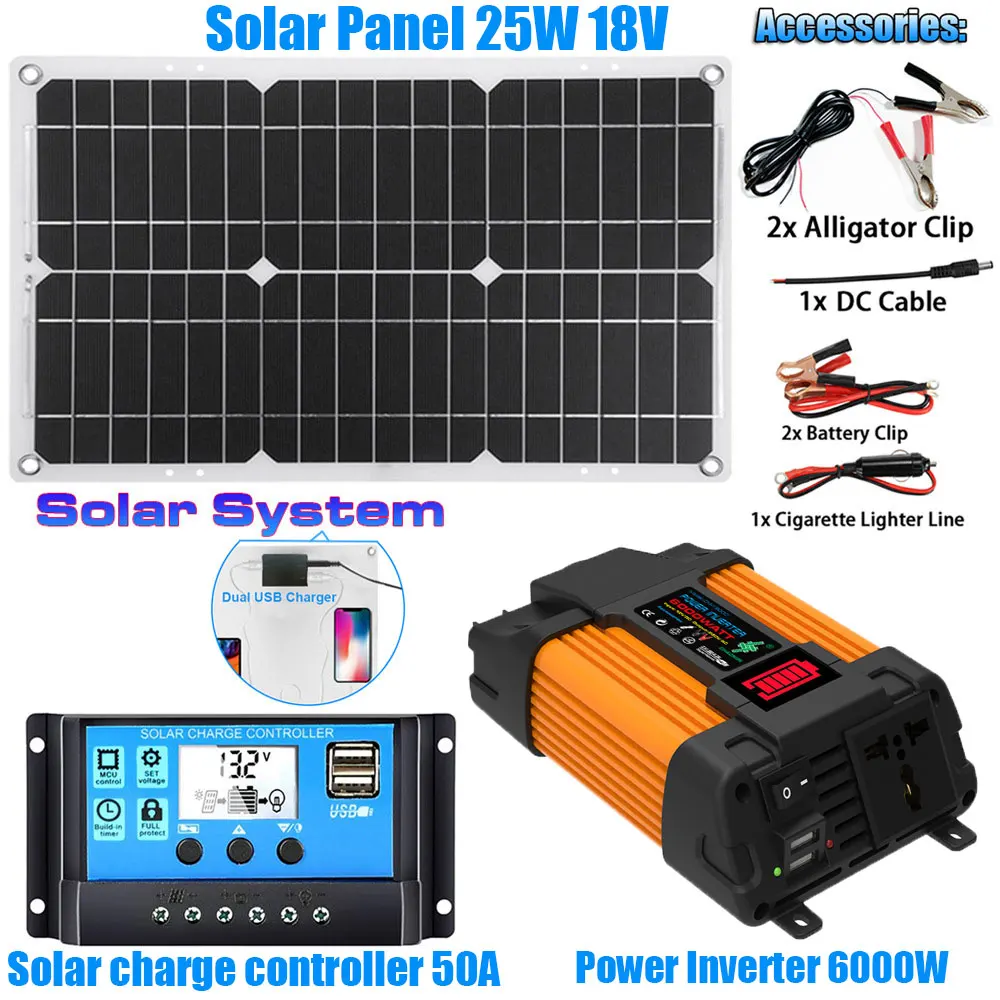

What's in the box:

1 x Power Inverter
2 x Battery Clip
1 x Cigarette Lighter Plug(gift)
1 x User Manual
1 x Solar Panel 25W 18V
1 x Solar Charge Controller 50A 12V/24V

What Size Power Inverter Do I Need?
The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).

What size of battery do i need?
For this solar system set, it is not included the battery, you need to prepare a battery to use in solar system which can help to save the power from sun.
1)The size of battery, it is depend on the power of your appliance you used power and working time of it once time.

2)Formula:
Battery Capacity=Working time (hours)xLoad Power/(Battery Voltage X 0.8X0.9)

3) For example, when using one 220V 25W bulb and need to use it 3 hours this time,
Battery Capacity = 3 X  100(W) /(12(V) X 0.8 X 0.9 )=300W/8.64=35Ah
So you need a battery at least 35Ah or bigger power than 35Ah
