6KW 10KW MPPT Solar Inverter 220V 230V 240V 10000W 6000W Off/On Grid Pure Sine Wave Inverter Home Solar Charge Controller

Regular price Rs.224,036.56

Regular price ~~Rs.373,394.26~~ Sale price Rs.224,036.56

Sale Sold out

Shipping calculated at checkout.

Color 10KWVariant sold out or unavailable 6KWVariant sold out or unavailable

Output Voltage 220V-240VVariant sold out or unavailable

Ships From|Input Voltage Germany|With WIFIVariant sold out or unavailable Saudi Arabia|Without WIFIVariant sold out or unavailable United States|With WIFIVariant sold out or unavailable Brazil|With WIFIVariant sold out or unavailable China Mainland|With WIFIVariant sold out or unavailable Saudi Arabia|With WIFIVariant sold out or unavailable Poland|With WIFIVariant sold out or unavailable United States|Without WIFIVariant sold out or unavailable China Mainland|Without WIFIVariant sold out or unavailable Germany|Without WIFIVariant sold out or unavailable Poland|Without WIFIVariant sold out or unavailable Brazil|Without WIFIVariant sold out or unavailable

Quantity Quantity

(0 in cart)

SPECIFICATIONS

1: MPPT Solar Inverter

2: Hybrid Inverter

3: 3500W 5500W Solar Inverter

4: Solar Charge Controller

5: Solar Controller Off Grid

Brand Name: ANERN

Certification: CE,RoHS

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: Yes

Model Number: AN-SCI02 PLUS

Origin: Mainland China

Output Current: 100A

Output Frequency: 50HZ/60HZ

Output Power: 1 - 200 KW

Output Type: SINGLE

Size: 630x420x250mm

Weight: 12.5kg

is_customized: Yes

MODEL	AN-PVI-6000W	AN-PVI-10000W
RATED POWER	6KVA/6KW	10KVA/10KW

PHASE

1-phase in/1-phase out

MAXIMUM PV INPUT POWER

4500W*2(9000W)

4500W*3(13500W)

GRID-TIEOPERATION

PVINPUT(DC)

Maximum DC Voltage	500Vdc
Start-up Voltage/Initial Feeding Voltage	90Vdc/120Vdc
MPPT Voltage Range	60-450Vdc

Number of MPPT Trackers/Maximum Input Current

2/18A

3/18A

GRID OUTPUT(AC)

Nominal Output Voltage	220/230/240VAC
Output Voltage Range	184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable)

Nominal Output Current

26A

43A

Power Factor

>0.99

EFFICIENCY

Maximum Conversion Efficiency(DC/AC)

97%

OFF-GRIDOPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Frequency Range	50Hz/60Hz(Autosensing)

Maximum AC Input Current

40A

50A

GENERAL

PHYSICAL

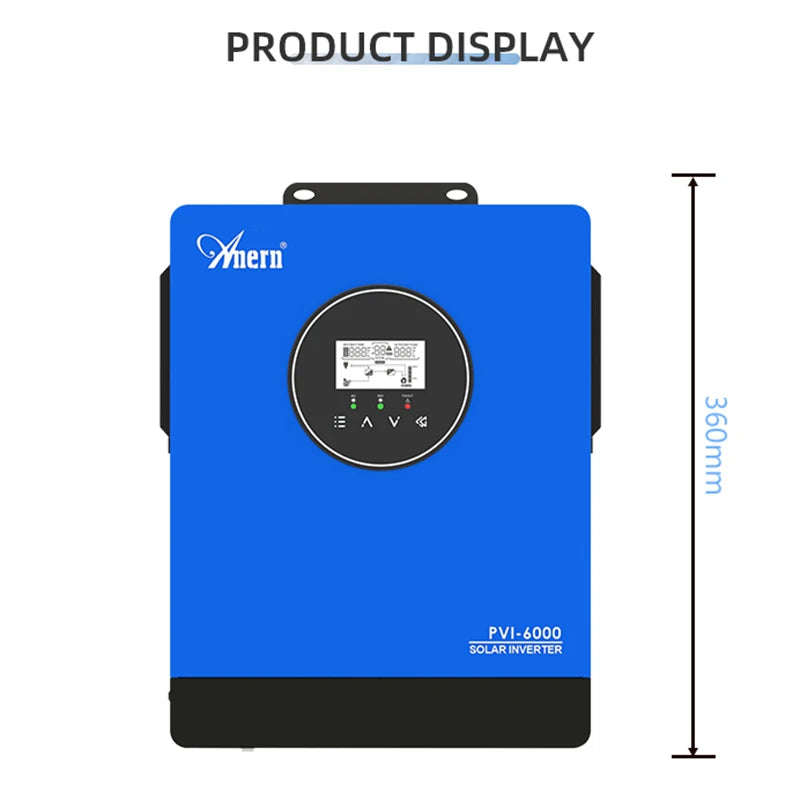

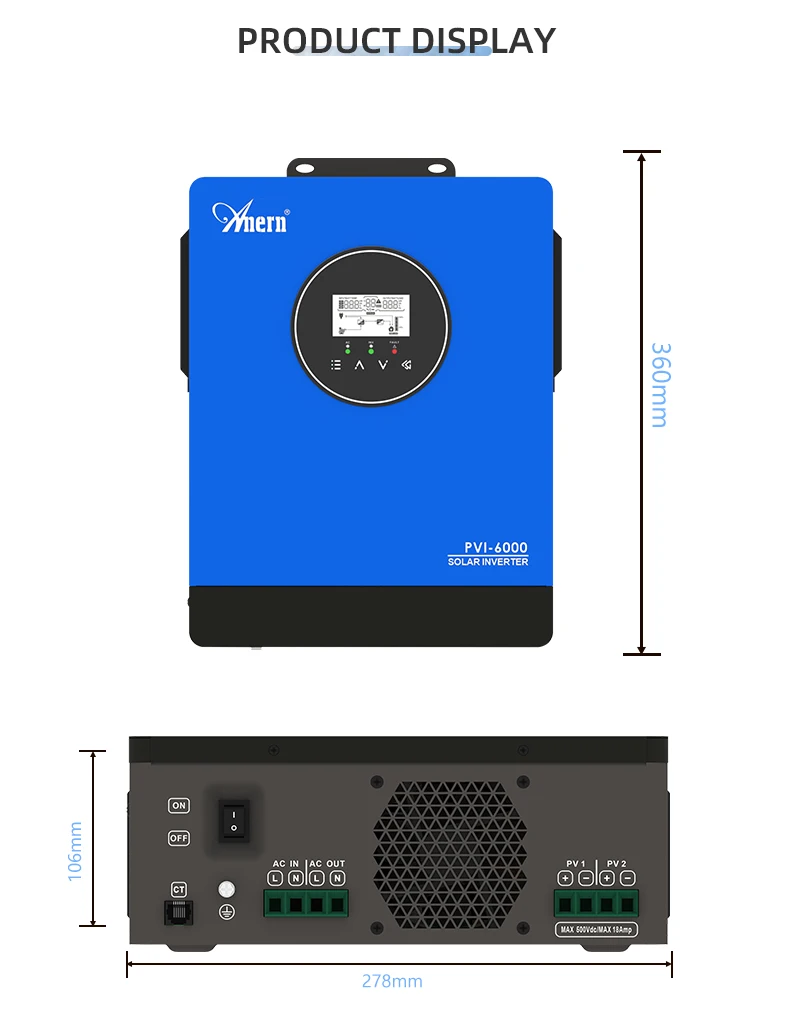

Dimension,DxWxH(mm)	360x278x106	360x310x107
Net Weight(kgs)	4.9	6.5

ENVIRONMENT

Humidity	5% to 95% Relative Humidity(Non～condensing)
IP degree	IP21
Operating Temperature	-10℃～50℃
Storage Temperature	-15℃～60℃

Features:

Pure sine wave inverter

Configurable input voltage range for home appliances

and personal computers via LCD setting

Combind to the grid based on applications via LCD setting

Compatible to mains voltage

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Cold start function

Dual mppt at 4KW and 6KW,three mppt at 10KW and 15KW

Can Running 1.5P motor with 4KW,3P motor with 6KW,

1.5P+3P motor with 10KW,3P+3P motor with 15KW

Full load work with solar only

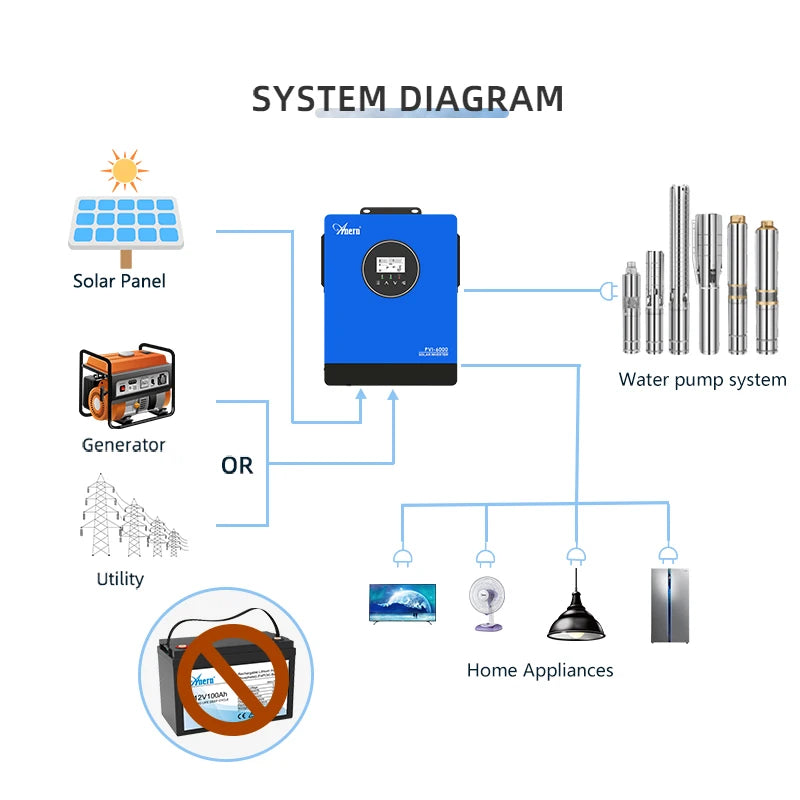

The PVI model inverter does not require battery connection and cannot be used with batteries.

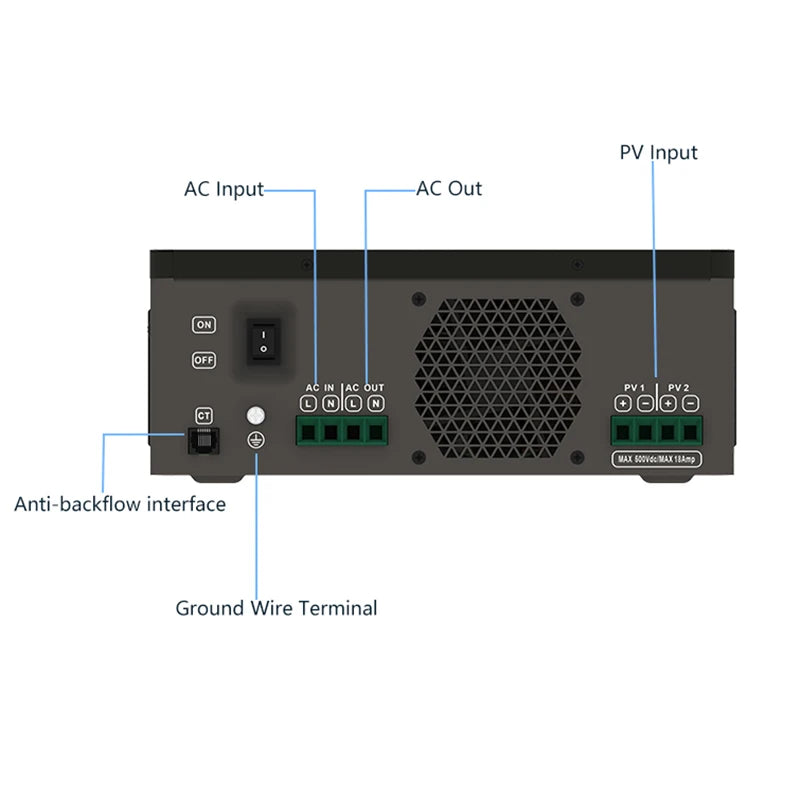

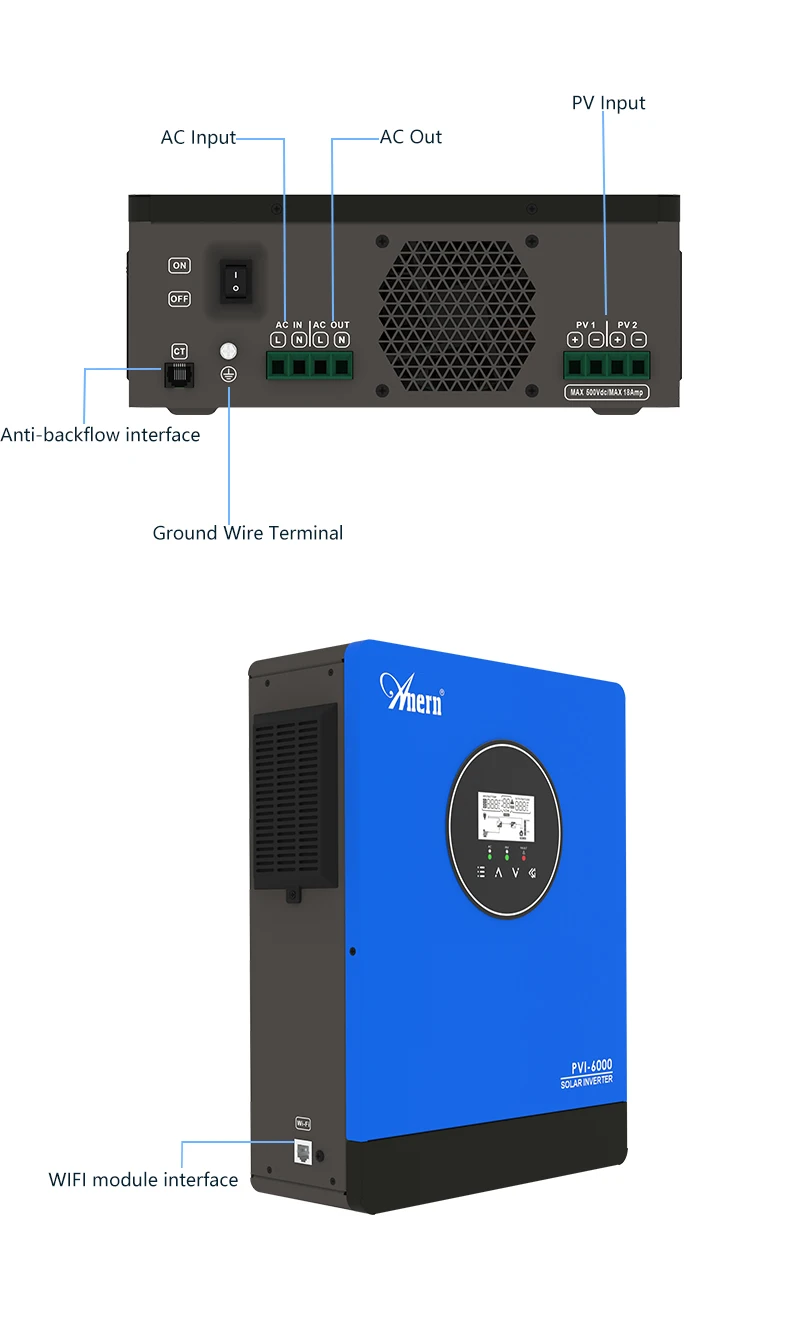

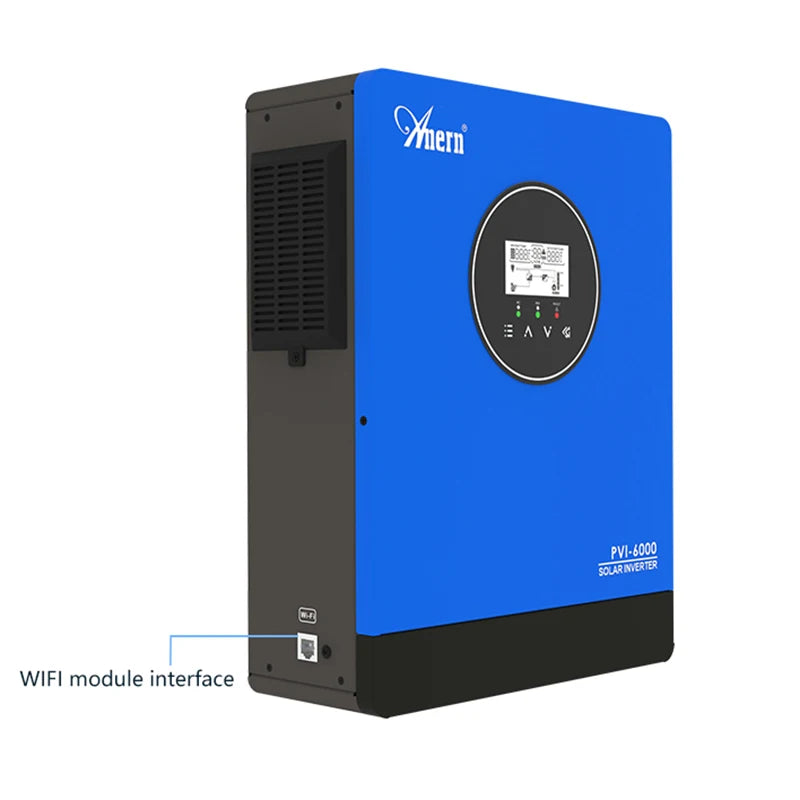

Note: Purchasing a model with a WiFi module will include a CT module. Models without a WiFi module do not include a CT module.

The AN-PVI series inverters can also be directly connected to the grid, based on the premise that the country of application has no requirements for grid connection certification.
