SPECIFICATIONS

Brand Name: NONE

Choice: yes

Connection Method: Wired Connection

High-concerned chemical: none

Material: Aluminum alloy

Origin: Mainland China

Voltage: Below 50V AC / 75V DC

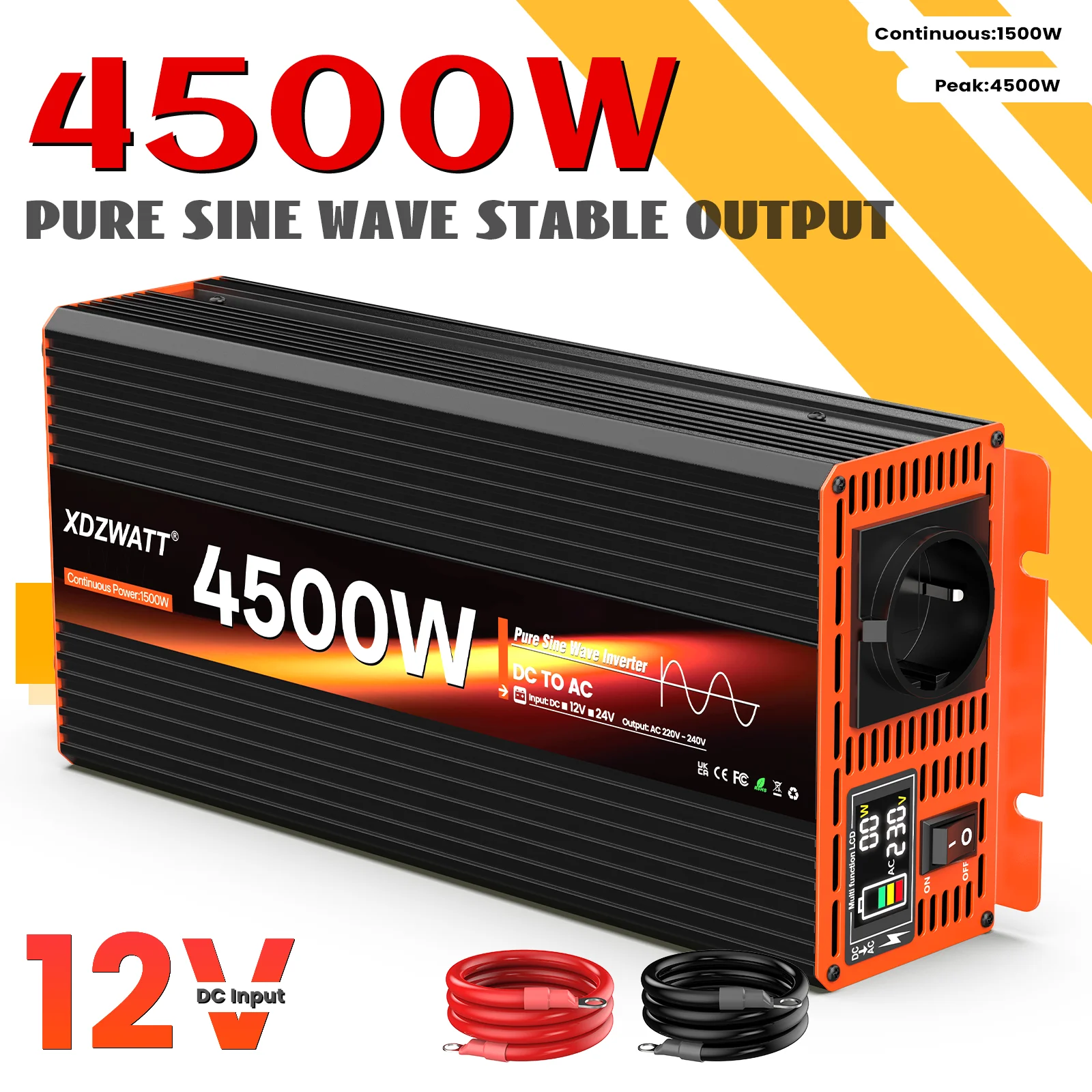

• Waveform:Pure sine wave

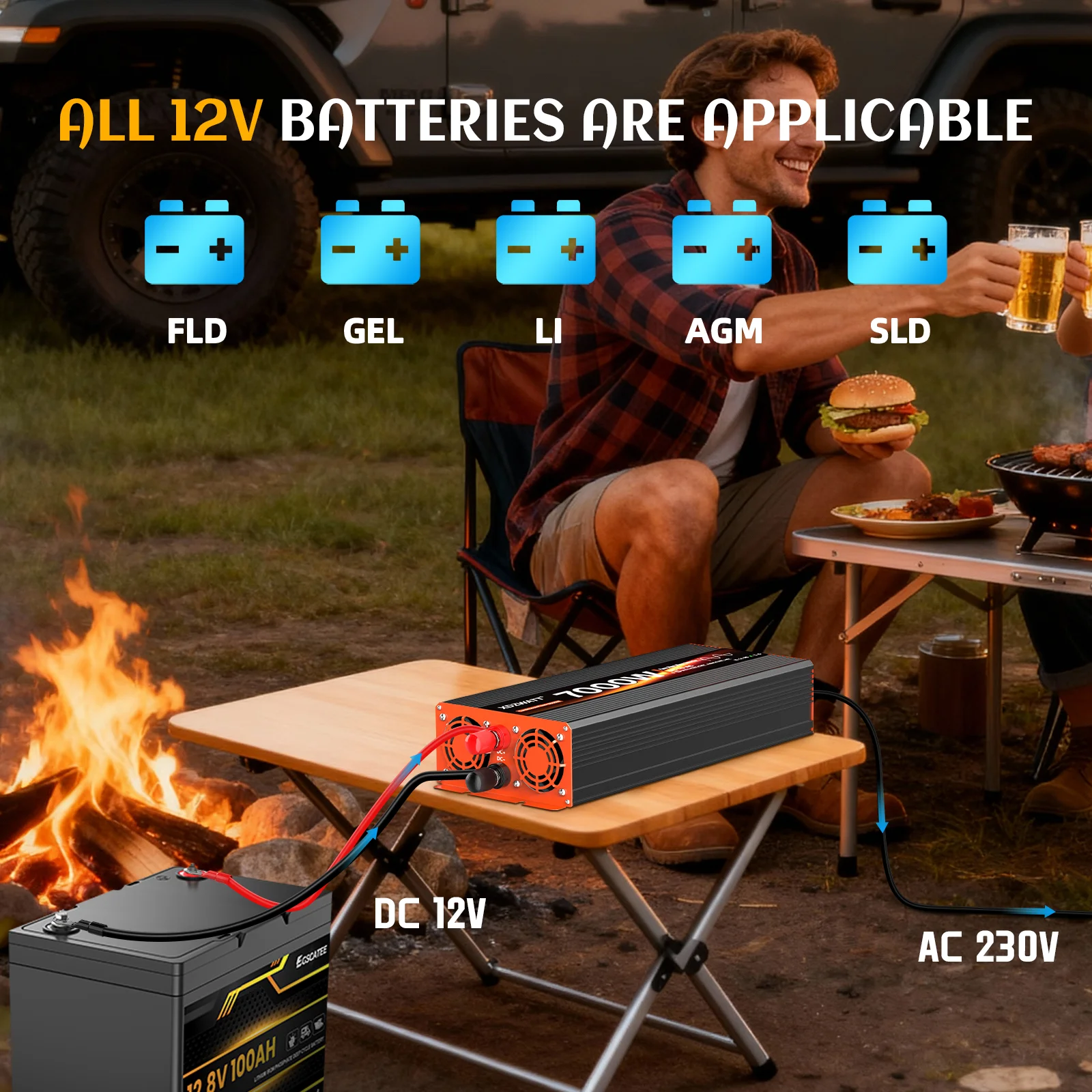

• Input DC voltage:12V±0.5V

• Output AC voltage:230V±10V

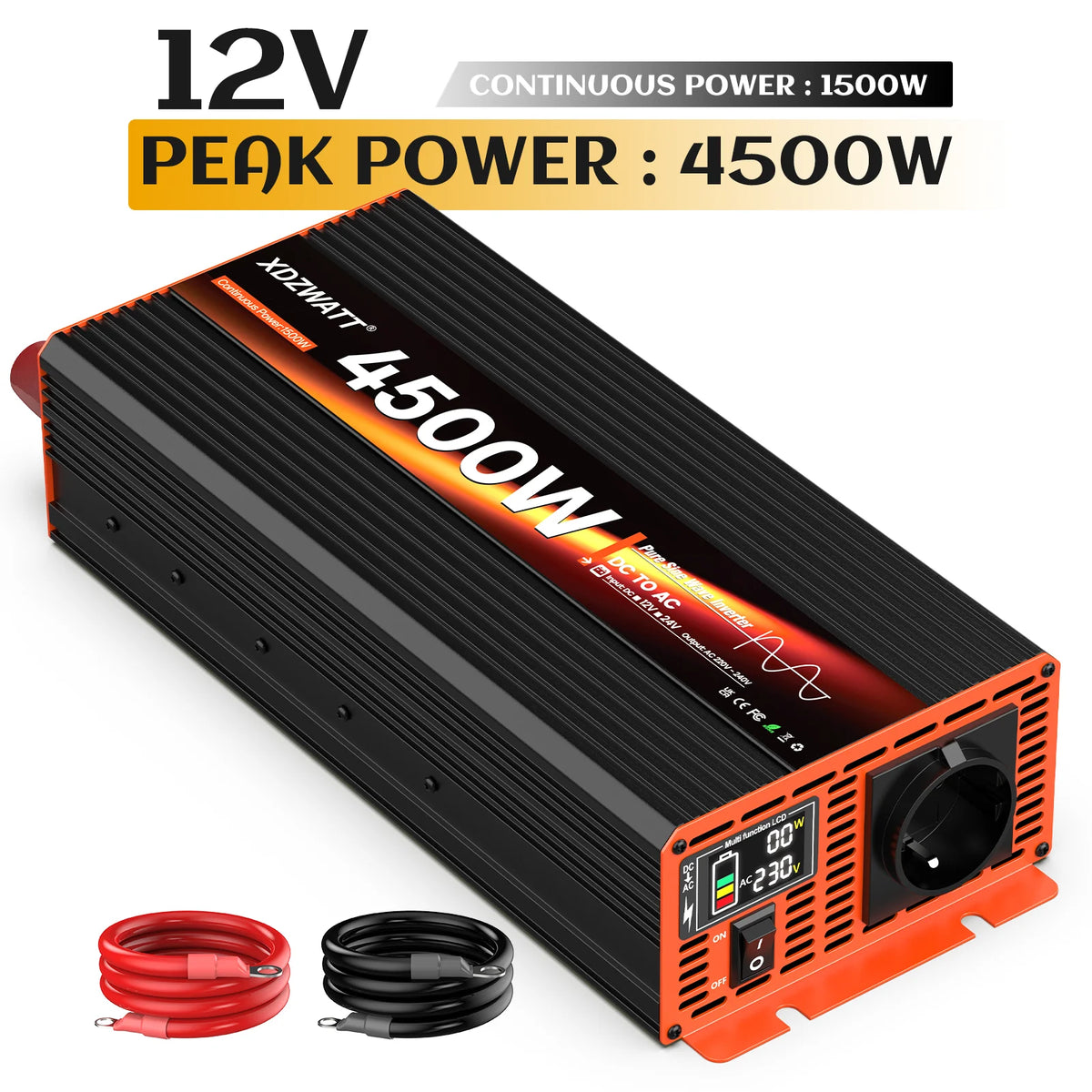

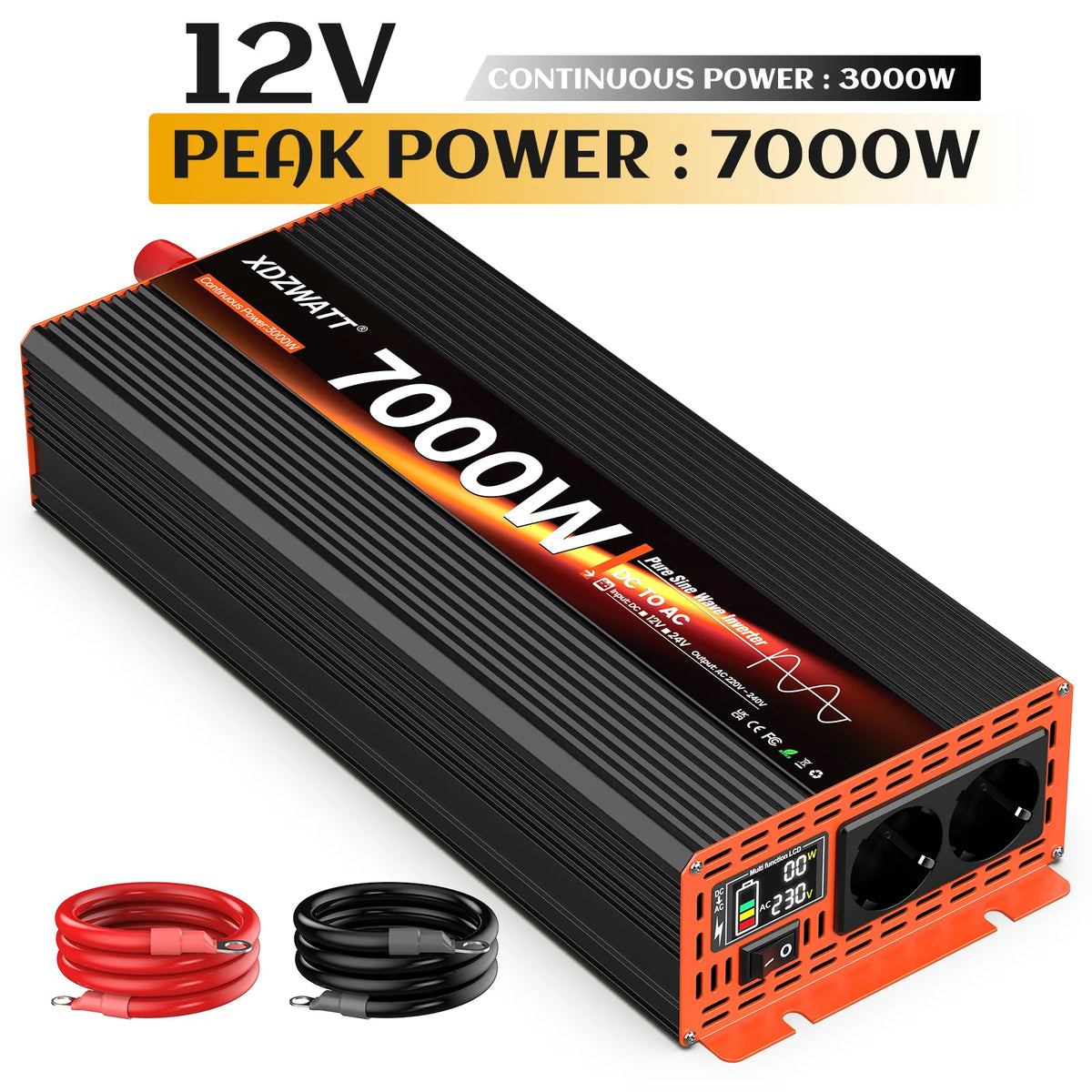

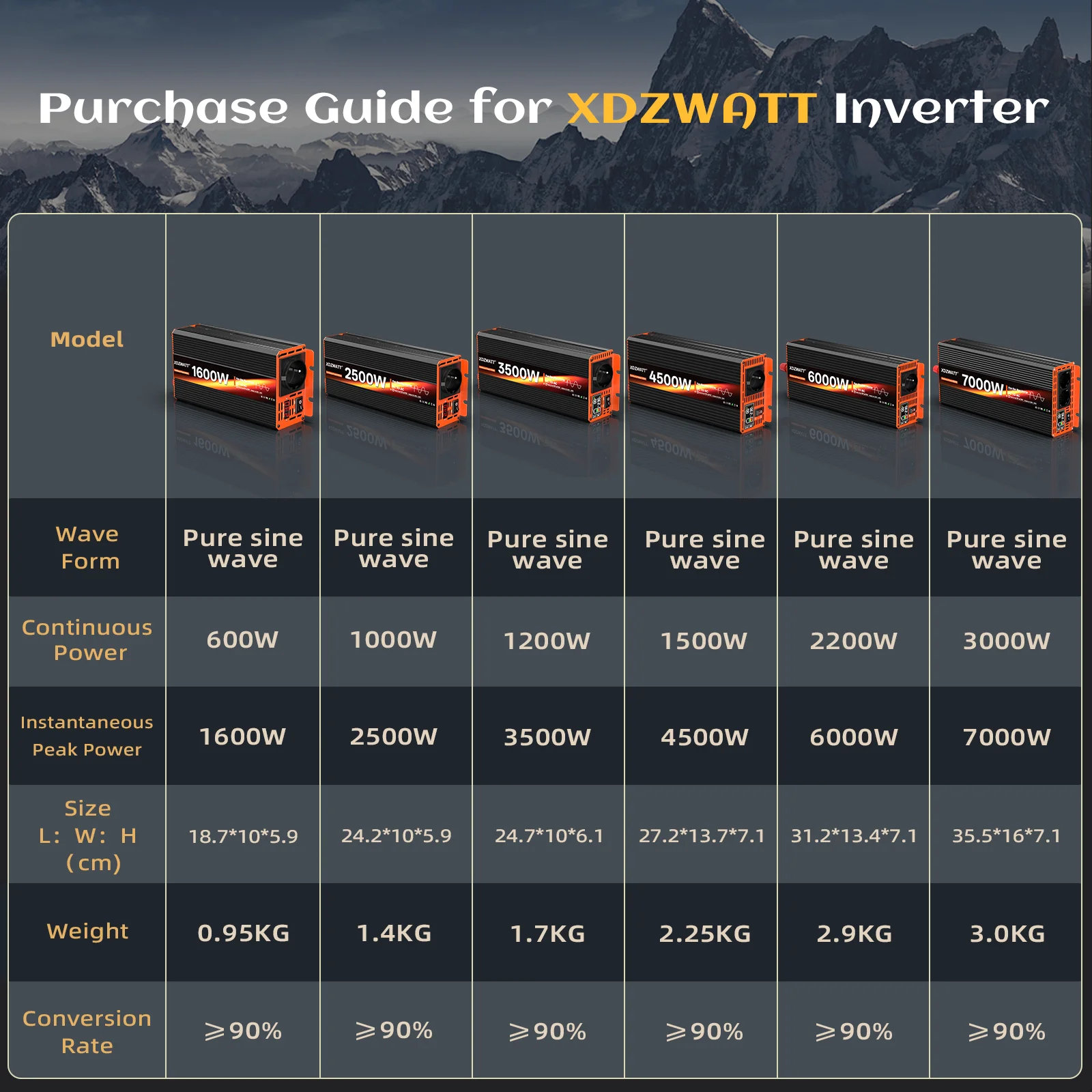

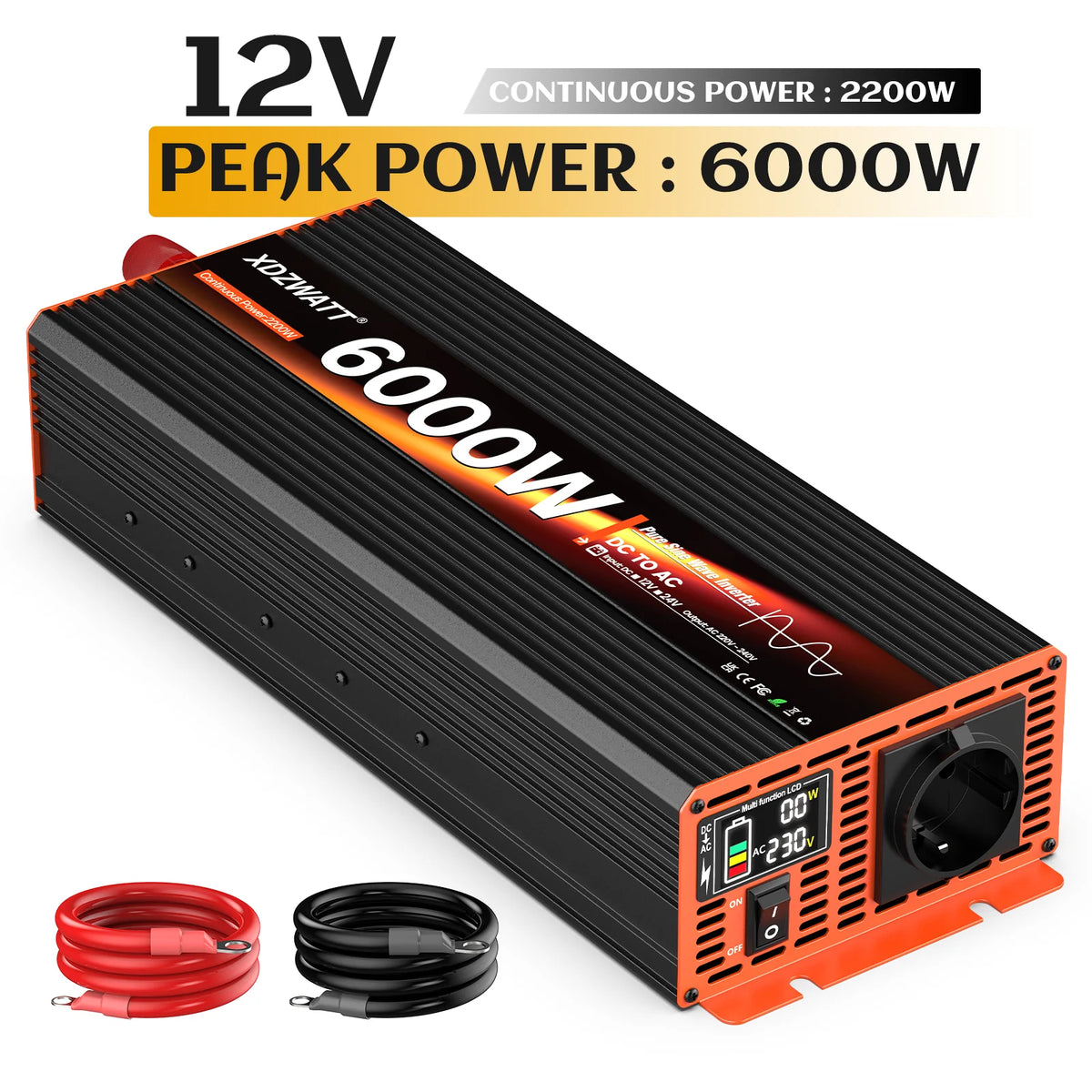

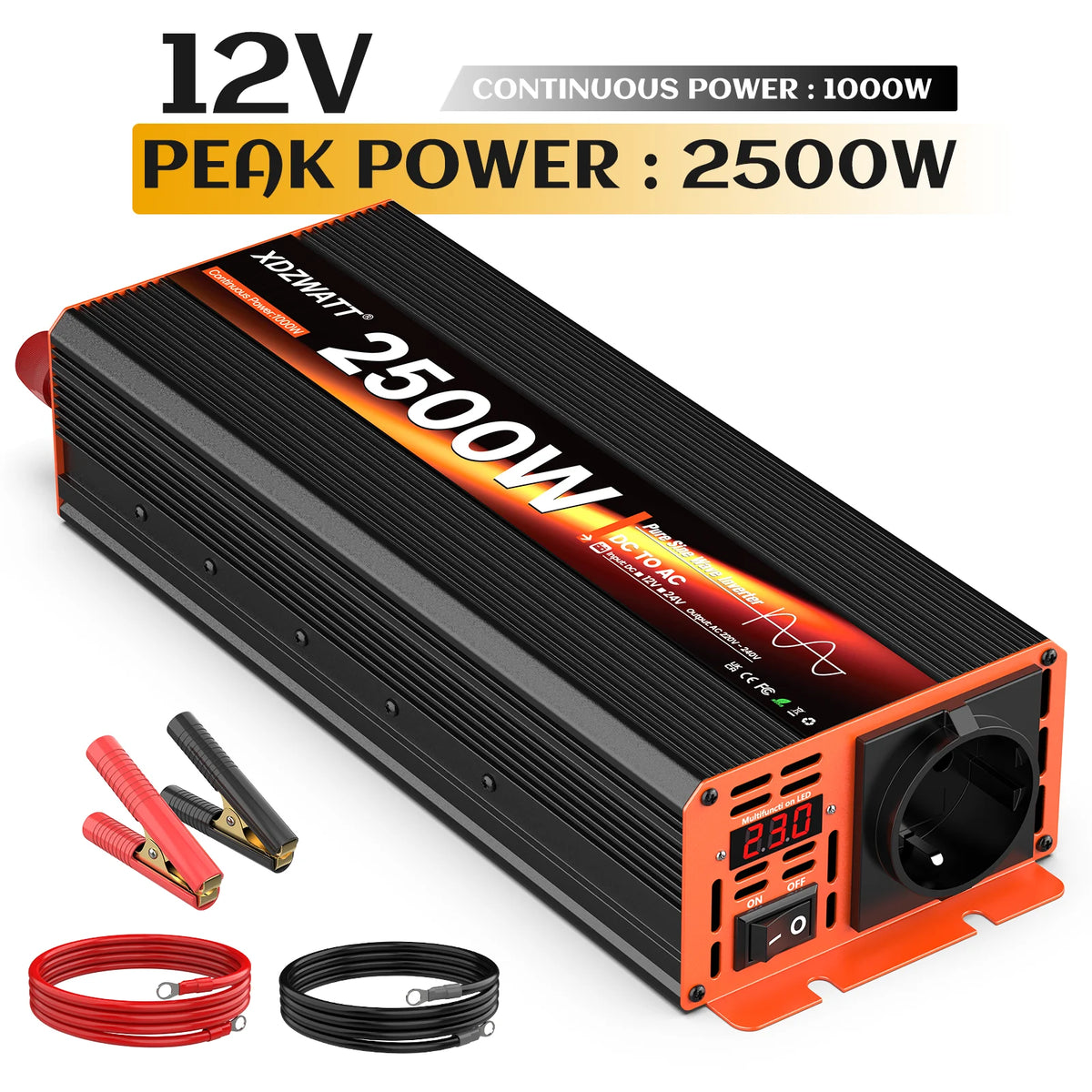

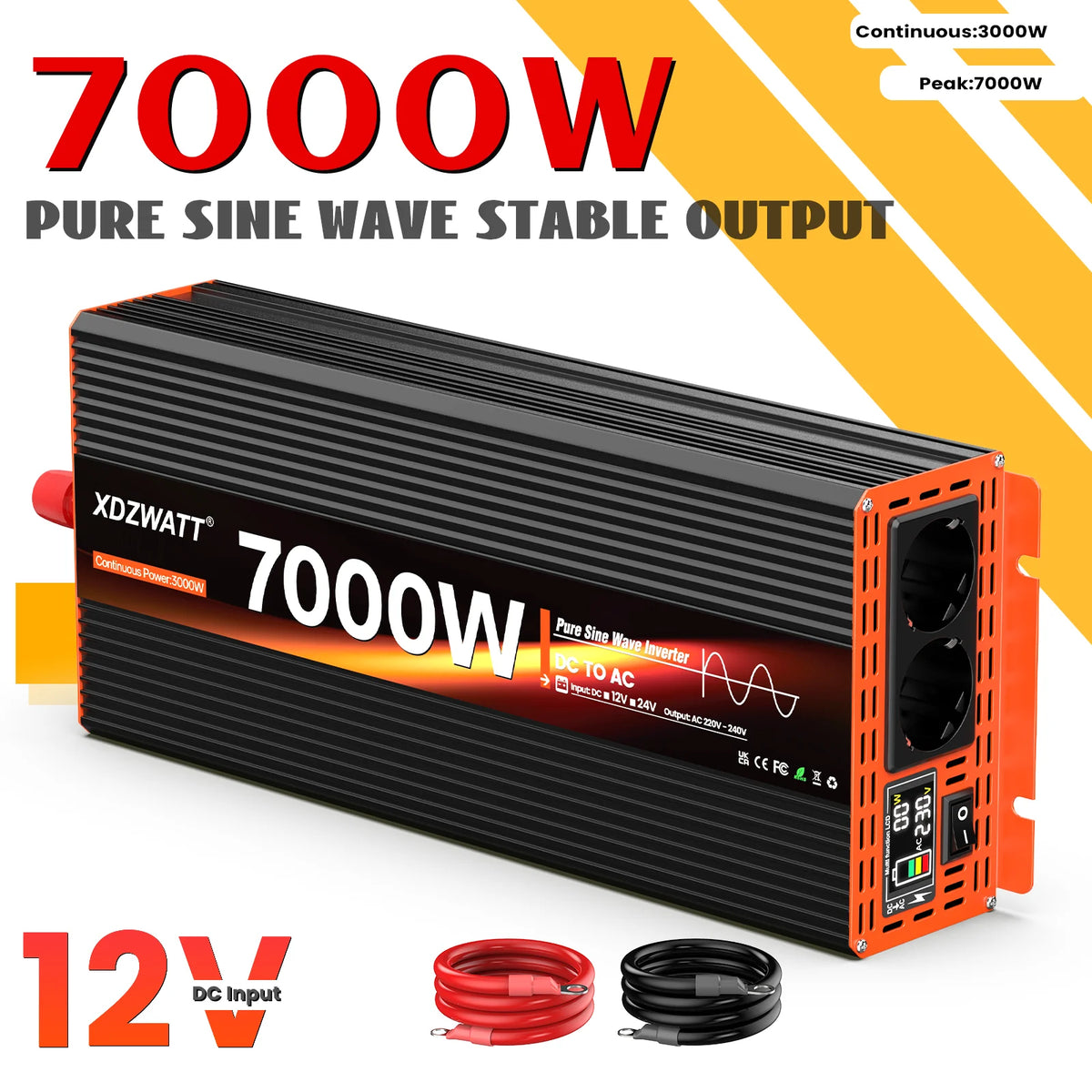

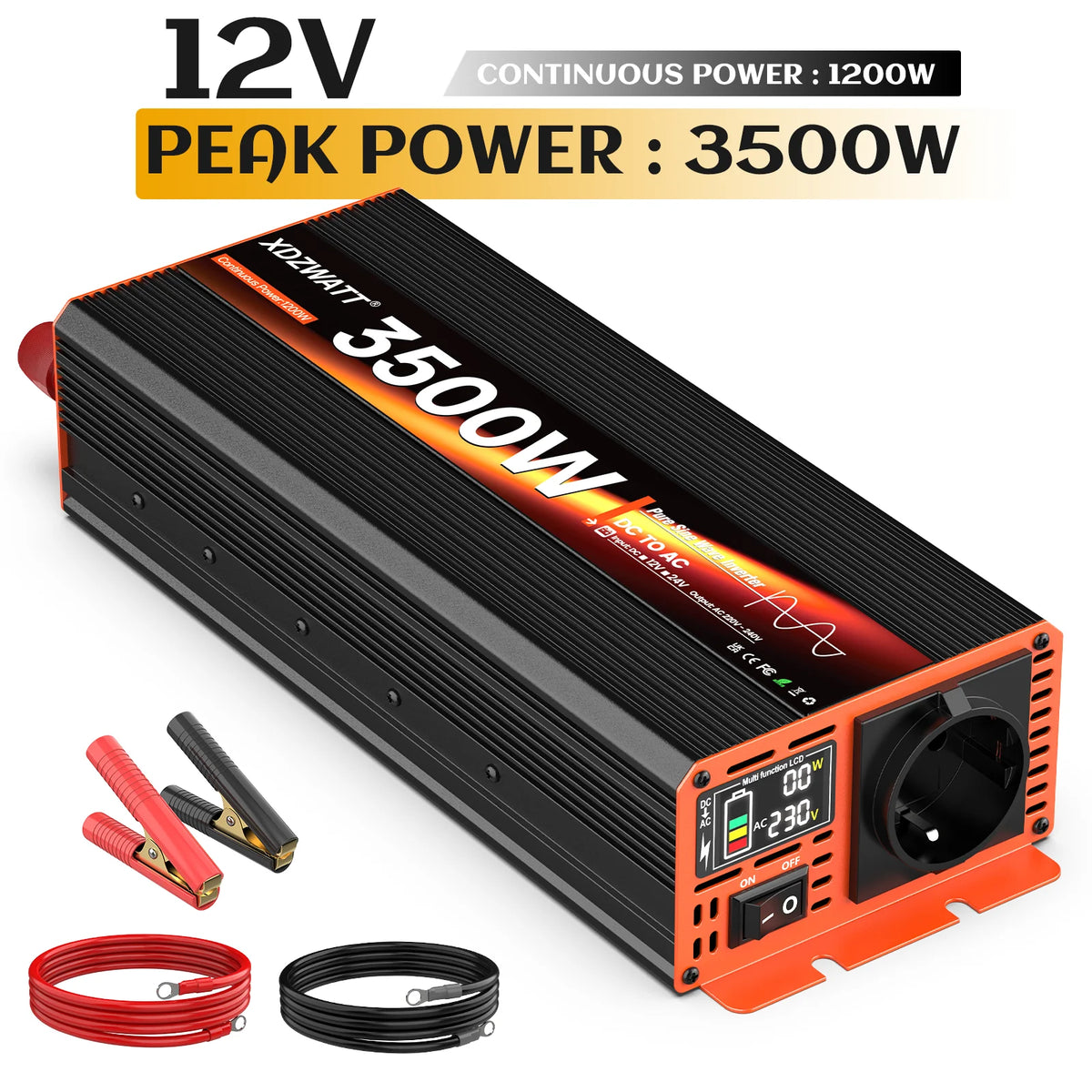

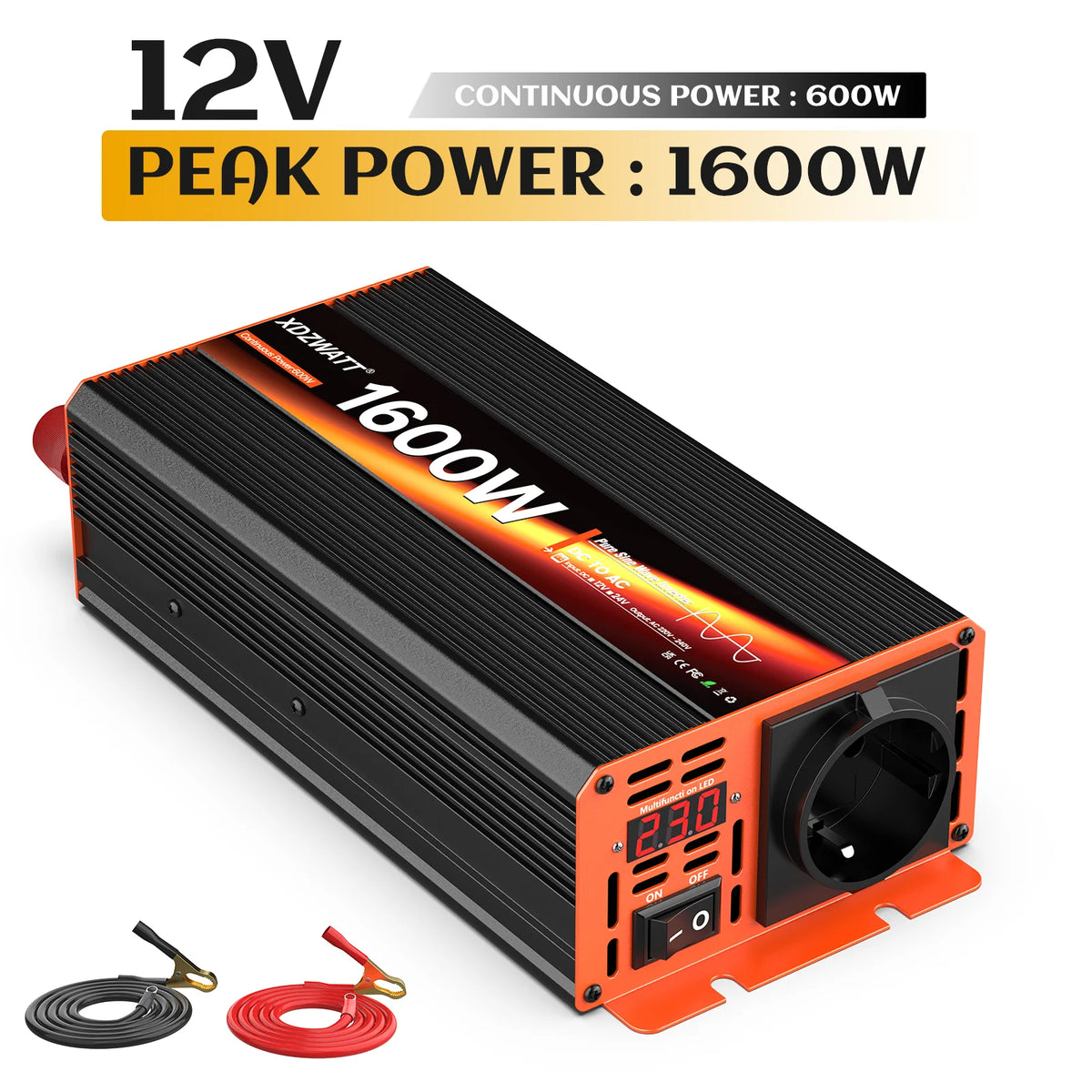

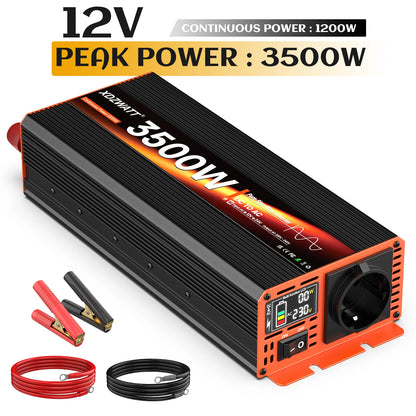

• Peak power：7000W/6000W/4500W/3500W/2500W/1600W

• Continuous power：3000W/2200W/1500W/1200W/1000W/600W

• Socket Type：EU standard

• Frequency：50Hz±5H

• Protection：Overload/Low Voltage/High Voltage/Overheating (Disconnect, Display Error Code)

• Conversion：Greater than 90%

• Material：Aluminum Alloy

• Package list：1×inverter, 1×black and red power cables，1Instruction Manual

• The instantaneous power generated when switching electrical appliances is 3 to 7 times the rated power, typically lasting for about 1 to 5 seconds. This peak power protects the appliance from damage during this period. Once the current stabilizes, the inverter's Continuous power must exceed the appliance's rated power. It is best to operate at 90% load capacit.

• Please avoid prolonged full-load operation, as it may damage both the inverter and the appliance.

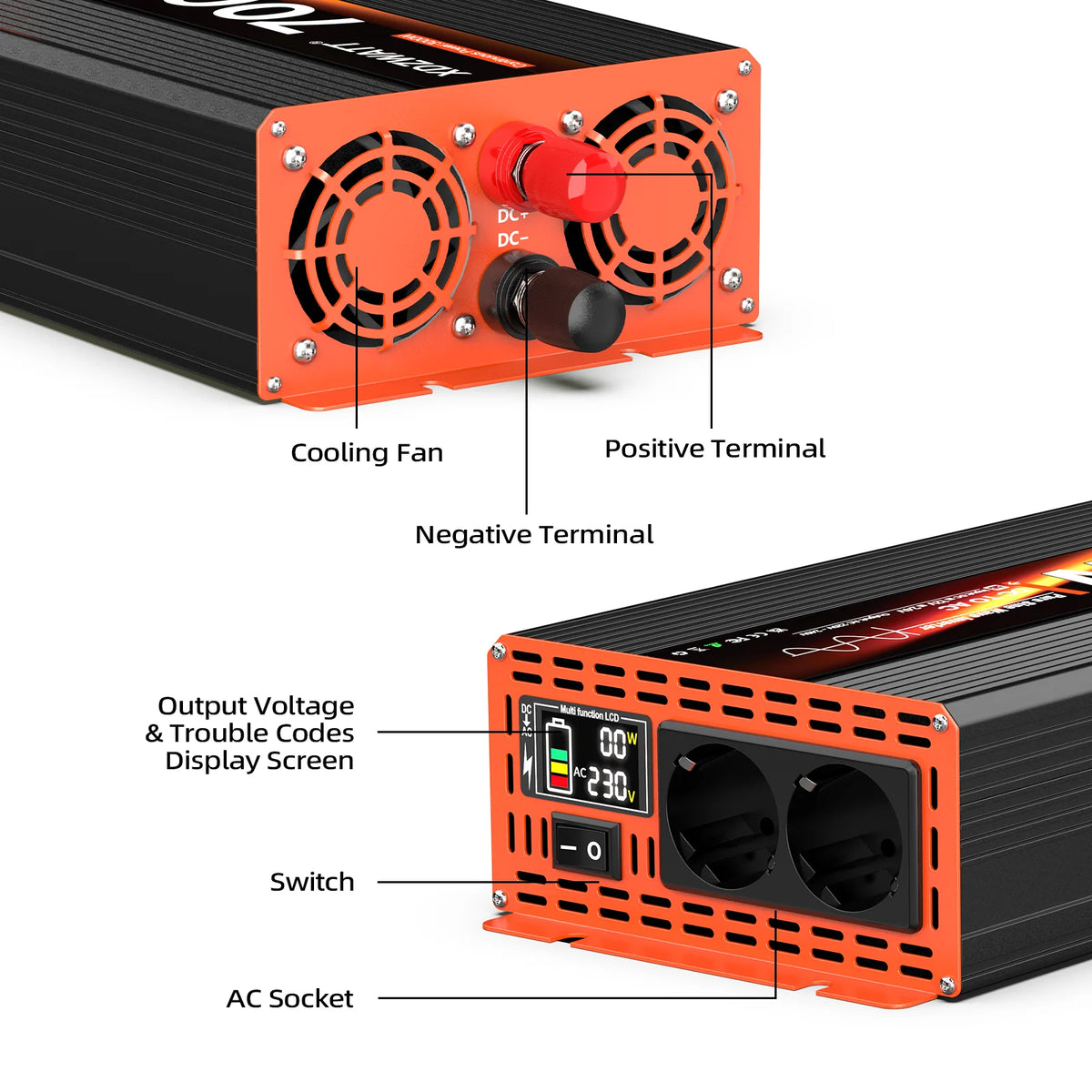

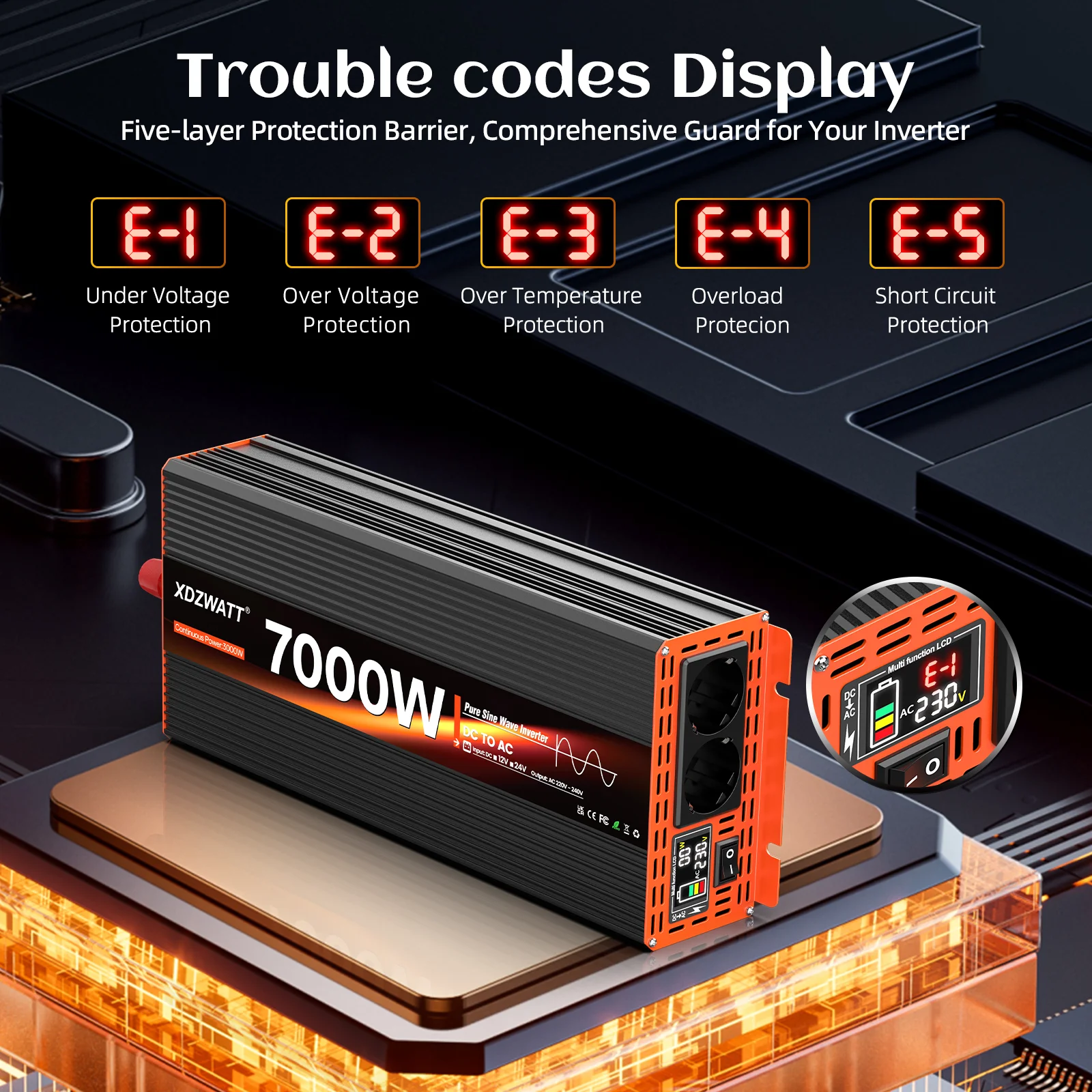

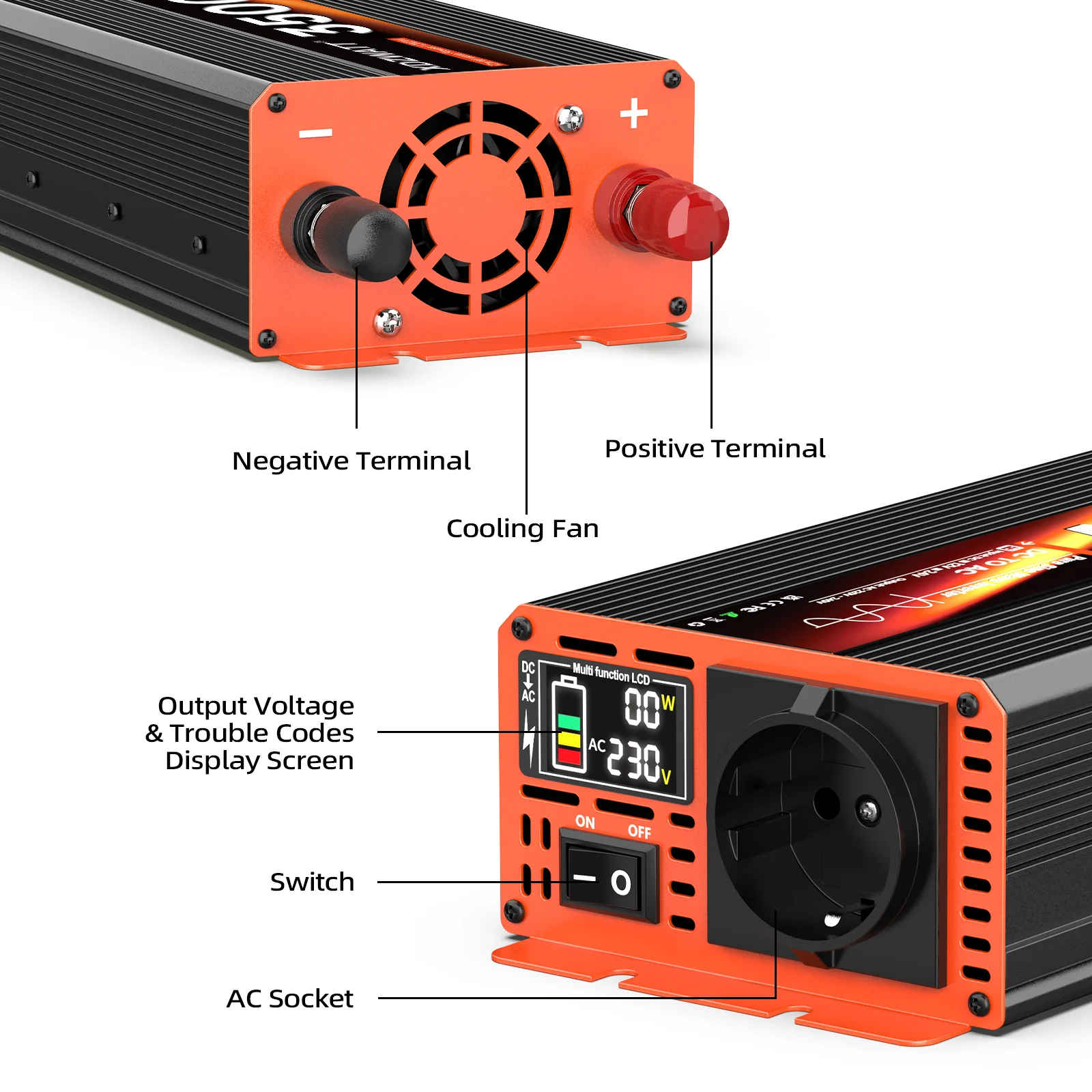

Pure Sine Wave Power Inverter Specifications：INTELLIGENT LCD DISPLAY: in normal working state, the LCD Display will display the input/outputvoltage, battery capacity, load capacity and output frequency.

When the inverter is in an abnormalstate, the LCD Display will display the abnormal code.

E-1: Low Voltage Protection,

E-2: HighVoltage Protection,

E-3: Overtemperature Protection,

E-4: Overload Protection,

E-5: Short Circuit Protection.

Warnings

1)Read the manual before using and keep it for future reference.
2) Don't put the inverter under sunshine, heating source, damp environment.
3) The housing of inverter will be calorific when using, please avoid touching the material that can't stand high,temperature, such as clothes, sleeping bag and carpet, etc.
4) The inverter is designed to use with the negative ground electricalsystem! Don't use it with positive ground electrical systems (The majority of modern automobiles, RVs,trucks and boats are negative ground).
5) Do not disassemble the unit randomly, it maycause fire or electric shock.
6) Keep children away from inverter and don't allow them to play the unit.
7) The power inverter will output AC power as utility power, please treat the output terminal as carefully as your home AC socket. Don't put anyother things into the output terminal except electrical appliance plug. It will bring danger or fire if using in a wrong way.
8)Disconnect the battery and inverter when the inverter is not in use.
9)Please do not connect to the solar controller directly, only the battery.
