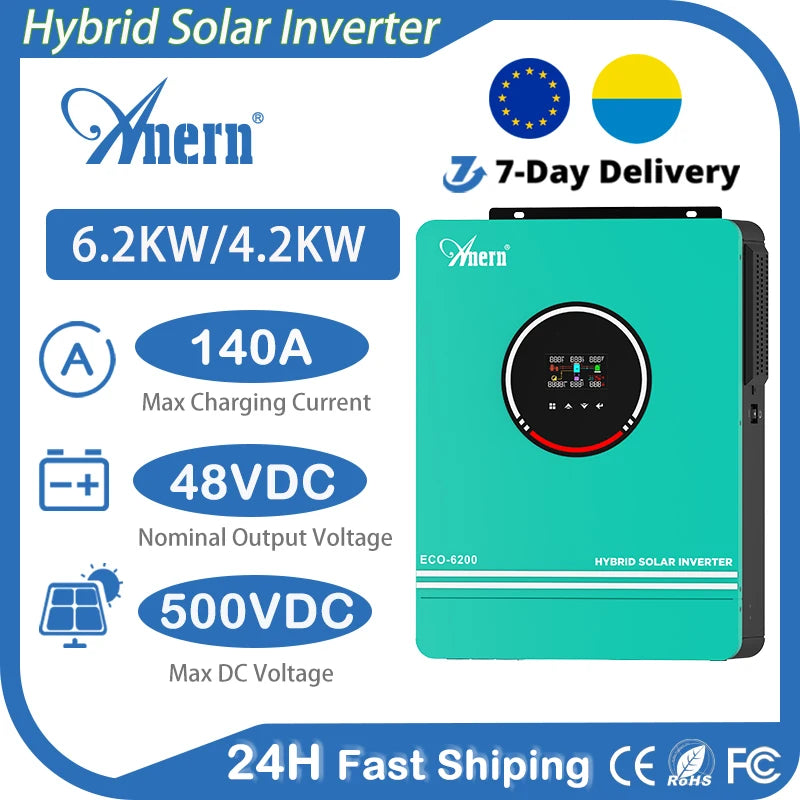

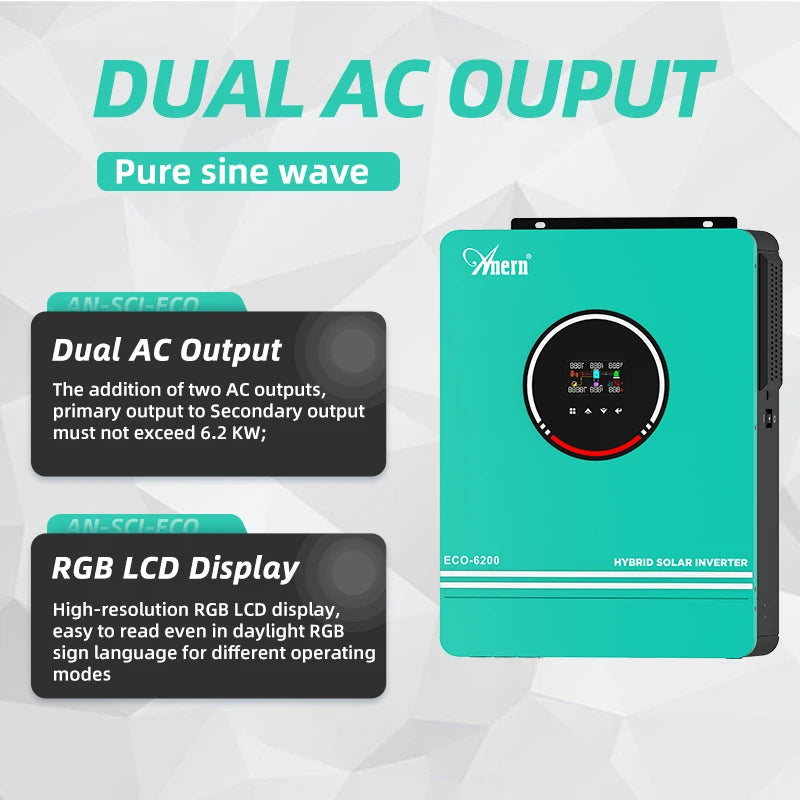

Anern Solar Hybrid Inverters 6.2KW 4.2KW 24V 48V With MPPT 140A Charger Controller Dual AC Output Pure Sine Wave for Home System
Anern Solar Hybrid Inverters 6.2KW 4.2KW 24V 48V With MPPT 140A Charger Controller Dual AC Output Pure Sine Wave for Home System
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANERN
Certification: CE,RoHS
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Feature 1: Pure sine wave solar inverter
Feature 10: Compatible with multiple batteries
Feature 11: 48V Hybrid Inverter
Feature 2: Bulit-in 120A MPPT solar controller
Feature 3: Max 6200W(for 4.2KW) & 6500W(for 6.2KW) solar charge
Feature 4: Inverter running without battery
Feature 5: High PV input voltage range(60-450VDC)
Feature 6: Built in anti-dusk kit for harsh environment
Feature 7: Smart battery charge design to optimize battery life
Feature 8: WIFI available for IOS and Android
Feature 9: Lithium Battery Compatible
High-concerned chemical: none
Is Smart Device: no
Model Number: ECO 6.2/4.2KW/2KW/3.2KW/1.5KW
Origin: Mainland China
Output Current: 22A
Output Frequency: 50/60Hz
Output Power: 1 - 200 KW
Output Type: DUAL
Size: 550*430*210mm
Weight: 11.2kg
Attention: This is an off grid inverter
local warehouse europeEU warehouses can transport European countries such as Poland, Ukraine, Italy, and others
Feature:
▲Pure sine wave solar inverter
▲Inverter running without battery
▲One-key restoration to factory settings
▲With function of Lithium battery automatic activation by PV
▲Bulit-in 120A MPPT solar controller
▲Max 6200W(for 4.2KW) & 6500W(for 6.2KW) solar charge

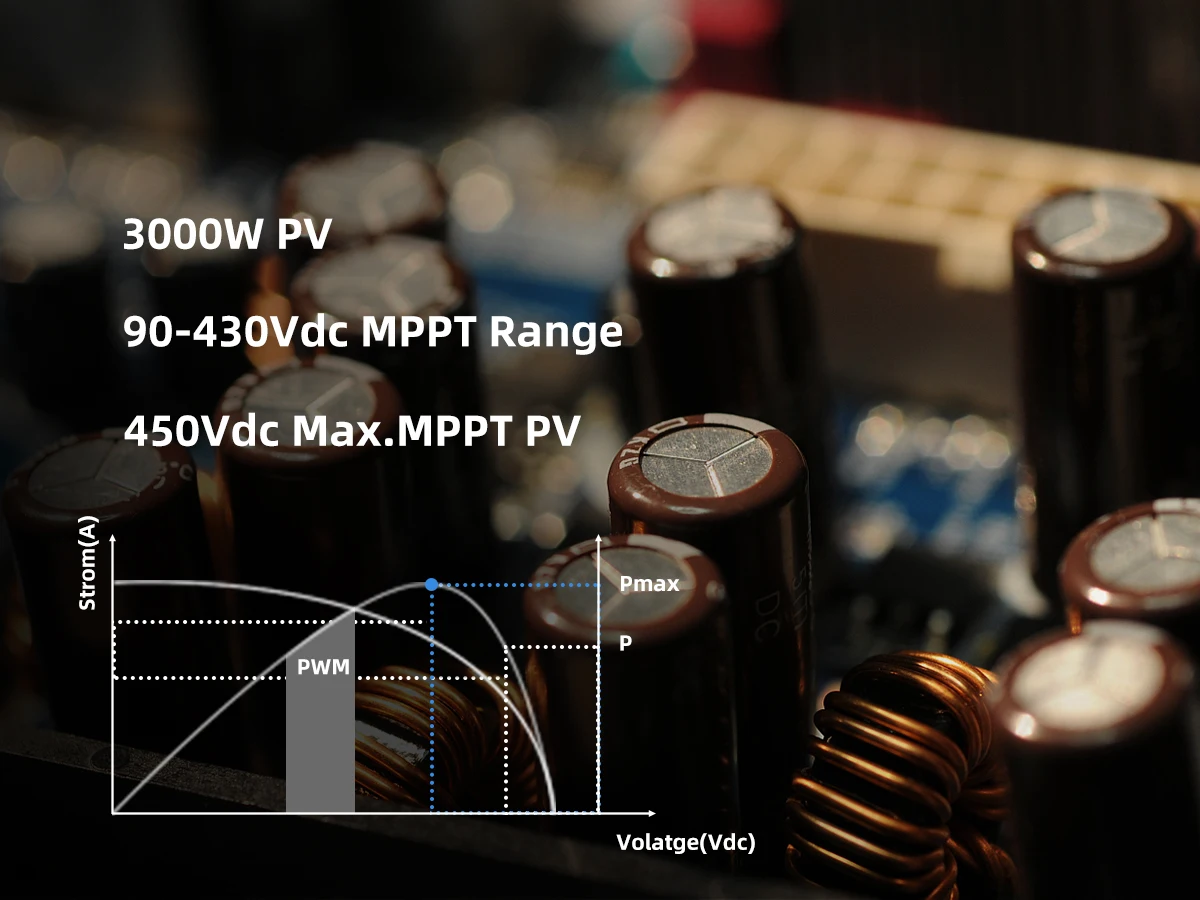

▲High PV input voltage range(60-450VDC)
▲Built in anti-dusk kit for harsh environment

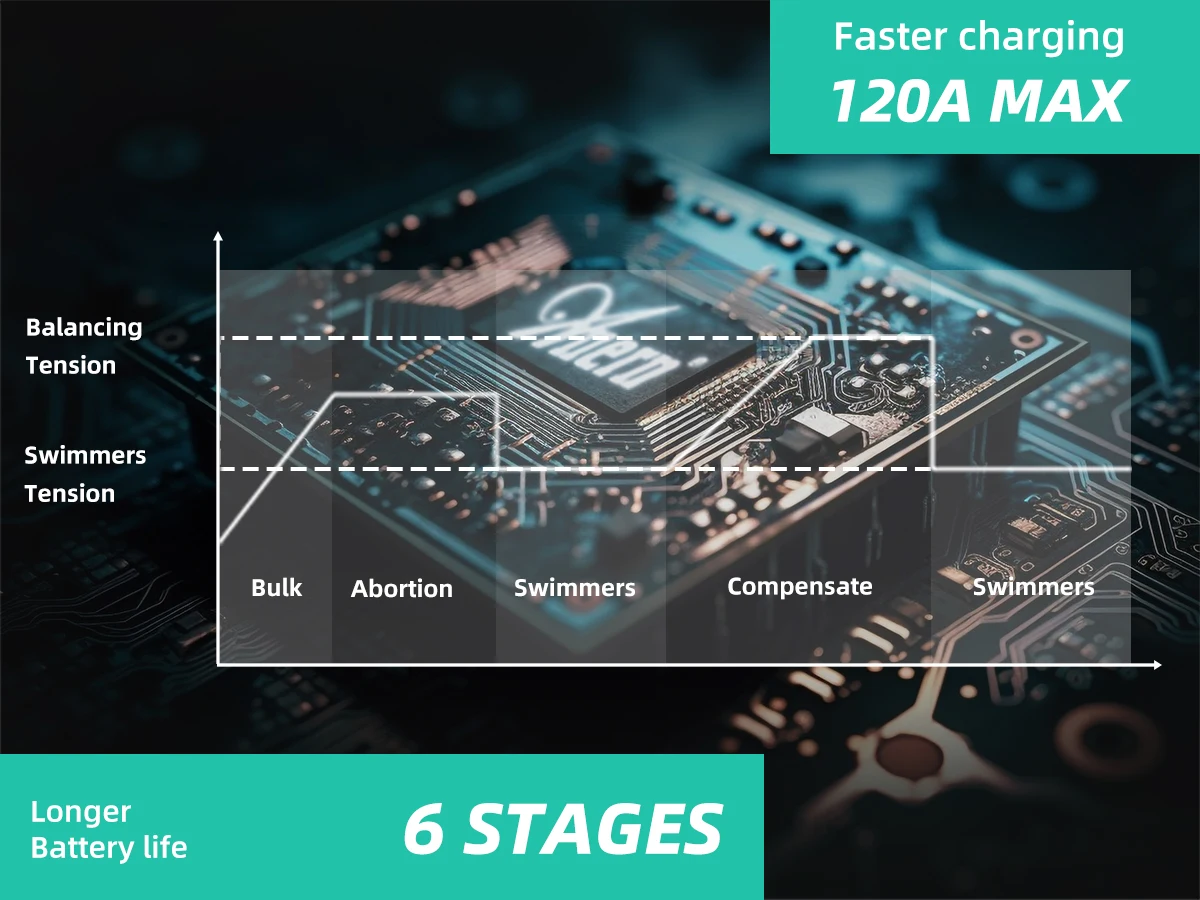

▲Smart battery charge design to optimize battery life
▲Dual output
▲WIFI available for IOS and Android
Model |

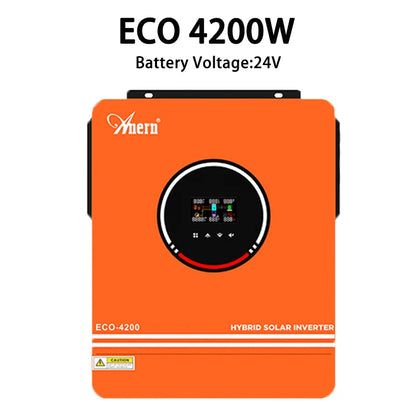

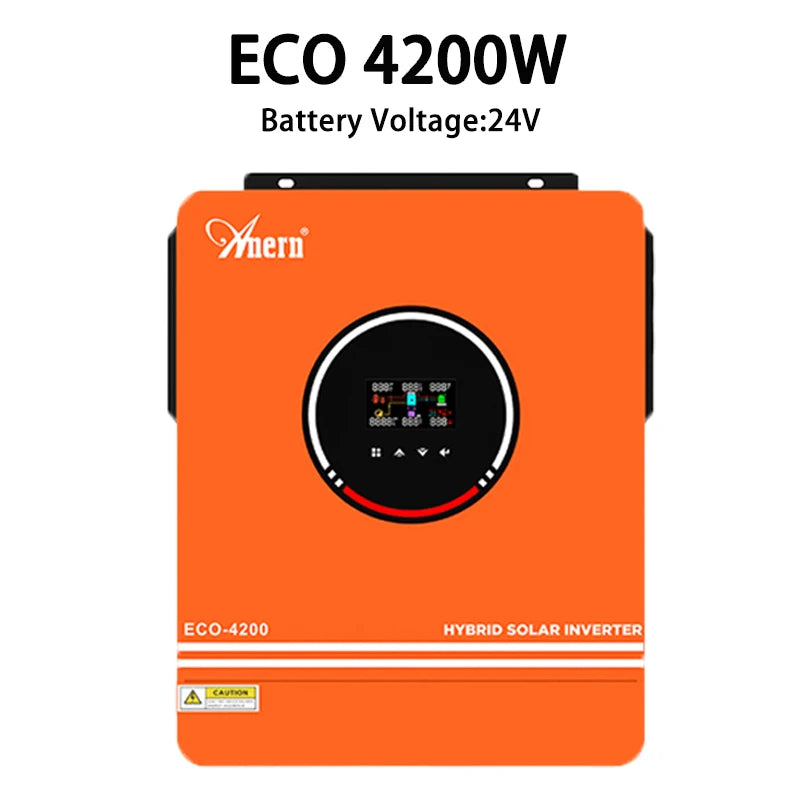

AN-SCI-ECO-4200 |

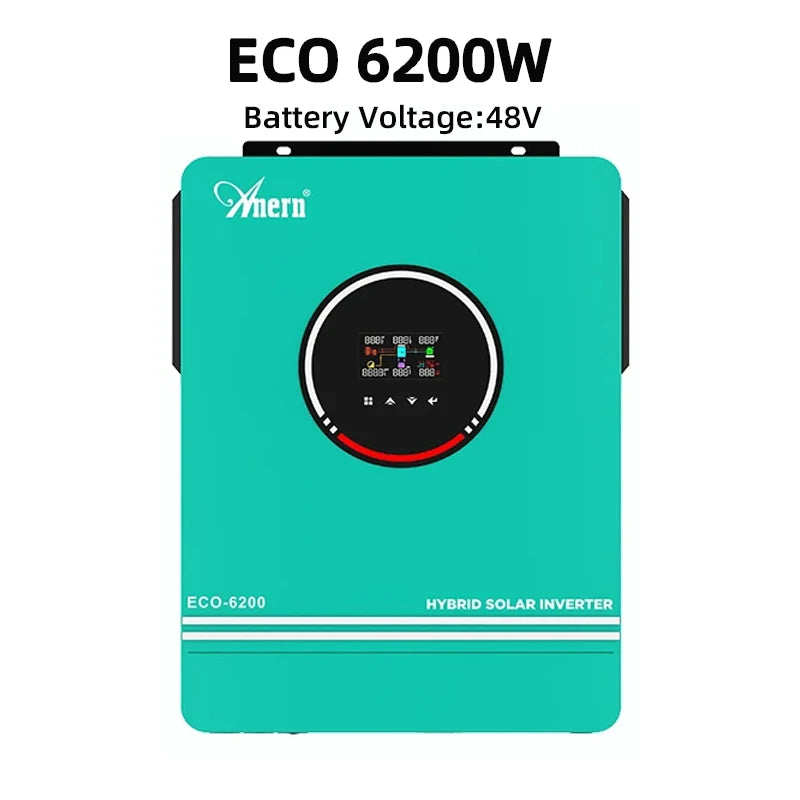

AN-SCI-ECO-6200 |
RATED POWER |
4200W |
6200W |
Maximum PV Input Power |
4200W |
6200W |
GRID-TIE OPERATION PV INPUT (DC) | ||
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
90VDC/120VDC |
|
Maximum DC Voltage |
60-450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
18A |
22A |
GRID OUTPUT (AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5-253VAC |
|
Nominal Output Current |
18.2A |
27A |
Power Factor |
>0.99 |
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
|
EFFICIENCY | ||
Maximum Conversion Efficiency(Solar to AC) |
98% |
|
TWO-LOAD OUTPUT POWER | ||
Maximum Main Load |
4200W |
6200W |
Main Load Cut-Off Voltage |
22VDC |
44VDC |
Main Load Return Voltage |
26VDC |
52VDC |
OFF-GRID OPERATION AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
Maximum AC Input Current |
30A |
40A |
Nominal Operating Frequency |
50/60Hz |
|
Surge Power |
8400W |
12400W |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Waveform |
Pure Sine Wave |
|
Efficiency(DC to AC) |
94% |
|
BATTERY & CHARGER | ||
Nominal DC Voltage |
24VDC |
48VDC |

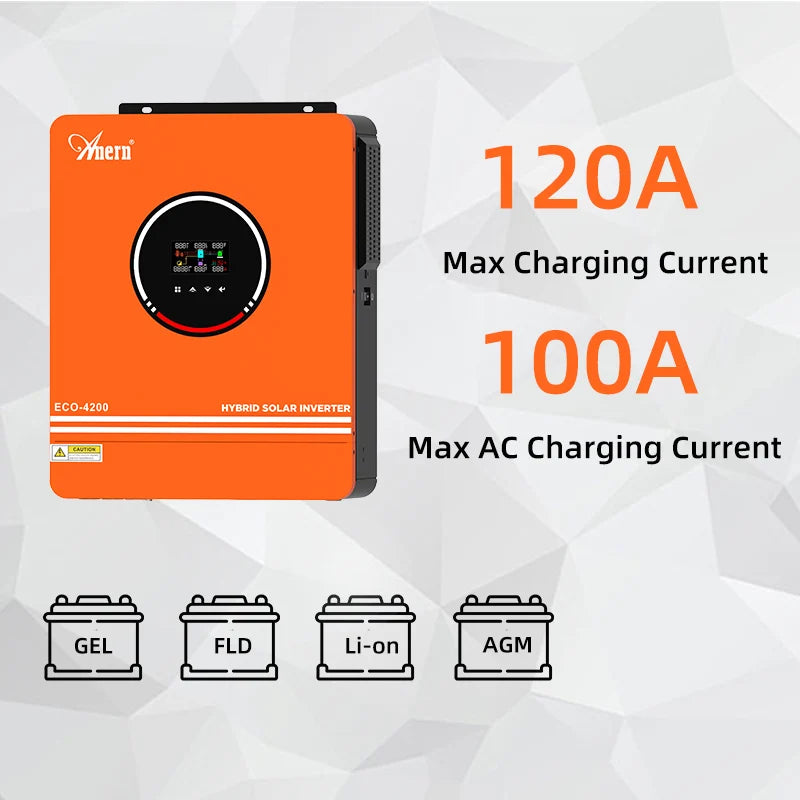

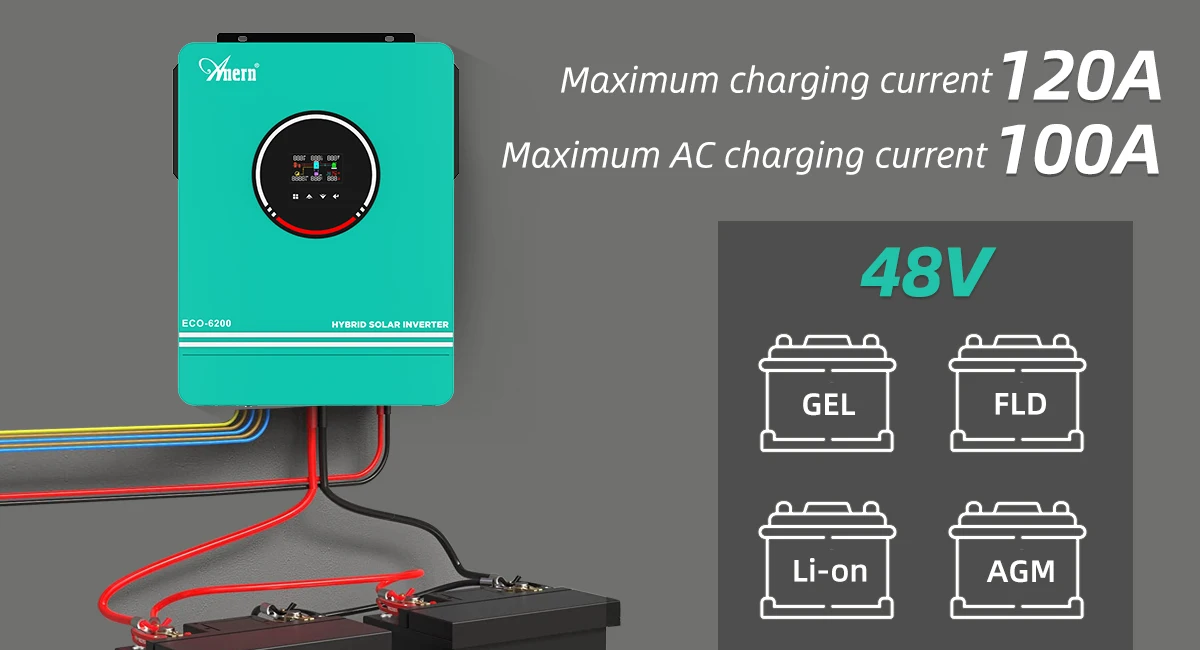

Maximum Charging Current(Solar to AC) |
120A |
|
Maximum AC Charging Current |
100A |
|
GENERAL PHYSICAL | ||
Dimension, D x W x H (mm) |
420*350*110mm |
450*350*110mm |
Net Weight (kgs) |
8 |
10 |
INTERFACE | ||
Communication Interface |
WIFI |
|
OPERATING ENVIRONMENT | ||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Safety Certification |
CE |
|
Operating Temperature |
–10°C - 50°C |
|
Storage Temperature |
–15°C - 60°C |
|

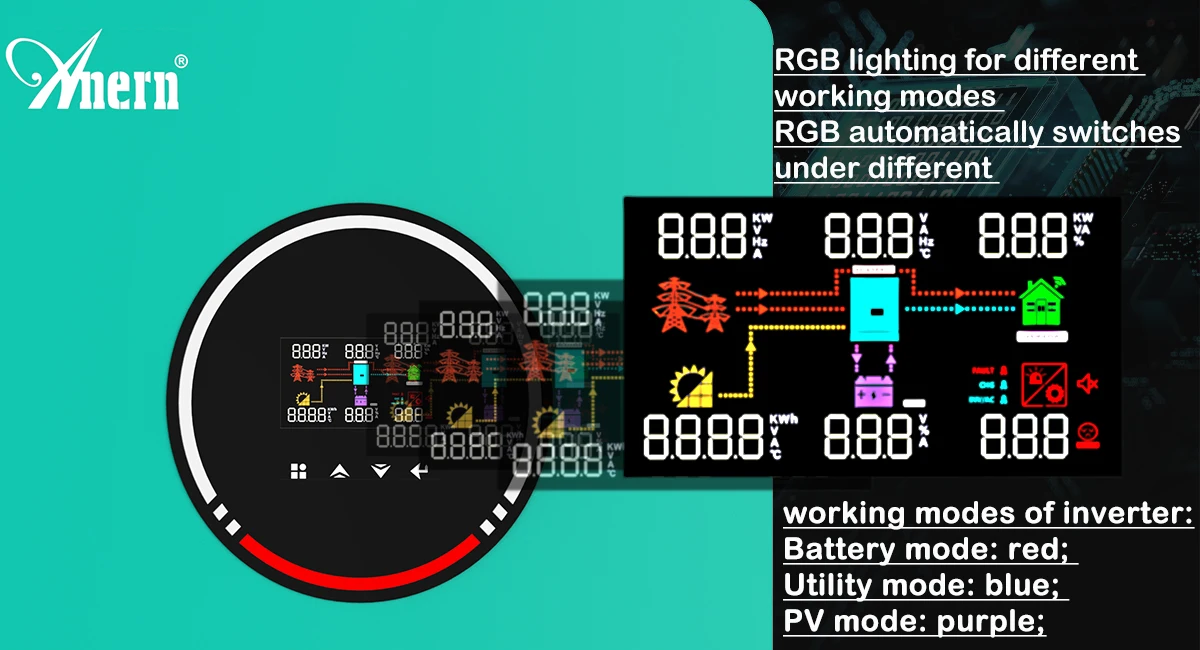

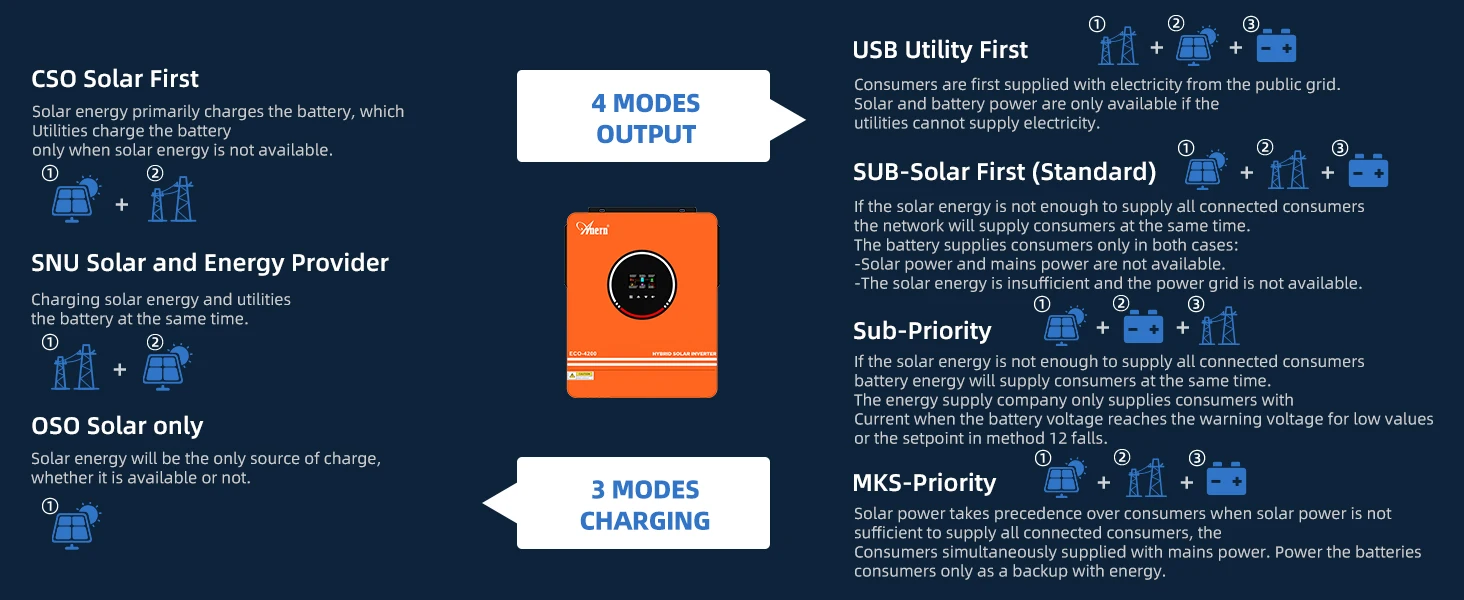

Multiple charging and output mode: 3 charging modes are optional: solar, solar and utility, solar priority; output modes: solar priority, supply priority, SBU mode. The solar inverter offers multiple charging and output modes to meet the different application requirements of the users.

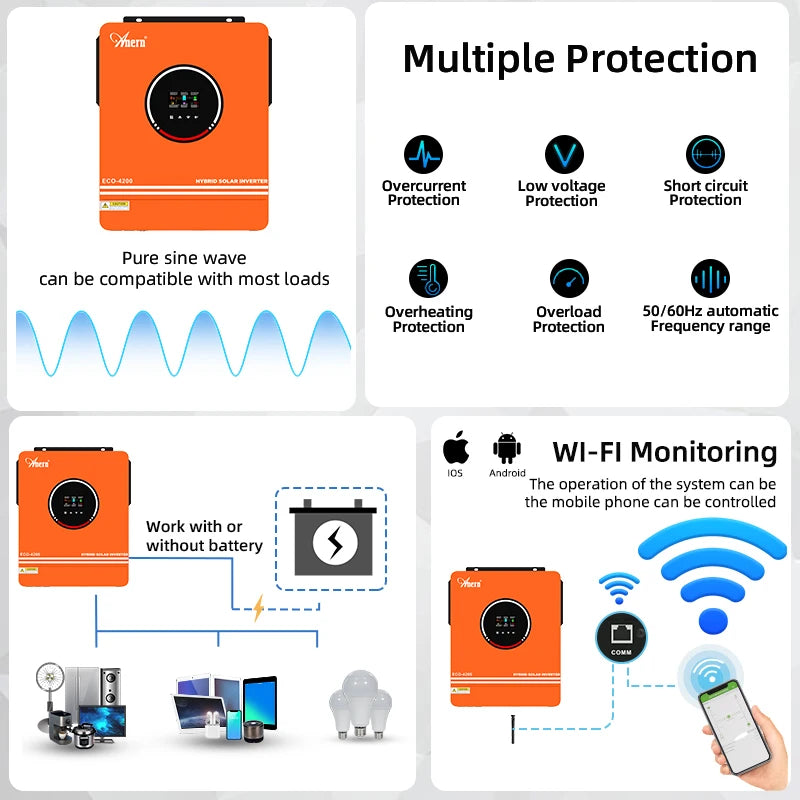

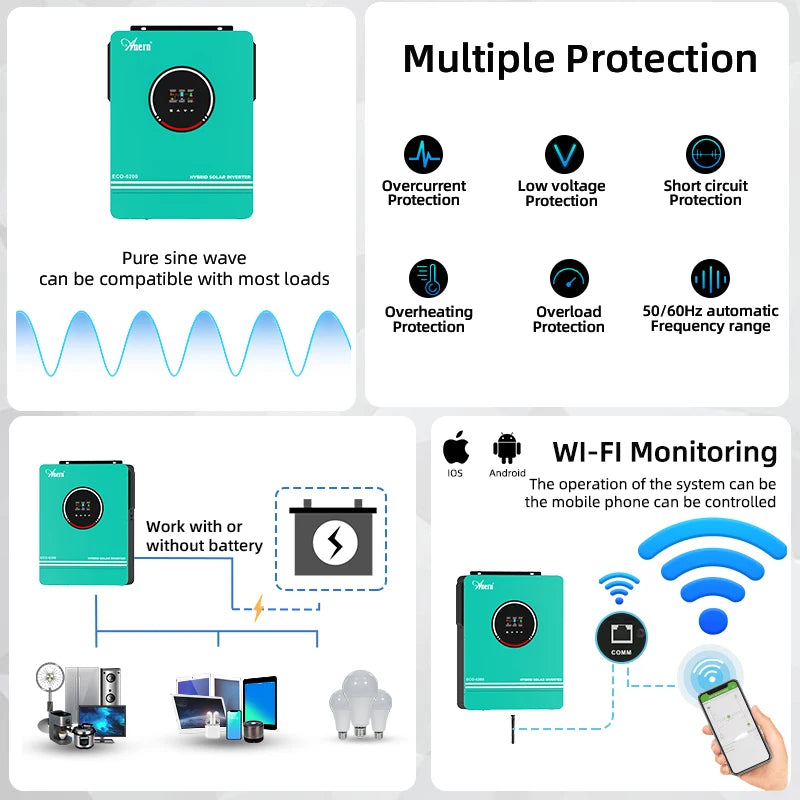

Protection of safety charging:short circuit protection, over current protection, over voltage protection, low voltage protection, overload protection, backfill protection, over temperature protection, overload protection. Comprehensive protection for safer and safer charging.
Compatible with multiple battery types:can be combined with different types of battery, such as AGM, GEL, FLD, SLD, LI, USER. The right battery for the inverter can maximise charging efficiency, provide charging speed and extend the life of the battery.

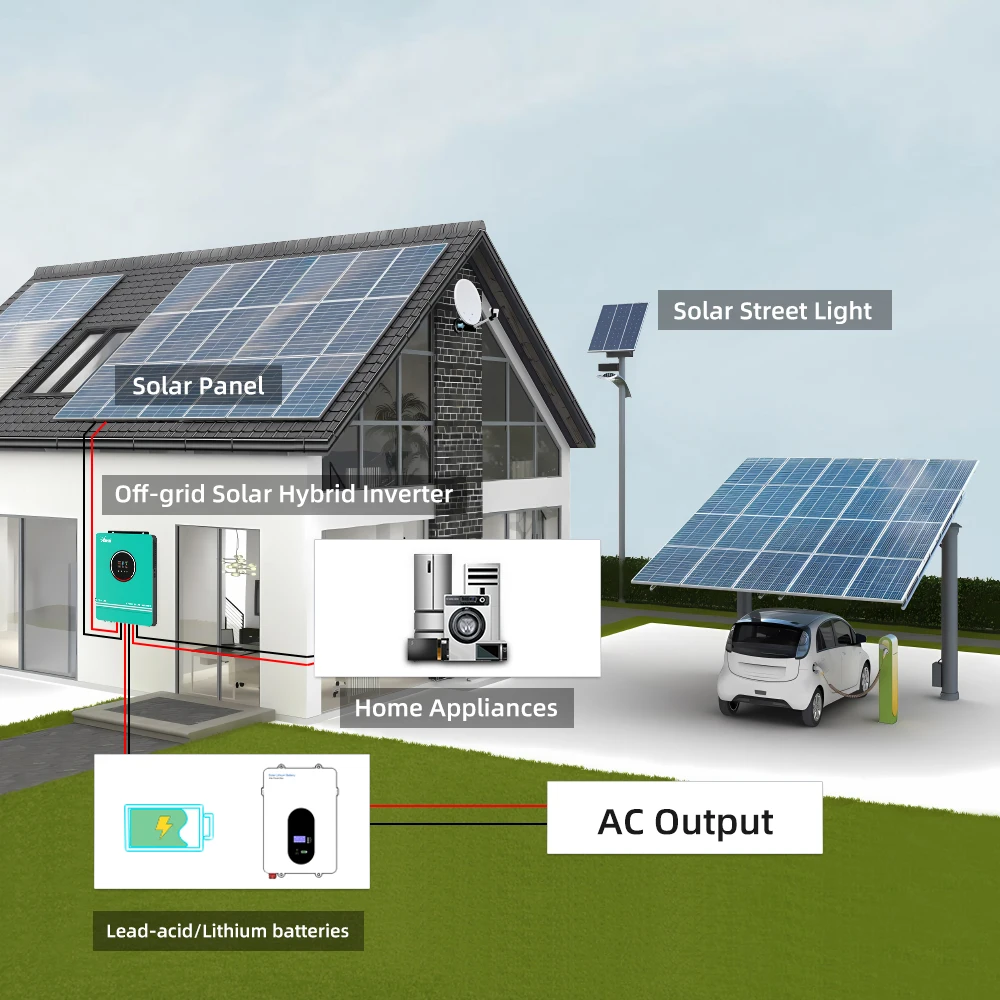

Wide application: which can provide power for various electrical devices in home or office environments, including electrical appliances such as lamps, fans, refrigerators, air conditioners, coffee machines, etc.
【Attention】 1. the starting power of the inductive load shall be at least three times the rated power. Excessive power on can damage the inverter. 2.Connect the circuits correctly and install circuit breakers for each circuit. 3.Power on order: First turn on the battery, start the inverter, and then turn on the circuit breakers for photovoltaic, mains, and load. Switch off in reverse order
