Compatible with Testers, Multimeters, and Oscilloscopes EVSE Tester Adapter, Voltage Tester for EV Charging Station Testing,
Compatible with Testers, Multimeters, and Oscilloscopes EVSE Tester Adapter, Voltage Tester for EV Charging Station Testing,
Regular price
Rs.110,205.77
Regular price
Rs.183,676.28
Sale price
Rs.110,205.77
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
DIY Supplies: Electrical
Electronic: No
High-concerned chemical: none
Origin: Mainland China
Semi-finishedproduct: No
Feature:
1. EVSE Tester Kit: Simulate the presence of electric vehicles and equipped with European standard Type 2 plug for easy testing of European standard AC electric vehicle charging stations.

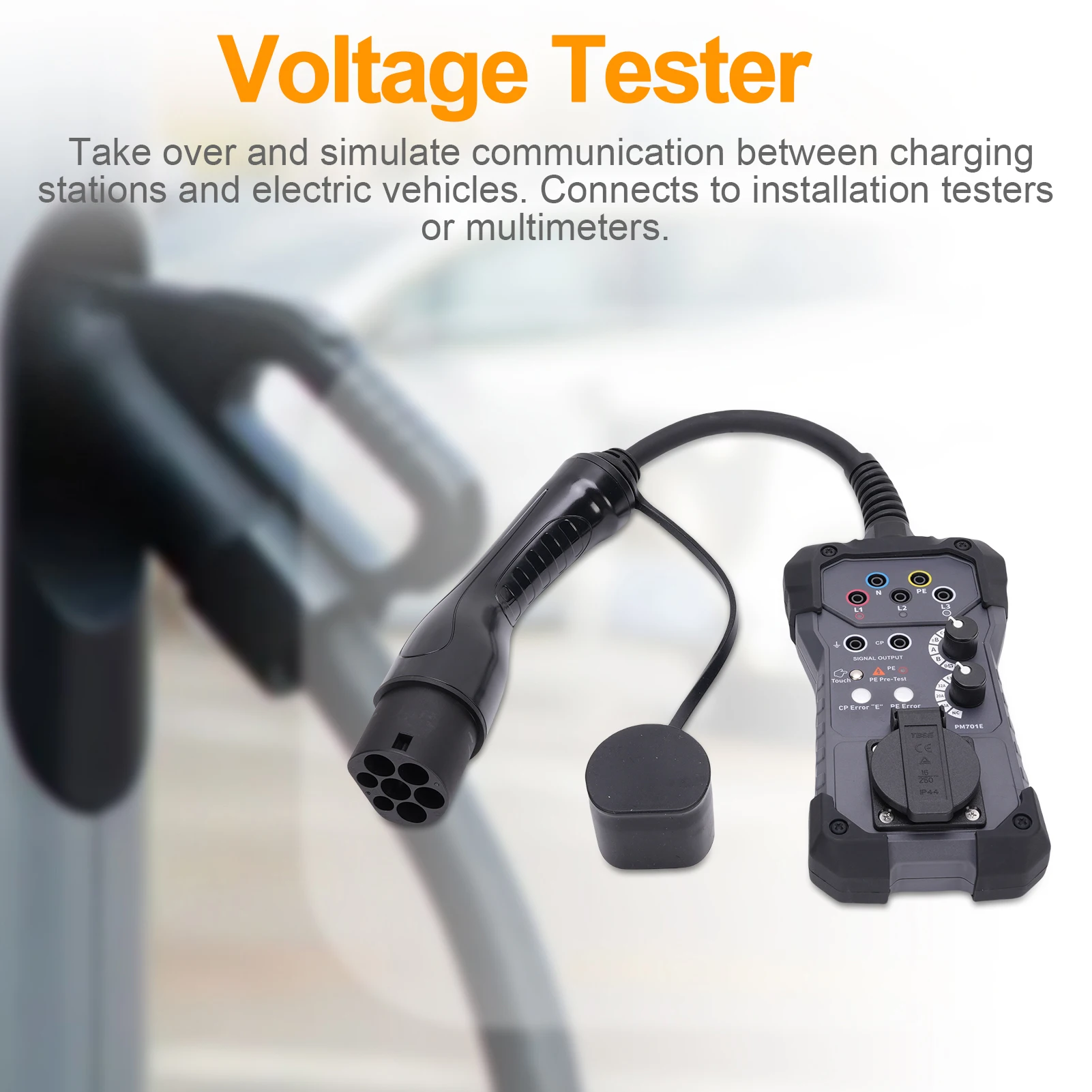

2. Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters.

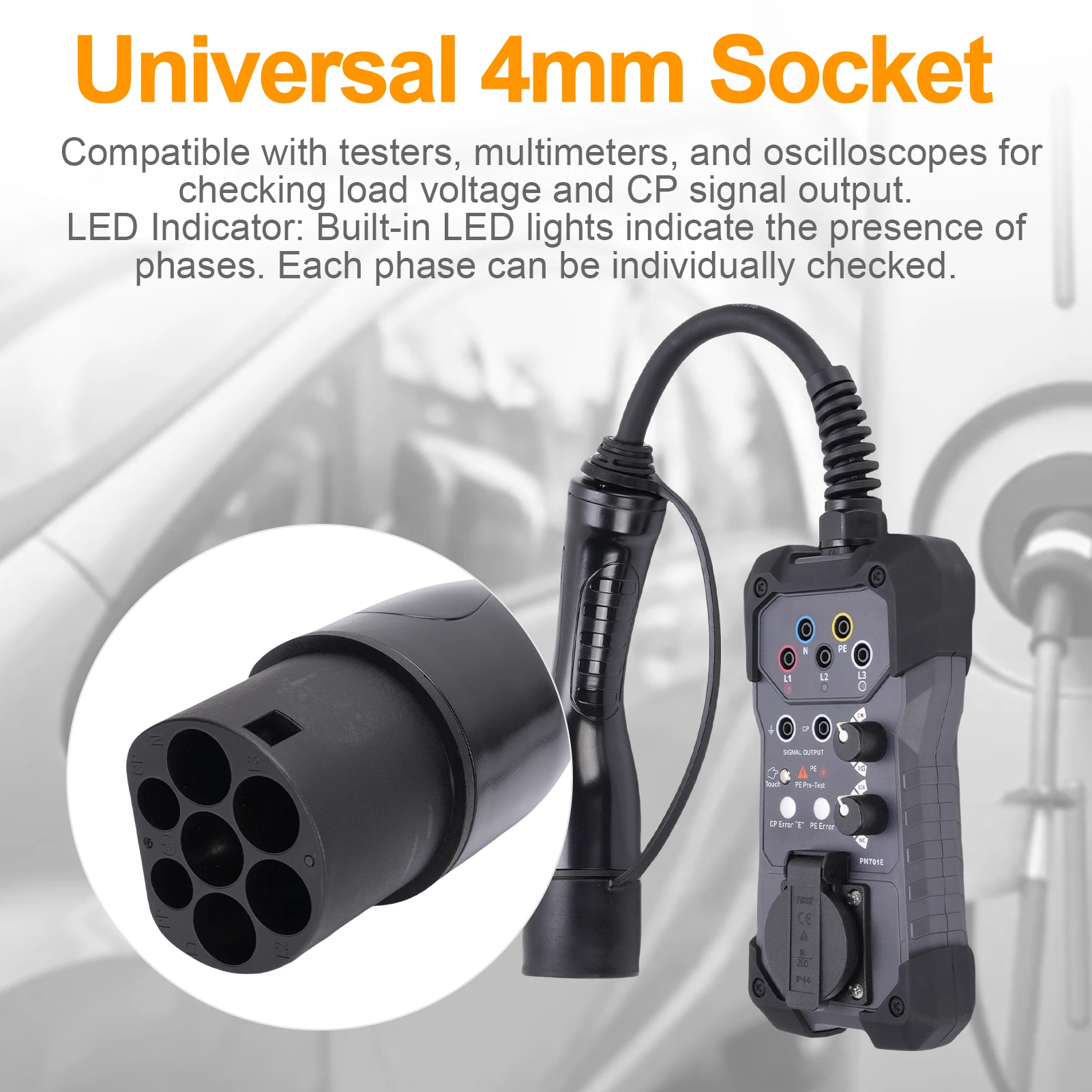

3. Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output.

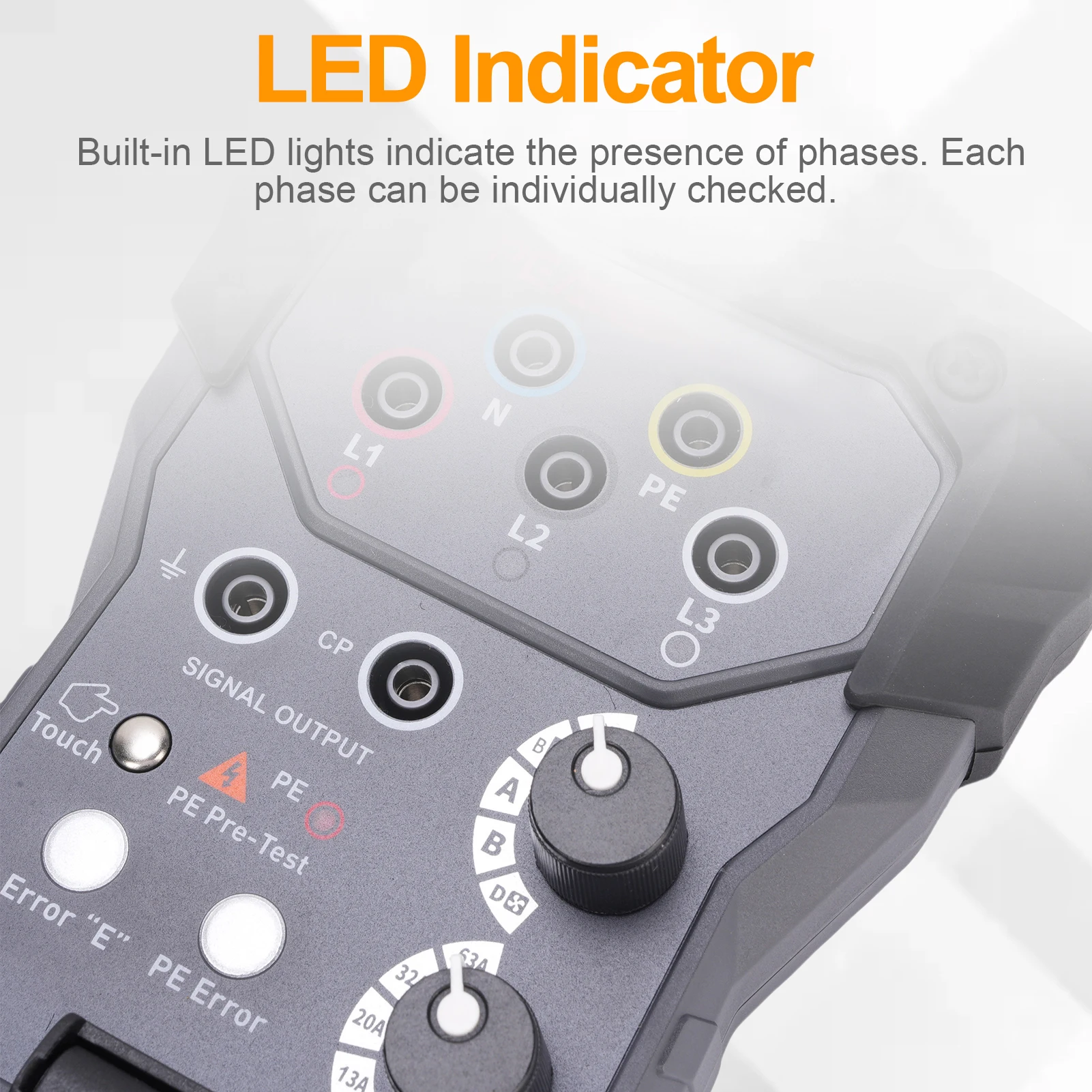

4. LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked.
5. Rotating Switches: PP switch simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP switch helps simulate common vehicle states - A, B, C, D.
2. Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters.
3. Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output.
4. LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked.
5. Rotating Switches: PP switch simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP switch helps simulate common vehicle states - A, B, C, D.
Specification:
Item Type: Electric Vehicle Charging Station Test Adapter
Frequency: 50/60Hz
Current: 10A
Type 2 Testing Cable: AC Charging Mode 3, suitable for IEC62196-2 Type 2 socket or fixed cable with vehicle connector (Type 2, 7 pole, three-phase)
Measurement Category: IEC/EN 61851-1/IEC/HD, 60364-7-722, 600VCATII
Protection Grade: IP54
Frequency: 50/60Hz
Current: 10A
Type 2 Testing Cable: AC Charging Mode 3, suitable for IEC62196-2 Type 2 socket or fixed cable with vehicle connector (Type 2, 7 pole, three-phase)
Measurement Category: IEC/EN 61851-1/IEC/HD, 60364-7-722, 600VCATII
Protection Grade: IP54
Package List:
1 * Tester

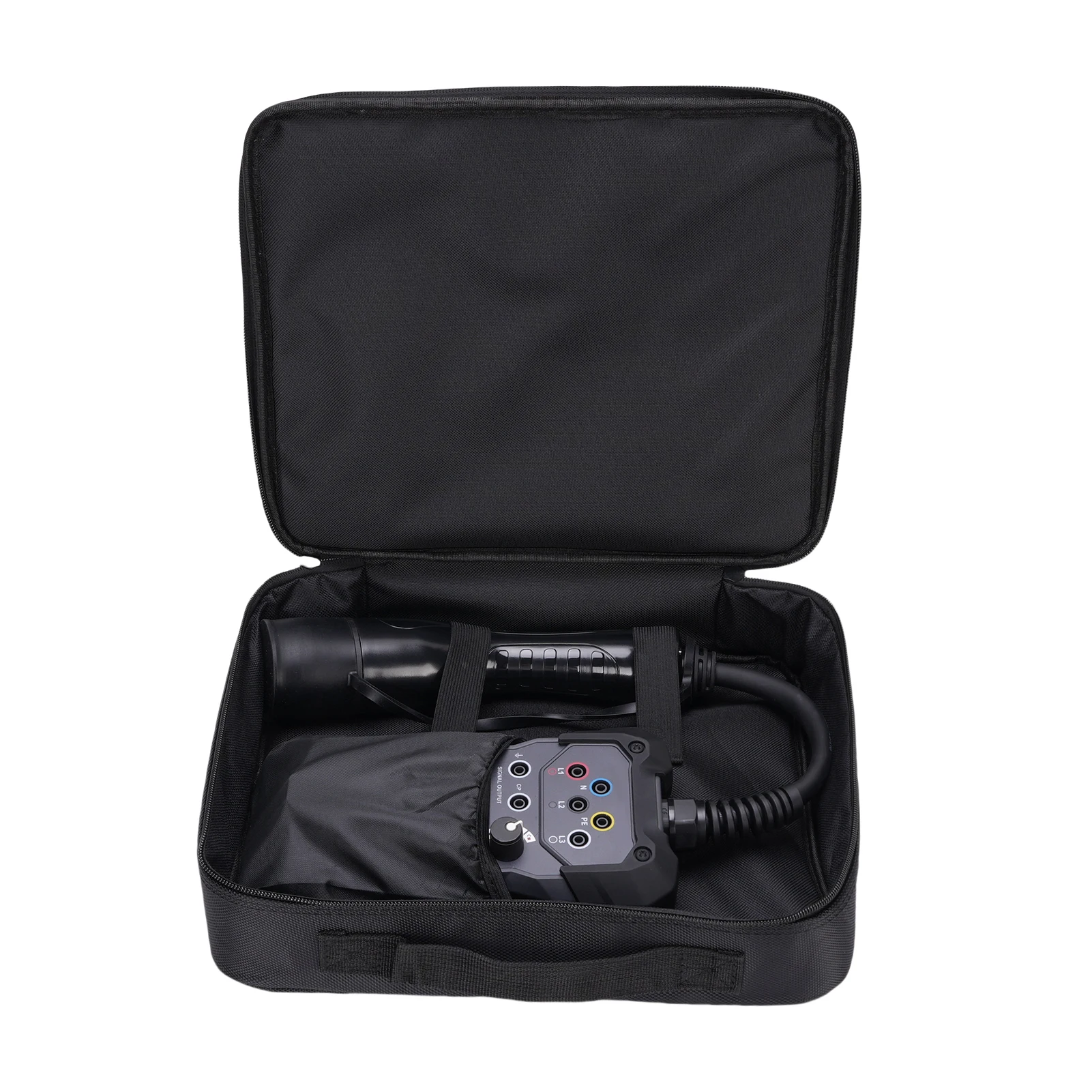

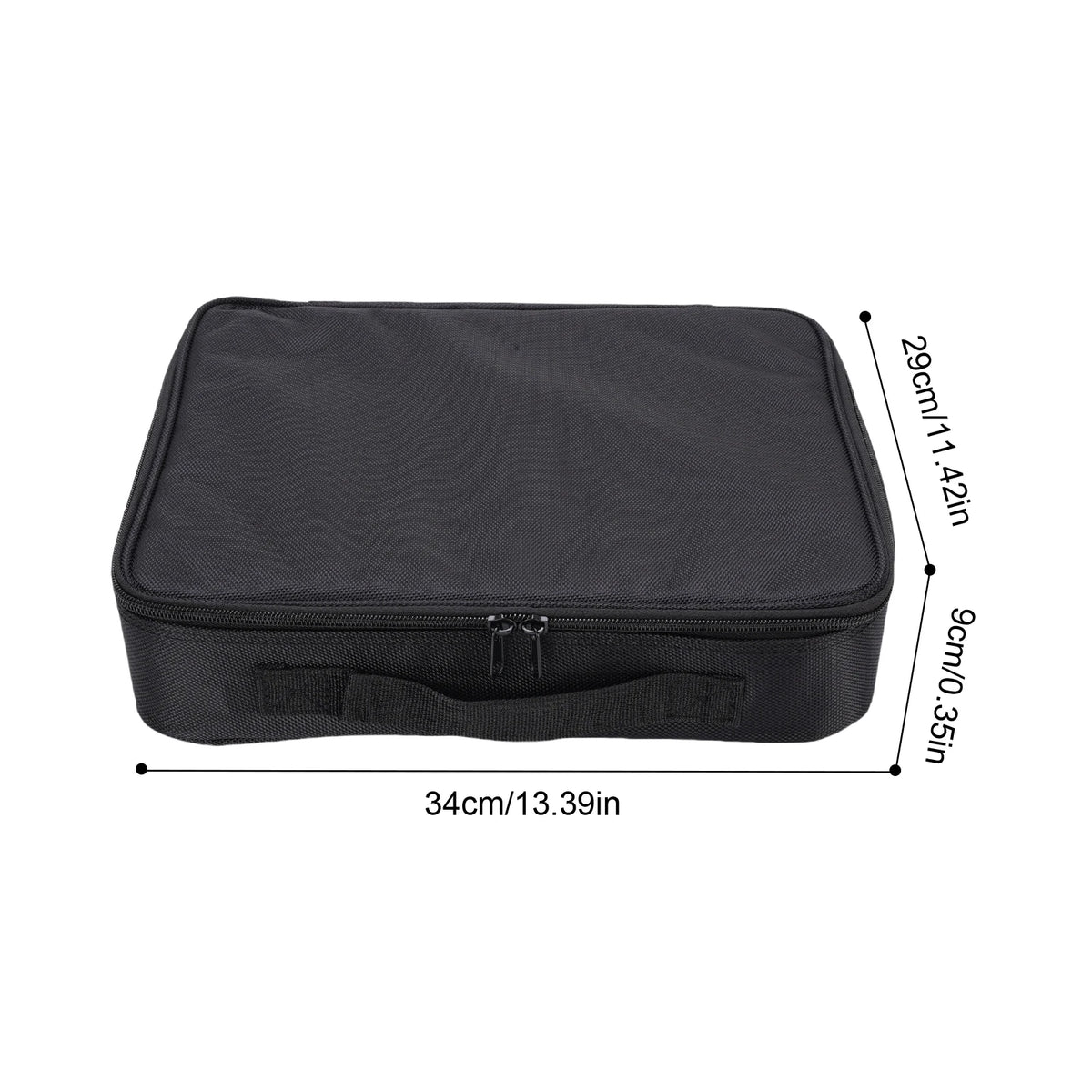

1 * EVA Case
1 * User Manual
