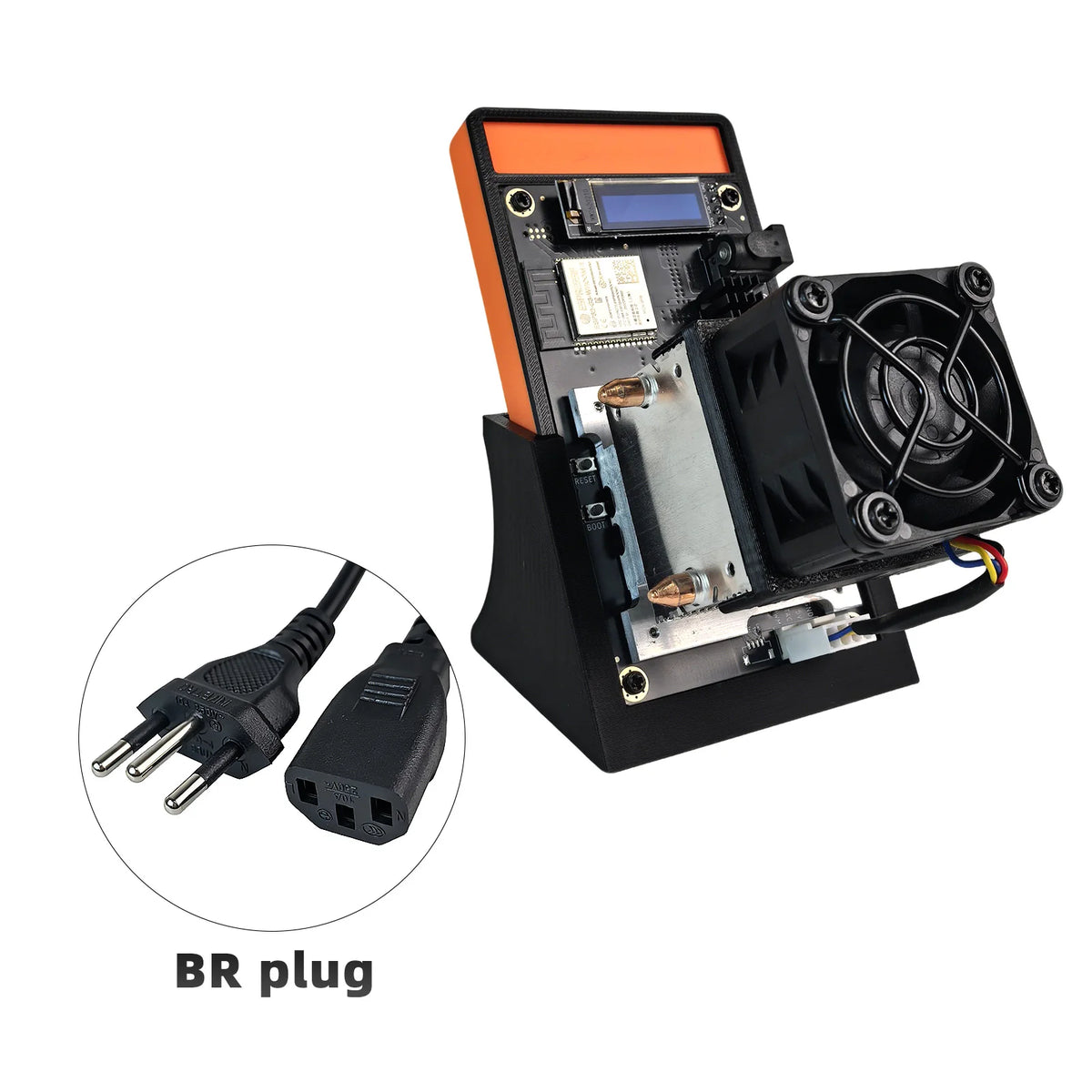

Gamma 601/602 Bitcoin Miner 1.7~2Th/s Hashrate - Open Source BM1370 ASIC Board - 35W Low Power & WiFi Setup
Gamma 601/602 Bitcoin Miner 1.7~2Th/s Hashrate - Open Source BM1370 ASIC Board - 35W Low Power & WiFi Setup
Couldn't load pickup availability
SPECIFICATIONS
Algorithm: SHA-256
Battery Included: no
Brand Name: Lucky Miner
Coins: BTC/BCH/BSV/XEC/FB/
Color: Orange
High-concerned chemical: none
Model Number: gamma 602
Open source: yes
Origin: Mainland China
Power Consumption: 20~25w
Transmission Rate: 10/100/1000Mbps
Weight: 800g
hash rate: 1.7~2TH/s
⚡ Gamma 602 – SHA‑256 ASIC Miner

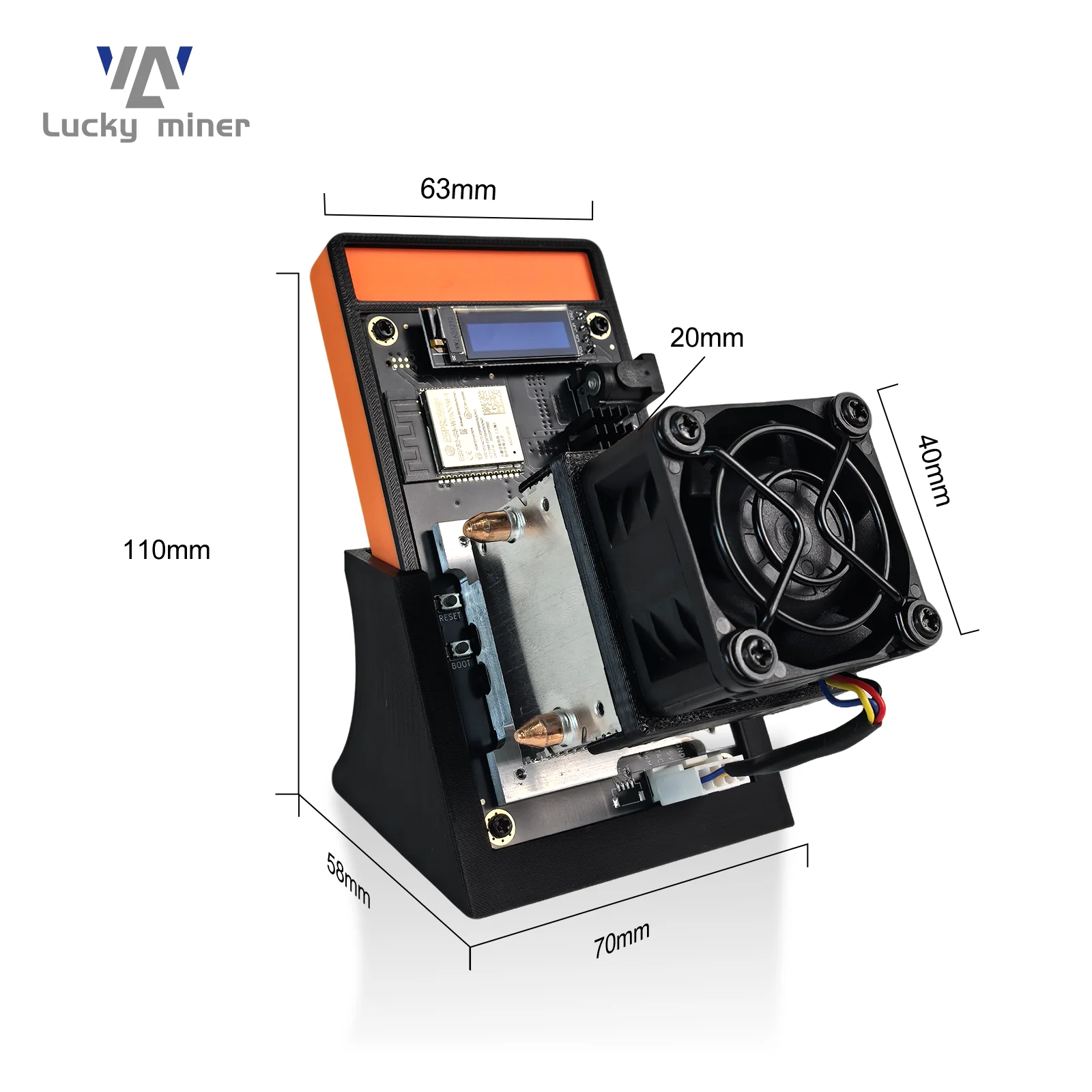

The Gamma 602 is a compact, desktop‑class SHA‑256 ASIC miner built for home enthusiasts
and small‑scale miners. Delivering a stable hashrate of ~1.8 TH/s, it offers an excellent

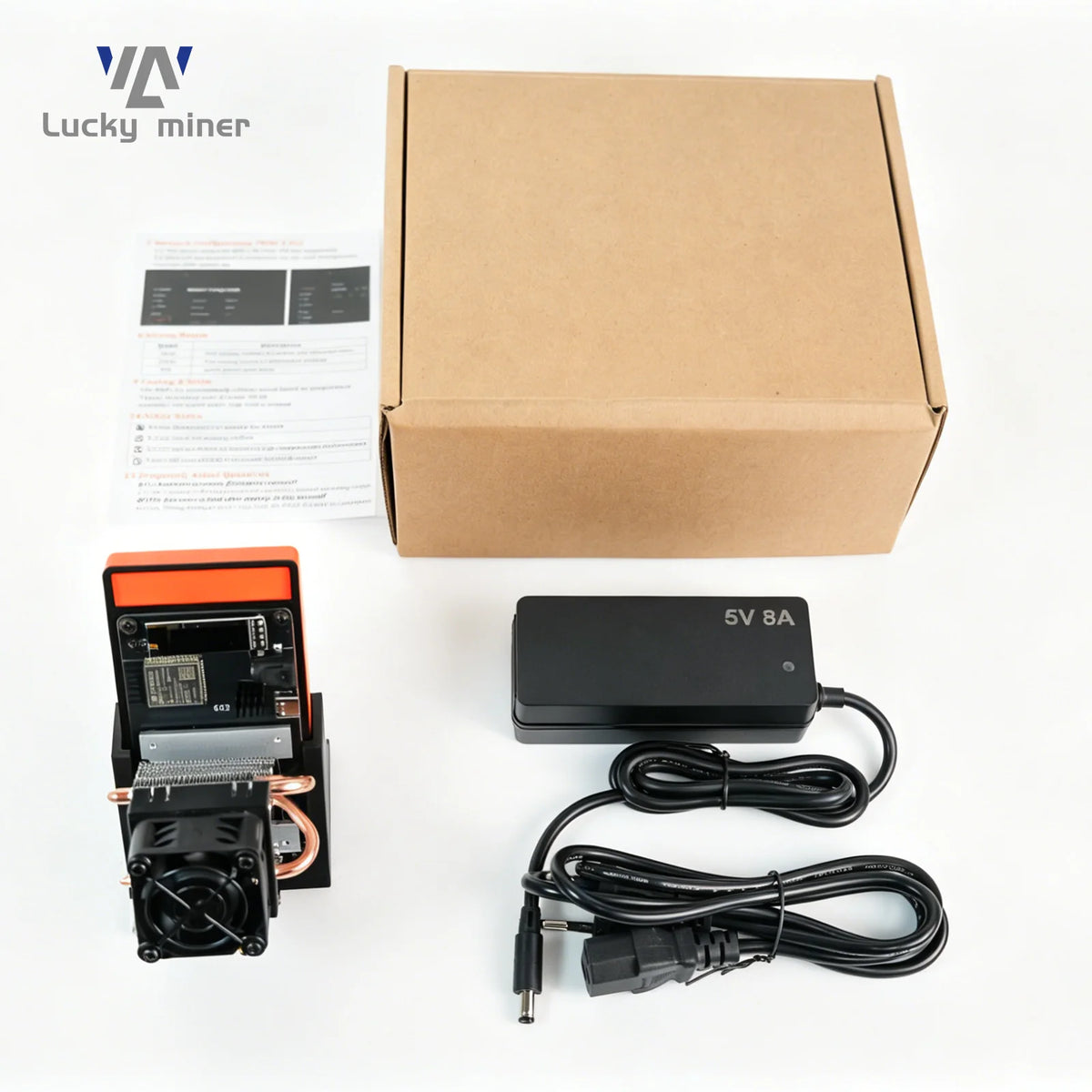

balance of performance and energy efficiency. The package includes a 5V/8A power adapterand multiple interchangeable plugs (US, EU, UK, AU) – ready to use right out of the box
in any region. With active air cooling and smart PWM fan control, it runs quietly (< 40 dB) and reliably
24/7.
~1.8 TH/s hashrate – consistent SHA‑256 mining performance.
5V/8A power adapter included – safe and stable power delivery.

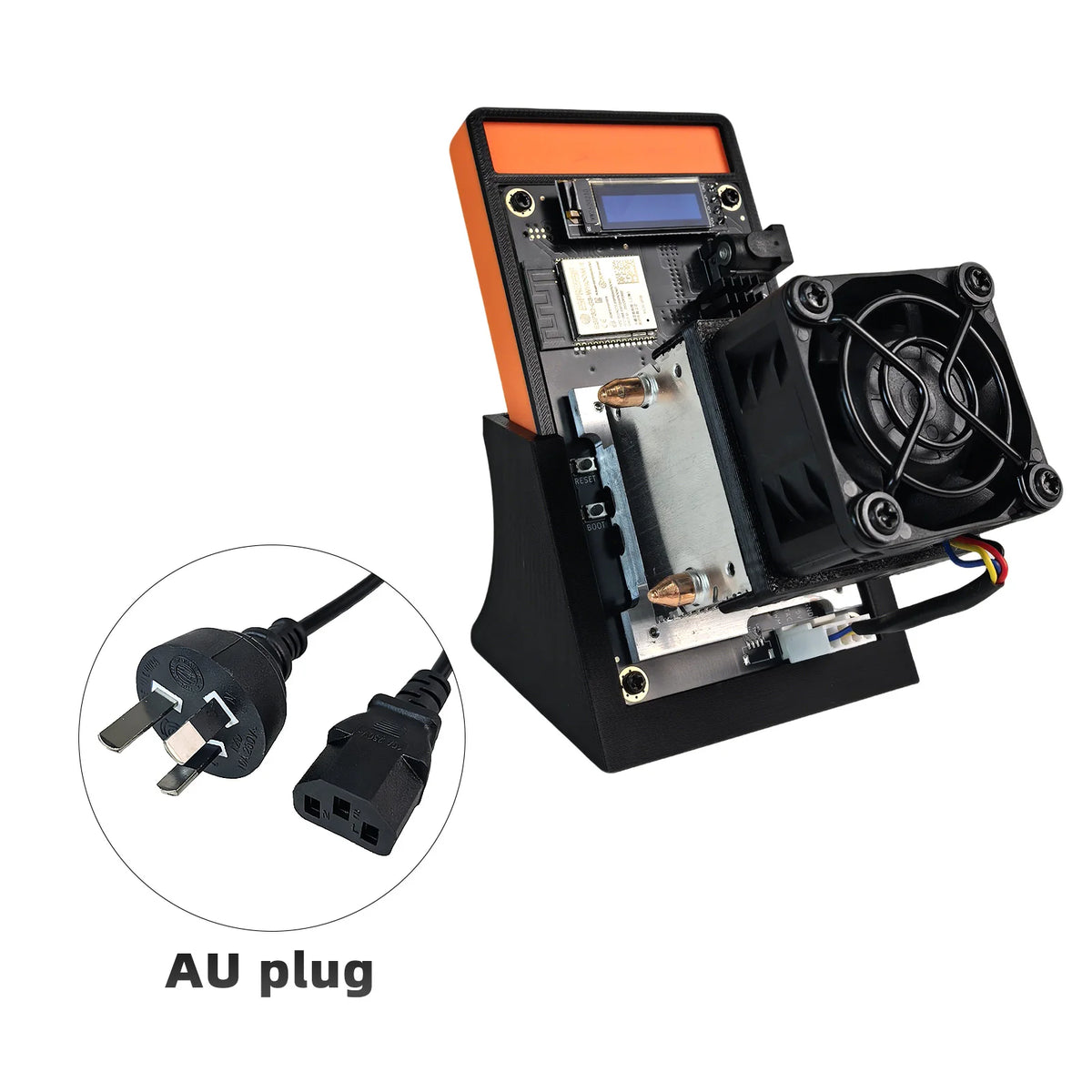

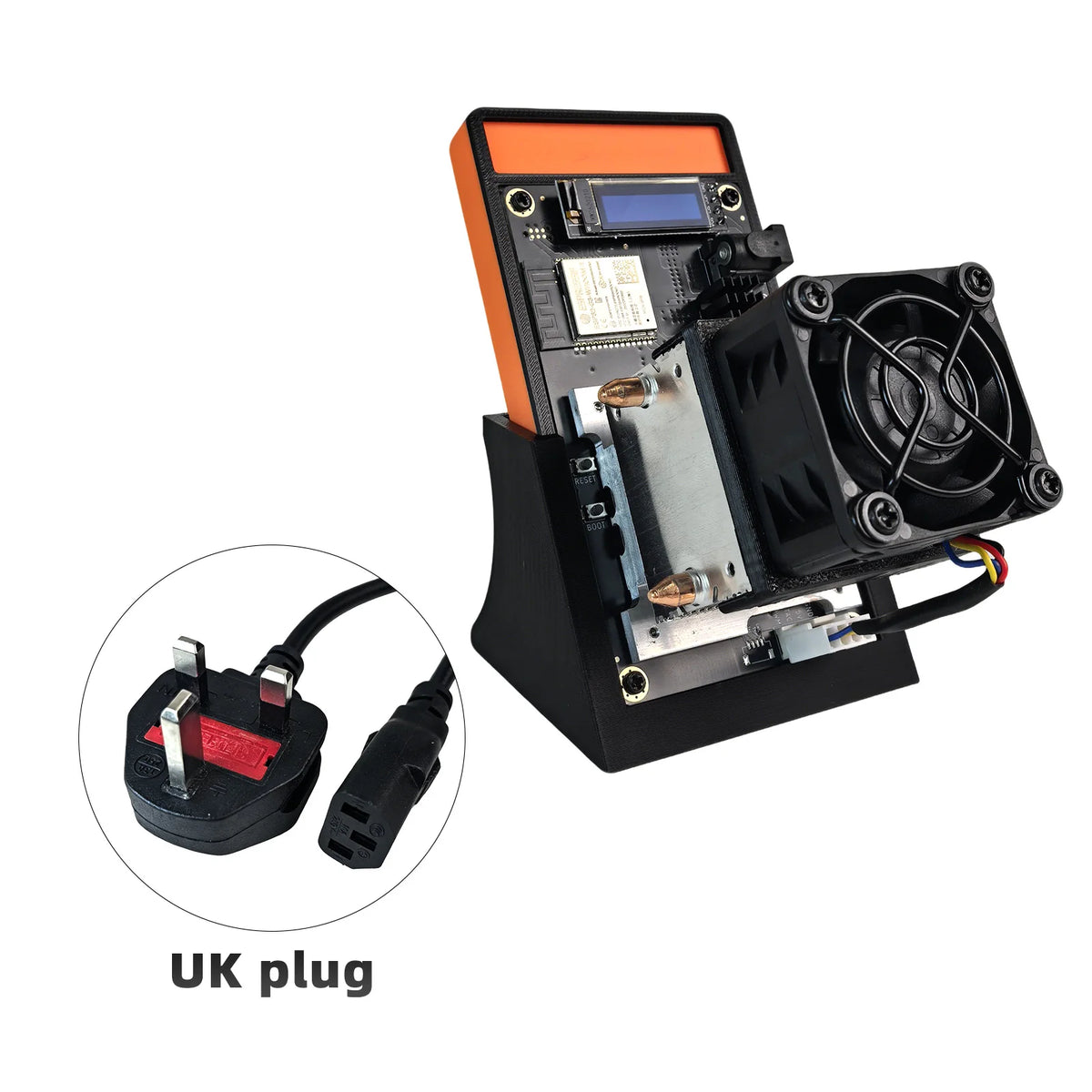

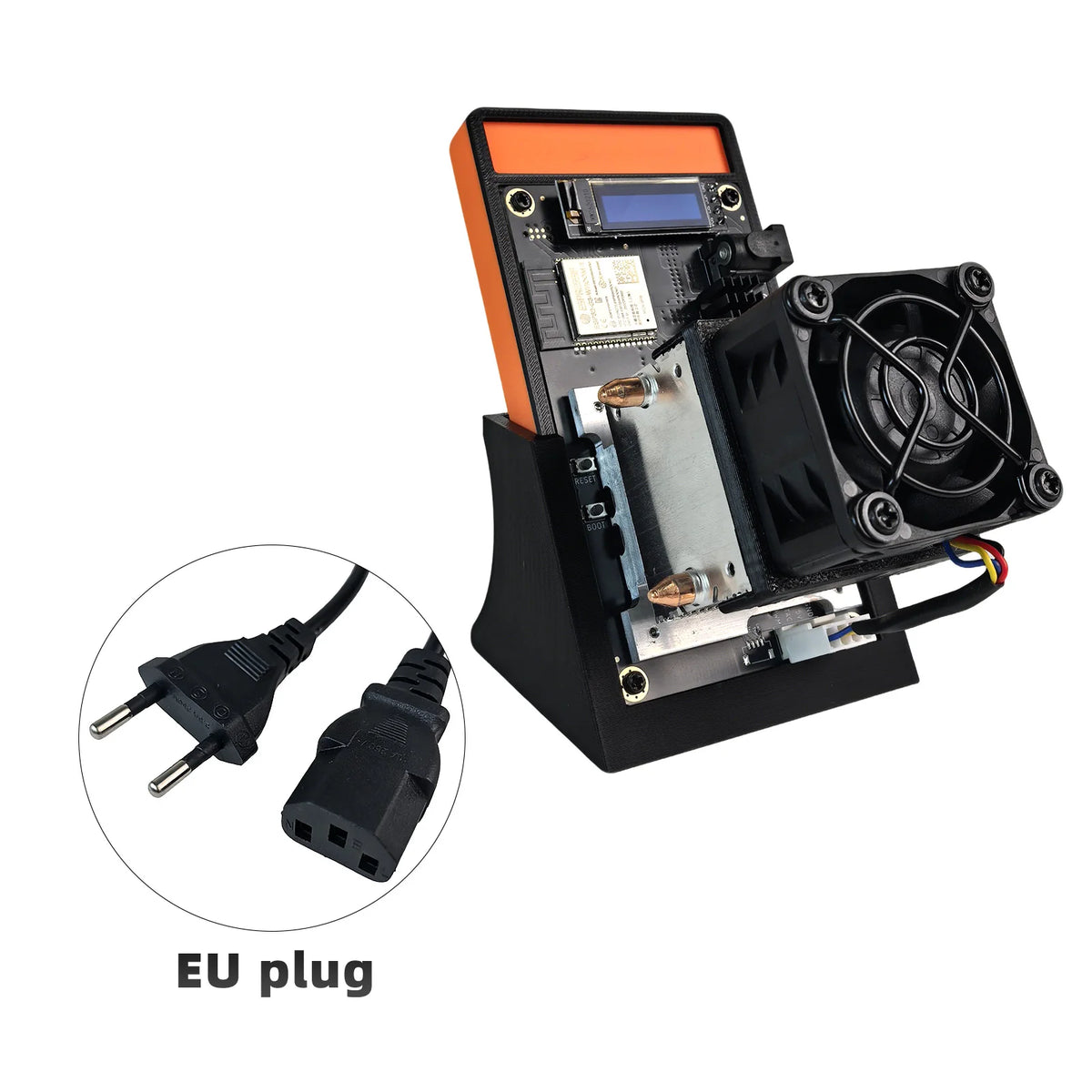

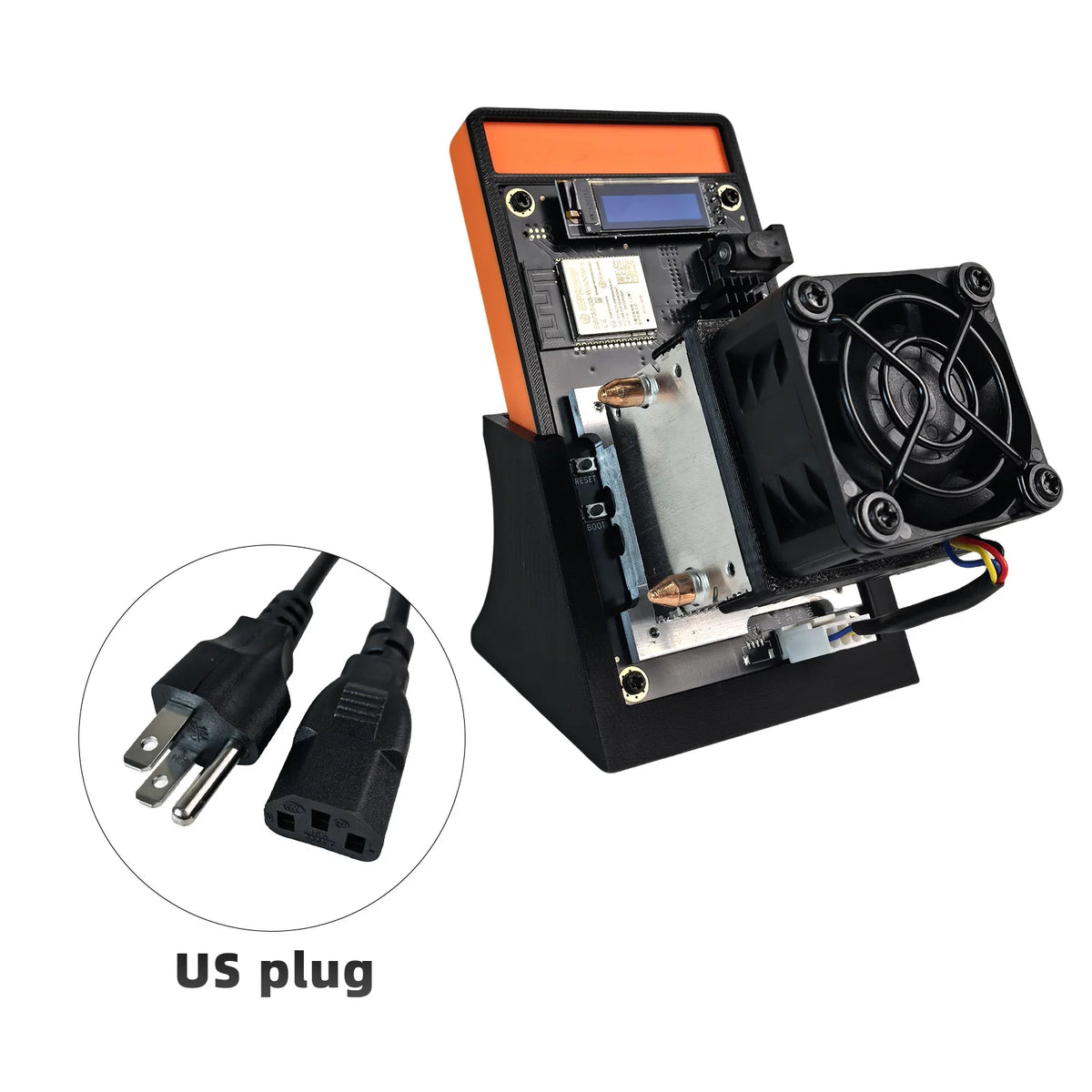

Multi‑region plug kit – US, EU, UK, AU plugs included for worldwide use.
Ultra‑low power consumption – typically under 40W, ideal for home use.
Active air cooling – heat‑pipe + PWM fan maintains optimal temperature.
Quiet operation – typical noise below 40 dB.
Simple WiFi setup – supports 2.4G wireless (5G not supported).

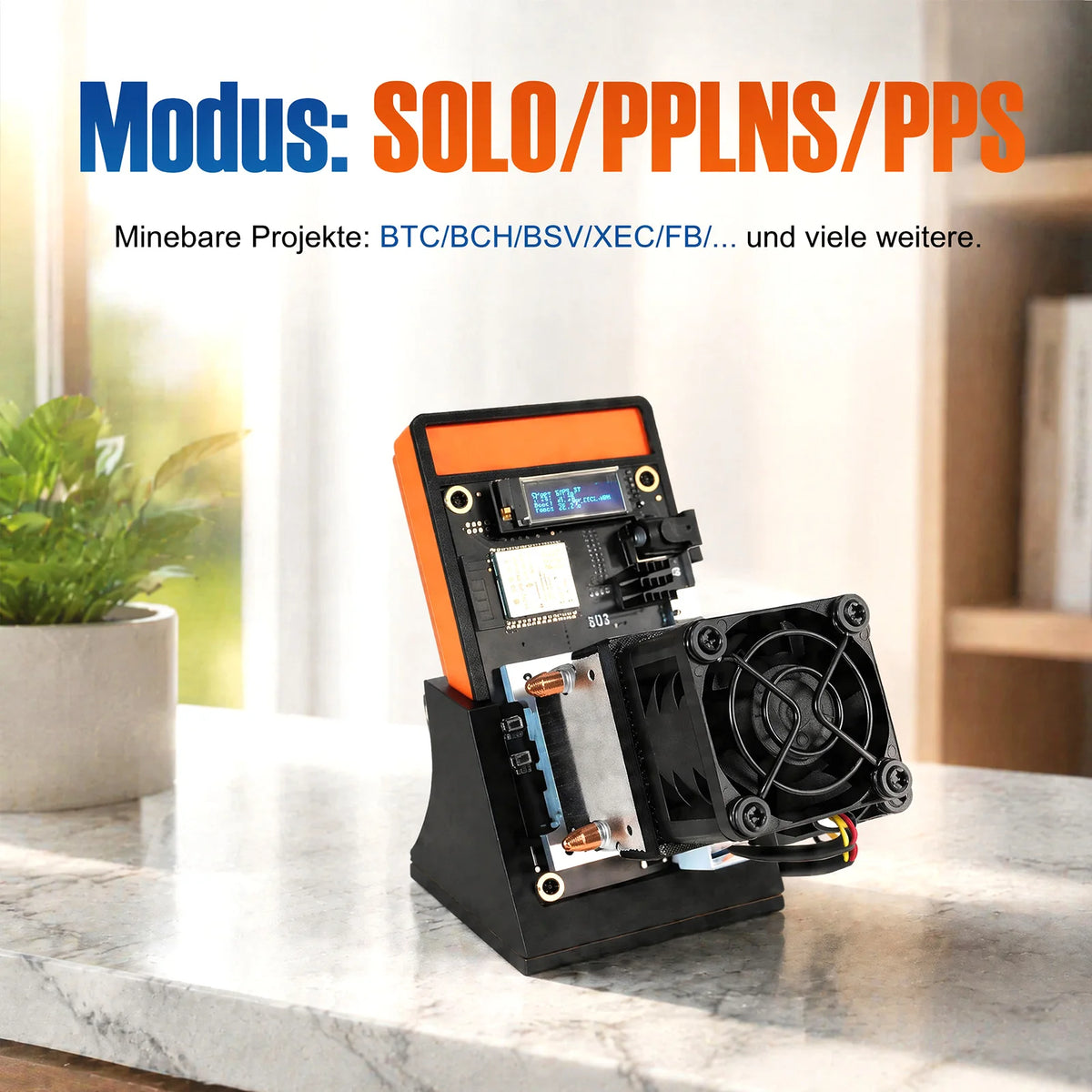

Multiple mining modes – SOLO, PPLNS and PPS.
Desktop‑friendly design – compact and unobtrusive.
Algorithm |
SHA‑256 |
Hashrate |
~1.8 TH/s (±5%) |
Power Adapter |
5V / 8A (40W) – included |
Plug Types Included |
US, EU, UK, AU (interchangeable) |
Cooling |
Active air (heat‑pipe + PWM fan) |
Network |
WiFi 2.4G (5G not supported) |
Mining Modes |
SOLO · PPLNS · PPS |
Operating Temperature |
0 – 35 °C |
Typical Noise |
< 40 dB |
Connector |
DC Jack (5V/8A) |
Status LED |
Yes |
Automatically adjusts speed based on chip temperature to balance cooling and noise.

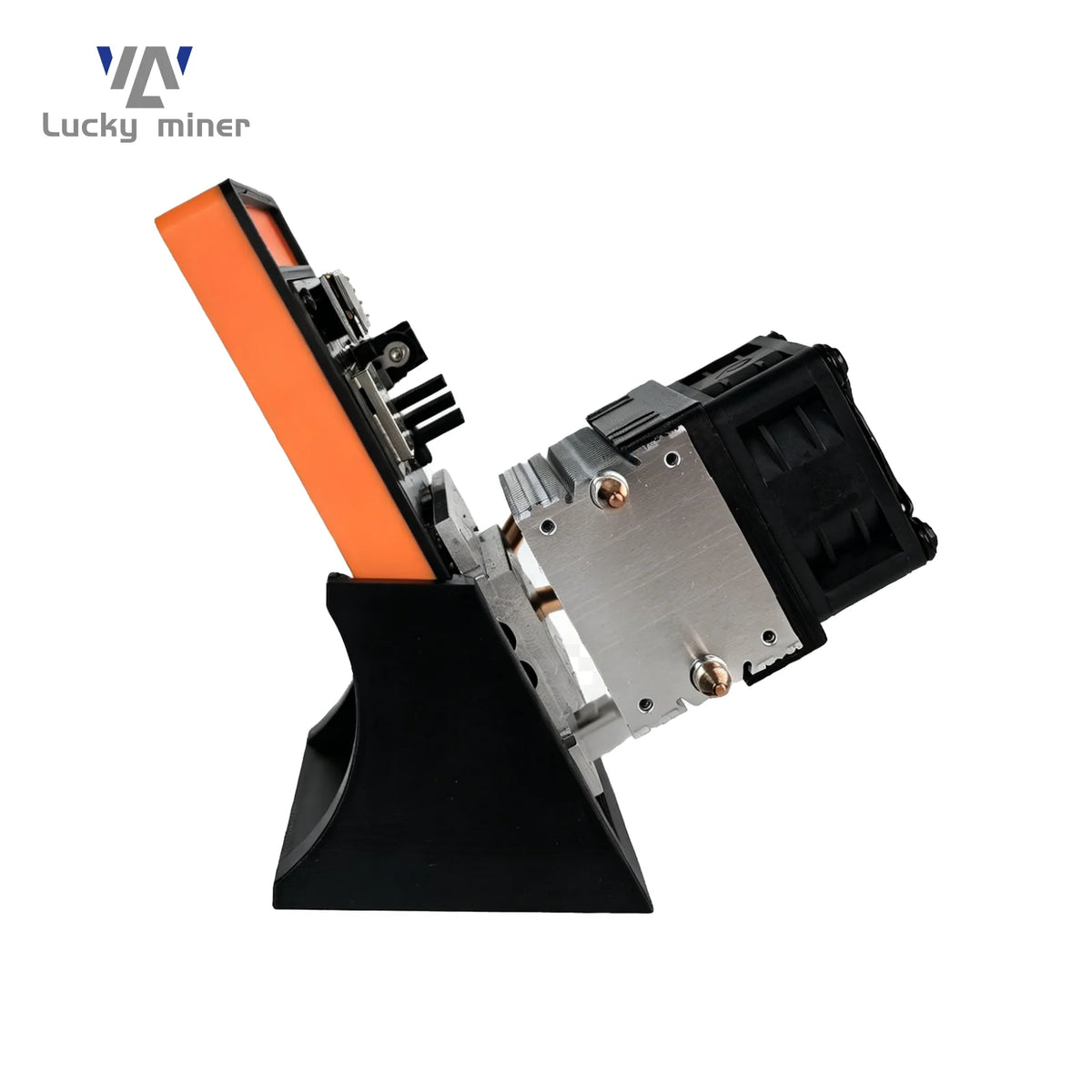

Heat‑pipe based heatsink efficiently dissipates heat from core hashing chips.
Independent cooling structure for power management chips, improving long‑term stability.

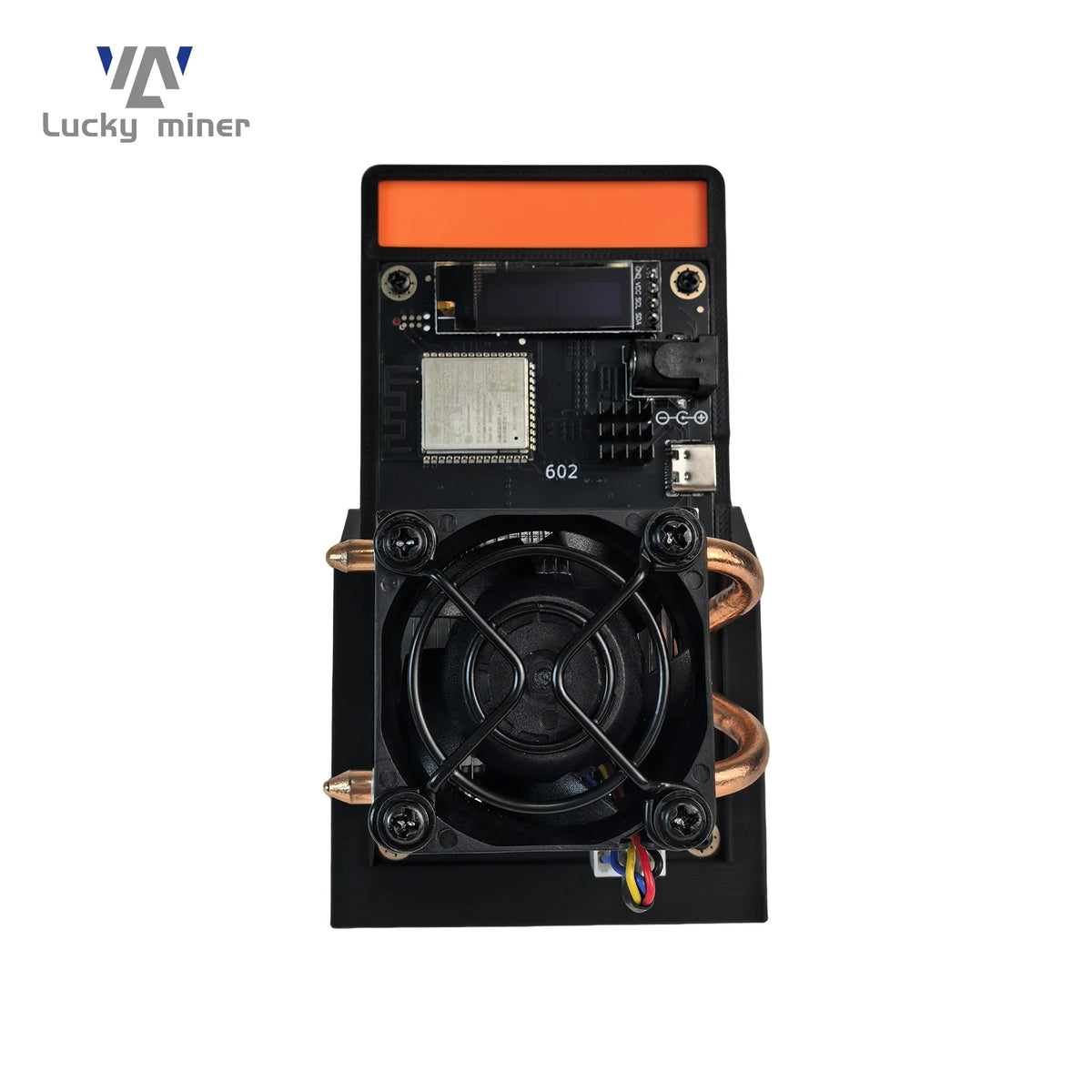

DC Jack power connector + Status indicator LED.
Place the device on a stable and well‑ventilated surface.
Select the appropriate plug for your region and attach it to the 5V/8A adapter.
Connect the adapter output to the miner's DC Jack.
Plug the adapter into a standard AC outlet (100‑240V). The device will start automatically.
Use only the supplied 5V/8A adapter – third‑party adapters may cause damage.
The device supports WiFi 2.4G only (5G not supported).
After power‑on, the miner creates a hotspot. Connect your phone/PC to it and access the web management interface.
Configure your WiFi credentials and mining pool settings via the built‑in web page.
SOLO |
Solo mining – earn full block reward when a block is found. |
PPLNS |
Pay Per Last N Shares – rewards based on contributed shares. |
PPS |
Pay Per Share – stable payout per valid share. |
The PWM fan automatically adjusts speed based on temperature.
Typical operating noise is below 40 dB – quiet for home use.
Increased fan speed under high load is normal.
⛔ Do not block the cooling airflow.
⛔ Do not use the device in humid or high‑temperature environments.
⛔ Power off immediately if abnormal behaviour occurs.
⛔ Only use the supplied 5V/8A adapter – other adapters may cause fire or damage.
🔹 6‑month warranty – void if disassembled, modified, using unofficial firmware, or damaged by improper use (including third‑party adapters). No after‑sales service for unauthorised modifications.
🔹 Users are responsible for complying with local laws regarding cryptocurrency mining.
🔹 Mining results are not guaranteed and may vary due to network difficulty, pool performance, and market factors.
🔹 The manufacturer is not liable for pool access or network issues. Specifications may change without notice.
