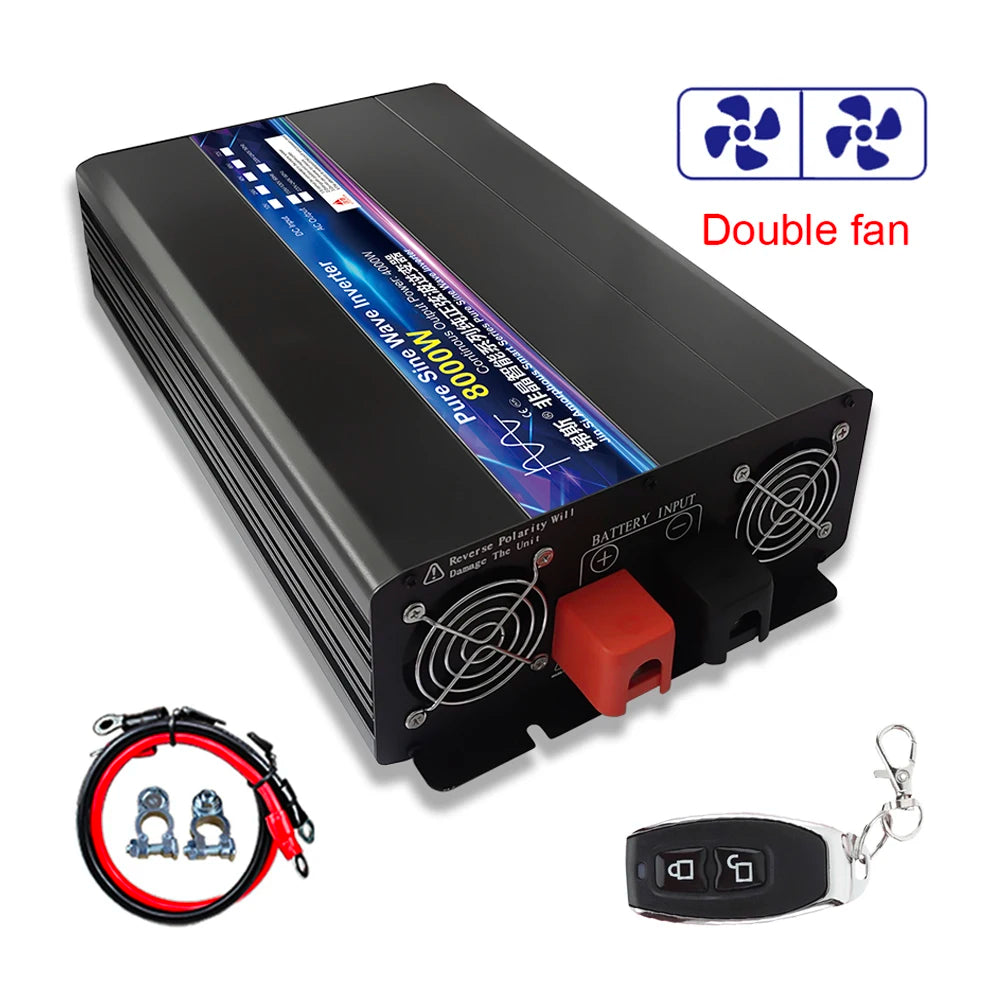

Inverter 12V 24V 48V To AC 110V 127V 220V 6000W 8000W 10000W 12000W Pure Sine Wave Solar Remote Control Switching Power Supply
Inverter 12V 24V 48V To AC 110V 127V 220V 6000W 8000W 10000W 12000W Pure Sine Wave Solar Remote Control Switching Power Supply
Couldn't load pickup availability
SPECIFICATIONS
12000w size: 45 * 22 * 9CM
8000w size: 34 * 22 * 9CM
8000w weight: 6.1KG
Brand Name: JINSI

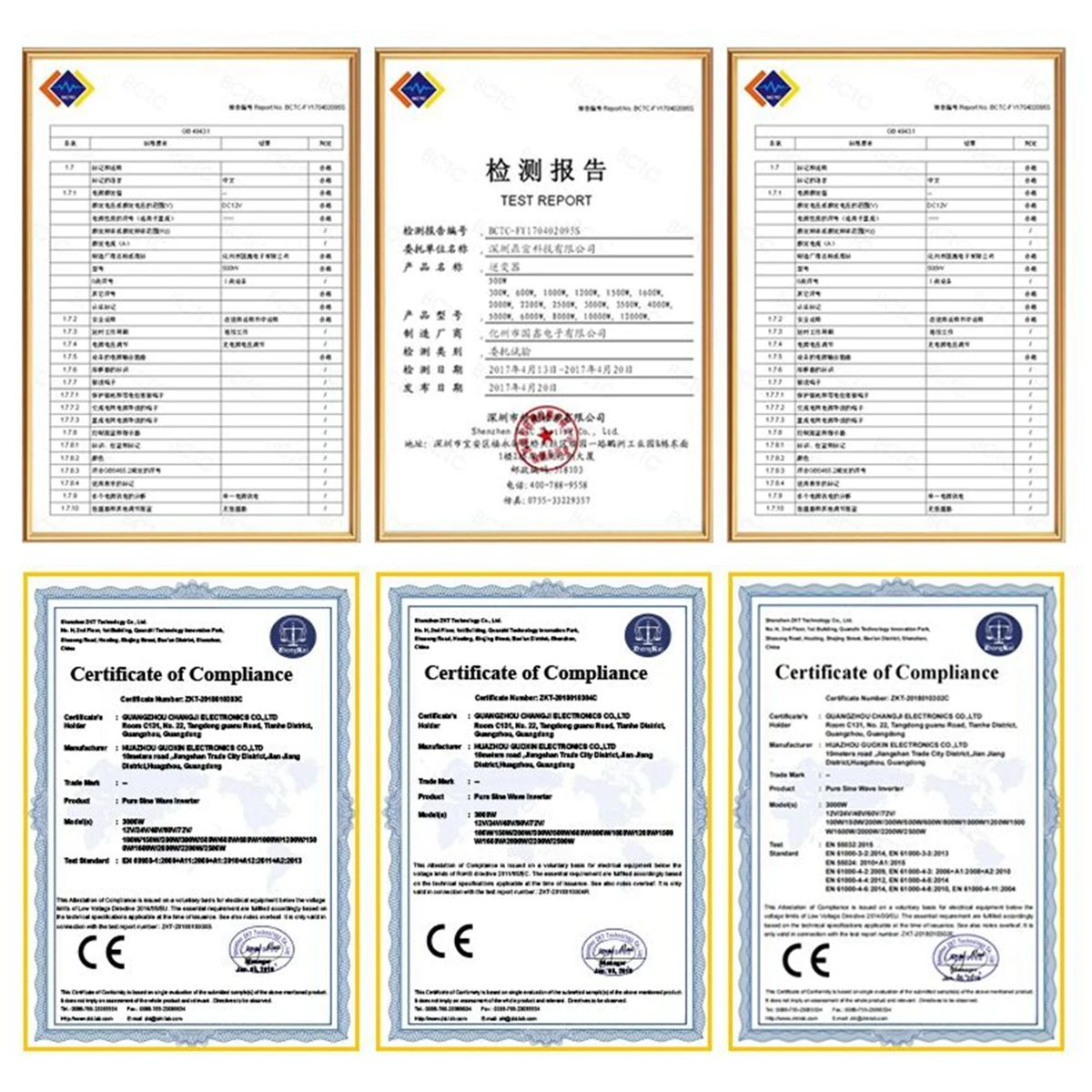

Certification: CE
High-concerned chemical: none
Model Number: FEJING 8000W / 12000W
Origin: Mainland China
Output Current: 27.3A
Output Frequency: 50Hz / 60Hz
Output Power: 4000W-6000W
Output Type: DUAL
Output waveform: pure sine wave
Remote control distance of inverter: 50m in open area
Type: DC/AC Inverters
is_customized: Yes
New upgrade: amorphous pure sine wave inverter! Upgrade the remote control equipment, and the inverter can remotely switch the switch of the inverter within 50m open area.
When buying an inverter, you must first understand the voltage and frequency used in your country. Purchasing an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!

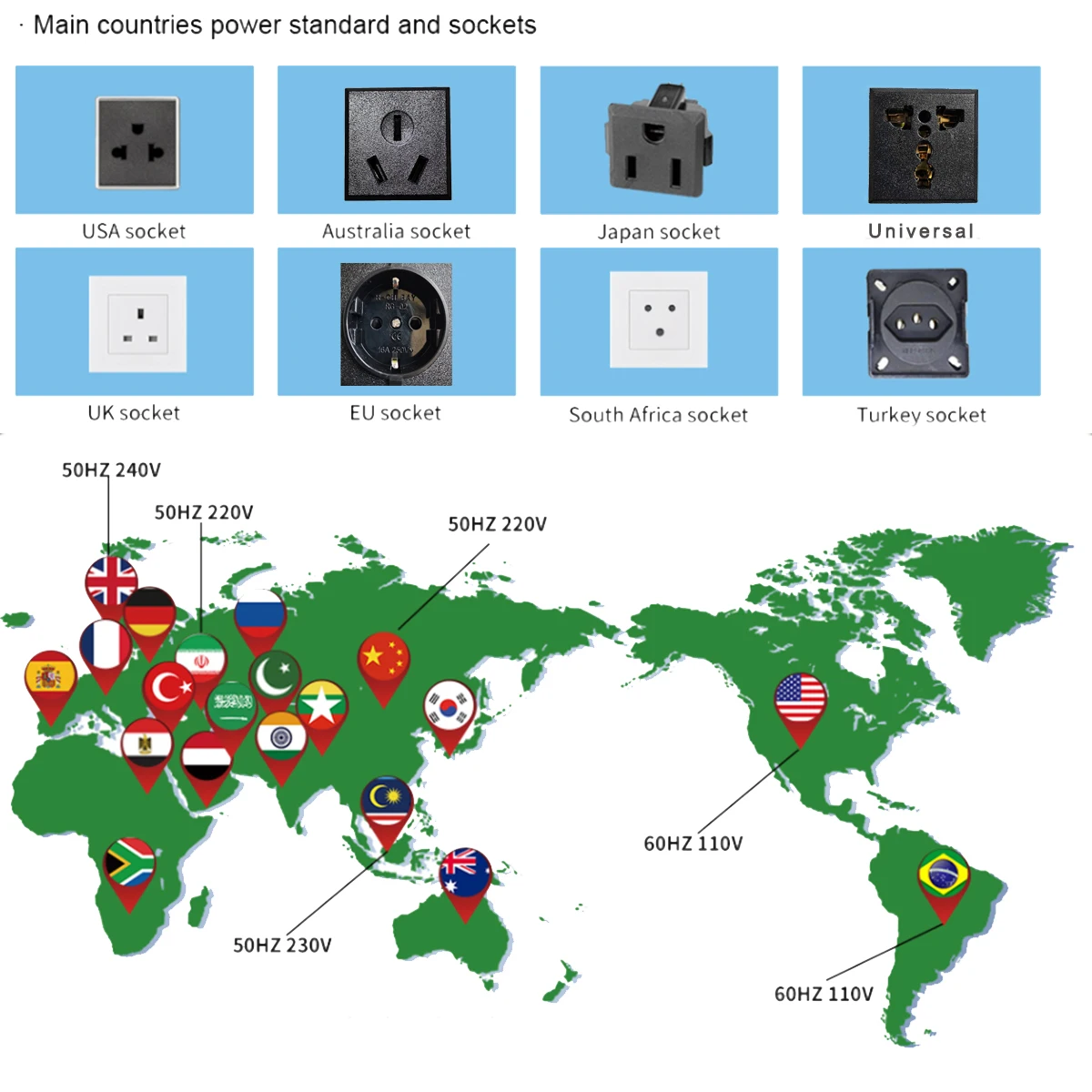

Country /Voltage/Frequency
Korea:220V/60Hz
Australia:230V/50Hz
Brazil:110V/220V/60Hz
Chile:220V/50Hz
Colombia:110V/60Hz
Denmark :230V/5oHz
Finland:230V/50Hz
France:230V/50Hz
Israel:230V/50Hz
Italy:230V/50Hz
Russia:220V/50Hz
United States:120V/220V/60Hz
Turkey:230V/50Hz
Spain:230V/50Hz
Mexico:127V/60Hz
PuertoRico:120V60Hz
SaudiArabia:127V/220V/60Hz
South Africa:220V/230V50Hz
Sweden: 230V/50Hz
Switzerland:230V/50Hz
United Kingdom:230V/50Hz
Specifications
Type: Pure Sine Wave Inverter
Output voltage waveform: Pure sine wave
Power: 8000W / 12000W
Output voltage: 100V 110V 120V 127V 220V 240V
Input voltage: 12V / 24V / 48V
Output frequency: 50Hz / 60Hz

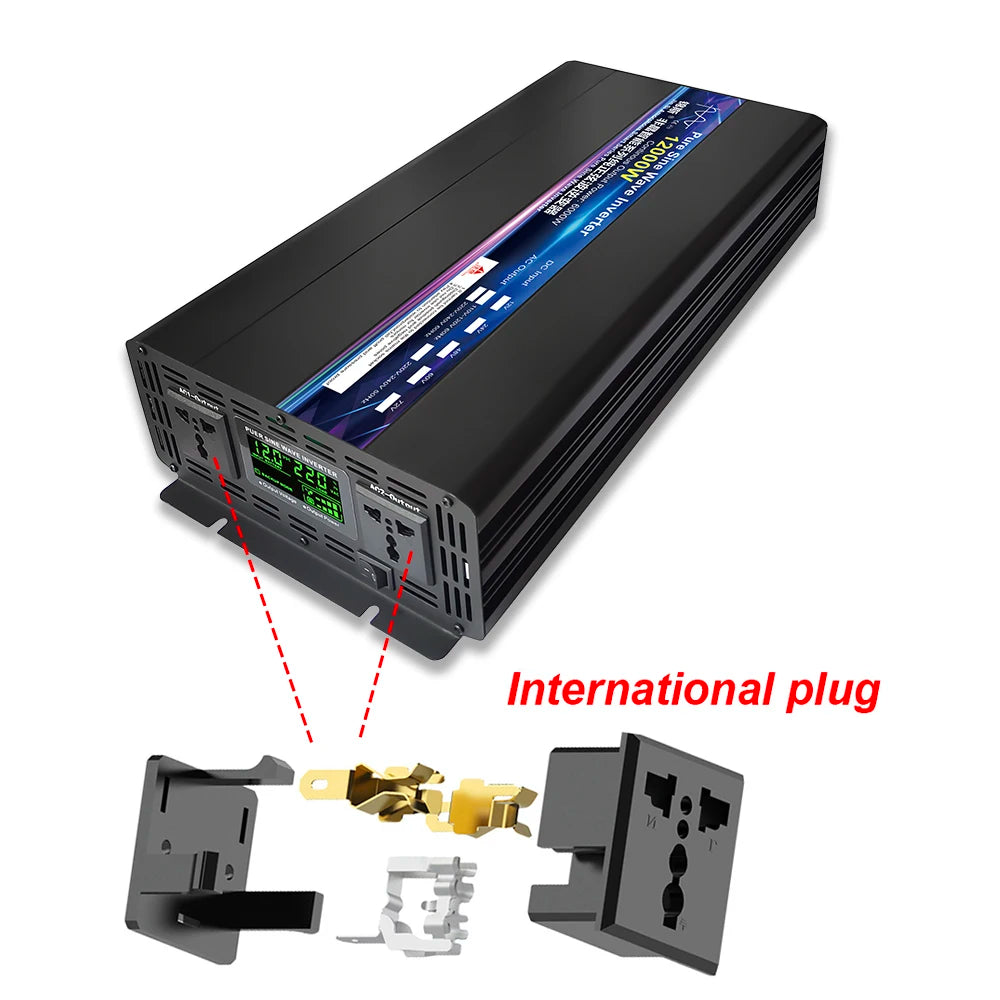

Socket: universal type /Australia socket/ USA, Japan, Canada, / Brazil socket/EU plug
Remote control distance: 50m in open area
Packaged included:
1 x Pure Sine Wave Inverter
1 x English User manual
1xCertificate of conformity
1 x Battery thick line
1 x battery clip
High voltage protection:

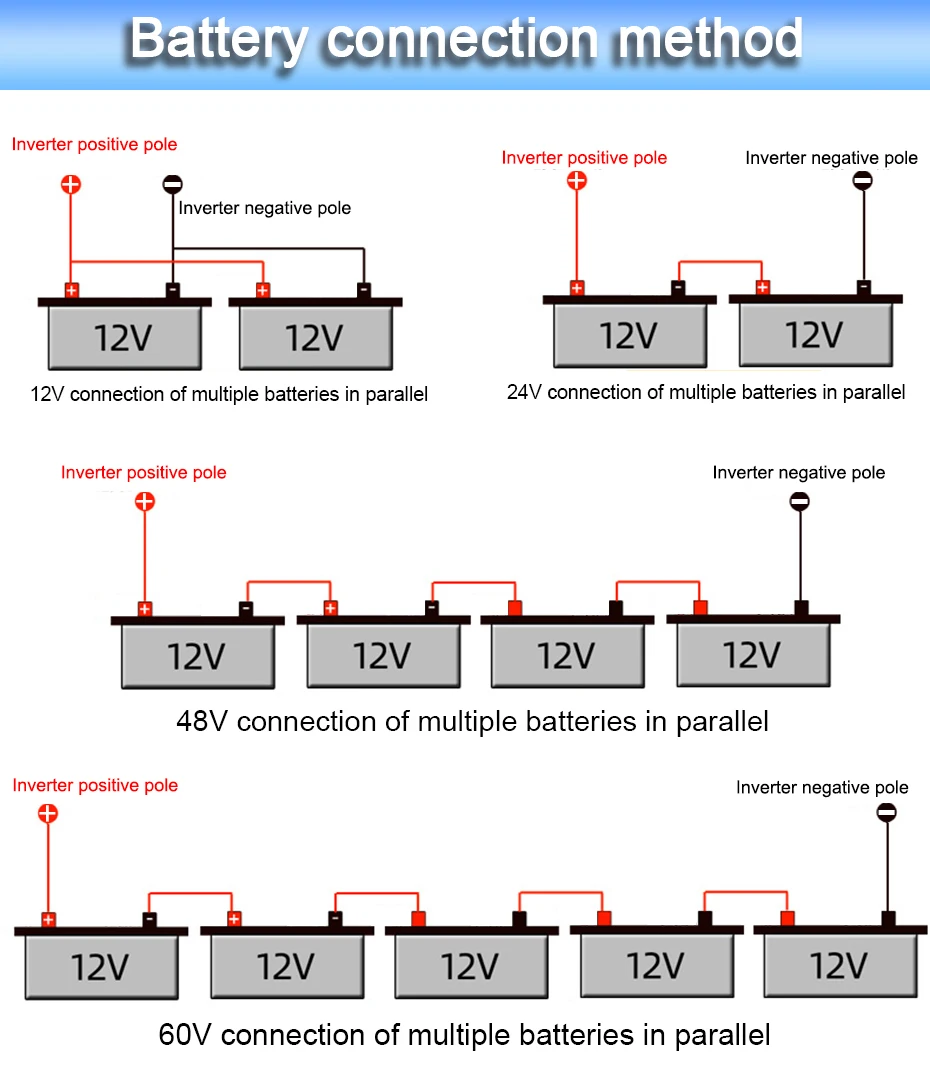

12V inverter can only connect to 12V batteries (working voltage range: 10.5V~15.5V), 24V inverter can only connect to 24V batteries (working voltage range: 19.5V~30V) 48V inverter can only connect to 48V batteries (working voltage range: 42V~53V) 60V inverter can only connect to 60V batteries (working voltage range: 57V~70V), When the voltage exceeds the working voltage range, the inverter will automatically turn off the inverter because the voltage is too low or too high. The purpose is to avoid over voltage damage to the inverter or over discharge to damage the battery.
When using 12V / 24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck).
If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.
Note:
The input voltage of 12V inverter and 24V inverter cannot be universal. If the wrong input voltage is selected, the inverter will not work. If you don't understand anything, please contact customer service, we will reply you as soon as after we see the information. Thank you!
Features:
The benefits Pure Sine Wave Inverter.
1:Aluminum-magnesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
2: Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
3:You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
4:Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.

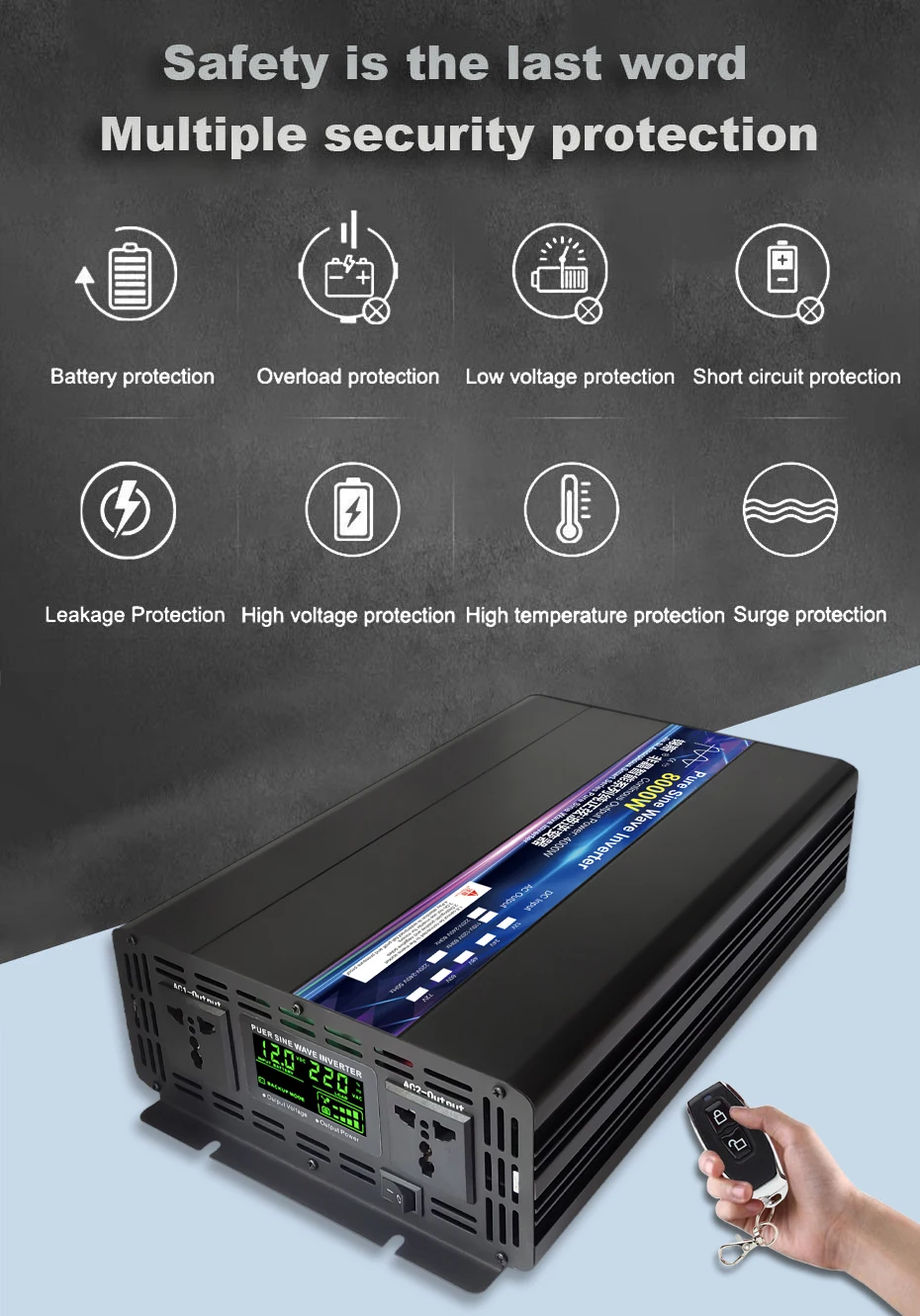

5: Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.

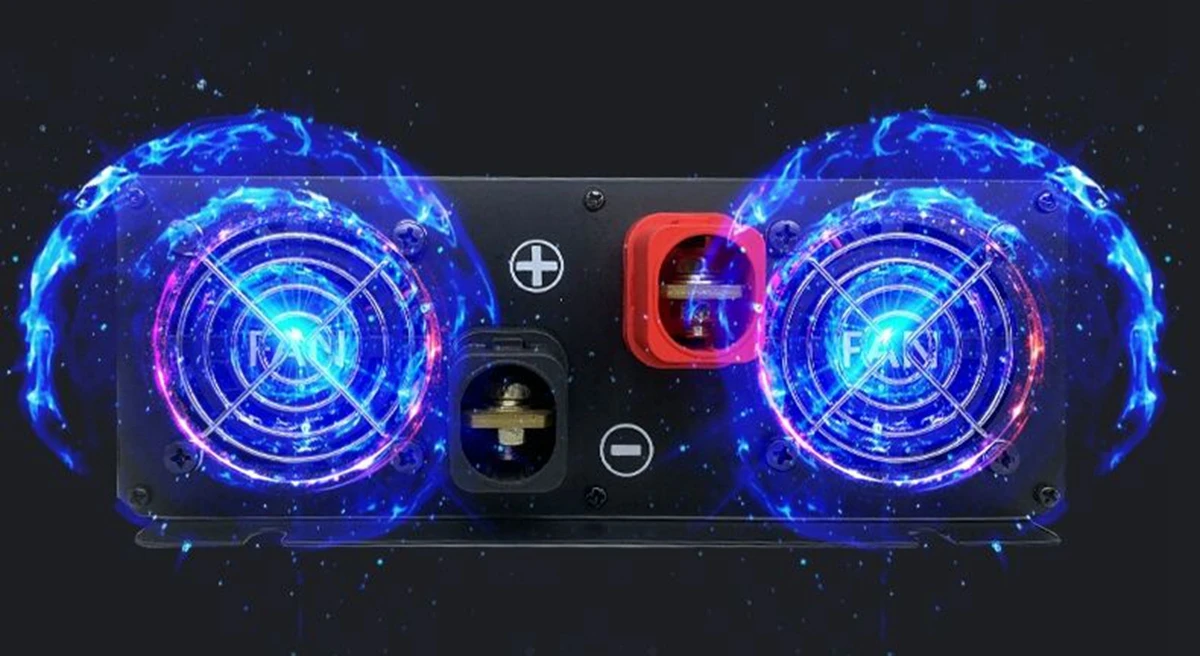

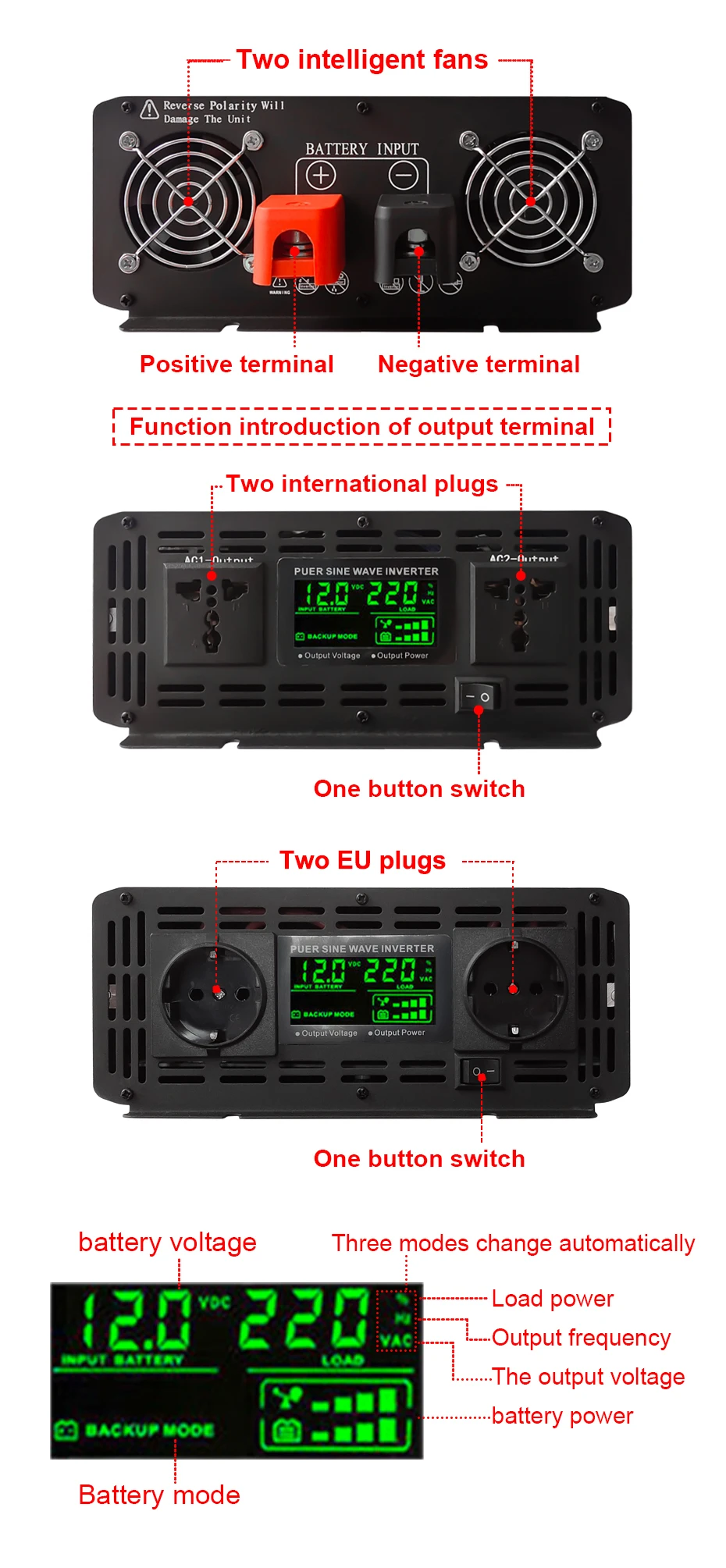

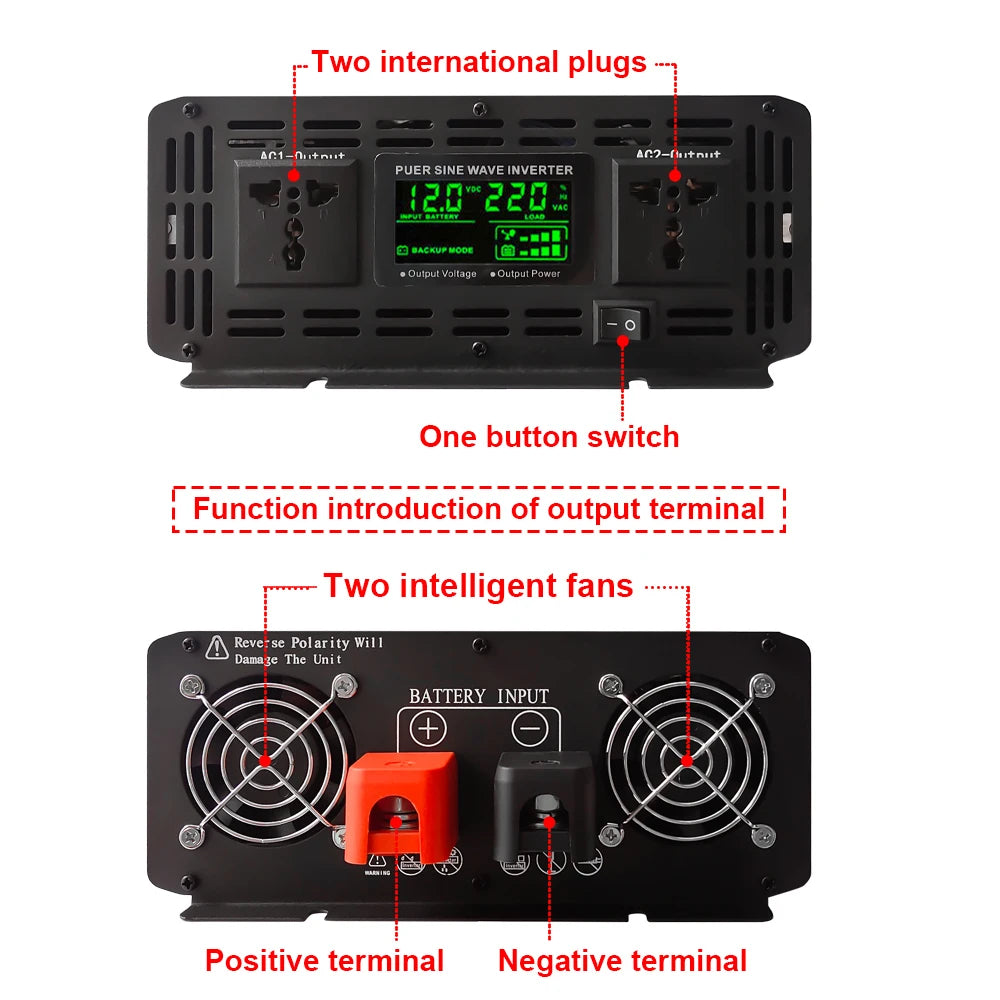

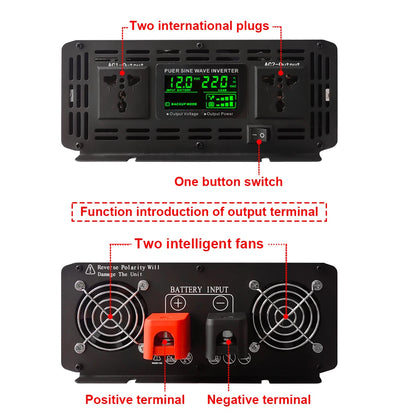

6:Intelligent temperature control fan makes the inverter more quiet. When the temperature is ≤45 ℃, the fan stops working; when the temperature is ≥45 ℃, the fan starts working.
7:Buzzer reminder. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power, the load enters the protection mode and reminds people with a buzzer reminder.

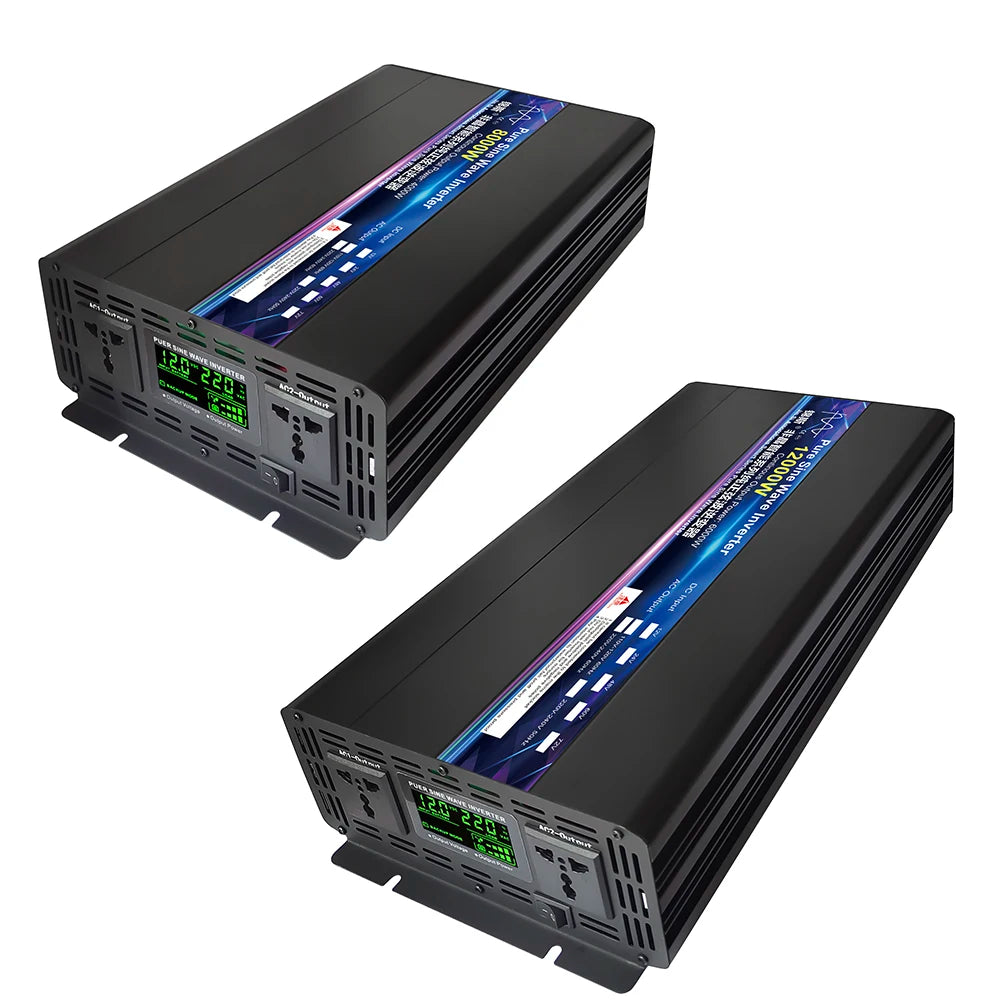

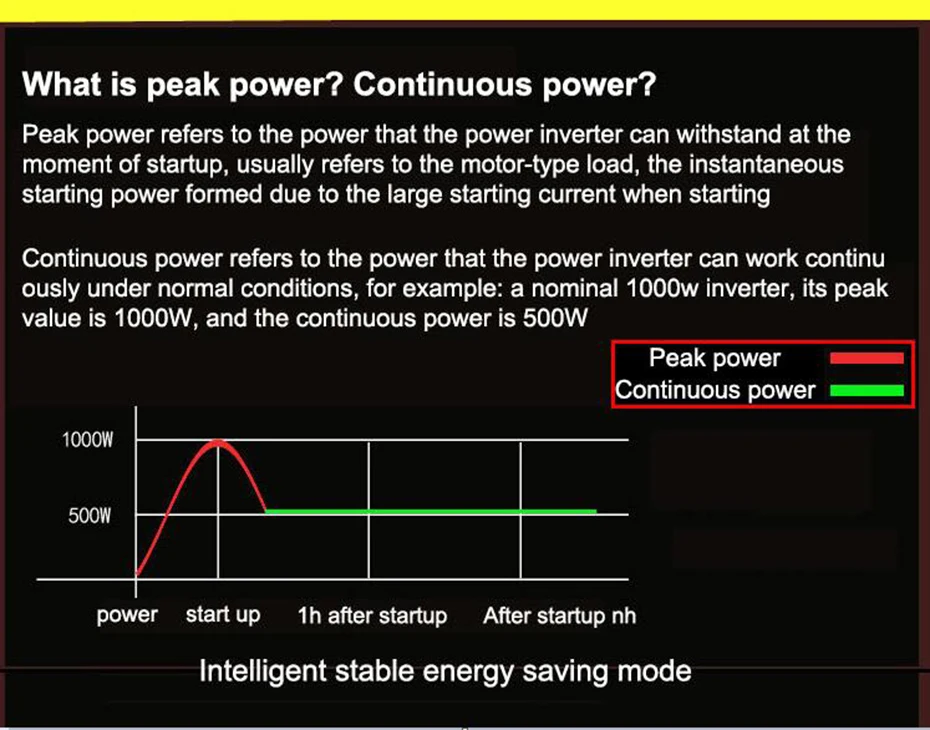

Pure sine wave inverter 8000W
Peak power 8000W
Continuous power 4000W

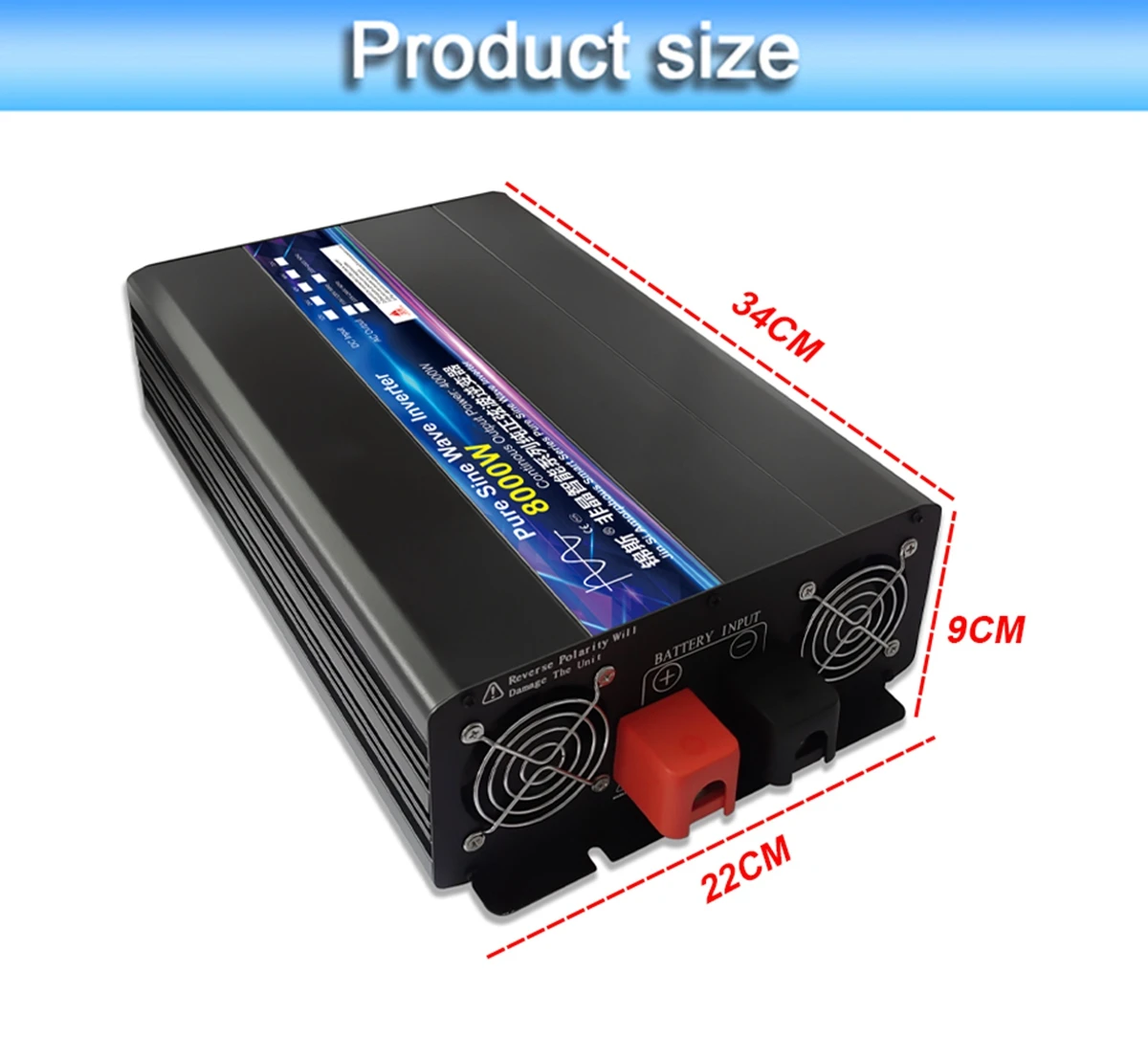

Size: 34CM×22CM×9CM
Package weight 5.2kg

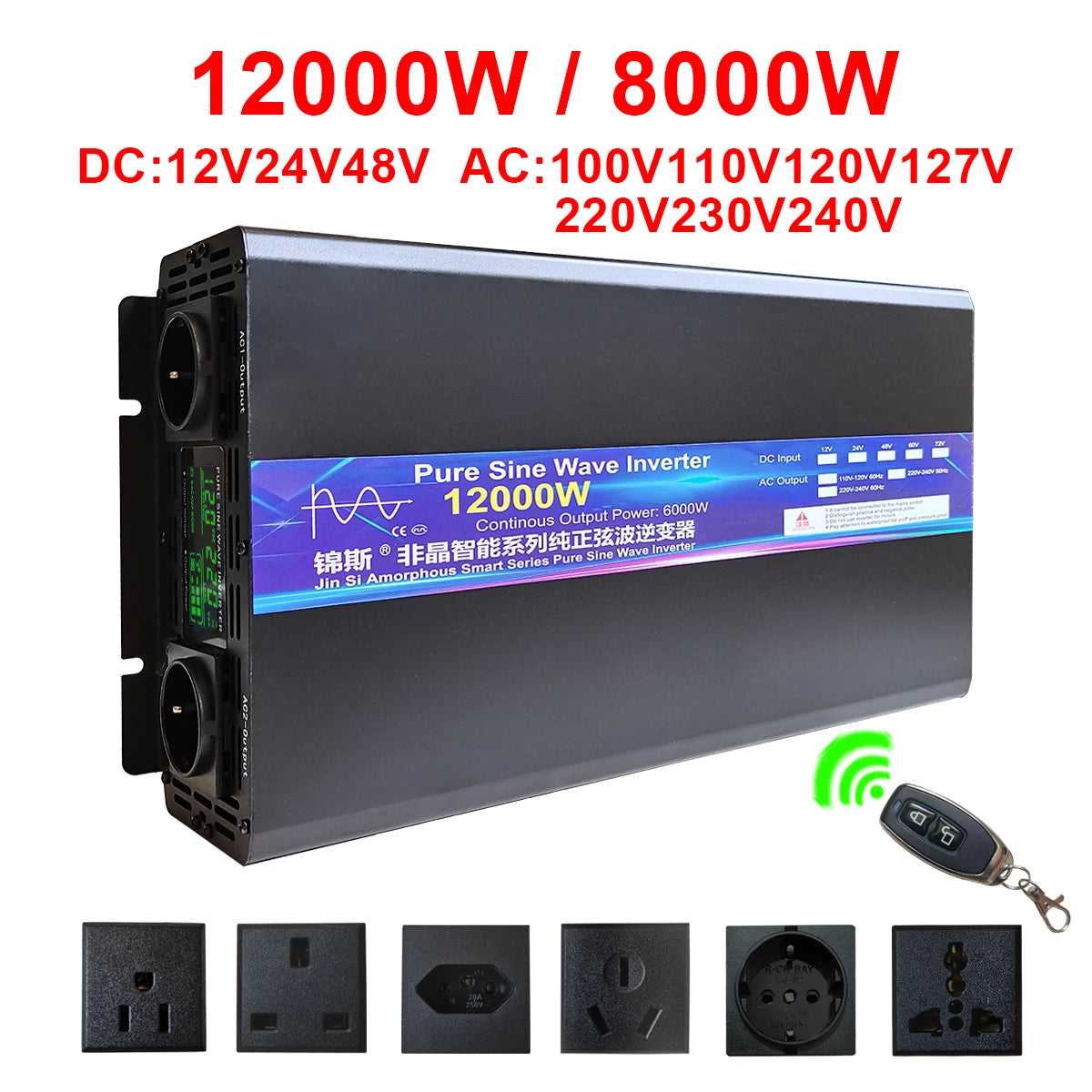

Pure sine wave inverter 12000W
Peak power 12000W
Continuous power 6000W

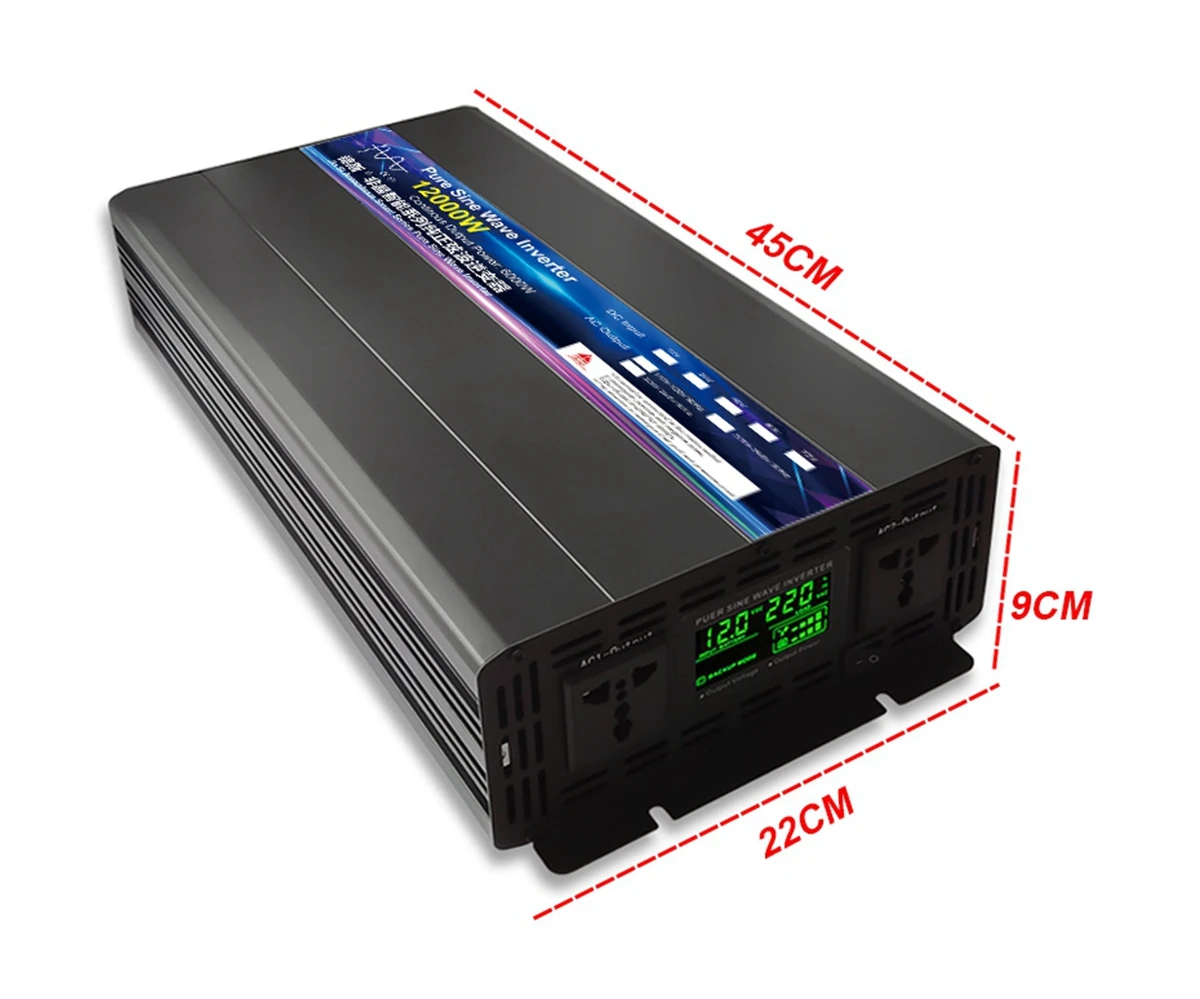

Size: 45CM×22CM×9CM
Package weight 6.5kg
How long does the battery last?
Car battery, general voltage of the family car is 12v, truck The battery voltage is 24v, and the inverter with the corresponding voltage is selected.
1. formula for calculating battery power: p (power) = u (volts of voltage) | (battery weight)
2, like the 12v80ah car battery, its output power = 12v * 80 = 960w inverter conversion efficiency is 90?
Using 960 * 90 ?, you can calculate the battery with a maximum power of 864w.
Working time = u (volts of voltage) * 1 (battery capacity) * 0.8 * 0.9
Example of electrical energy:
Battery 12v80ah battery with a lamp 220v100w
Working time = 12v * 80ah * 0.8 * 0.9 / 100w = 6,912 hours
Note: 0.8 is the battery discharge coefficient (constant)
0.9 is the inverter conversion efficiency (constant)
note:
Our pure inductive load capacity of the sine wave inverter is 95%
The battery output dc power requirements for the wire are too high, please do not use the wire to increase the length.
From the battery outlet to the inverter, use the original wiring. Unauthorized line extension can cause insufficient input / current voltage. If you want to use the extension line, the diameter of the wire must be twice as thick as the original wiring. It is recommended not to exceed 1 meter.
Common problems and Solutions

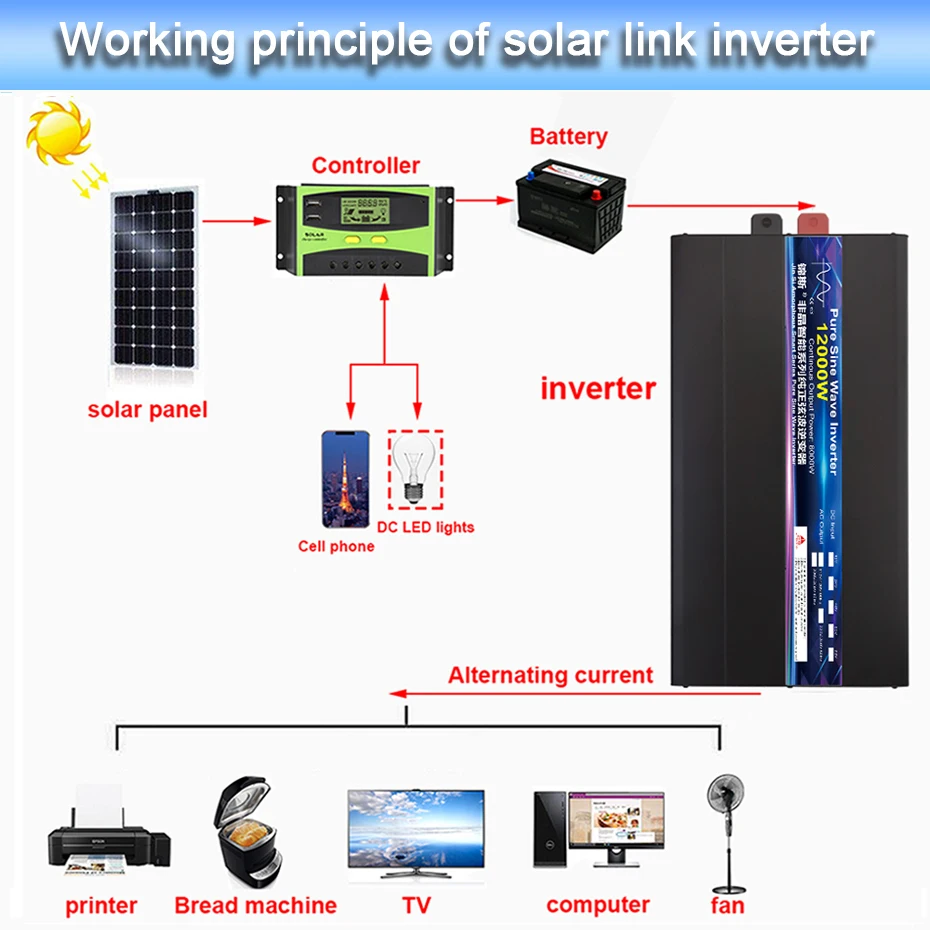

power conversion device that converts input low-voltage direct current into high-voltage stable alternating current output.
Instructions:
he output volts of the battery should be consistent with the DC input volts of the inverter. For example, a 12V inverter should be selected for a 12V battery, and the positive and negative poles of the battery should be distinguished when connecting.
Precautions：
1. The inverter cannot be connected to the power grid and cannot be used to touch the AC output line. The battery equipped with the inverter can provide more power than the actual power consumption of the appliance. When the battery line is lengthened, the corresponding wire diameter must be doubled Crude.
2. Both of the inverter outputs are live wires, and there is no grounding problem. Do not use any one as a ground wire.
3. Connect the inverter to the load. Do not connect any air switch or leakage protection switch in the middle. Hard operation will not only fail to protect, but will damage the inverter.
Troubleshooting：
1. The inverter is not working.
A. Check whether the plug is inserted in place and whether it is loose.
B. Whether the inverter switch is turned on.
C. Whether the car cigarette lighter jack has voltage output, such as external leads, and whether the polarity is correct.
2. Insufficient output power of the inverter can only drive low-power electrical appliances
A. The capacity of the battery is too small, and electrical appliances must be replaced or reduced.
B. The battery voltage is too low and must be charged or replaced.
C. If it is an external battery, thicken the lead to shorten the lead length
3. The inverter does not work and the FALT light is off
A. The electrical power used exceeds the nominal power, causing protection. Reduce the use of electrical power
B. The battery voltage is too low, the battery must be charged or replaced
C. Reduce the use of power appliances
