SPECIFICATIONS

Application: Home Appliance

Brand Name: MYAMi

Customized support: Software reengineering

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Keyword: Inverter Converter

Name: Pure Sine Power Inverter

OUTPUT FREQUENCY: 50Hz/60Hz

Origin: Mainland China

Output waveform: Pure Sine Wave Output

Peak power: 4KW/5KW/6KW/10000W

Product name: Pure Sine Wave Power Inverter

Protection: Overload

Rated power: 2000W/2500W/3000W/5000W

Type: Car Inverter

brand: MYAMi

country of origin: Guangdong, China

efficiency: 90%

is_customized: Yes

model: MY-E2000N/MY-E2500N/MY-E3000N/MY-E5000N

output current: According to power

size: 43x25x10.4cm

type: DC/AC frequency converter

type of output: single phase

weight: 5KG

Model	Rated Power	Peak Power	Input Voltage
MY-E800 MY-E800N	800W	1600W	12/24/48/60/72
MY-E1000 MY-E1000N	1300W	2600W	12/24/48/60/72
MY-E1500 MY-E1500N	1800W	3600W	12/24/48
MY-E2000 MY-E2000N	2200W	4400W	12/24/48/60/72
MY-E2500 MY-E2500N	2700W	5400W	12/24/48/60/72/96
MY-E3000 MY-E3000N	3300W	6600W	12/24/48/60/72/96
MY-E5000 MY-E5000N	5000W	10000W	24/48/60/72/96

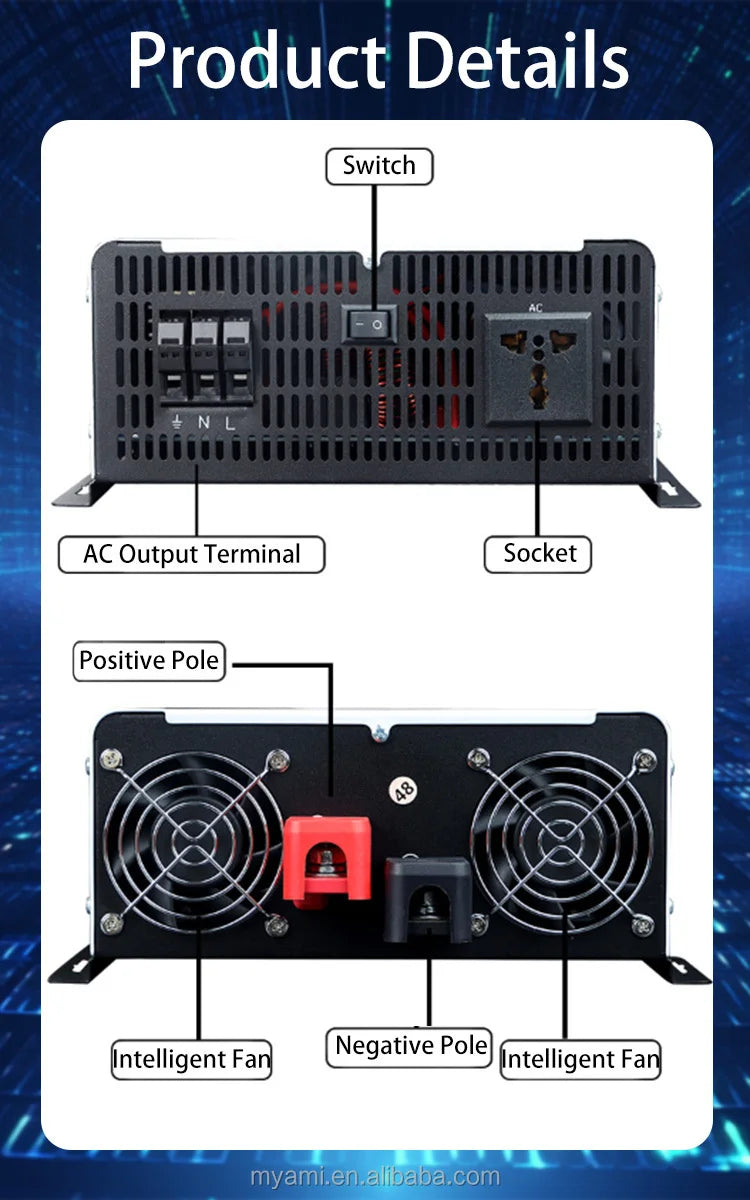

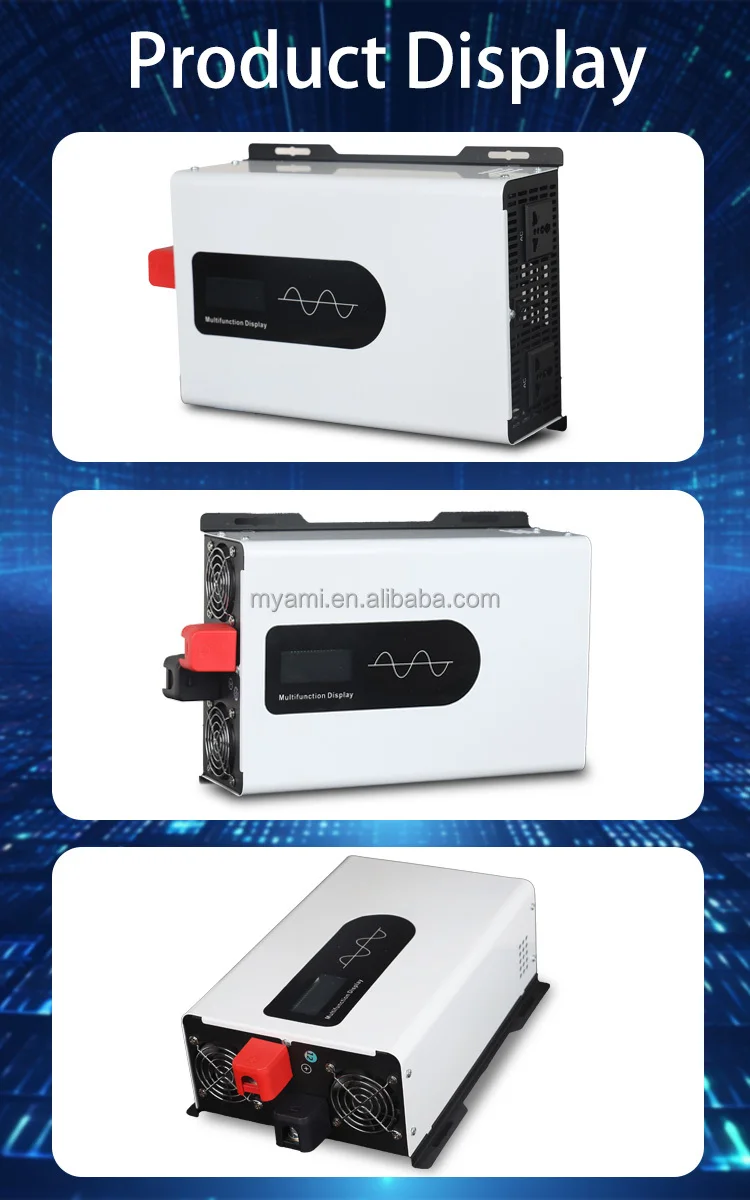

Product Details

Why did you choose us?

1. As long as you purchase our product, we will provide you with lifelong service!
2. The product warranty period is 1 year!

3. If the product unfortunately encounters problems, please contact us as soon as possible. We will provide free remote support testing and provide corresponding components for replacement(If product within 1 year,free provide)!

4. Lifelong maintenance, free components provided, you only need to pay a small amount of shipping costs!

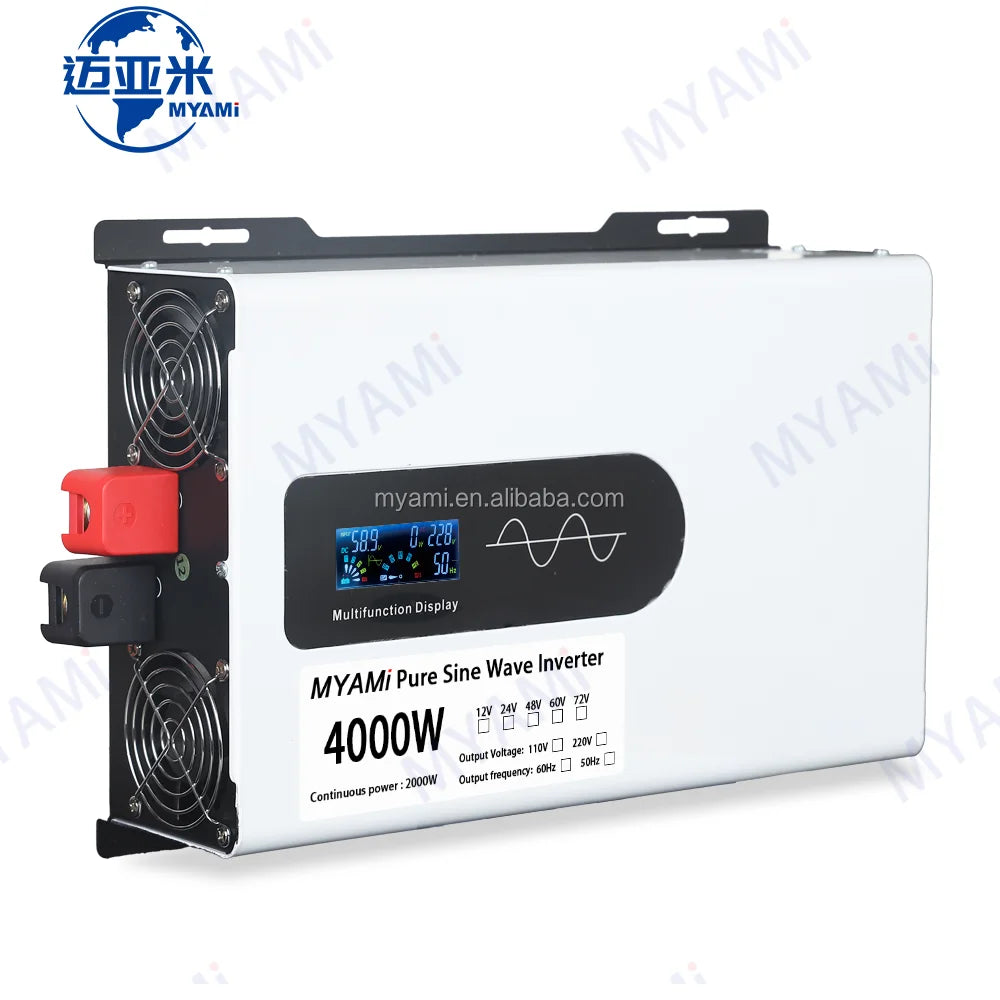

MYAMI Pure Sine Wave Power 2000W 2500W inverter air conditoiner 12V 24V to 110V 220V Dc To Ac For RV Trailer Camper

Model	MY-E2000N
Input working DC voltage	12V	24V	48V	60V	72V
Input DC voltage range	10～15.8V	20～31.5 V	40～63V	50-77V	60～92V
Alarm DC protection	10V±0.3V	20V±0.3V	40V±0.3V	50V±0.3V	60V±0.3V
Low pressure shutdown protection	10V±0.3V	20V±0.3V	40V±0.4V	50V±0.3V	60V±0.3V
Overvoltage shutdown protection	15.8V	31.5V	63V	77V	92V
Continuous power	2000Watt
Peak power	4000Watt

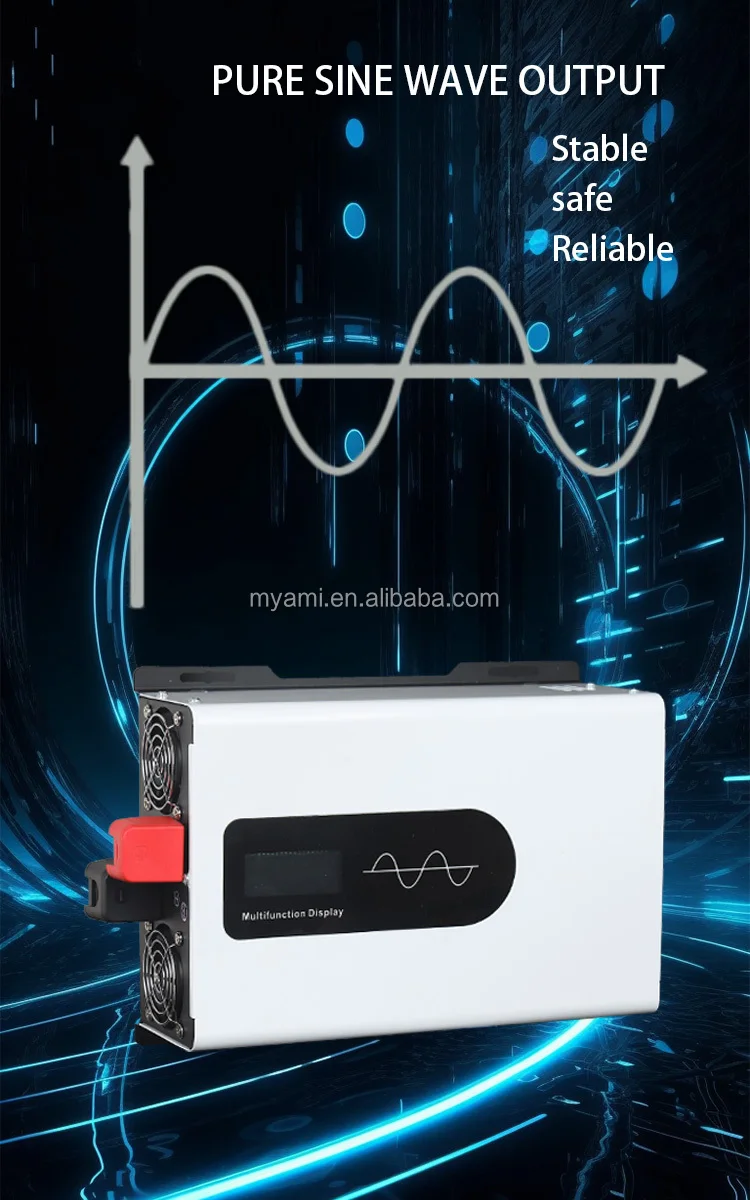

Output waveform	Pure sine wave Distortion rate ≤ 3%
Output frequency	50Hz±0.1% or 60Hz±0.1% (optional)
Output voltage	Optional for 100～120VAC or 200～240VAC
Standard efficiency	90%(Full Load)
Maximum efficiency	92%(3/1 Load)
No load current	<0.4A
Working temperature range	0℃ to +40℃
Working humidity range	20%～90%
Storage temperature range	-30℃ to +70℃
Cooling method	Intelligent temperature controlled air cooling

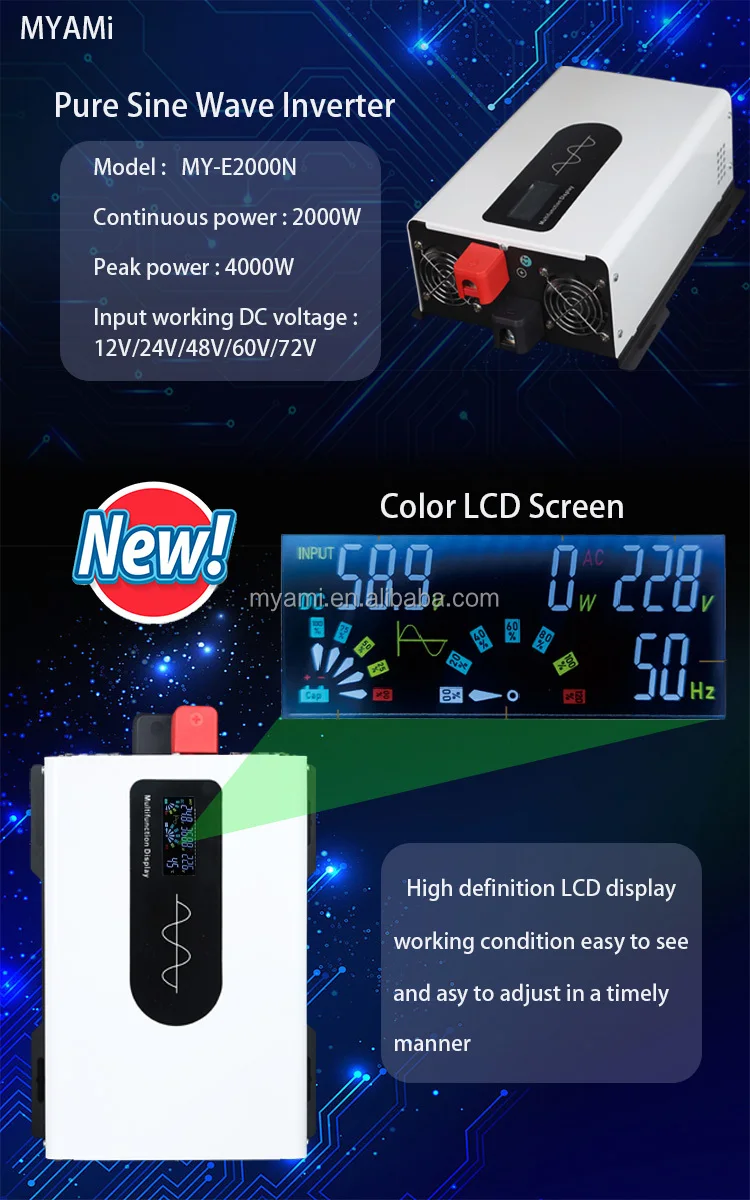

Display	Digital or LCD screen display

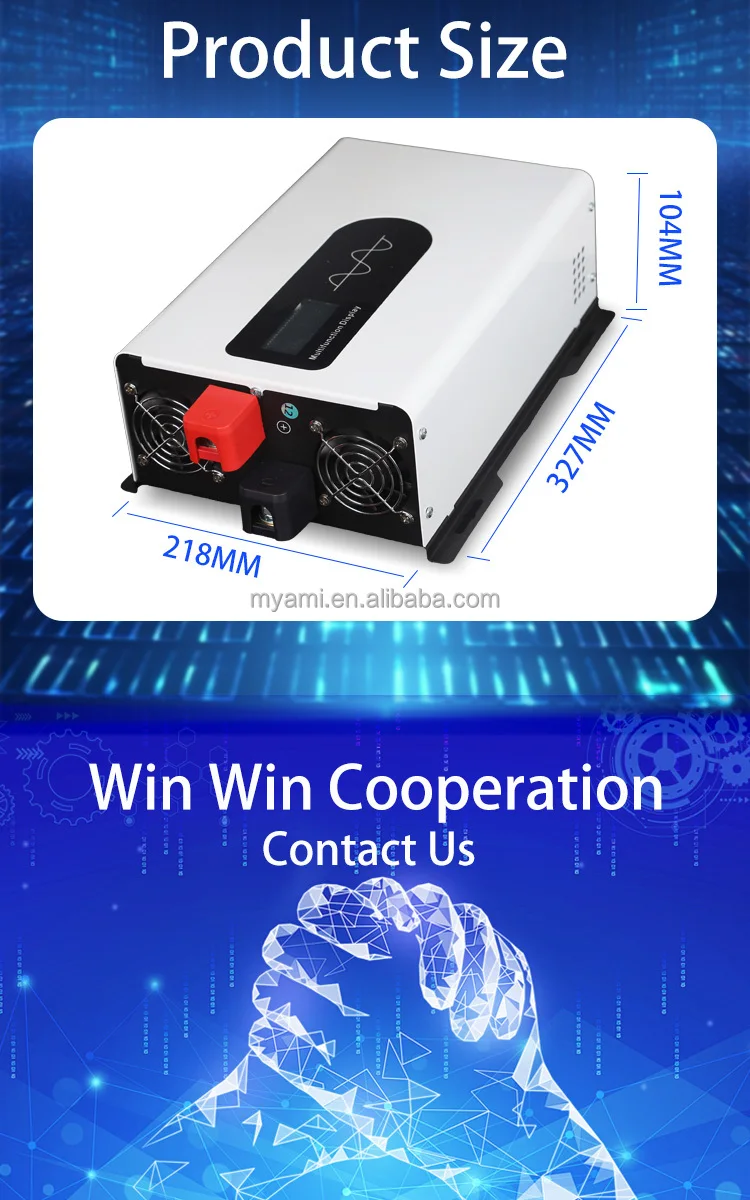

Product size	31.5x21.4x10.4cm			32.7x21.8x10.4 cm
Net weight	3kg			3.1kg
Package size	43x30x20cm
Package weight	4.5kg
PCS/box	1PCS/Box
Protection function	Overload protection, high and low voltage protection, over temperature protection, short circuit protection

Model	MY-E5000N
Input working DC voltage	24V	48V	60V	72V	96V
Input DC voltage range	20～31.5 V	40～63V	50-77V	60～92V	80～125V
Alarm DC protection	20V±0.3V	40V±0.3V	50V±0.3V	60V±0.3V	80V±0.3V
Low pressure shutdown protection	20V±0.3V	40V±0.4V	50V±0.3V	60V±0.3V	80V±0.3V
Overvoltage shutdown protection	31.5V	63V	77V	92V	125V
Continuous power	5000Watt
Peak power	10000Watt
Output waveform	Pure sine wave Distortion rate ≤ 3%
Output frequency	50Hz±0.1% or 60Hz±0.1% (optional)
Output voltage	100～120VAC / 200～240VAC (optional)
Standard efficiency	90%(Full Load)
Maximum efficiency	92%(3/1 Load)
No load current	<0.4A
Working temperature range	0℃ to +40℃
Working humidity range	20%～90%
Storage temperature range	-30℃ to +70℃
Cooling method	Intelligent temperature controlled air cooling
Display	Digital or LCD screen display
Product size	43x25x10.4cm	43x21.8x10.4cm
Net weight	5kg
Package size	54x33x20cm
Package weight	6.5kg
PCS/box	1PCS/Box

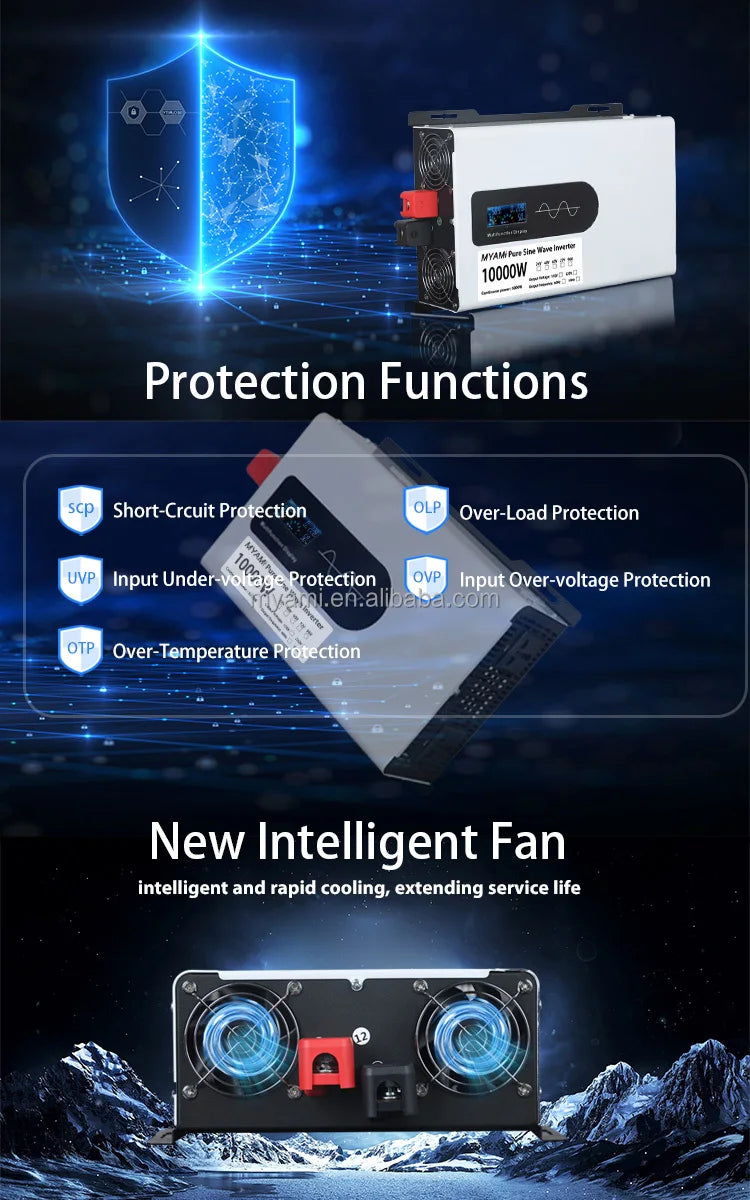

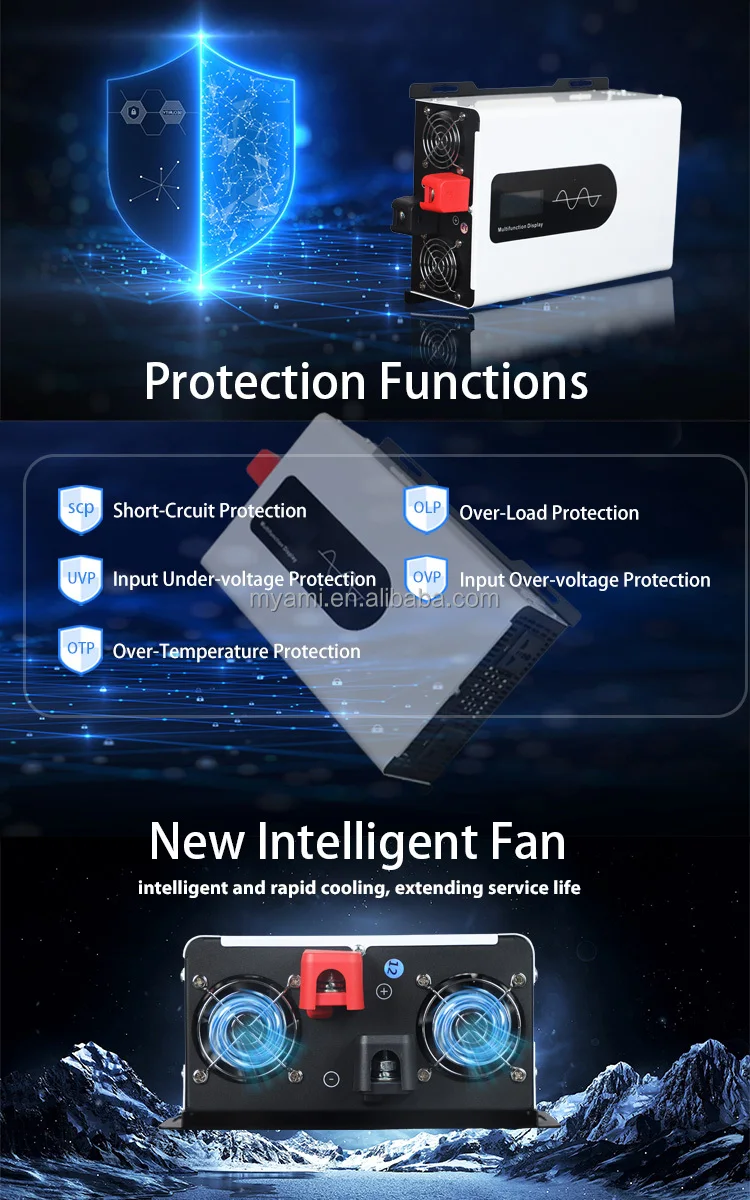

Protection function	Overload protection, high and low voltage protection, over temperature protection, short circuit protection

Feature:

1. The inverter has complete functions, and can provide corresponding standards for voltages and interfaces in different regions of the world, and provide OEM services;
2. The peak output power is up to 1000W, and it provides overload and short circuit protection;
3. Low input voltage protection design, providing automatic shutdown function for low battery voltage;
4. The aluminum alloy shell and intelligent cooling fan are used to provide automatic shutdown protection from overheating, and it will automatically start after returning to normal;
5. Maintenance-free design to ensure that the product can run continuously for a long time;
6. Plug and play, provide AC output interface to meet the user's demand for AC power, and provide USB output;
7. It can be applied to household, automobile, marine, solar power generation system, outdoor mobile energy storage and other fields;
