PowMr 1000W 1500W Hybrid Solar Inverter 12V 24V 220V Off Grid Pure Sine Wave Inverter Dual Output with MPPT 80A Solar Charger
PowMr 1000W 1500W Hybrid Solar Inverter 12V 24V 220V Off Grid Pure Sine Wave Inverter Dual Output with MPPT 80A Solar Charger
Couldn't load pickup availability
SPECIFICATIONS
Battery Type: lead-acid/Lifepo4/Lithium
Battery Voltage: 12V/24V
Brand Name: PowMr
Certification: CE
Feature 1: Dual Output
Feature 2: Off Grid Inverter
Feature 3: Pure Sine Wave
High-concerned chemical: none
Is Smart Device: no
Max Charging Current: 80A
Max Input Voltage: 20V-150V
Max PV Input Power: 600W/1200W

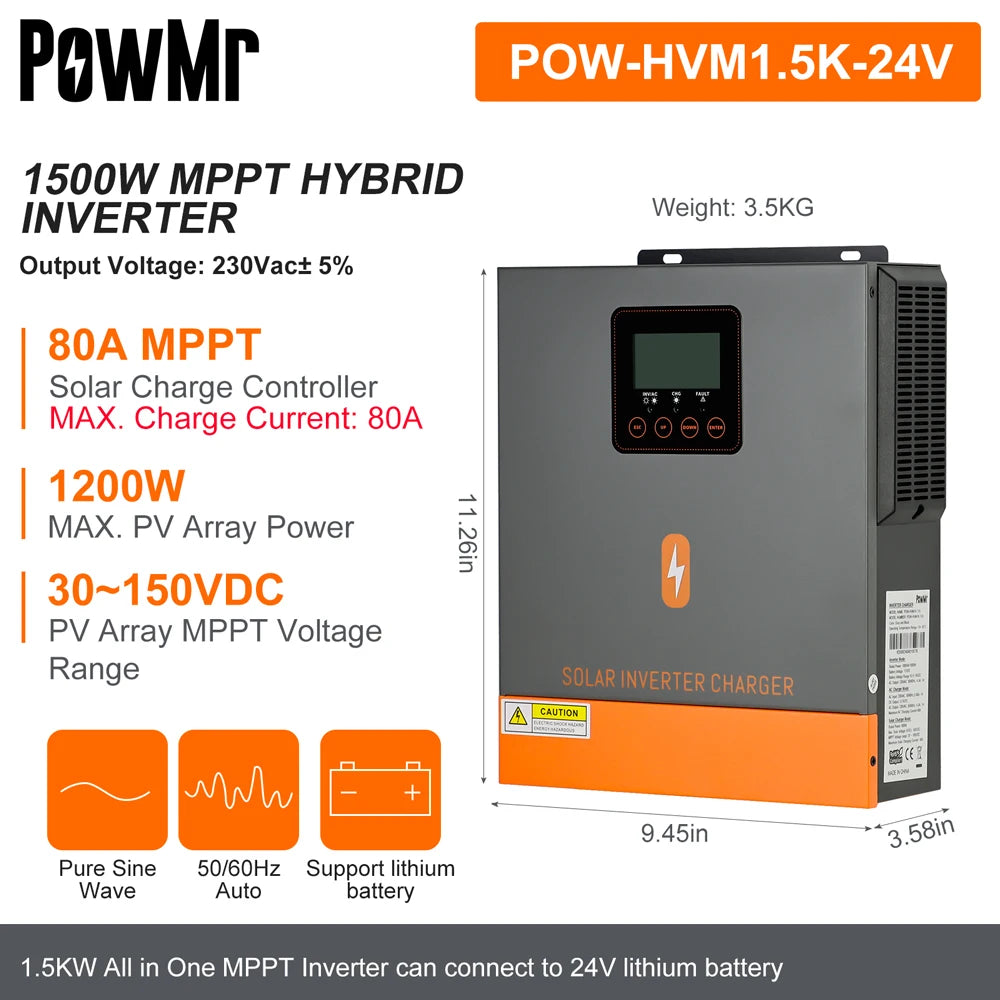

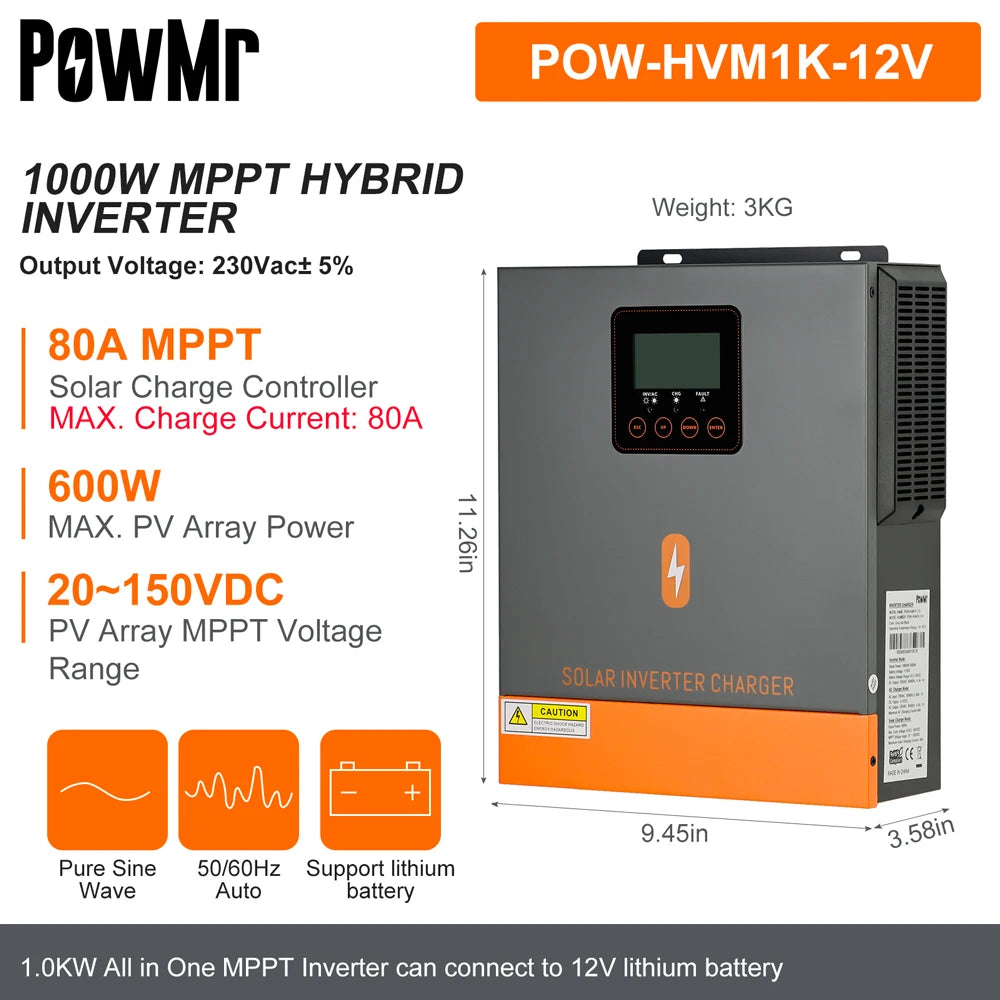

Model Number: POW-HVM1K-12V/POW-HVM1.5K-24V
Origin: Mainland China
Output Current: MPPT 80A
Output Frequency: 50HZ/60HZ
Output Power: 1 - 200 KW
Output Type: SINGLE
Rated Output Power: 1000W/1500W
Size: 286*240*91cm
Weight: 4KG
is_customized: Yes
Feature:
* Pure sine wave inverter
* Configurable input voltage range for home appliances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting

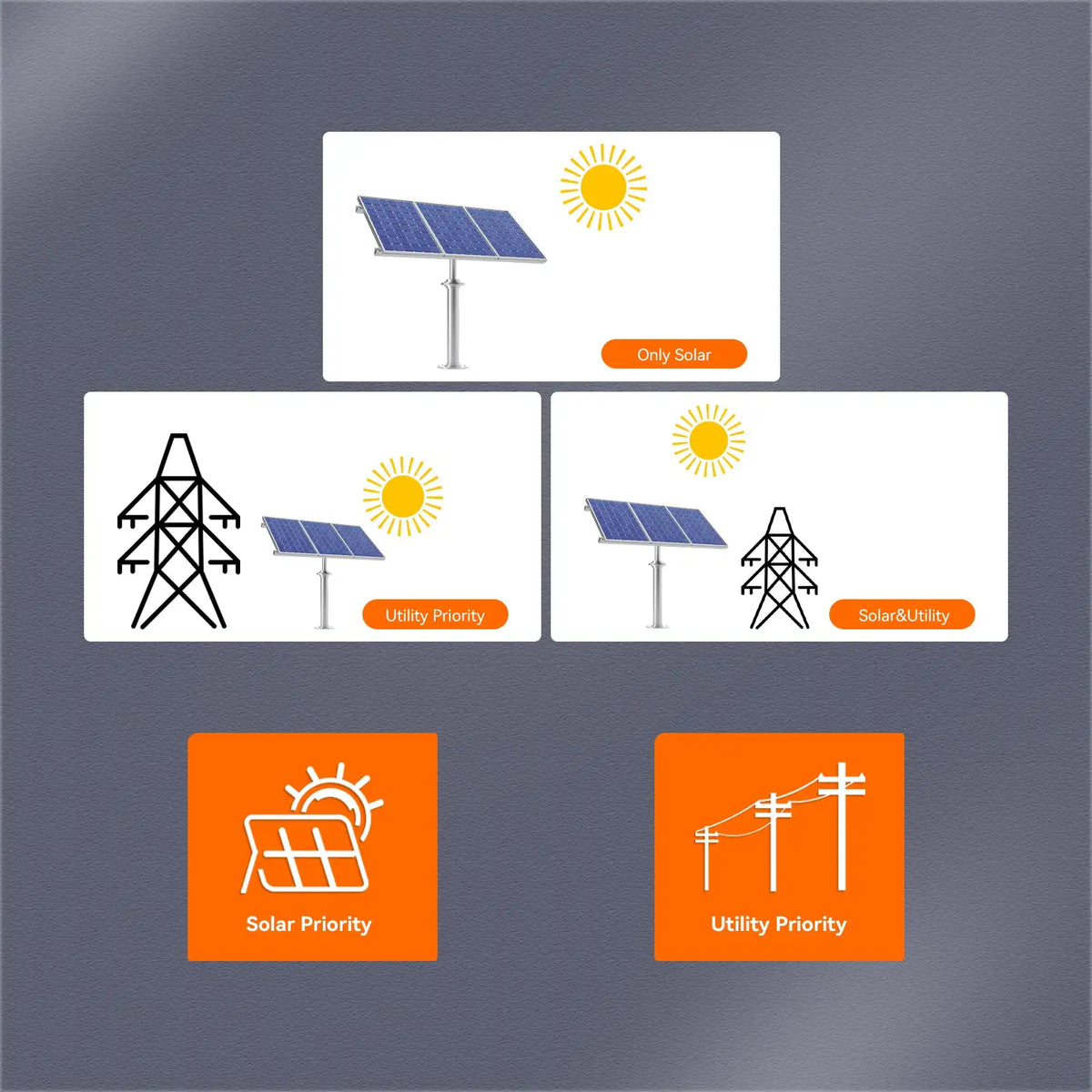

* Configurable AC/Solar Charger priority via LCD setting
* Compatible with mains voltage or generator power
* Auto restart while AC is recovering
* Overload/ Over temperature/ short circuit protection
* Smart battery charger design for optimized battery performance
* Cold start function
Specification:
INVERTER MODEL |
POW-HVM1K-12V |
POW-HVM1.5K-24V |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
|
Output Short Circuit Protection |
Circuit Breaker |
|
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
|
Transfer Time |
10ms |
|
Rated Output Power |
1000VA/1000W |
1500VA/1500W |
Output Voltage Waveform |
Pure Sine Wave |
|
Peak Efficiency |
94% |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
12Vdc |
24 Vdc |
Utility Charging Mode | ||
Charging Algorithm |
3-Step |
|
Floating Charging Voltage |
13.5Vdc |
27Vdc |
MPPT Solar Charging Mode |
||
Max. PV Array Power |
600W |
1200W |
PV Array MPPT Voltage Range |
20~150Vdc |
30~150Vdc |
Max. PV Array Open Circuit Voltage |
150Vdc |
|
Max solar charging current |
40Amp |
|
Max(AC+Solar) Charging current |
80Amp |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10°C to 50°C |
|
Storage temperature |
-15°C~ 60°C |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
