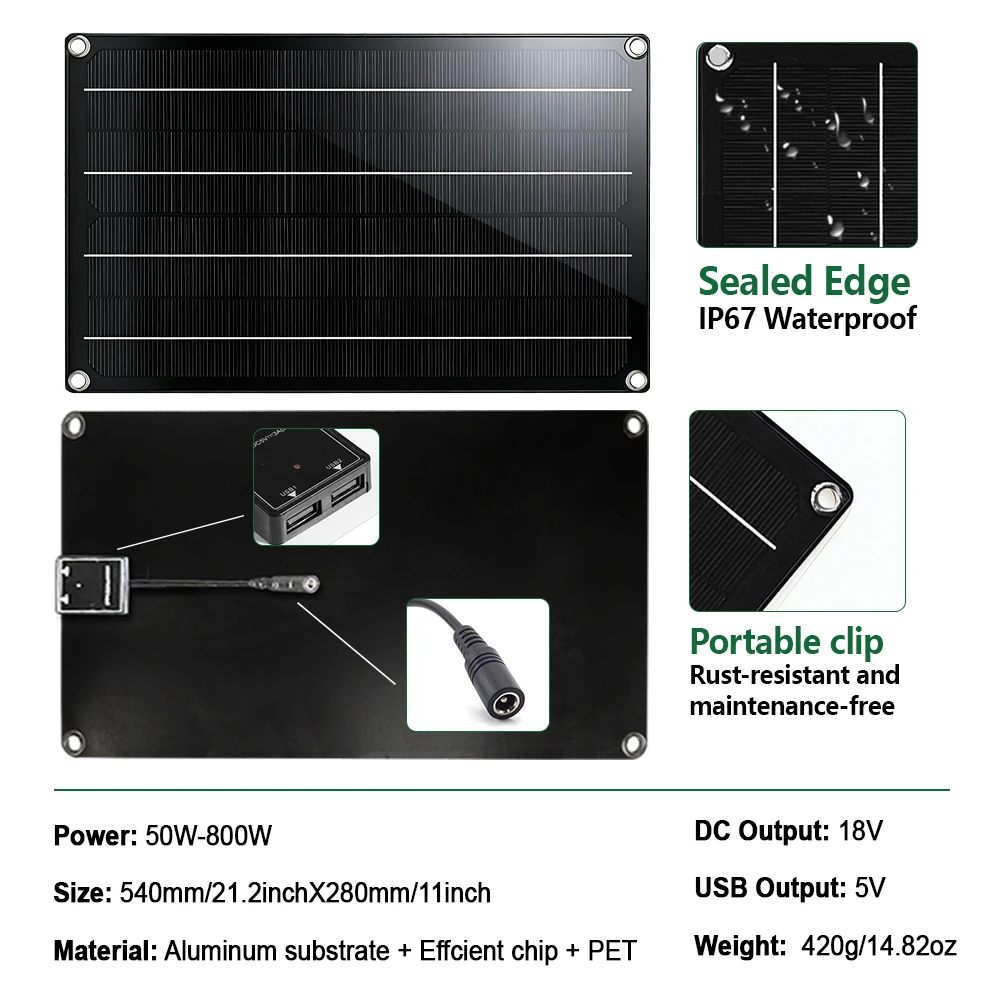

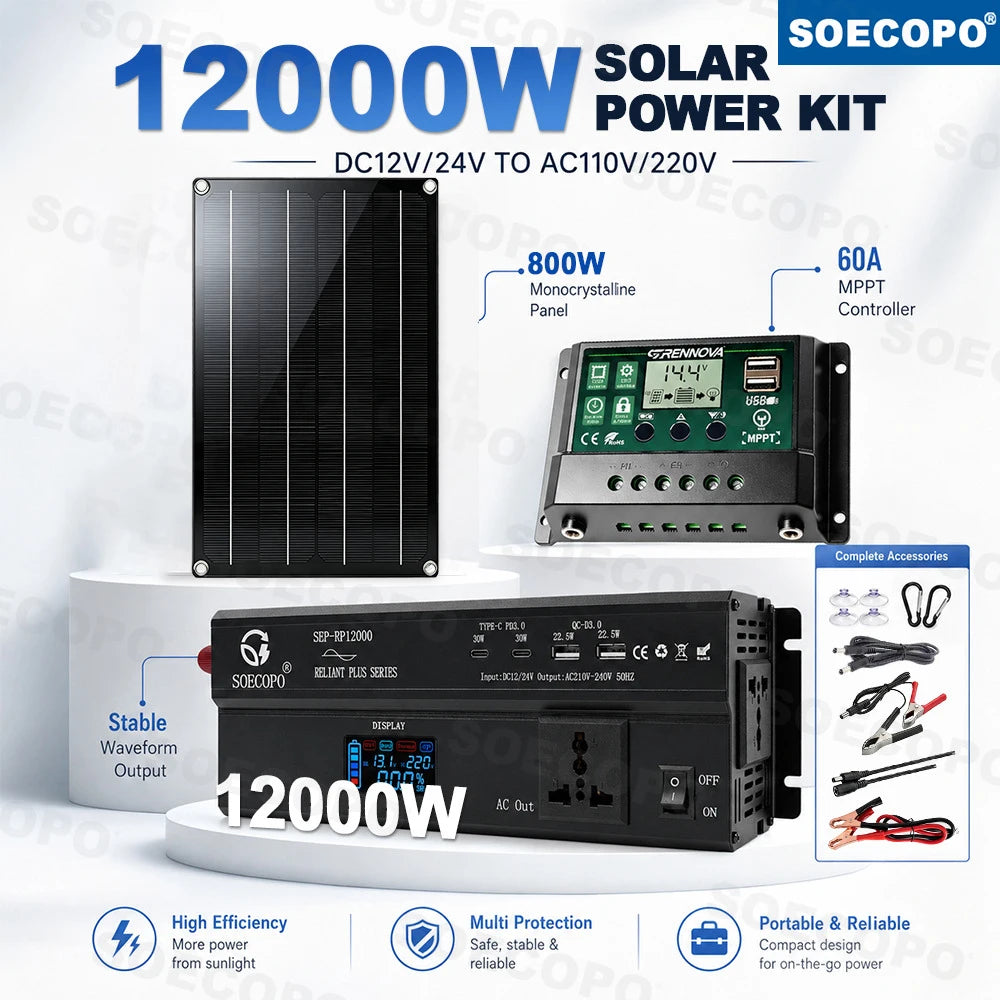

Monocrystalline Panel Version

- Monocrystalline panel version, 540 × 280 mm.

- 18V DC output and 5V USB output.

- Aluminum substrate + efficient chip + PET construction; IP67 waterproofing is subject to

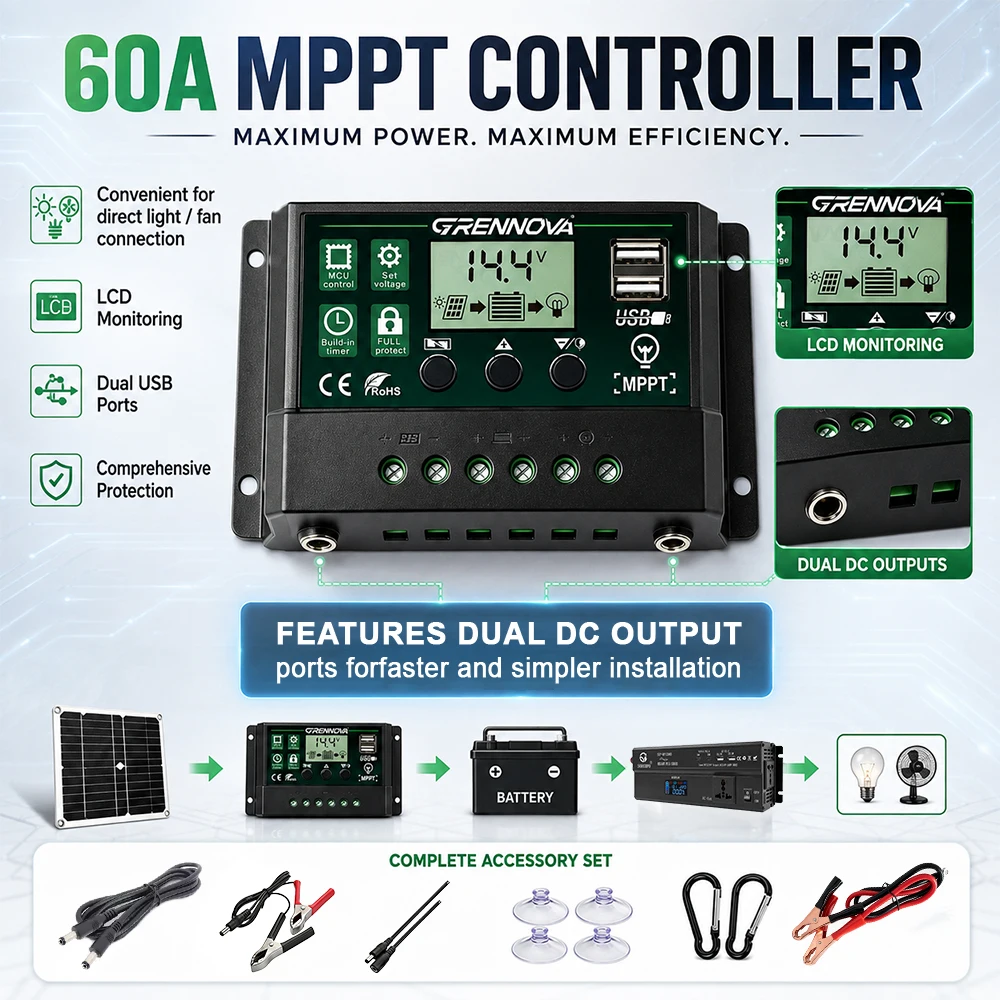

Fixed 60A GRENNOVA MPPT Controller

- Fixed 60A GRENNOVA MPPT controller.

- LCD monitoring, dual USB ports and dual DC outputs.

- Connect the panel, controller and battery in the order shown in the installation steps.

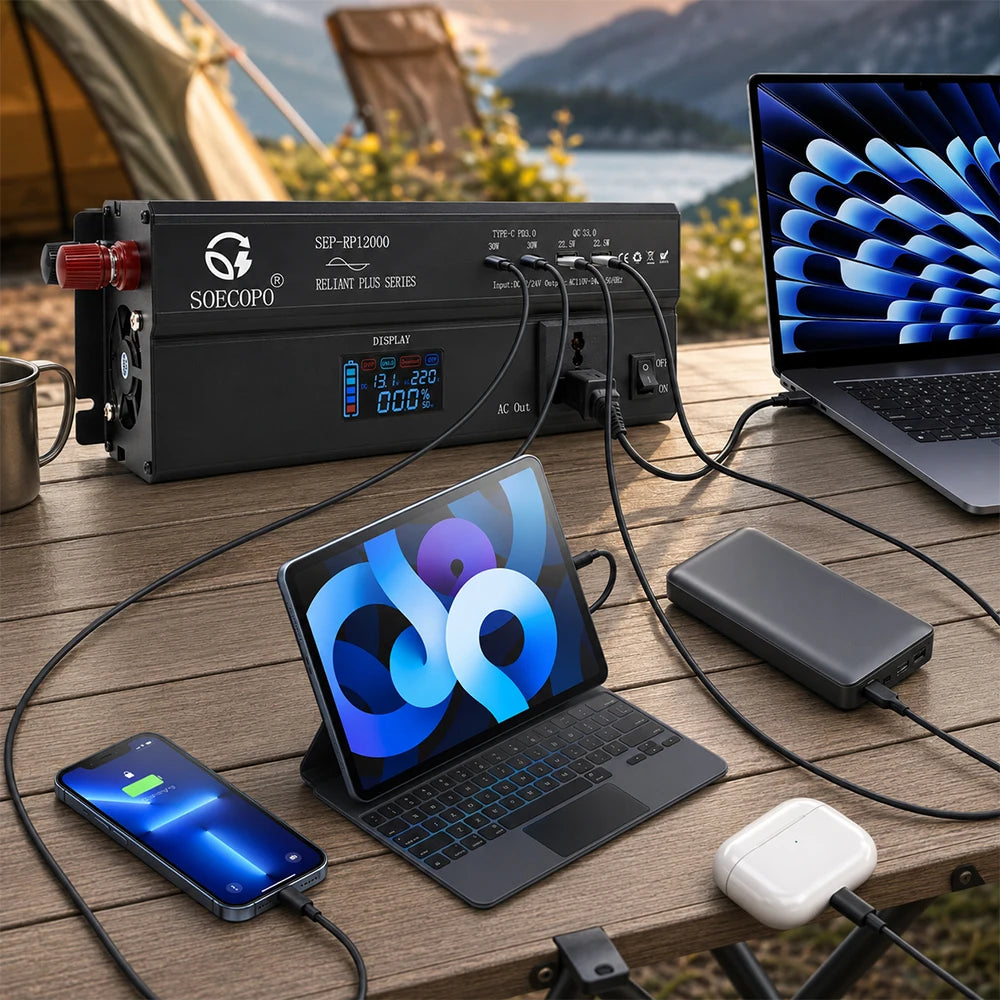

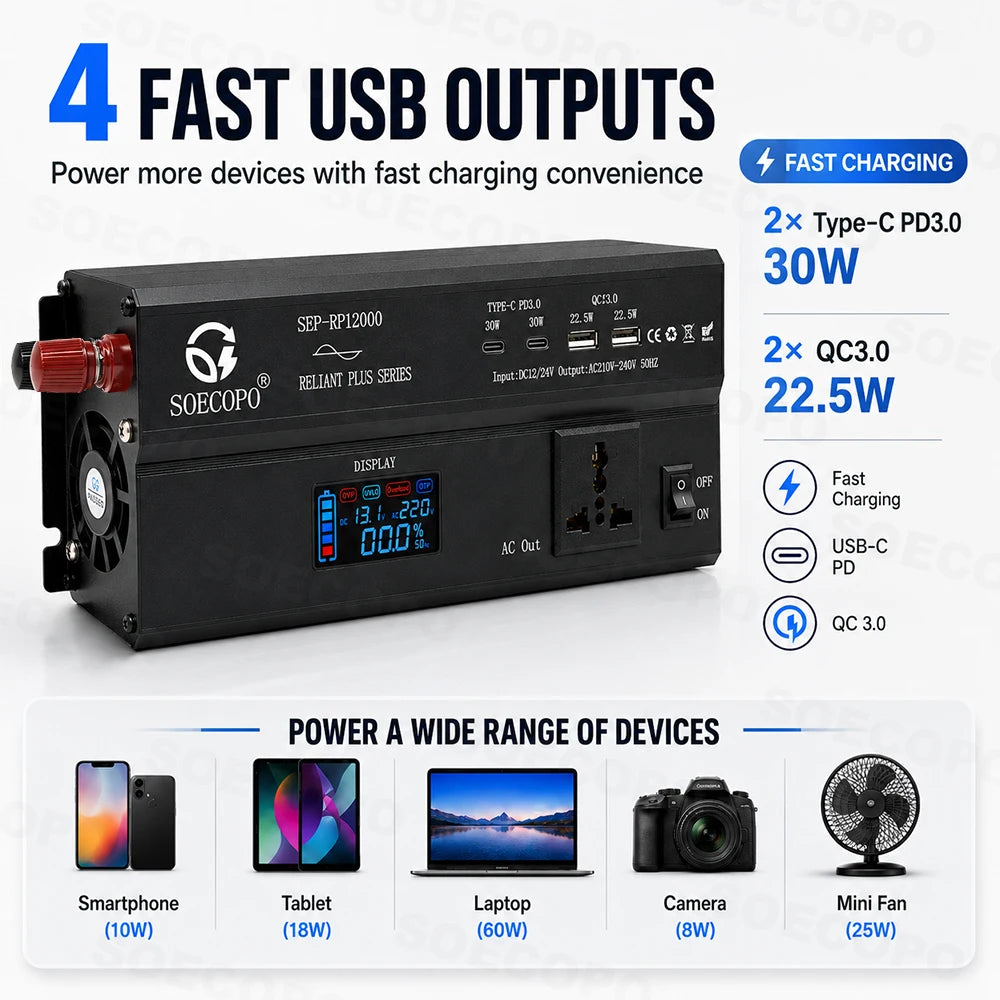

Four Fast USB Outputs

- 2 × Type-C PD3.0, 30W each.

- 2 × USB-A QC3.0, 22.5W each.

- Charging results depend on the connected device and cable.

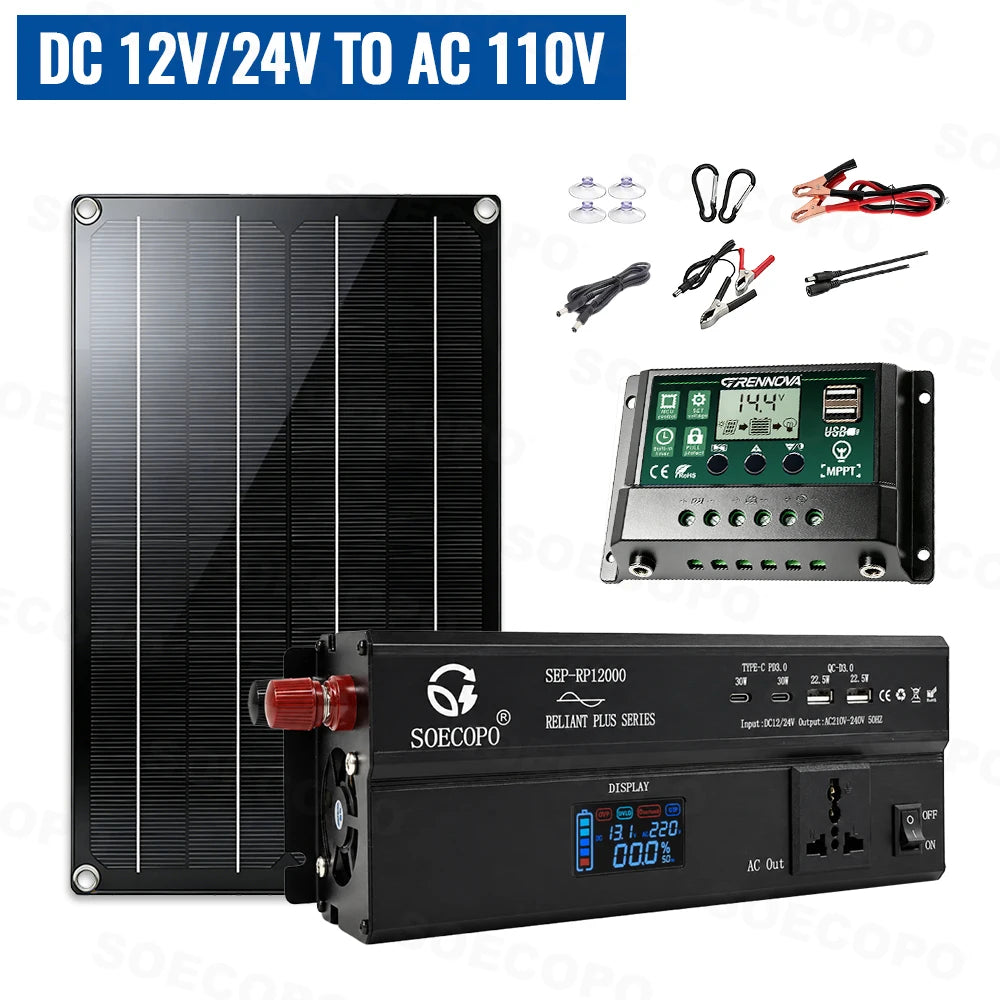

Choose the Correct AC Output

Select the required inverter output version before ordering: AC 110V or AC 220V. Match the output version to your local appliances and use the corresponding wiring.

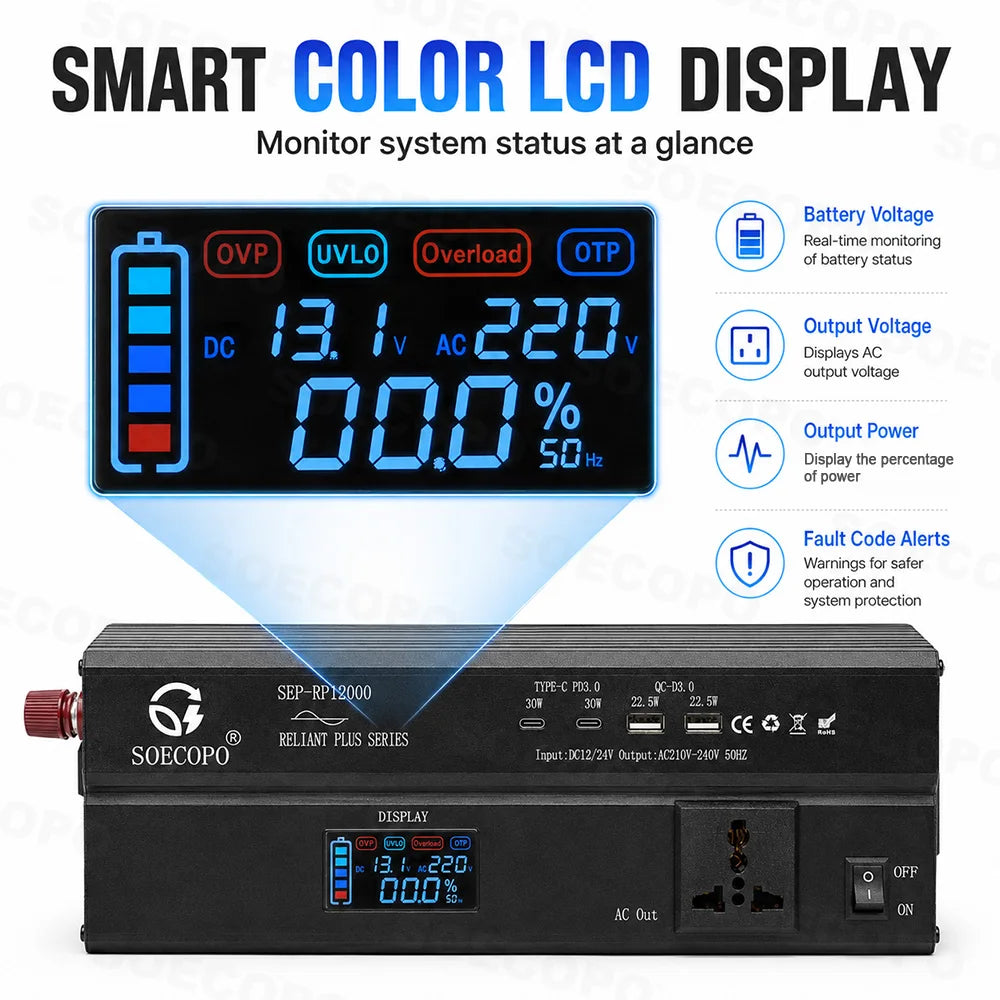

Smart Color LCD Monitoring

The inverter LCD displays battery voltage, AC output voltage, output power percentage, frequency and fault-code alerts. Check the screen during operation for system status.

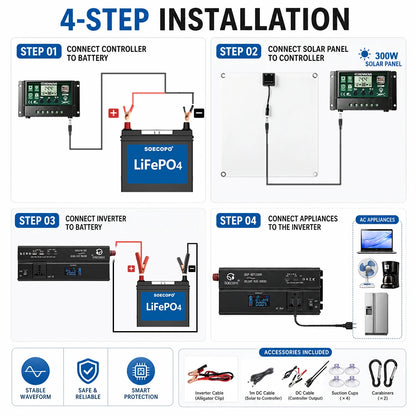

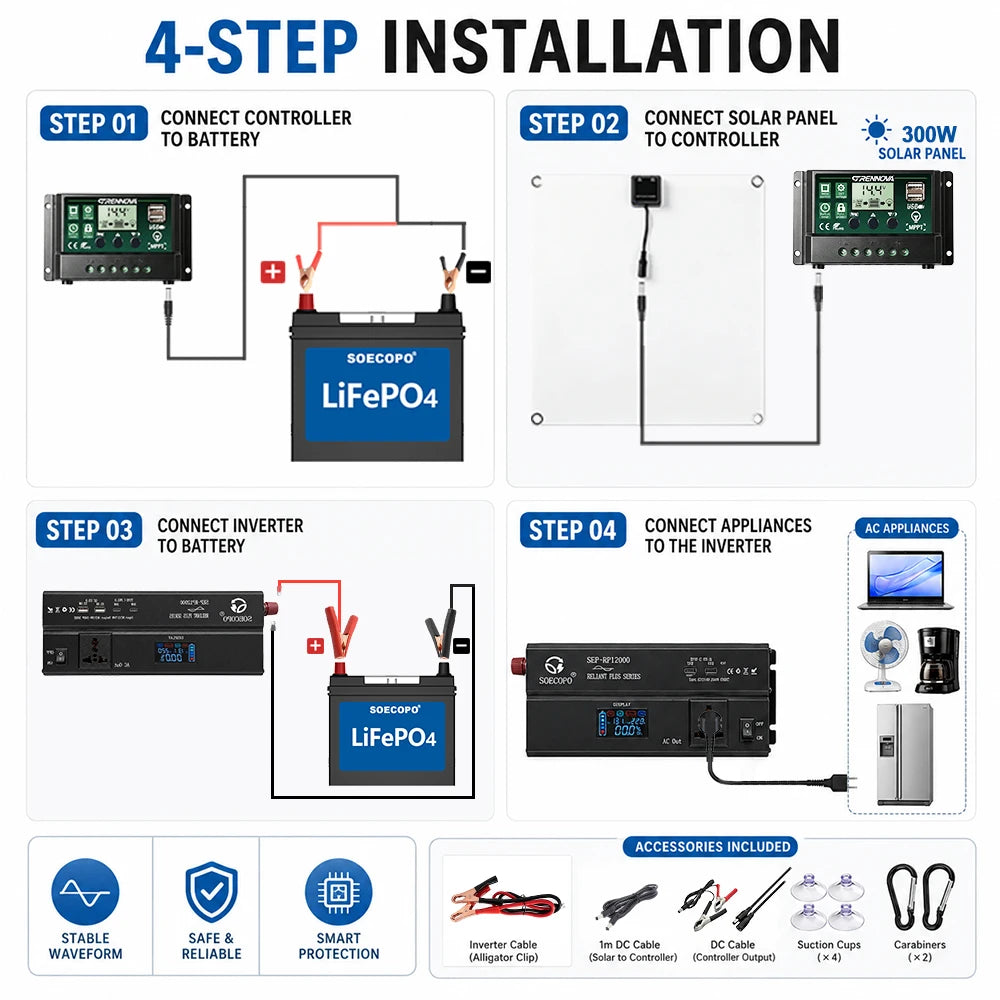

Four-Step System Connection

1. Connect the controller to the battery.

2. Connect the solar panel to the controller.

3. Connect the inverter to the battery.

4. Connect appliances to the inverter.

Battery is not included and must be purchased separately.

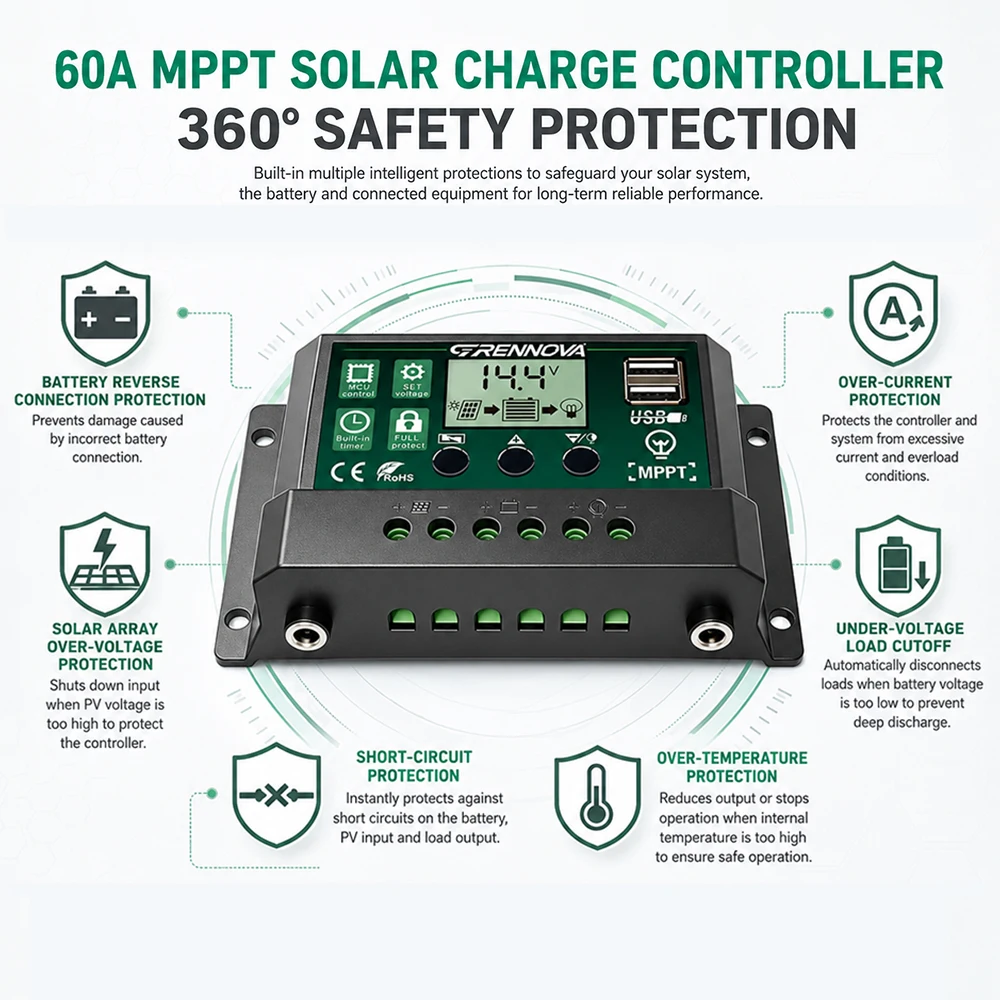

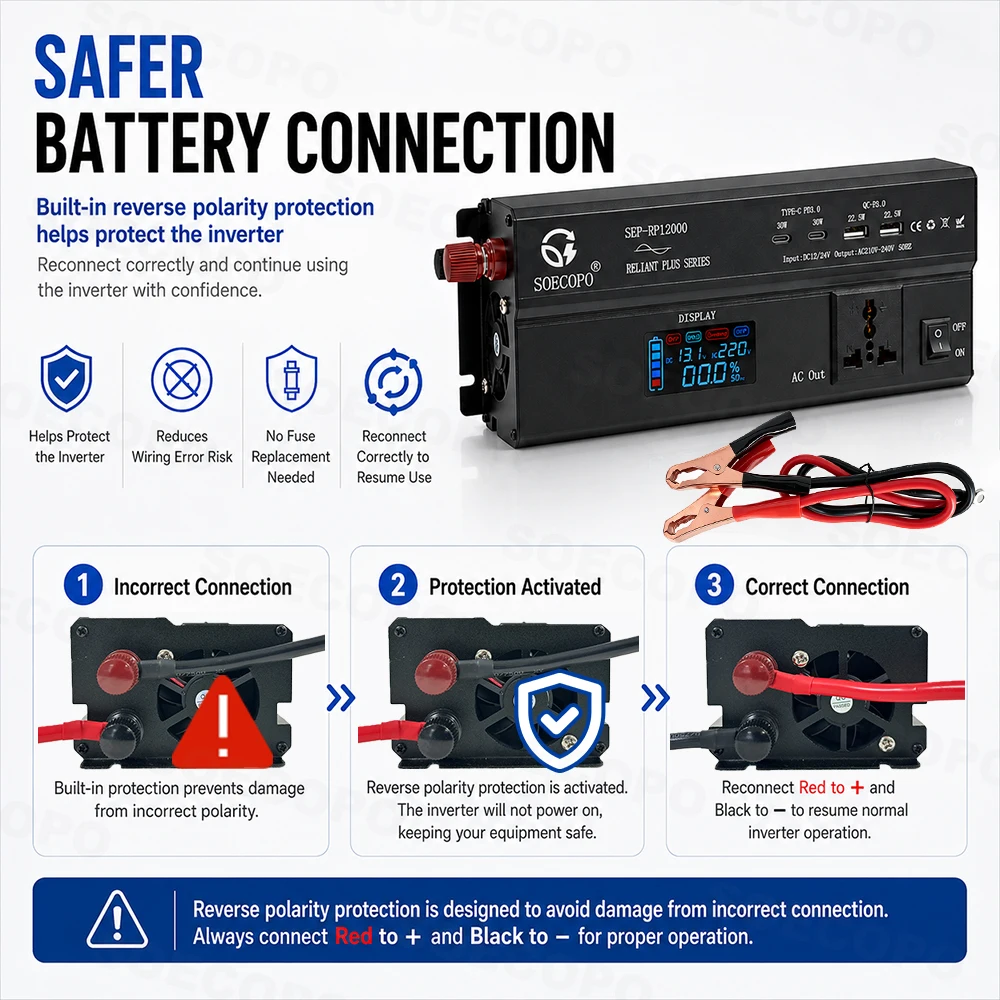

Protection and Correct Polarity

Protection functions include:

- Battery reverse connection and PV over-voltage.

- Over-current, under-voltage load cutoff, short circuit and over-temperature.

- Inverter wiring: red to + and black to − before switching on.

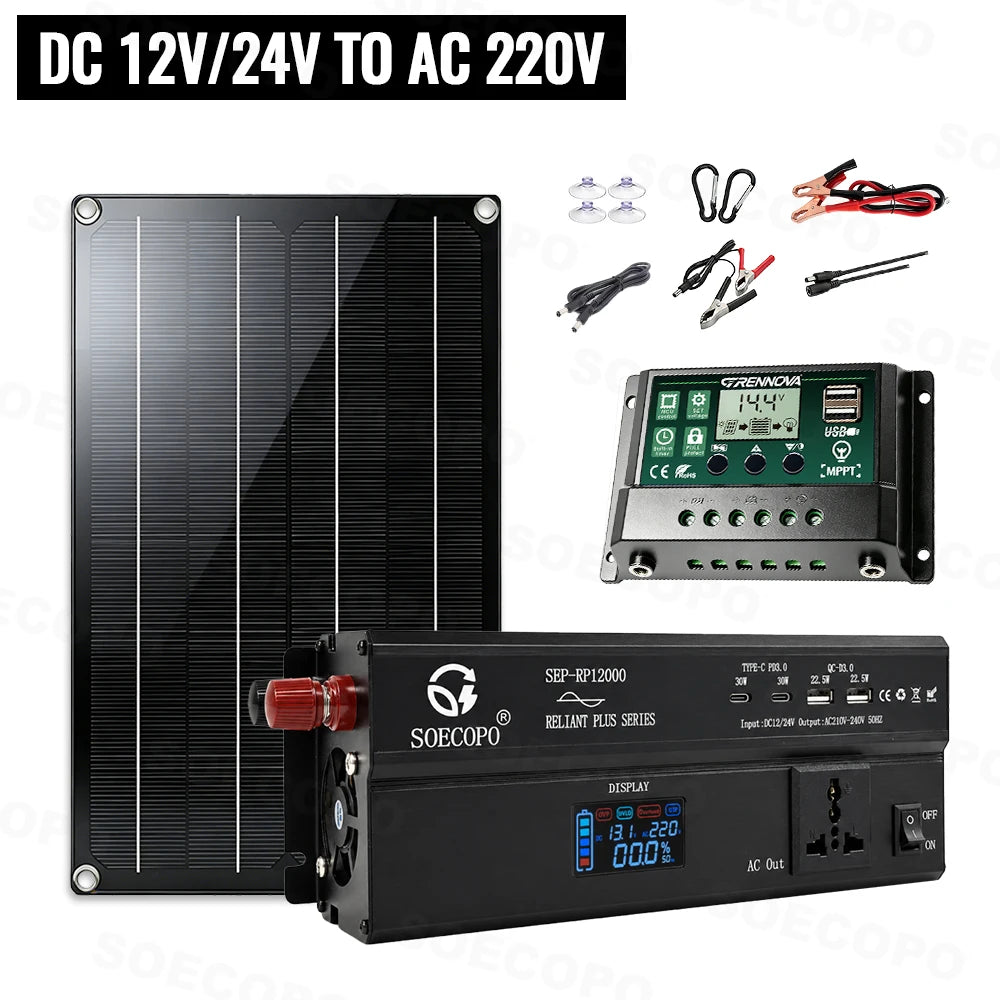

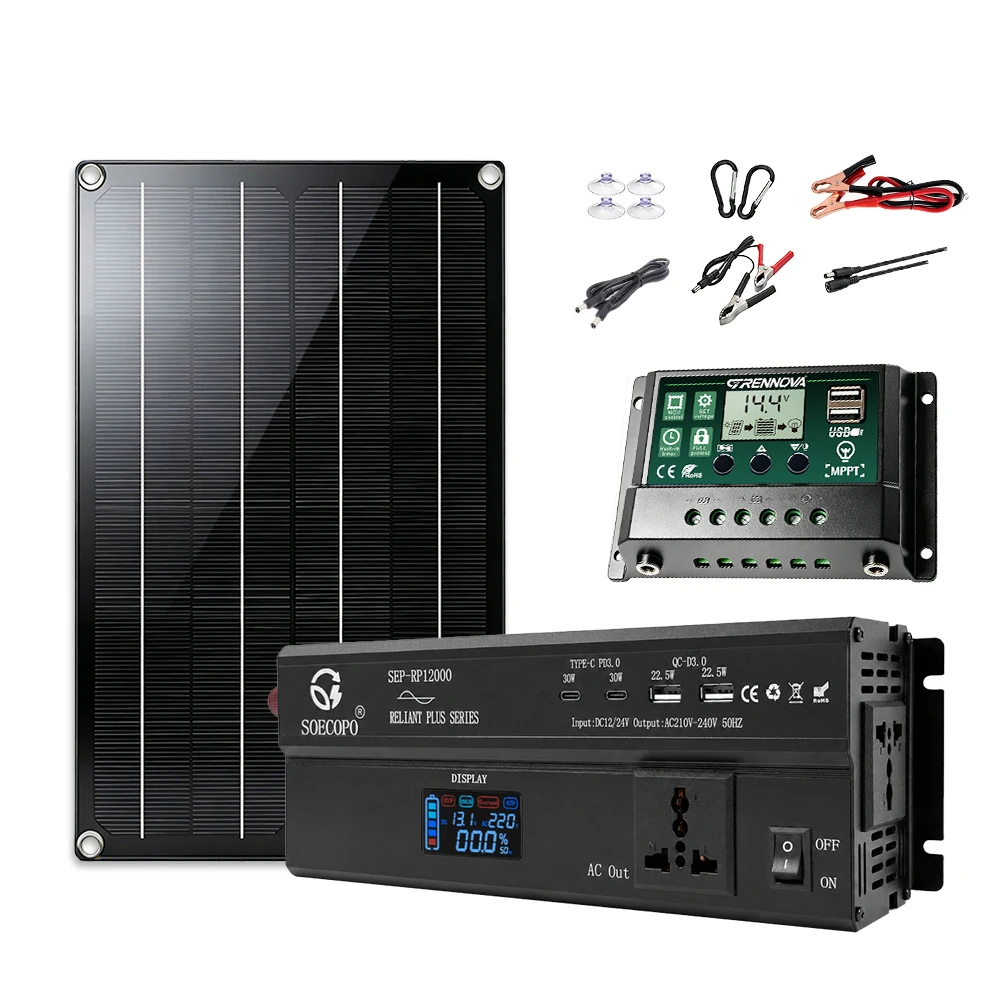

Package Contents

Package contents:

- Solar Panel, 60A MPPT controller and Inverter.

- Inverter clamp cable, 1m controller cable and controller output cable.

- 4 suction cups and 2 carabiners.

- Battery is not included.

🔋Choose the right battery

Choosing the right battery is very important for your inverter to work safely and stably.

1. Selection Principle

The actual output power of the inverter is determined by the discharge capability of the battery.

If the battery capacity is too small, the following problems will occur:
⭐Low voltage alarm
⭐Automatic shutdown
⭐Unable to drive loads
⭐Cannot reach rated power

2. How to calculate the required battery current

The maximum current the battery needs to supply depends on your inverter power and battery voltage.

Formula:

Discharge Current (A) = Inverter Rated Power (W) ÷ Battery Voltage (V) ÷ 0.85

3. Suggested Battery for Common Inverters

For 12V Batteries
⭐500W inverter → Recommended battery: 70Ah or above
⭐1000W inverter → Recommended battery: 100Ah or above
⭐1500W inverter → Recommended battery: 150Ah or above
⭐2000W inverter → Recommended battery: 200Ah or above

For 24V Batteries
⭐1000W inverter → Recommended battery: 70Ah or above
⭐1500W inverter → Recommended battery: 100Ah or above
⭐2000W inverter → Recommended battery: 150Ah or above
⭐3000W inverter → Recommended battery: 200Ah or above

4. Important Tips

⭐Insufficient battery capacity will cause low voltage alarm, shutdown or unable to reach full power.

⭐For long life and safe use, do not overload the battery.

⭐If you need help choosing a battery, please tell us your inverter model and load power.
